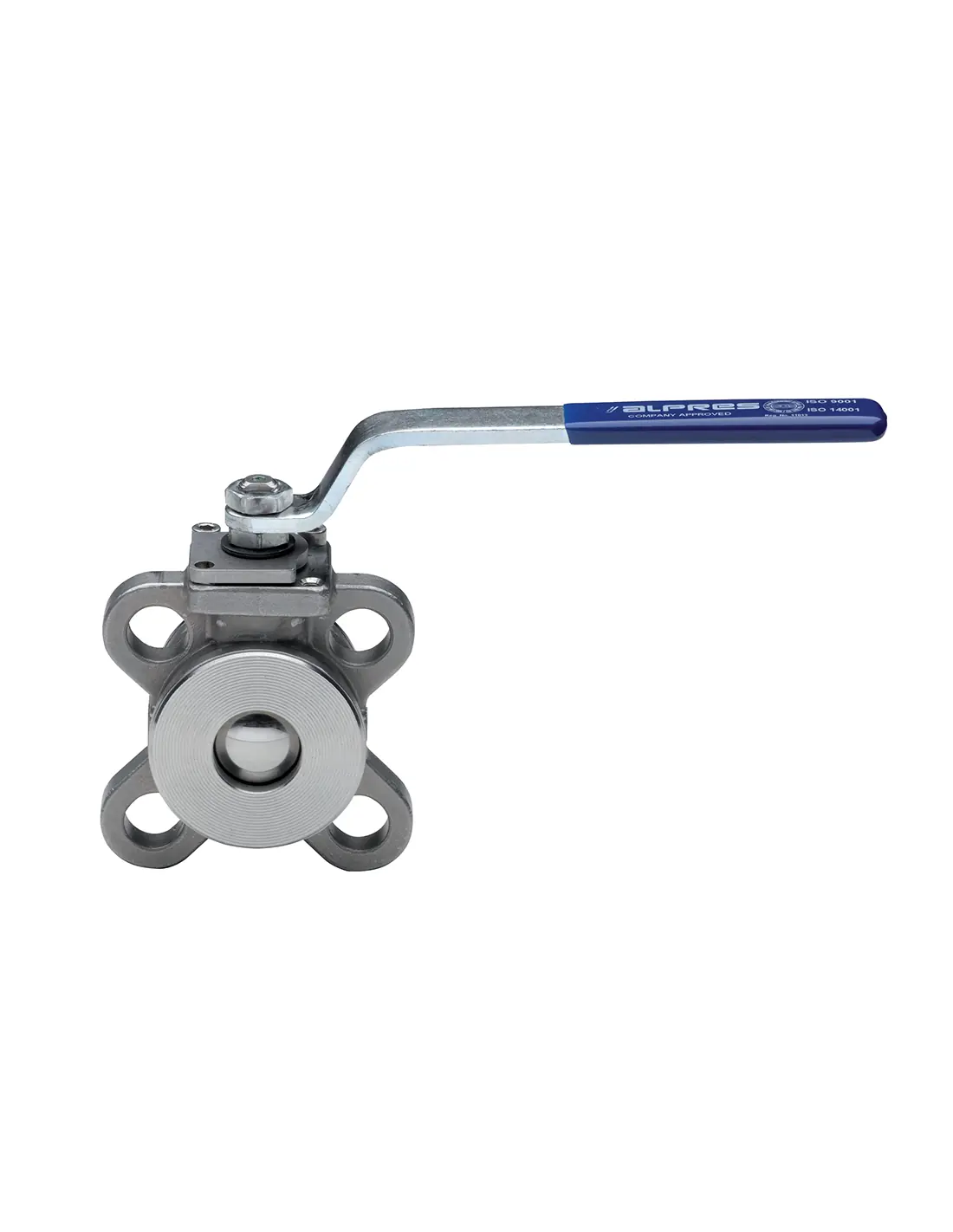

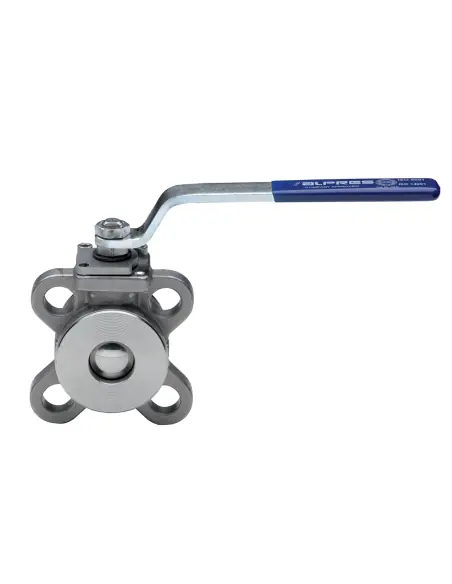

Wafer Ball Valves - Wafer PN10/PN16/ANSI150 - 725000 | Valpres

Discover the Power of Performance: Wafer Ball Valves - Wafer PN10/PN16/ANSI150 - 725000 | Valpres

When you need top-quality control and reliability for your industrial systems, the Wafer Ball Valves - Wafer PN10/PN16/ANSI150 - 725000 | Valpres stands out as the smart choice. Trusted by professionals across industries, this valve brings efficiency and confidence to fluid management. With its compact wafer design, it fits perfectly even in tight spaces, all while delivering trustworthy shut-off and regulation.

Features & Benefits: Wafer Ball Valves - Wafer PN10/PN16/ANSI150 - 725000 | Valpres

  • Universal Compatibility: Seamlessly compatible with PN10, PN16, and ANSI150 flanges, making it ideal for worldwide standards and diverse projects.
  • Space-Saving Wafer Design: Its slim profile allows for easy installation between pipeline flanges, maximizing space and minimizing hassle during setup.
  • Robust Construction: Crafted from high-grade materials that withstand pressure and resist wear, ensuring long service life even under tough industrial conditions.
  • Leak-Free Assurance: The precision-engineered floating ball design provides tight shut-off, helping prevent leaks and protect your equipment.
  • Effortless Operation: With its smooth lever action and low operating torque, even novice users can achieve accurate flow control with minimal effort.
  • Easy Maintenance: Simple to access and clean, reducing downtime and keeping your system running efficiently.
  • Corrosion Resistance: Resists corrosion from a wide range of fluids and environments, keeping your operations safe and your maintenance costs low.

Upgrade your fluid control system with the Wafer Ball Valves - Wafer PN10/PN16/ANSI150 - 725000 | Valpres. It’s designed for reliability, safety, and performance in any industrial setting. Whether you are managing water, chemicals, or gases, you can rely on this valve for airtight shut-off and smooth flow regulation. Enjoy peace of mind and operational excellence with a valve engineered for durability and effortless use.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 40

Datasheet and documents

Description

v-ball option

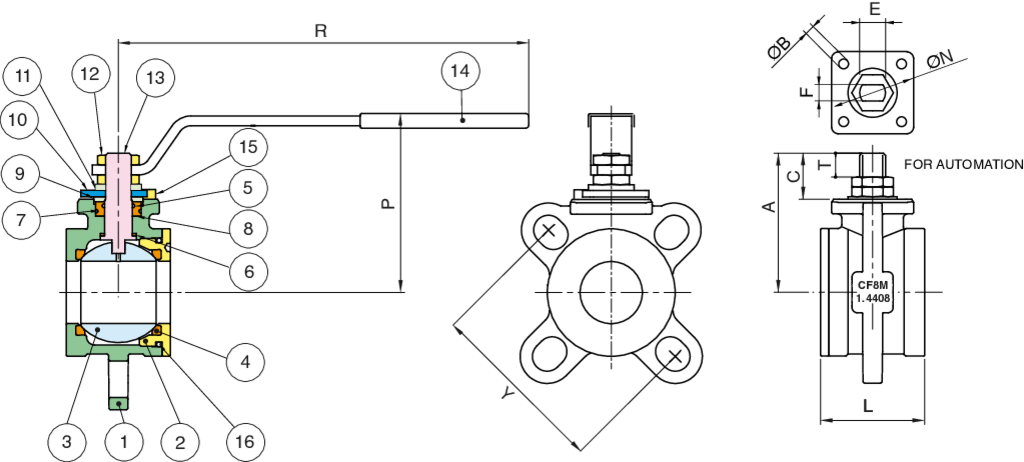

Technical specifications

725000TS

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA182-F3161
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5O-RINGFKM1
6THRUST WASHERPTFE1
7RINGFKM1
8STEM SEATPTFE1
9PACKING GLANDA182-F3161
10END STOPCARBON STEEL1
11SPRING WASHERCARBON STEEL2
12NUTCARBON STEEL2
13STEMA479-TP316/17-4-PH1
14HANDLECARBON STEEL1
15SCREWCARBON STEEL2
16O-RINGFKM1
SIZEDNCODEYLRPACTEFØNBKvPNKg
1"2572500006PN10 - PN16 - PN40 - ANSI150461749171,5239M12842M564,5401,30
1"1/43272500007PN10 - PN16 - PN40 - ANSI150541749575239M12842M5103,8401,65
1"1/24072500008PN10 - PN16 - PN40 - ANSI15063,5250110852812,5M161050M6174402,15
2"5072500010PN10 - PN16 - PN40 - ANSI1508225011993,52812,5M161050M6301,3403,75
2"1/26572500012PN10 - PN16 - ANSI150103321145121,533,516M201470M8545,7207,35
3"8072500014PN10 - PN16 - ANSI15012232115413133,516M201470M8872,52010,30
4"*10072500018PN10 - PN16 - ANSI15015232116714433,516M201470M81363,32016,00

*V-Ball not available for size 4".

Certifications

ATEX  ATEX

  TUV SIL 3  TUV SIL 3
