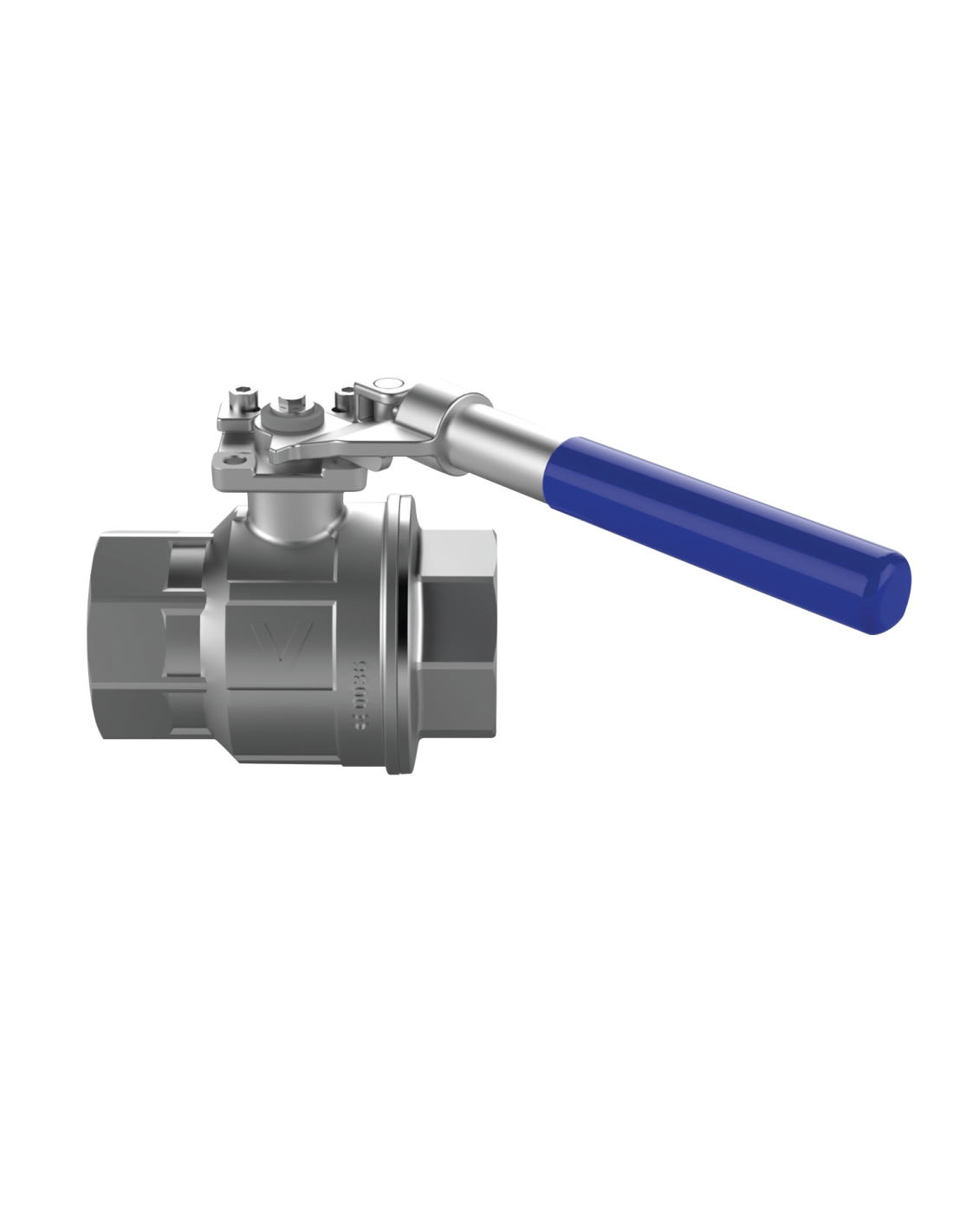

Inox-val 2 Piece Ball Valves - 7003 Series | Valpres

Elevate Your Industrial Flow Control with Inox-val 2 Piece Ball Valves - 7003 Series | Valpres

Experience reliable and efficient flow management with the Inox-val 2 Piece Ball Valves - 7003 Series | Valpres. Designed for industrial environments where safety, durability, and performance matter most, this top-quality ball valve delivers outstanding results for a wide range of applications.

Features and Benefits of Inox-val 2 Piece Ball Valves - 7003 Series | Valpres

  • Durable Stainless Steel Construction: Crafted from premium stainless steel, this valve resists corrosion and stands up to tough industrial use, ensuring long-term reliability.
  • Two-Piece Design: The smart two-piece structure makes installation and maintenance quick and straightforward, saving time and reducing downtime during servicing.
  • Full Bore for Optimum Flow: The full bore design allows liquids and gases to pass through without restriction, improving efficiency and minimizing pressure loss within your system.
  • Easy Operation: Thanks to its smooth rotating handle, controlling flow is effortless. Opening and closing the valve requires minimal force, making it user-friendly for all operators.
  • Secure, Leak-Proof Performance: Precision engineering prevents leaks, even under high pressure, giving you peace of mind and safer operations.
  • Versatile Use: Perfect for various fluids, such as water, oil, and gas, making it a fit for numerous industries including chemical, petrochemical, and food processing.

Engineered with attention to quality and detail, the Inox-val 2 Piece Ball Valves - 7003 Series | Valpres handles demanding environments with ease. Its robust construction and smart design reduce the risk of costly breakdowns, so your workflow stays uninterrupted. The easy-to-clean surface and replaceable seals further enhance operational efficiency and life span.

Choose the 7003 Series for dependable, hassle-free flow control and enjoy a product built to withstand the rigors of industry. Upgrade your process with this modern solution that delivers safety, convenience, and lasting value in every operation.


Type : 700313
Standard (Options)
  • DIN
Connection (Options)
  • NPT
  • ISO 7 Rp
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 64

Description

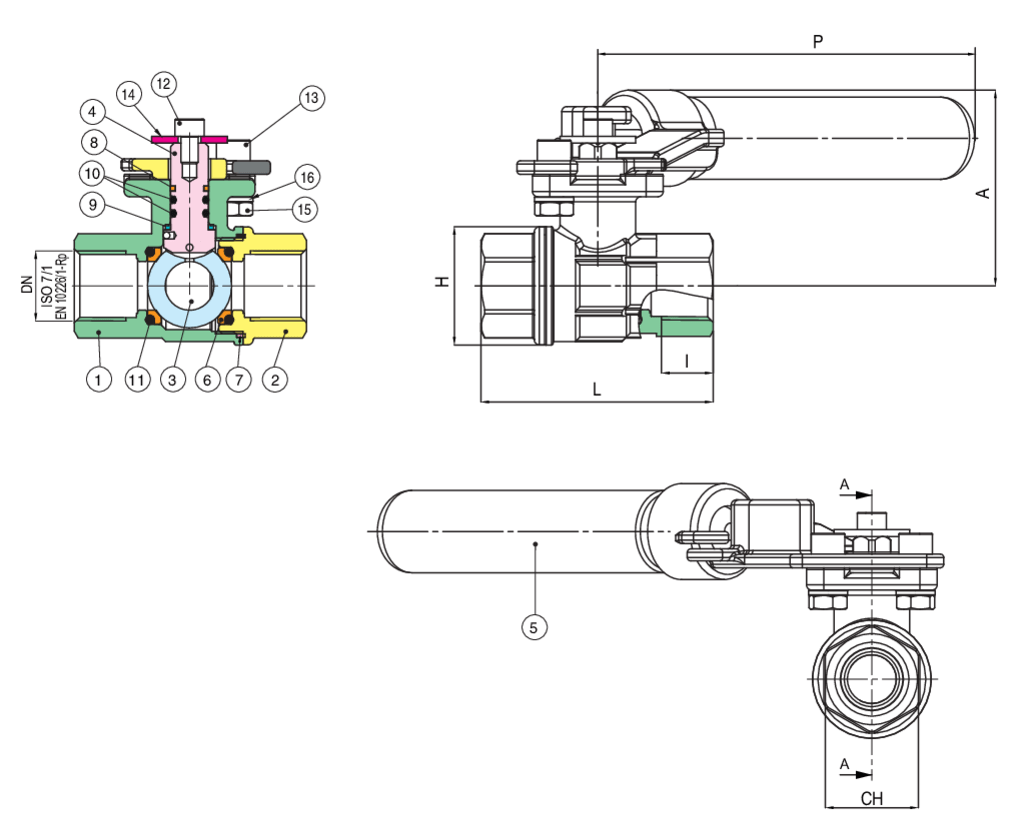

Valpres - Inox-val 2 Piece Ball Valves - 700313

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA351-CF8M1
4ANTISTATIC STEMA479-TP3161
5HANDLEA351-CF81
6BALL SEATPTFE VERGINE2
7BODY SEATPTFE1
8STEM SEATPTFE1
9ANTIFRICTION RINGTFM1
10O-RINGFKM2
11O-RINGFKM2
12SCREWA2-701
13SCREWA2-702
14WASHERAISI 3041
15NUTA2-702
16WASHERAISI 3042
SIZEDNCODEBOXILHChACEØNBZKvPNKg
1/2"157003130410156734,5ES.2741,5993663819,2640,32
3/4"2070031305616,37842ES.3243,5993663835640,42
1"2570031306519,19051,5ES.4153,5993663864,5640,73
1"1/43270031307221,410064,5OT.50579936638103,8641,08
1"1/24070031308221,411277OT.5574111150750174641,72
2"5070031310325,713597OT.7083,3111150750301,3643,00

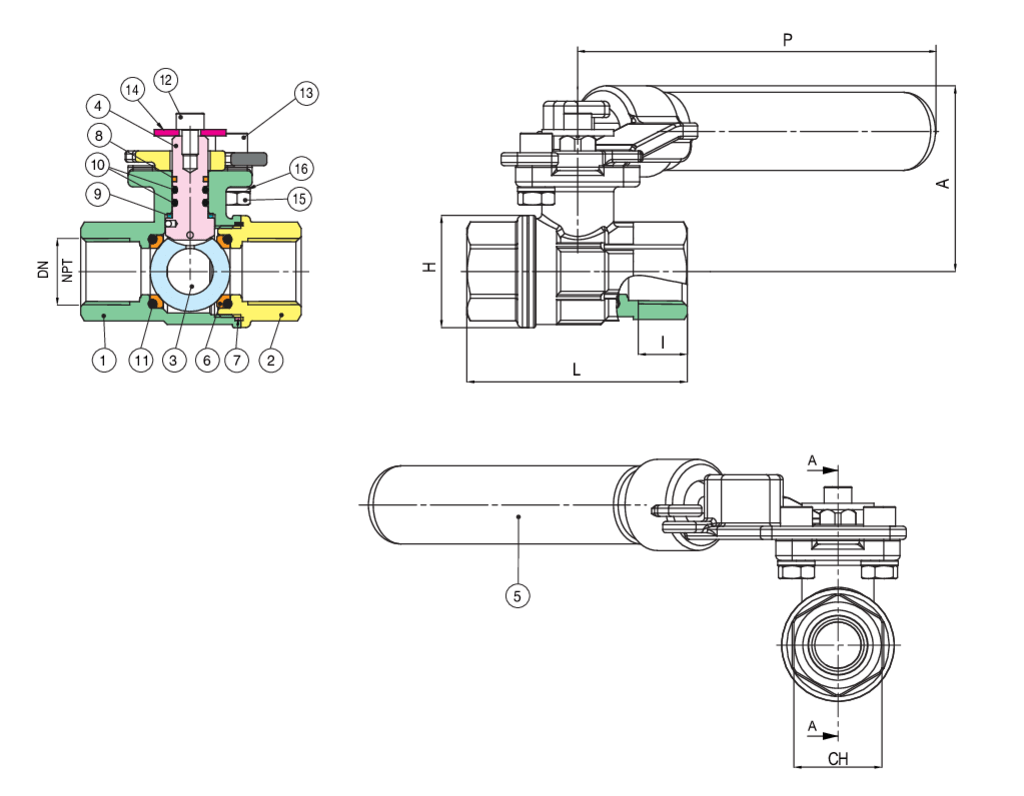

Valpres - Inox-val 2 Piece Ball Valves - 700328

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA351-CF8M1
4ANTISTATIC STEMA479-TP3161
5HANDLEA351-CF81
6BALL SEATPTFE VERGINE2
7BODY SEATPTFE1
8STEM SEATPTFE1
9ANTIFRICTION RINGTFM1
10O-RINGFKM2
11O-RINGFKM2
12SCREWA2-701
13SCREWA2-702
14WASHERAISI 3041
15NUTA2-702
16WASHERAISI 3042
SIZEDNCODEBOXILHChACEØNBZKvPNKg
1/2"157003280410156734,5ES.2741,5993663819,2640,32
3/4"2070032805616,37842ES.3243,5993663835640,42
1"2570032806519,19051,5ES.4153,5993663864,5640,73
1"1/43270032807221,410064,5OT.50579936638103,8641,08
1"1/24070032808221,411277OT.5574111150750174641,72
2"5070032810325,713597OT.7083,3111150750301,3643,00

Certifications

ATEX ATEX

SIL 3 SIL 3
