Inox-val 2 Piece Ball Valves - 700004-700017 | Valpres: The Reliable Choice for Industrial Performance

Upgrade your industrial setup with the Inox-val 2 Piece Ball Valves - 700004-700017 | Valpres. Engineered for reliability and precision, these valves deliver consistent performance in demanding environments. Designed by Valpres, a leader in industrial valve solutions, they are crafted to meet the highest standards of safety and efficiency.

Features and Benefits of Inox-val 2 Piece Ball Valves - 700004-700017 | Valpres

  • Rugged Stainless Steel Construction: Made entirely from high-grade inox (stainless steel), these ball valves resist corrosion and wear, making them ideal for harsh industrial conditions.
  • Easy Two-Piece Design: The clever two-piece build simplifies installation and maintenance, saving valuable time and minimizing downtime during replacements or servicing.
  • Leak-Proof Performance: Precision engineering ensures a tight seal, preventing leaks and guaranteeing safe operation even under high pressure.
  • Versatile Use: Suitable for a wide range of industrial applications, including water treatment, chemical processing, and more, thanks to robust compatibility with liquids and gases.
  • Effortless Operation: The quarter-turn mechanism allows quick and smooth shut-off or flow control with a simple twist, reducing operator effort and increasing productivity.
  • Wide Pressure Range: Designed to withstand varying pressure levels, these valves remain reliable from low to high-pressure systems, providing flexibility in different setups.
  • Enhanced Safety: With proven quality from Valpres, the valves are manufactured to meet strict safety guidelines, giving peace of mind to operators and plant managers alike.

Choose Inox-val 2 Piece Ball Valves - 700004-700017 | Valpres for your industrial operations and experience a worry-free flow management solution. These valves are built to last, require minimal maintenance, and ensure optimal control over your processes. For industries seeking durability and ease of use, they represent a smart investment that will continue to pay off, shift after shift.


Type : 700004
Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • NPT
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 140

Description

Valpres - Inox-val 2 Piece Ball Valves - 700004

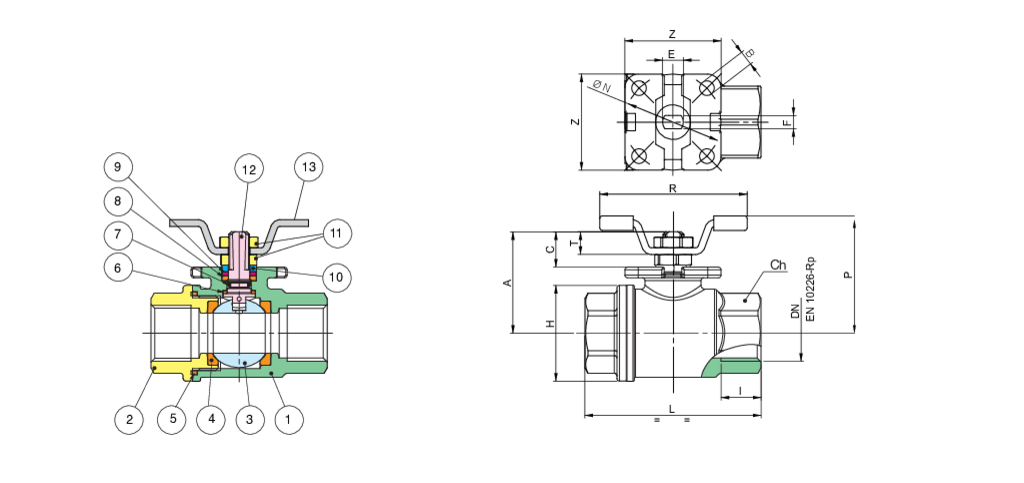

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE1
6THRUST WASHERTFM1
7O-RINGFKM1
8STEM SEATPTFE1
9PACKING GLANDAISI 3031
10END STOPAISI 4301
11NUTA2-702
12STEMA479-TP3161
SIZEDNCODEBOXILHChRPACEFØN ISO 5211BZKvPNKgT
1/8"670000201107,45530ES.2255413513,585365,53651400,289
1/4"87000020210115530ES.2255413513,585365,5365,51400,269
3/8"10700002031011,45530ES.2255413513,585365,5368,51400,259
1/2"157000020410156636ES.2755443813,585365,53619,21400,349

Valpres - Inox-val 2 Piece Ball Valves - 700017

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE1
6THRUST WASHERTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDAISI 3031
10END STOPAISI 4301
11NUTA2-702
12STEMA479-TP3161
13HANDLEAISI 4301
SIZEDNCODEBOXILHChRPACEFØN ISO 5211BZKvPNKgT
1/8"670001701107,45530ES.2255413513,585365,53651400,289
1/4"87000170210115530ES.2255413513,585365,5365,51400,269
3/8"10700017031011,45530ES.2255413513,585365,5368,51400,259
1/2"157000170410156636ES.2755443813,585365,53619,21400,349

Certifications

SIL 3  SIL 3

TUV TUV

 ATEX FIRE-SAFE (On request) ATEX FIRE-SAFE (On request)
