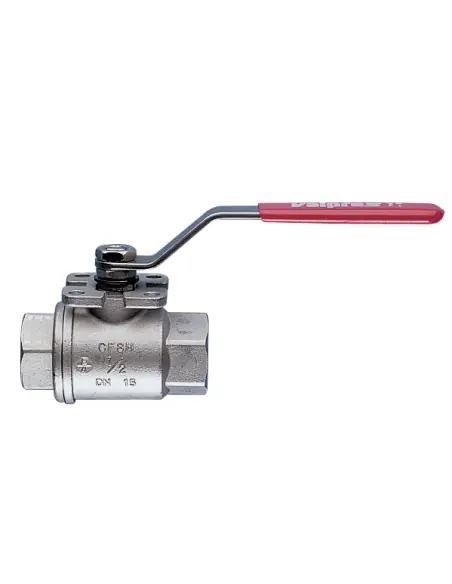

Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Name: Inox-val 2 Piece Ball Valves - 7000 Series | Valpres
Brand: Valpres S.R.L.
SKU: Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Experience Efficiency and Reliability: Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Upgrade your industrial pipeline with the Inox-val 2 Piece Ball Valves - 7000 Series | Valpres, expertly designed for top-tier performance and longevity. Perfect for a wide range of industrial applications, these ball valves deliver straightforward control and dependable results every time.

Outstanding Features and Benefits of Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Superior Stainless Steel Build: Crafted from high-quality stainless steel, these valves are built to last, resisting corrosion and wear even in harsh industrial environments.
Two-Piece Design for Easy Maintenance: The smart two-piece construction allows for quick installation and hassle-free maintenance, saving valuable time and effort.
Precision Flow Control: The advanced ball mechanism ensures smooth operation and reliable shutoff, giving you precise management over the flow of liquids or gases.
Compact and Space-Saving: Designed to fit seamlessly within limited spaces, these valves are ideal for complex pipe networks where every inch counts.
High Pressure Resistance: With robust engineering, the 7000 Series withstands demanding pressures, making it suitable for a wide array of industrial uses.
Universal Fit: Compatible with standard piping systems, these valves integrate easily into your setup with minimal adjustments.
Low Operating Torque: Effortlessly open or close the valve thanks to its efficient mechanism, reducing operator fatigue and improving safety.

The Inox-val 2 Piece Ball Valves - 7000 Series | Valpres stands out for its durable materials and user-oriented design. Whether you are handling water, gas, or chemicals, this valve offers unwavering reliability you can count on. Its simple yet effective structure means less downtime and consistent performance, even after years of use.

Choose Valpres for peace of mind and operational excellence. The 7000 Series combines strong materials, simple maintenance and smart engineering, making it the go-to solution for industrial valve needs.

Type : 700309-700071-700061-700016-700014-700002-700000

Standard (Options)

Connection (Options)

NPT
ISO 7 Rp

Material (Options)

ASTM A351 CF8M

Pressure Rating (Options)

PN 25
PN 64
PN 105
PN 140

Datasheet and documents

Description

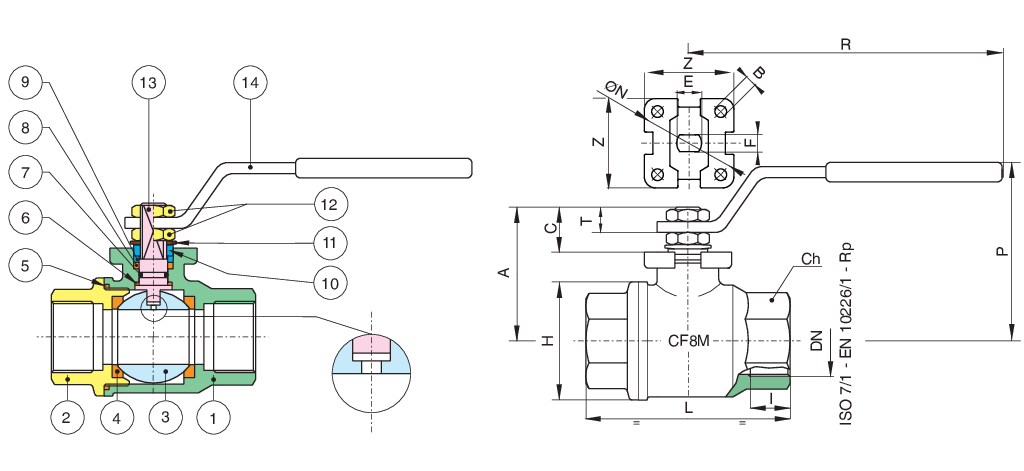

Valpres - Inox-val 2 Piece Ball Valves - 700000

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) CARBON STEEL (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) CARBON STEEL (2"1/2-4")	2-1
11	SPRING WASHER	CARBON STEEL (2’’1/2-3’’-4’’)	2
12	NUT	A182-F304 (1/8”-2”)-CARBON STEEL (2’’1/2-4’’)	2
13	STEM	A479-TP316/17-4-PH	1
14	HANDLE	INOX AISI 430 (1/8”-2”) CARBON STEEL (2"1/2-4")	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN	B	Z	Kv	PN	Kg
1/8"	6	70000001	10	7,7	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29
1/4"	8	70000002	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27
3/8"	10	70000003	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26
1/2"	15	70000004	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35
3/4"	20	70000005	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65
1"	25	70000006	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02
1"1/4	32	70000007	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40
1"1/2	40	70000008	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35
2"	50	70000010	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54
2"1/2	65	70000012	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95
3"	80	70000014	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53
4"	100	70000018	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70

Valpres - Inox-val 2 Piece Ball Valves - 700002

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE VETRO - GLASS FILLED PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FKM	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	SPRING WASHER	50CRV4 Z/P (2''1/2-4'')	2
12	NUT	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70000201	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70000202	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70000203	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70000204	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70000205	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70000206	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70000207	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70000208	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70000210	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70000212	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70000214	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70000218	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

Valpres - Inox-val 2 Piece Ball Valves - 700014

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	EPDM	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	SPRING WASHER	50CRV4 Z/P (2''1/2-4'')	2
12	NUT	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70001401	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70001402	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70001403	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70001404	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70001405	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70001406	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70001407	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70001408	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70001410	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70001412	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70001414	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70001418	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

Valpres - Inox-val 2 Piece Ball Valves - 700016

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	SPRING WASHER	50CRV4 Z/P (2''1/2-4'')	2
12	NUT	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70001601	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70001602	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70001603	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70001604	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70001605	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70001606	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70001607	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70001608	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70001610	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70001612	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70001614	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70001618	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

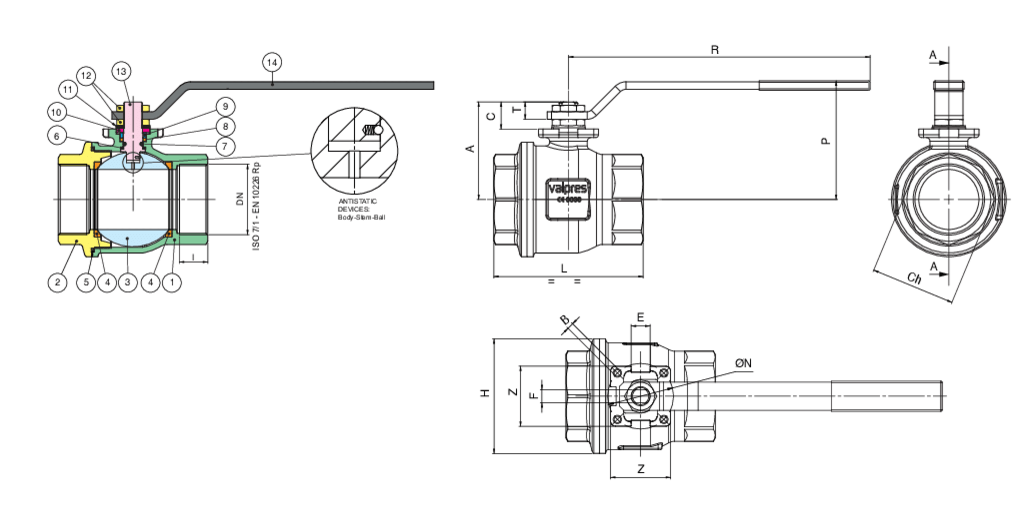

Valpres - Inox-val 2 Piece Ball Valves - 700061

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2
5	BODY SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
6	THRUST WASHER	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	NUT	50CRV4 Z/P (2''1/2-4'')	2
12	SPRING WASHER	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2
13	STEM	A479-TP316	1
14	HANDLE	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70006101	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70006102	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70006103	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70006104	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70006105	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70006106	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70006107	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70006108	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70006110	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70006112	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70006114	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70006118	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

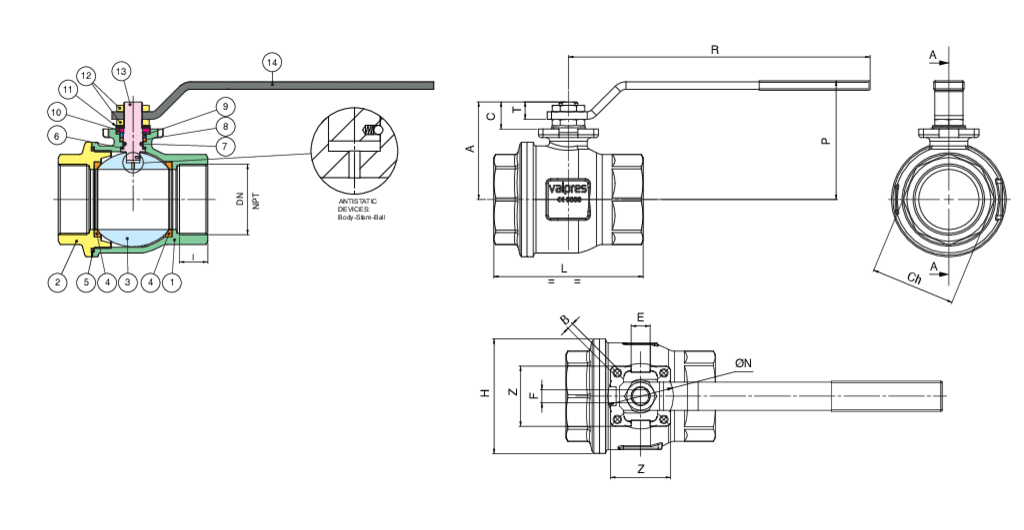

Valpres - Inox-val 2 Piece Ball Valves - 700071

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2
5	BODY SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
6	THRUST WASHER	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
7	O-RING	FKM	1
8	STEM SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	SPRING WASHER	50CRV4 Z/P (2''1/2-4'')	2
12	NUT	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2
13	STEM	A479-TP316	1
14	HANDLE	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70007101	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70007102	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70007103	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70007104	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70007105	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70007106	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70007107	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70007108	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70007110	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70007112	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70007114	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70007118	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

Valpres - Inox-val 2 Piece Ball Valves - 700309

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FFKM (PERFLUOROELASTOMER)	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	SPRING WASHER	50CRV4 Z/P (2''1/2-4'')	2
12	NUT	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2
13	STEM	A479-TP316	1
14	HANDLE	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70030901	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70030902	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70030903	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70030904	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70030905	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70030906	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70030907	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70030908	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70030910	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70030912	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70030914	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70030918	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

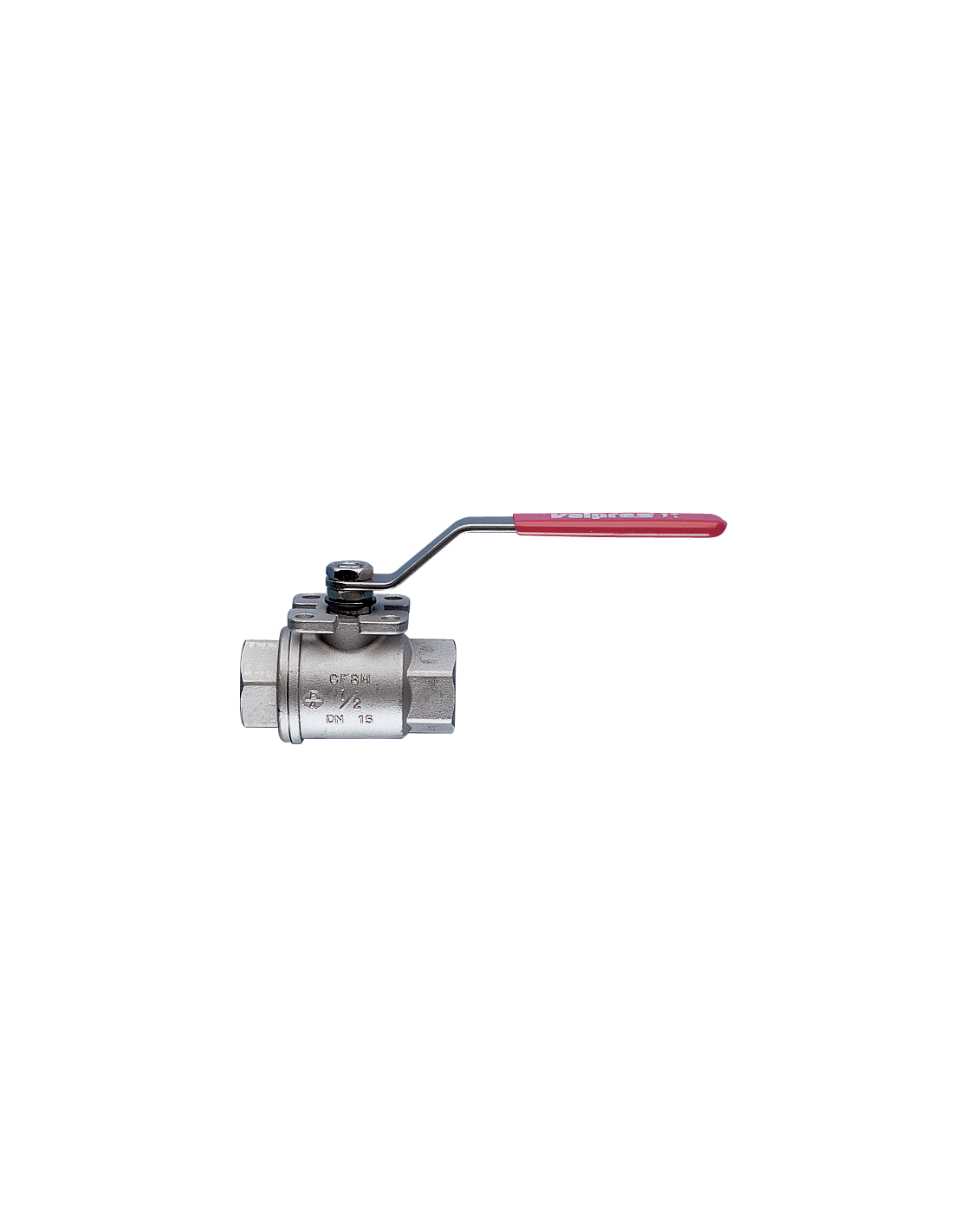

Valpres - Inox-val 2 Piece Ball Valves - 700001

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FKM	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’)	1
10	END STOP	INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")	1
11	SPRING WASHER	50CRV4 Z/P (2''1/2-4'')	2
12	NUT	A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4")	2

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70000101	10	7,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5	140	0,29	9
1/4"	8	70000102	10	11	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	5,5	140	0,27	9
3/8"	10	70000103	10	11,4	55	30	ES.22	110	50	35	13,5	8	5	36	5,5	36	8,5	140	0,26	9
1/2"	15	70000104	10	15	66	36	ES.27	110	53	38	13,5	8	5	36	5,5	36	19,2	140	0,35	9
3/4"	20	70000105	5	16,3	79	45	ES.32	131	68	51	15	10	7	42	5,5	42	35	105	0,65	10
1"	25	70000106	6	19,1	93	54	OT.41	174	79	60	19,5	12	8	42	5,5	42	64,5	105	1,02	12,5
1"1/4	32	70000107	2	21,4	100	64	OT.50	174	83	64,5	19,5	12	8	42	5,5	42	103,8	64	1,40	12,5
1"1/2	40	70000108	2	21,4	110	80	OT.55	250	100	79	24	16	10	50	6,5	50	174	64	2,35	16,5
2"	50	70000110	2	25,7	131	95	OT.70	250	107	86	24	16	10	50	6,5	50	301,3	64	3,54	16,5
2"1/2	65	70000112	1	30,2	159	122	OT.90	321	126	104	28,5	20	14	70	M8	64	545,7	25	6,95	18,5
3"	80	70000114	1	33,3	185	144	OT.105	321	137	114	28	20	14	70	M8	64	872,5	25	10,53	18
4"	100	70000118	1	39,3	222	177	OT.130	381	156	137	34,5	24	18	102	M10	92	1363,3	25	18,70	22

Certifications

SIL 3

TUV

ATEX FIRE-SAFE (On request)

Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Experience Efficiency and Reliability: Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Outstanding Features and Benefits of Inox-val 2 Piece Ball Valves - 7000 Series | Valpres

Datasheet and documents

Description

Certifications

Athens Department

Thessaloniki Department
