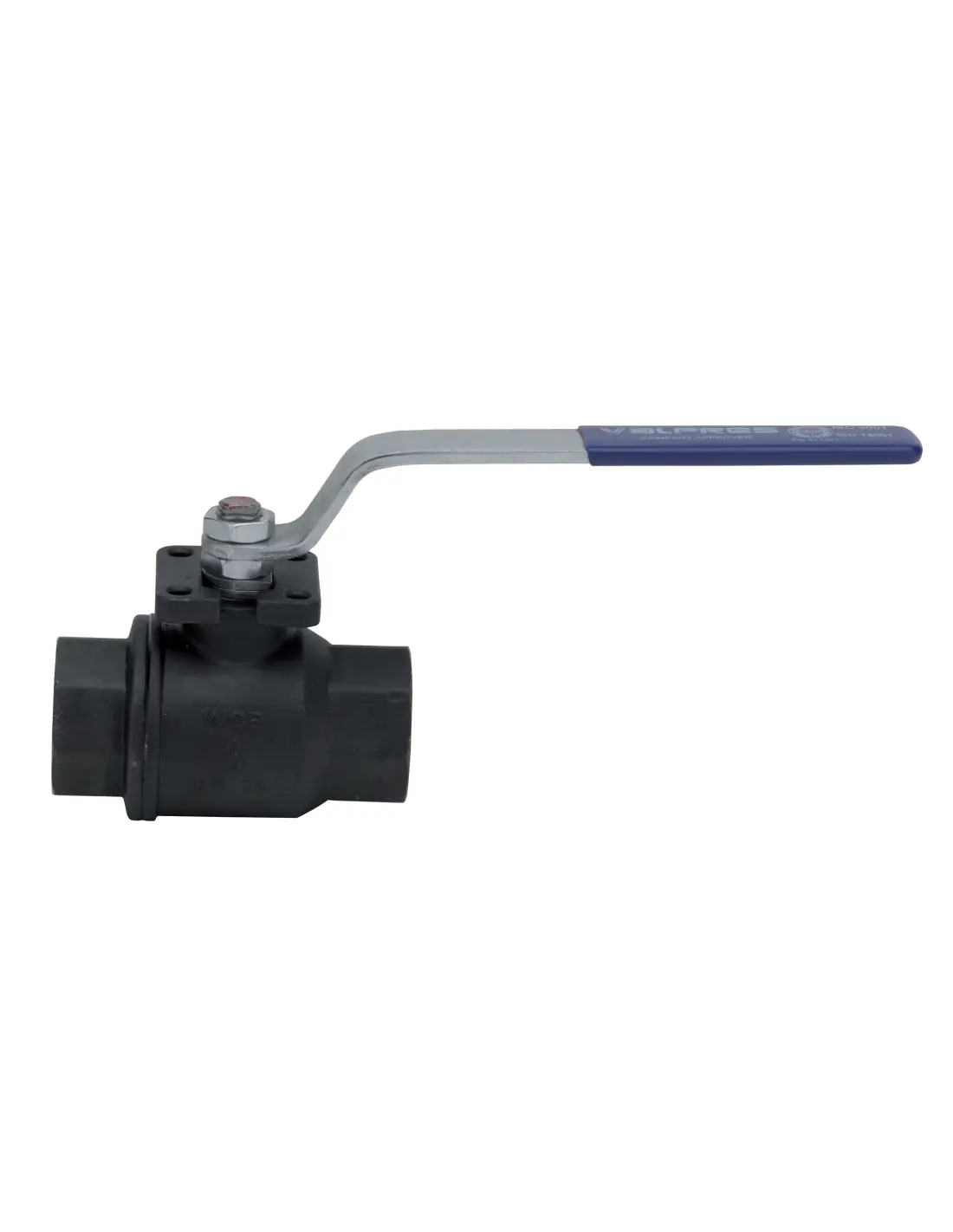

Carbon Steel 2 Piece Ball Valves - 7000 Series | Valpres: The Reliable Choice for Industrial Flow Control

Upgrade your industrial systems with the Carbon Steel 2 Piece Ball Valves - 7000 Series | Valpres, engineered to deliver robust performance and reliable flow control in demanding environments. Built with precision and quality, these valves stand out for their durability and efficiency, making them an ideal solution for a wide range of industrial applications.

Features and Benefits of Carbon Steel 2 Piece Ball Valves - 7000 Series | Valpres

Exceptional Durability: Forged from high-quality carbon steel, these valves are designed to withstand high pressures and harsh conditions, ensuring long service life even in the toughest industrial settings.
Leak-Proof Performance: The two-piece design with a precision-engineered ball delivers a tight seal, preventing leaks and ensuring consistent flow control for all your operation needs.
Easy Operation: The ergonomic handle allows for smooth, effortless turning, enabling quick opening and closing of the valve—ideal for fast-paced industrial environments.
Versatile Application: Perfectly suited for industries such as oil & gas, manufacturing, chemical processes, and water management, offering flexibility across numerous systems.
Maintenance Made Simple: With its straightforward two-piece construction, routine maintenance and cleaning are hassle-free, minimizing downtime and maximizing productivity.
Enhanced Safety: Built to comply with international safety standards, these valves provide worry-free operation and reliable isolation when it matters most.
Corrosion Resistance: Specially treated surfaces protect against rust and chemical damage, contributing to the longevity and stability of your installations.

The Carbon Steel 2 Piece Ball Valves - 7000 Series | Valpres combines smart design and advanced engineering to offer a truly dependable solution. Whether handling gaseous, liquid, or corrosive materials, these valves maintain excellent performance under pressure, keeping your processes running smoothly. Choose these valves for solid reliability and peace of mind in industrial fluid control.

Type : 700056-700077

Standard (Options)

Connection (Options)

NPT
ISO 7 Rp

Material (Options)

ASTM A352 LCB

Pressure Rating (Options)

PN 64

Datasheet and documents

Description

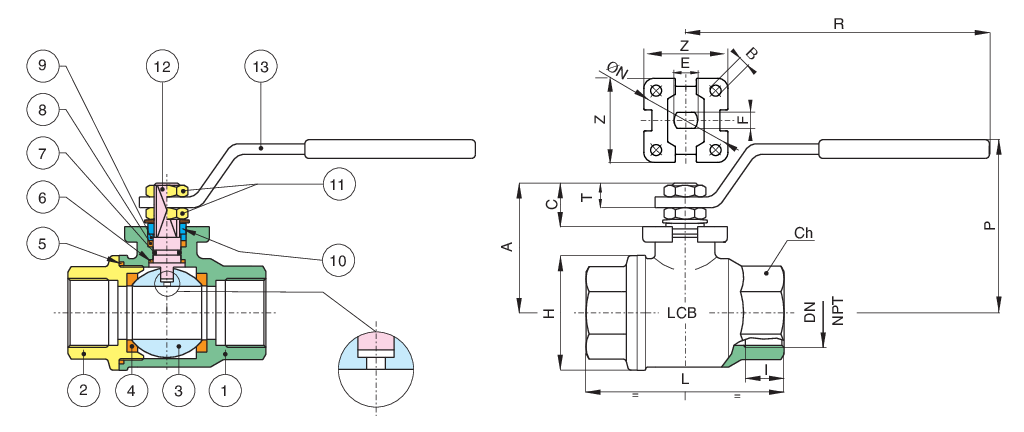

Valpres - Inox-val 2 Piece Ball Valves - 700056

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A352-LCB	1
2	END CONNECTION	A352-LCB	1
3	BALL	A479-TP304/A351-CF8	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	A37+Z/P	1
10	END STOP	INOX AISI 430	1
11	NUT	6S+Z/P	2
12	STEM	A479-TP304	1
13	HANDLE	A37+Z/P	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	T	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg
1/4"	8	70005602	10	11	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	5,5	64	0,27
3/8"	10	70005603	10	11,4	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	8,5	64	0,26
1/2"	15	70005604	10	15	66	36	ES.27	110	53	38	13,5	8	8	5	36	5,5	36	19,2	64	0,35
3/4"	20	70005605	5	16,3	79	45	ES.32	131	68	51	15	10	10	7	42	5,5	42	35	64	0,65
1"	25	70005606	6	19,1	93	54	OT.41	174	79	60	19,5	12,5	12	8	42	5,5	42	64,5	64	1,02
1"1/4	32	70005607	2	21,4	100	64	OT.50	174	83	64,5	19,5	12,5	12	8	42	5,5	42	103,8	64	1,40
1"1/2	40	70005608	2	21,4	110	80	OT.55	250	100	79	24	16,5	16	10	50	6,5	50	174	64	2,35
2"	50	70005610	2	25,7	131	95	OT.70	250	107	86	24	16,5	16	10	50	6,5	50	301,3	64	3,54

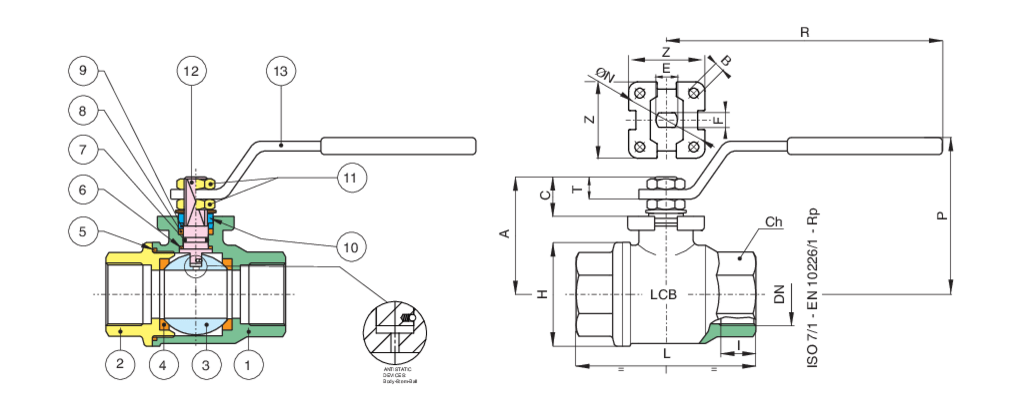

Valpres - Inox-val 2 Piece Ball Valves - 700062

Position	Part name	Material	N.° pieces
1	BODY	A352-LCB	1
2	END CONNECTION	A352-LCB	1
3	BALL	A479-TP304/A351-CF8	1
4	BALL SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2
5	BODY SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
6	THRUST WASHER	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
9	PACKING GLAND	A37+Z/P	1
10	END STOP	INOX AISI 430	1
11	NUT	6S+Z/P	2
13	STEM	A479-TP304	1
12	HANDLE	A37+Z/P	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	T	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg
1/4"	8	70006202	10	11	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	5,5	64	0,27
3/8"	10	70006203	10	11,4	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	8,5	64	0,26
1/2"	15	70006204	10	15	66	36	ES.27	110	53	38	13,5	8	8	5	36	5,5	36	19,2	64	0,35
3/4"	20	70006205	5	16,3	79	45	ES.32	131	68	51	15	10	10	7	42	5,5	42	35	64	0,65
1"	25	70006206	6	19,1	93	54	OT.41	174	79	60	19,5	12,5	12	8	42	5,5	42	64,5	64	1,02
1"1/4	32	70006207	2	21,4	100	64	OT.50	174	83	64,5	19,5	12,5	12	8	42	5,5	42	103,8	64	1,40
1"1/2	40	70006208	2	21,4	110	80	OT.55	250	100	79	24	16,5	16	10	50	6,5	50	174	64	2,35
2"	50	70006210	2	25,7	131	95	OT.70	250	107	86	24	16,5	16	10	50	6,5	50	301,3	64	3,54

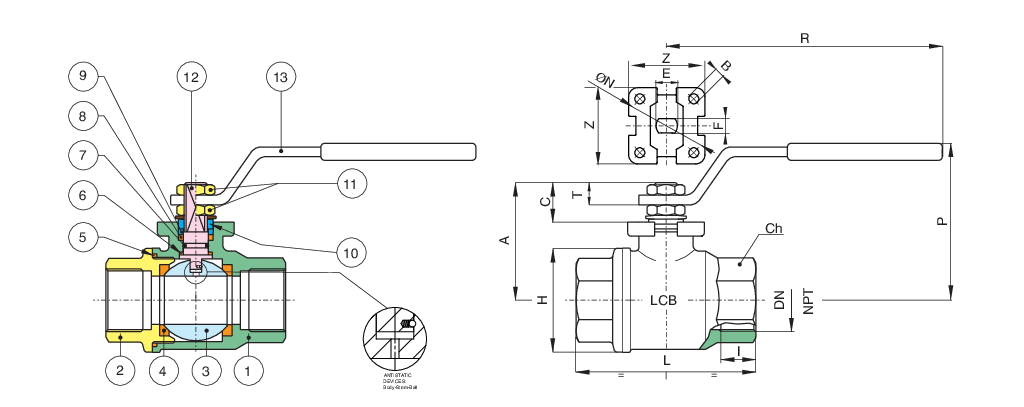

Valpres - Inox-val 2 Piece Ball Valves - 700077

Temperature range: -20°C. +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A352-LCB	1
2	END CONNECTION	A352-LCB	1
3	BALL	A479-TP304/A351-CF8	1
4	BALL SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2
5	BODY SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
6	THRUST WASHER	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1
9	PACKING GLAND	A37+Z/P	1
10	END STOP	INOX AISI 430	1
11	NUT	6S+Z/P	2
12	STEM	A479-TP304	1
13	HANDLE	A37+Z/P	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	T	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg
1/4"	8	70007702	10	11	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	5,5	64	0,27
3/8"	10	70007703	10	11,4	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	8,5	64	0,26
1/2"	15	70007704	10	15	66	36	ES.27	110	53	38	13,5	8	8	5	36	5,5	36	19,2	64	0,35
3/4"	20	70007705	5	16,3	79	45	ES.32	131	68	51	15	10	10	7	42	5,5	42	35	64	0,65
1"	25	70007706	6	19,1	93	54	OT.41	174	79	60	19,5	12,5	12	8	42	5,5	42	64,5	64	1,02
1"1/4	32	70007707	2	21,4	100	64	OT.50	174	83	64,5	19,5	12,5	12	8	42	5,5	42	103,8	64	1,40
1"1/2	40	70007708	2	21,4	110	80	OT.55	250	100	79	24	16,5	16	10	50	6,5	50	174	64	2,35
2"	50	70007710	2	25,7	131	95	OT.70	250	107	86	24	16,5	16	10	50	6,5	50	301,3	64	3,54

Valpres - Inox-val 2 Piece Ball Valves - 700079

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A352-LCB	1
2	END CONNECTION	A352-LCB	1
3	BALL	A479-TP304/A351-CF8	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	A37+Z/P	1
10	END STOP	INOX AISI 430	1
11	NUT	6S+Z/P	2
12	STEM	A479-TP304	1
13	HANDLE	A37+Z/P	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	T	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg
1/4"	8	70007902	10	11	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	5,5	64	0,27
3/8"	10	70007903	10	11,4	55	30	ES.22	110	50	35	13,5	8	8	5	36	5,5	36	8,5	64	0,26
1/2"	15	70007904	10	15	66	36	ES.27	110	53	38	13,5	8	8	5	36	5,5	36	19,2	64	0,35
3/4"	20	70007905	5	16,3	79	45	ES.32	131	68	51	15	10	10	7	42	5,5	42	35	64	0,65
1"	25	70007906	6	19,1	93	54	OT.41	174	79	60	19,5	12,5	12	8	42	5,5	42	64,5	64	1,02
1"1/4	32	70007907	2	21,4	100	64	OT.50	174	83	64,5	19,5	12,5	12	8	42	5,5	42	103,8	64	1,40
1"1/2	40	70007908	2	21,4	110	80	OT.55	250	100	79	24	16,5	16	10	50	6,5	50	174	64	2,35
2"	50	70007910	2	25,7	131	95	OT.70	250	107	86	24	16,5	16	10	50	6,5	50	301,3	64	3,54

Certifications

SIL 3

TUV

ATEX FIRE-SAFE (On request)
