Ball Valves Double Block and Bleed | Fluitek – Advanced Safety and Control Made Simple

Experience the next level in industrial valve technology with the Ball Valves Double Block and Bleed | Fluitek. Designed for critical applications, this valve ensures top-tier safety, efficiency, and reliability in process systems. Whether you work in oil & gas, chemical processing, or power generation, this ball valve brings outstanding performance that’s easy to understand and trust.

Features & Benefits of Ball Valves Double Block and Bleed | Fluitek

  • Ultimate Safety Assurance: The unique double block and bleed system provides two barriers against leaks, ensuring maximum protection for your operations and environment.
  • Leak-Free Operation: Designed to prevent fluid or gas escape, offering peace of mind during maintenance or when isolating sections of the pipeline.
  • Simple Pressure Testing: Easily check for pressure between the valves with a single bleeder point, making safety checks quick and hassle-free.
  • Compact and Durable Build: Built for harsh industrial settings, this valve features robust materials that withstand corrosion and high pressure.
  • Effortless Maintenance: With fewer moving parts and a straightforward design, maintenance becomes fast and cost-effective, reducing downtime.
  • Precise Flow Control: Get reliable, exact control over your process flow. The valve handles all types of fluids and gases without risking leaks.

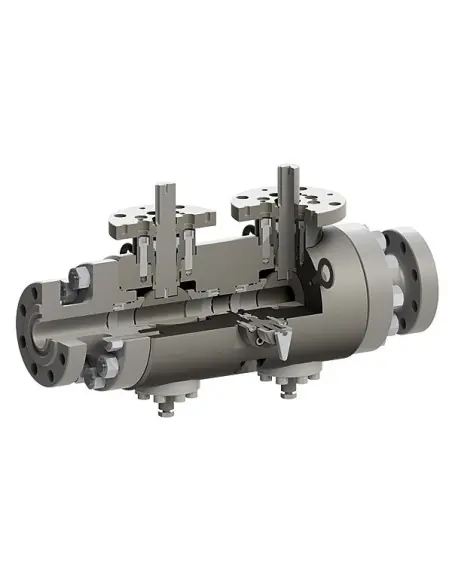

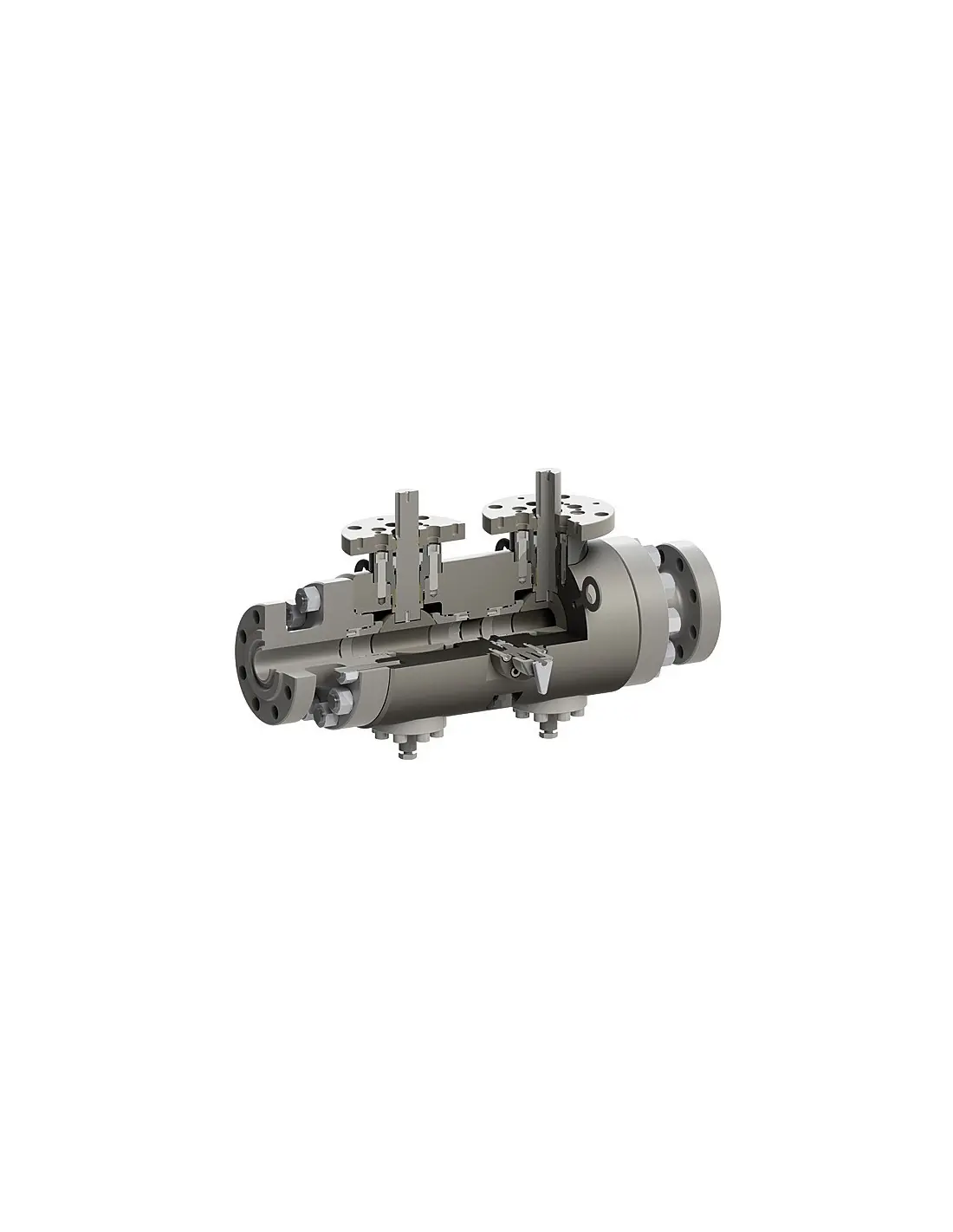

The Ball Valves Double Block and Bleed | Fluitek is engineered for long-lasting service. Its user-friendly design means you don’t have to be an expert to operate or service it. The double block feature isolates fluids from both upstream and downstream, while the central bleed point lets you safely release trapped pressure or test for tightness. This innovative design makes the valve perfect for demanding industrial applications where safety and performance cannot be compromised.

Every detail of this valve is crafted with reliability in mind. The strong body resists wear even under extreme conditions, while the seats and seals guarantee a tight shut-off every time. Whether you are upgrading existing systems or installing new equipment, this valve brings modern safety standards to your process with minimal effort.

Invest in the Ball Valves Double Block and Bleed | Fluitek for a smoother, safer, and more productive operation. Make the smart choice for your facility, and enjoy the peace of mind that comes with advanced, easy-to-use industrial technology.

Description

Valve design can be either Trunnion or Floating type, anti blow-out stem and typically SPE seat design. Drain port is normally provided with a floating ball valve, to be fitted with Final User drain line. Valve seats can be soft or metal to metal hard-faced.

Main reference codes:

  • Standard design in accordance with API 6D / ASME B16.34 / API 6A.
  • Antistatic design as per API 6D and ISO 17292.
  • Valve ends can be flanged (RF, FF, MF or FF, RTJ), according to ASME B16.5 (up to 24”) or ASME B16.47 (26” and above), Butt-Welding according to ASME B16.25, or Hub, according to customer Requirements.
  • Fire Safe according to BS6755 / API 6FA / API 607, since each sealing point is provided by a secondary fire-safe seal in graphite. Valve soft seats also are provided with secondary metal-to-metal seal in case of fire.

Double Block and Bleed ball valves are typically manual operated, but can be equipped also with an actuator (electric, pneumatic, hydraulic).

The following optional features are available:

  • Locking device.
  • Emergency stem seal injection;
  • Emergency seats sealant injection;
  • Weld overlay (316 or Inconel 625) on dynamic sealing areas or in all wetted parts
  • Removable supports;
  • Certified lifting devices;
  • Seal welded fittings.
