Fluitek Orsenigo Valves – Technical profile of an engineered industrial valve manufacturer

Fluitek Orsenigo Valves is an Italian manufacturer of engineered industrial valves for oil & gas, power, pipelines, FPSO, petrochemical and demanding process applications. The product range includes ball valves, gate valves, globe valves and check valves in a wide range of sizes, pressure classes and materials.

The company focuses on engineered-to-order valves, where design, material, testing and documentation are adapted to project requirements. Typical materials include carbon steel, stainless steel, duplex, super duplex, alloy steel, Incoloy, Monel, 6Mo and titanium.

Main product categories include:

  • floating ball valves,
  • trunnion mounted ball valves,
  • top-entry ball valves,
  • welded body ball valves,
  • double block and bleed valves,
  • cryogenic ball valves,
  • gate valves,
  • globe valves,
  • swing, piston, tilting disc and nozzle check valves.

Trunnion mounted ball valves are used for larger sizes and higher differential pressures where the ball must be mechanically supported to reduce seat load and operating torque. Top-entry ball valves are useful in buried, insulated or difficult-to-access lines because internal parts can be accessed from the top without removing the valve from the pipeline.

Double block and bleed valves combine isolation and cavity venting. They must be selected according to the isolation philosophy, bleed arrangement, leakage requirements and maintenance procedure.

Nozzle check valves are used in gas lines, compressor discharge systems and applications where rapid closing and reduced pressure loss are important. The check valve must be selected according to dynamic flow behaviour, not only nominal diameter.

Fluitek valves should be evaluated as pressure-retaining components. Technical selection requires service data, pressure class, temperature, medium, material, seat design, leakage class, fire-safe requirements, NDE, PMI, hydrostatic testing, gas testing and material certificates.

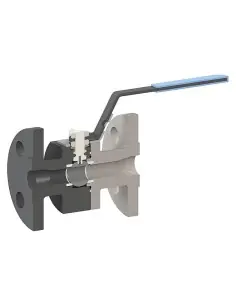

Ball Valve Floating Ball | Fluitek | Philippopoulos s.a.

Ball Valve Floating Ball | Fluitek

Ball Valve Floating Ball | Fluitek
Fluitek Valves
Fluitek Floating Ball Valve Two-way floating ball valve for on/off isolation in industrial liquid and gas services. Line pressure pushes the ball against the downstream seat, generating the sealing load required for tight shut-off. Construction Two-piece or three-piece body, bolted or threaded construction Materials: carbon steel, stainless steel,...
View

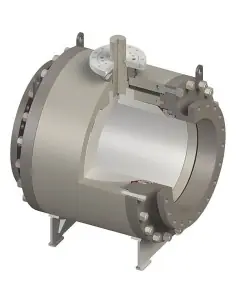

Ball Valve Trunnion Mounted Side Entry | Fluitek | Philippopoulos s.a.

Ball Valve Trunnion Mounted Side Entry | Fluitek

Ball Valve Trunnion Mounted Side Entry | Fluitek
Fluitek Valves
Fluitek Side Entry Trunnion Mounted Ball Valve Side-entry trunnion mounted ball valve designed for primary isolation in high-pressure liquid or gas pipelines. The ball is mechanically supported by a shaft and trunnion, reducing seat loading compared to floating designs and enabling use in large DN or high differential pressure applications. Design and...
View

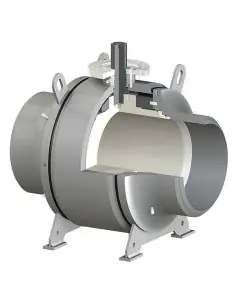

Ball Valve Trunnion Mounted Welded Body | Fluitek | Philippopoulos s.a.

Ball Valve Trunnion Mounted Welded Body | Fluitek

Ball Valve Trunnion Mounted Welded Body | Fluitek
Fluitek Valves
Fluitek Trunnion Mounted Welded Body Ball Valve Trunnion mounted ball valve with welded body construction, designed for liquid and gas isolation in oil & gas, chemical, and industrial pipeline applications. The welded body minimizes mechanical joints, reducing potential external leakage paths, and is typically selected for pipelines where body joint...
View

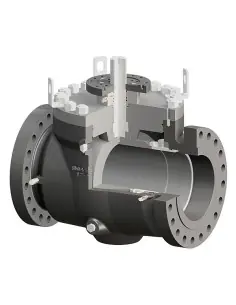

Ball Valve Trunnion Mounted Top Entry | Fluitek | Philippopoulos s.a.

Ball Valve Trunnion Mounted Top Entry | Fluitek

Ball Valve Trunnion Mounted Top Entry | Fluitek
Fluitek Valves
Fluitek Trunnion Mounted Top Entry Ball Valve Trunnion mounted top-entry ball valve designed for primary isolation in high-pressure liquid or gas pipelines. The top-entry construction allows access to internal components from above, without removing the valve from the line. This is particularly relevant for buried, insulated, or otherwise inaccessible...
View

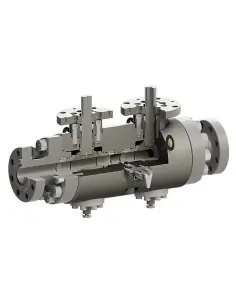

Ball Valves Double Block and Bleed | Fluitek | Philippopoulos s.a.

Ball Valves Double Block and Bleed | Fluitek

Ball Valves Double Block and Bleed | Fluitek
Fluitek Valves
Fluitek Double Block and Bleed Ball Valve DBB ball valve for line isolation with two independent sealing points and an intermediate bleed cavity. It is used where leakage verification is required before maintenance, instrument removal, metering work, or equipment disconnection. Design The valve construction may be trunnion mounted or floating ball,...
View

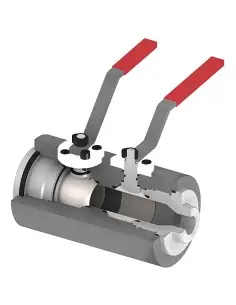

Ball Valves Compact Design Double Block and Bleed | Fluitek | Philippopoulos s.a.

Ball Valves Compact Design Double Block and Bleed | Fluitek

Ball Valves Compact Design Double Block and Bleed | Fluitek
Fluitek Valves
Fluitek Compact Double Block & Bleed Ball Valve Two-way compact DBB ball valve for line isolation where two independent sealing barriers and controlled depressurization of the body cavity are required before maintenance, sampling, instrument removal, or downstream work. Design The compact body eliminates conventional valve flanges and reduces...
View

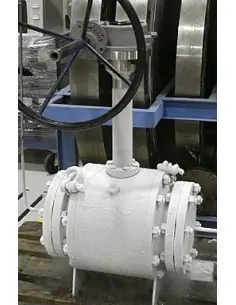

Ball Valves Cryogenic Service | Fluitek | Philippopoulos s.a.

Ball Valves Cryogenic Service | Fluitek

Ball Valves Cryogenic Service | Fluitek
Fluitek Valves
Cryogenic Ball Valves Fluitek Ball valves for cryogenic isolation, available in two- or three-piece construction, cast or forged. The range includes both floating and trunnion-mounted designs, selected based on DN, pressure, differential pressure, and required operating torque. Body and internal components are made from austenitic stainless steels for...
View
Check Valves Nozzle Type | Fluitek | Philippopoulos s.a.

Check Valves Nozzle Type | Fluitek

Check Valves Nozzle Type | Fluitek
Fluitek Valves
Fluitek Nozzle Type – Piston Check Valve The Fluitek Nozzle Type is a piston check valve designed for gas lines, primarily used to protect compressors from reverse flow. The internal nozzle geometry minimizes pressure drop and enables rapid closure without significant slam when flow decreases or reverses. Construction and Operation Type: Nozzle check...
View

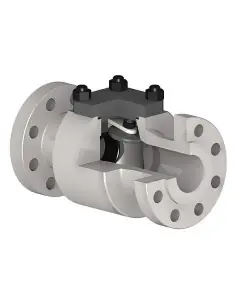

Check Valves Compact Design | Fluitek | Philippopoulos s.a.

Check Valves Compact Design | Fluitek

Check Valves Compact Design | Fluitek
Fluitek Valves
Fluitek Compact Design – Forged Check Valve The Fluitek Compact Design is a forged check valve for small-bore, high-pressure lines where reduced face-to-face dimensions and non-actuated reverse flow prevention are required. Standard configuration is swing check; piston lift check variants are also available. Construction Sizes: 1/2" to 2" Body: forged...
View
Check Valve - Piston Type Pressure Seal Bonnet | Fluitek | Philippopoulos s.a.

Check Valve - Piston Type Pressure Seal Bonnet | Fluitek

Check Valve - Piston Type Pressure Seal Bonnet | Fluitek
Fluitek Valves
Fluitek – Piston Check Valve with Pressure Seal Bonnet The Fluitek Pressure Seal Bonnet is a piston check valve designed for high-pressure, high-temperature service, typically found in power generation, steam, and process lines. The valve features a Y-pattern body, with the piston lift axis inclined relative to the flow, enabling lift check operation...
View

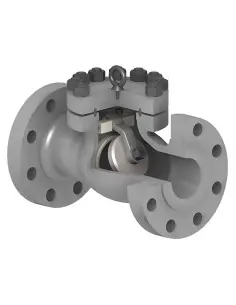

Swing Check Valve - Bolted Bonnet | Fluitek | Philippopoulos s.a.

Swing Check Valve - Bolted Bonnet | Fluitek

Swing Check Valve - Bolted Bonnet | Fluitek
Fluitek Valves
Fluitek Bolted Bonnet – Swing Check Valve The Fluitek Bolted Bonnet is a swing check valve with a bolted cover, designed to prevent reverse flow in industrial ANSI pipelines. The disc opens with forward flow and closes automatically when differential pressure decreases or reverses. No actuator is required for operation. Standards and Pressure Classes...
View

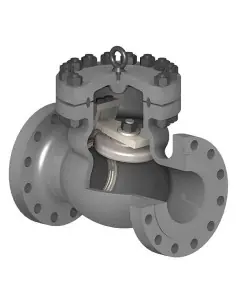

Swing Check Valve - Piggable Bolted Bonnet | Fluitek | Philippopoulos s.a.

Swing Check Valve - Piggable Bolted Bonnet | Fluitek

Swing Check Valve - Piggable Bolted Bonnet | Fluitek
Fluitek Valves
Fluitek Piggable Bolted Bonnet – Swing Check Valve The Fluitek Piggable Bolted Bonnet is a swing check valve designed for pipelines requiring pigging, either for periodic internal cleaning or corrosion inspection. The primary requirement is that the check valve does not obstruct pig passage. Construction is specified as full opening per API 6D, ensuring...
View
Swing Check Valve - Pressure Seal Bonnet | Fluitek | Philippopoulos s.a.

Swing Check Valve - Pressure Seal Bonnet | Fluitek

Swing Check Valve - Pressure Seal Bonnet | Fluitek
Fluitek Valves
Fluitek Pressure Seal Bonnet – Swing Check Valve The Fluitek Pressure Seal Bonnet is a swing check valve designed for high-pressure pipelines, typically installed in conjunction with on/off isolation valves. The disc remains open under flow, requiring minimal flow to maintain the open position. When normal flow ceases, the valve closes to prevent reverse...
View
Tilting Disc Check Valve - Bonnetless | Fluitek | Philippopoulos s.a.

Tilting Disc Check Valve - Bonnetless | Fluitek

Tilting Disc Check Valve - Bonnetless | Fluitek
Fluitek Valves
Fluitek Bonnetless – Tilting Disc Check Valve The Fluitek Bonnetless is a tilting disc check valve, also referred to as an equilibrated disc check valve. The disc remains open under balanced flow conditions and rotates towards the seat when reverse flow occurs. This design aims to reduce slam compared to conventional swing check valves by utilizing the...
View
Tilting Disc Check Valve - Pressure Seal Bonnet | Fluitek | Philippopoulos s.a.

Tilting Disc Check Valve - Pressure Seal Bonnet | Fluitek

Tilting Disc Check Valve - Pressure Seal Bonnet | Fluitek
Fluitek Valves
Fluitek Pressure Seal Bonnet – Tilting Disc Check Valve The Fluitek Pressure Seal Bonnet is a tilting disc check valve designed for high-pressure pipelines. Also referred to as an equilibrated disc non-return valve, it is typically installed in series with on/off valves to prevent reverse flow in piping systems during flow interruption. Operation Disc...
View
Gate Valve - Bellows Seal Bolted Bonnet | Fluitek | Philippopoulos s.a.

Gate Valve - Bellows Seal Bolted Bonnet | Fluitek

Gate Valve - Bellows Seal Bolted Bonnet | Fluitek
Fluitek Valves
Fluitek Bellows Seal Bolted Bonnet Gate Valve The Fluitek Bellows Seal Bolted Bonnet gate valve is designed for flow isolation in applications where fluid leakage to the atmosphere must be minimized: toxic, aggressive, radioactive, hot, or high-value process media. It is used for on/off applications and is not suitable for throttling. Construction and...
View
Gate Valve - Bellows Seal For Nuclear Power Generation | Fluitek | Philippopoulos s.a.

Gate Valve - Bellows Seal For Nuclear Power Generation | Fluitek

Gate Valve - Bellows Seal For Nuclear Power Generation | Fluitek
Fluitek Valves
Fluitek Bellows Seal Gate Valve for Nuclear Power Generation The Fluitek Bellows Seal for Nuclear Power Generation is a gate valve designed for isolation in critical circuits of nuclear facilities, such as primary heat transport systems. Key design requirements include stem tightness, seismic resistance, and documented operational cycle endurance. The...
View
Gate Valve - Compact Design Gate Valve | Fluitek | Philippopoulos s.a.

Gate Valve - Compact Design Gate Valve | Fluitek

Gate Valve - Compact Design Gate Valve | Fluitek
Fluitek Valves
Fluitek Compact Design Gate Valve The Fluitek Compact Design is a forged gate valve for small diameters, designed for flow isolation in high-pressure lines. The series covers sizes from 1/2" to 2" and pressure classes Class 900, 1500, 2500, and 4500, designed according to API 602 / ISO 15761 or EN 12516. Construction The compact geometry is used when...
View
Gate Valve - Extended Bolted Bonnet for Cryogenic Service | Fluitek | Philippopoulos s.a.

Gate Valve - Extended Bolted Bonnet for Cryogenic Service | Fluitek

Gate Valve - Extended Bolted Bonnet for Cryogenic Service | Fluitek
Fluitek Valves
Fluitek Extended Bolted Bonnet Gate Valve for Cryogenic Service The Fluitek Extended Bolted Bonnet for Cryogenic Service is a gate valve designed for flow isolation at low temperatures, below -50 °C. It is suitable for cryogenic liquids and gases, such as liquid nitrogen, oxygen, and air separation media. The valve is used for on/off applications, not...
View
Gate Valve - Parallel Slide Bolted Bonnet | Fluitek | Philippopoulos s.a.

Gate Valve - Parallel Slide Bolted Bonnet | Fluitek

Gate Valve - Parallel Slide Bolted Bonnet | Fluitek
Fluitek Valves
Fluitek Parallel Slide Bolted Bonnet Valve The Fluitek Parallel Slide Bolted Bonnet is an on/off isolation valve, serving as an alternative to wedge gate valves. The disc consists of two spring-loaded half-discs that rest on parallel seating rings and slide over the seats during opening/closing. It is not intended for throttling flow. Operational...
View
Gate Valve - Parallel Slide Pressure Seal Bonnet | Fluitek | Philippopoulos s.a.

Gate Valve - Parallel Slide Pressure Seal Bonnet | Fluitek

Gate Valve - Parallel Slide Pressure Seal Bonnet | Fluitek
Fluitek Valves
Fluitek Parallel Slide Pressure Seal Bonnet Valve The Fluitek Parallel Slide Pressure Seal Bonnet valve is designed for isolation in high-pressure and high-temperature lines, primarily for steam, superheated steam, boiler feedwater, thermal fluids, and process gases. It is intended for on/off service and should not be used for throttling. Construction and...
View
Gate Valve - Through Conduit Bolted Bonnet | Fluitek | Philippopoulos s.a.

Gate Valve - Through Conduit Bolted Bonnet | Fluitek

Gate Valve - Through Conduit Bolted Bonnet | Fluitek
Fluitek Valves
Fluitek Through Conduit Bolted Bonnet Gate Valve The Fluitek Through Conduit Bolted Bonnet is a full bore gate valve designed for fluid or gas transmission pipelines, primarily used in oil & gas, terminals, pipelines, and underground installations. It is not a throttling valve; operation should be fully open or fully closed. Construction and...
View
Gate Valve - Through Conduit Expanding Gate | Fluitek | Philippopoulos s.a.

Gate Valve - Through Conduit Expanding Gate | Fluitek

Gate Valve - Through Conduit Expanding Gate | Fluitek
Fluitek Valves
Fluitek Through Conduit Expanding Gate Valve The Fluitek Through Conduit Expanding Gate valve is a full-bore isolation valve designed for pipelines requiring continuous internal diameter and minimal debris accumulation in the body cavity. It is applicable in oil & gas, terminals, transmission pipelines, natural gas, liquid fuels, and process fluids....
View
Gate Valve - Wedge Type Bolted Bonnet | Fluitek | Philippopoulos s.a.

Gate Valve - Wedge Type Bolted Bonnet | Fluitek

Gate Valve - Wedge Type Bolted Bonnet | Fluitek
Fluitek Valves
Fluitek Wedge Type Bolted Bonnet Gate Valve The Fluitek Wedge Type Bolted Bonnet is a wedge gate valve designed for flow isolation in industrial process lines. It is used for on/off applications rather than flow regulation, as intermediate positions increase seat and wedge erosion. Technical Configuration Type: wedge gate valve, bolted bonnet...
