Ball Valve wafer - Type FA1 | ADLER

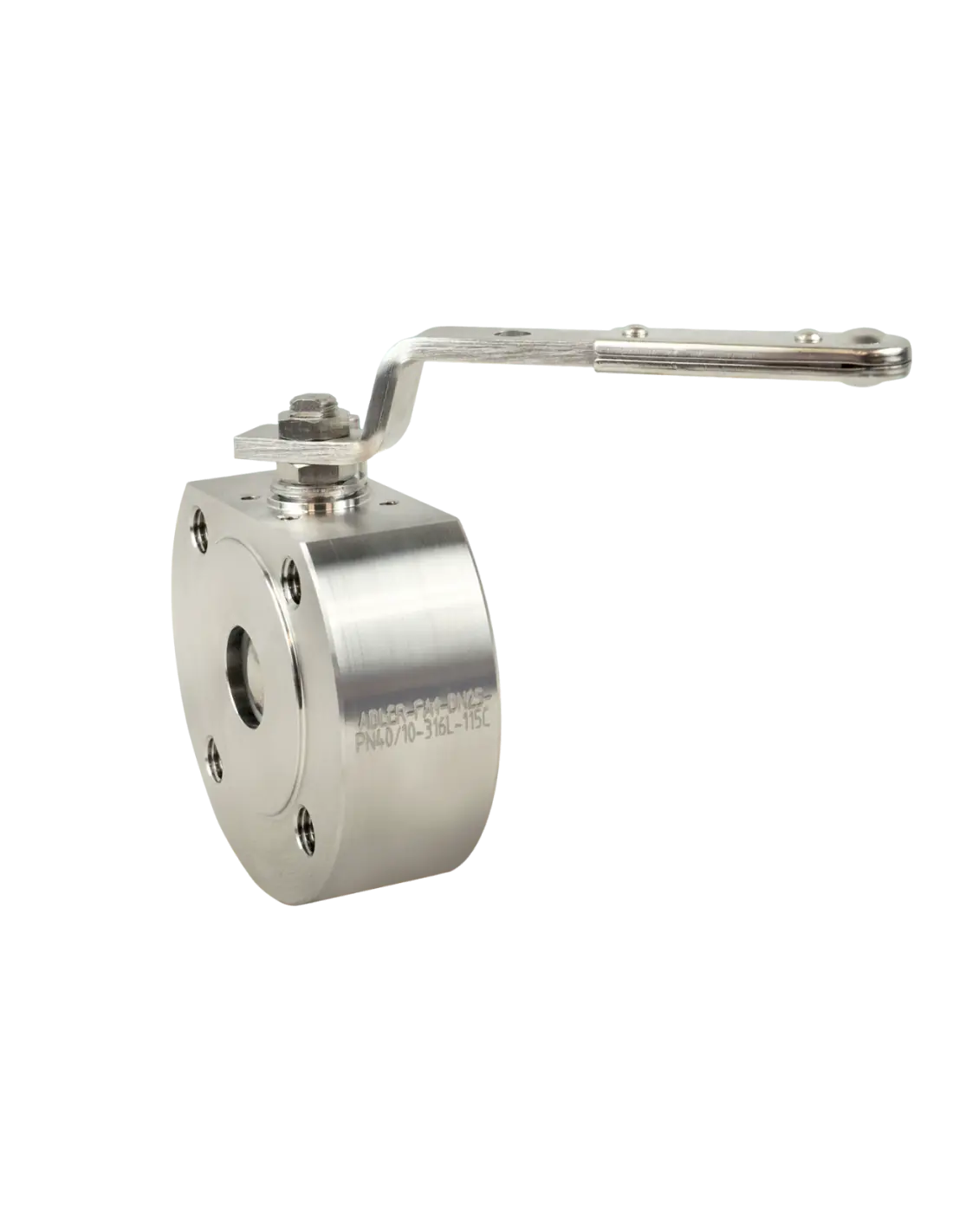

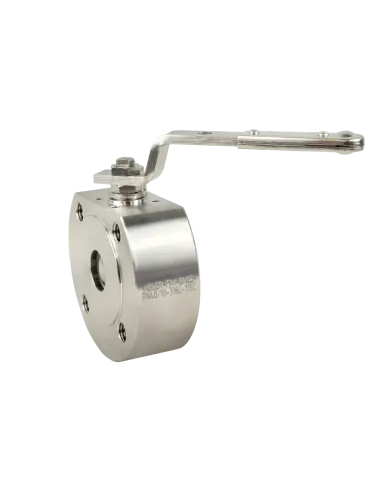

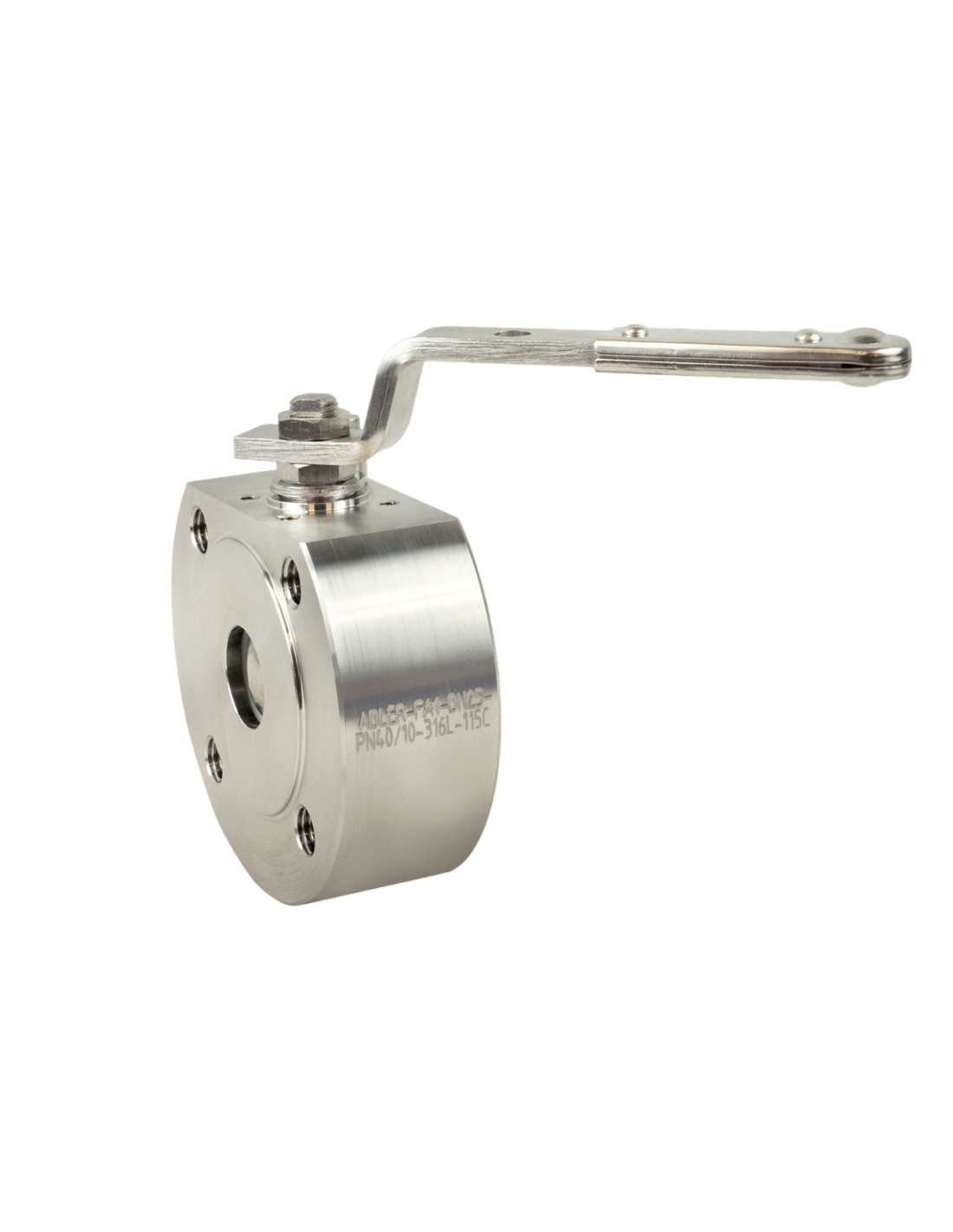

Ball Valve wafer - Type FA1 | ADLER: Power and Precision for Industrial Flow Control

The Ball Valve wafer - Type FA1 | ADLER is designed to deliver reliable performance in demanding industrial environments. This advanced valve offers precise flow regulation, robust construction, and simple installation, making it an essential component for any industrial application where dependability and ease of maintenance are crucial.

Features and Benefits of Ball Valve wafer - Type FA1 | ADLER

  • Effortless Operation: The smooth-turning mechanism ensures quick and easy flow control, minimizing downtime and boosting productivity on the shop floor.
  • Durable Build: Manufactured with high-quality materials, this valve resists corrosion and wear, even under harsh industrial conditions. You can count on it for a long operational life.
  • Wafer Design: Its compact wafer-style profile allows easy installation between flanges, saving valuable space in busy industrial setups and making future maintenance straightforward.
  • Leak-Proof Performance: The precision-engineered ball and seats guarantee a reliable seal, which helps avoid costly leaks and ensures the safety of your operations.
  • Versatile Use: Suitable for a range of media, from water and oil to chemicals and gases, the valve adapts seamlessly to various industrial processes.
  • Low Maintenance: Built to last, it operates smoothly with minimal upkeep, letting your maintenance teams focus on other critical tasks.
  • Easy Inspection: Visual position indicators and straightforward manual operation mean instant confirmation of open or closed status, making workflow checks simple and efficient.
  • High Pressure & Temperature Resistance: The valve stands up to demanding operating conditions, ensuring safety and performance even when the heat is on or pressure is high.

The Ball Valve wafer - Type FA1 | ADLER is more than just a valve—it's a smart investment in reliability and efficiency. Its straightforward design and advanced manufacturing make it the go-to solution for industrial fluid management. Upgrade your system with confidence and experience the difference in every turn.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105N
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Ball valve “wafer type”, full bore, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN 1759-1; ASME B16.5; ANSI B1.1.; ISO14313; EN 558 (basic series 100)

Available size from DN 10 to DN 50 in carbon steel, stainless steel and special steel

Rating PN 6 / PN 10 ÷ 40 / ANSI 150 ÷ 300.

Double seals on body/insert junction

Chevron ring on stem

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution according to BS6755 API 607/6FA (patent n° 00219617)

– cryogenic excution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
