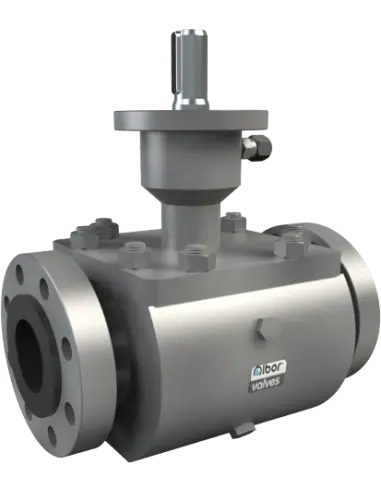

Ball Valve - Type 37001 | Ibor Valves: Unmatched Reliability for Industrial Applications

The Ball Valve - Type 37001 | Ibor Valves is your dependable solution for efficient flow control in demanding industrial environments. Crafted with precision engineering, this ball valve ensures reliable performance, ease of operation, and outstanding durability for years of trouble-free use.

Features and Benefits of Ball Valve - Type 37001 | Ibor Valves

  • Robust Construction: Manufactured from high-grade materials, this ball valve is built to withstand high pressure and temperature fluctuations. Its corrosion-resistant body guarantees extended service life even in challenging conditions.
  • Leak-Proof Performance: Designed with strict quality standards, the valve provides a tight seal, minimizing leaks and ensuring the safe handling of fluids or gases.
  • Easy Operation: The quarter-turn handle delivers smooth and simple open-close control, allowing fast shutoff and flow adjustment without effort or special tools.
  • Low Maintenance: This valve is designed to require minimal maintenance, saving you valuable time and reducing downtime in busy industrial settings.
  • Versatile Application: Suitable for a wide range of uses, including chemical processing, water treatment, oil and gas, and manufacturing, the Ball Valve - Type 37001 | Ibor Valves is a smart investment for any industrial plant.

Experience advanced engineering with features like a full-bore design, which maintains optimal flow rates and minimizes pressure loss. The anti-blowout stem increases safety, while reinforced seats extend the operational lifespan. Installation is quick and straightforward, ensuring you can get your system up and running without hassle.

Choose the Ball Valve - Type 37001 | Ibor Valves for a reliable, cost-effective, and efficient solution to your industrial flow control needs. Its proven durability and user-friendly design make it the ideal valve choice for challenging industrial settings. Improve your operations today with this technically advanced valve that delivers performance you can trust.

Description

Seat design

  • Double piston effect downstream & upstream-DIB I
  • Double piston effect downstream & single piston effect upstream-DIB II
  • Secondary Soft Seat

Stem

  • Stem sealing injector
  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
