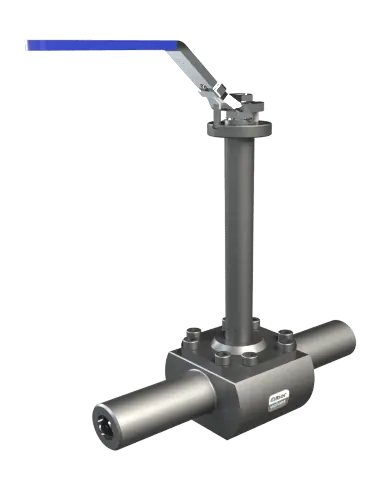

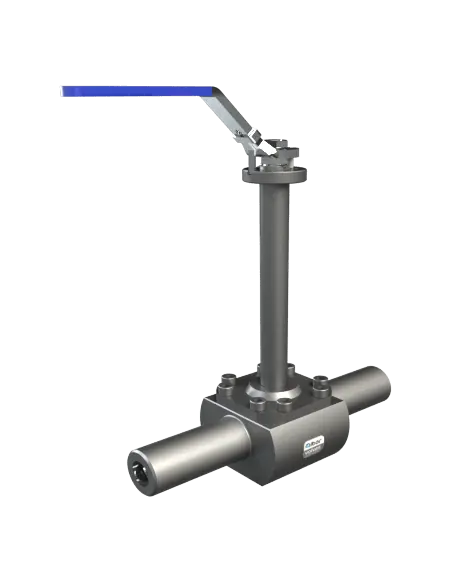

Ball Valve - Type 36001 | Ibor Valves

Reliable Flow Control for Industry: Ball Valve - Type 36001 | Ibor Valves

The Ball Valve - Type 36001 | Ibor Valves is engineered for tough industrial jobs, providing dependable flow control with minimal maintenance. Built to perform, this valve ensures you get smooth operation, leak-tight sealing, and long-lasting durability in any industrial setting.

Outstanding Features and Benefits of Ball Valve - Type 36001 | Ibor Valves

  • Robust Construction: Manufactured from high-grade materials, this ball valve stands up to pressure, heat, and repeated use without failing. You can trust it for daily operations in demanding environments.
  • Effortless Operation: Its quarter-turn mechanism allows for quick open and close action. You can control the flow of your system with just a simple handle turn, saving valuable time.
  • Leak-Proof Performance: Designed for a tight seal, this ball valve prevents leaks that could compromise your process or environment. It keeps your operation running safely and efficiently.
  • Corrosion Resistant: Special coatings and materials guard against rust and chemical corrosion, so the valve maintains its performance and appearance even with exposure to harsh fluids and environments.
  • Low Maintenance: With fewer moving parts and precise engineering, the Ball Valve - Type 36001 | Ibor Valves needs little upkeep. This reduces downtime and keeps your maintenance costs low.
  • Versatile Application: Suitable for water, oil, gas, and many industrial process fluids. Its adaptable design makes it a reliable choice for various industrial uses.
  • Excellent Flow Control: The full-bore design means there’s no restriction to the flow, reducing pressure drop and keeping your system efficient.

With the Ball Valve - Type 36001 | Ibor Valves, you gain a key solution for controlling flow in your industrial processes. Its sturdy design, easy operation, and minimal maintenance needs make it a smart investment for any facility. Whether you need reliability for a new installation or a trustworthy replacement, this valve delivers consistent performance every time.

Upgrade your operations with the Ball Valve - Type 36001 | Ibor Valves and experience worry-free flow control built for the demands of modern industry.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Bidirectional
  • Secondary Soft Seat

Stem

  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
