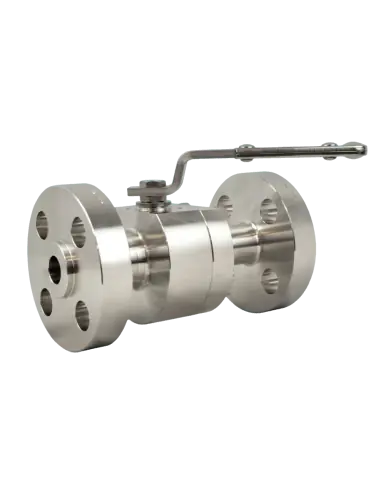

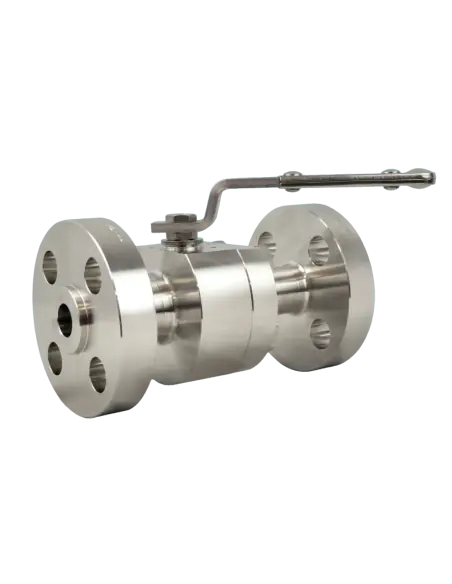

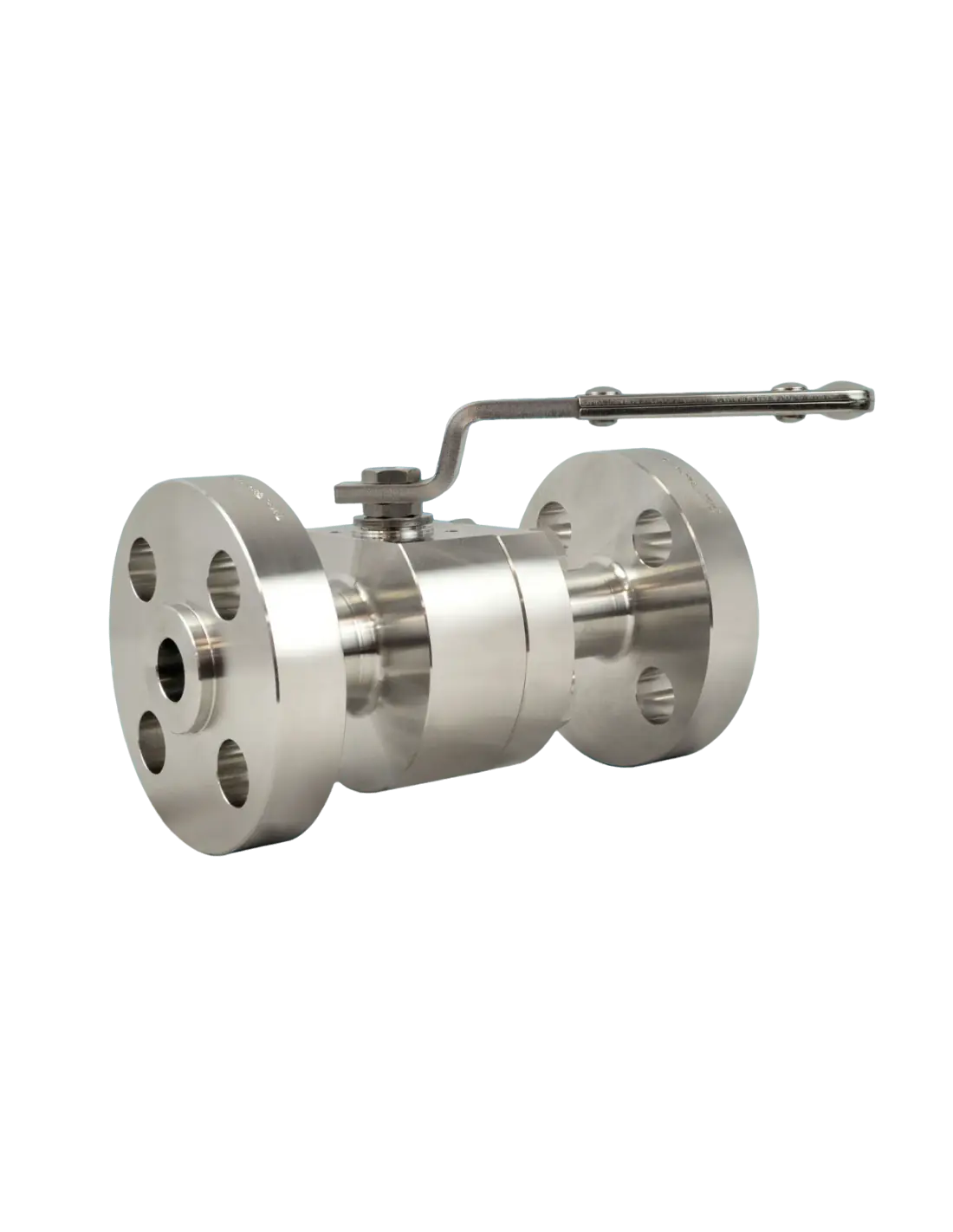

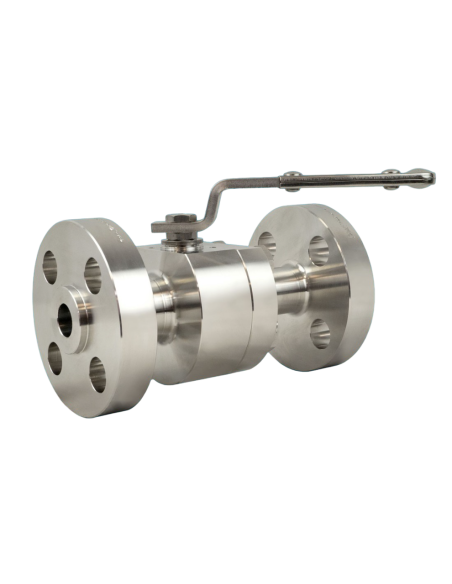

Ball Valve Split body - Type FH2 | ADLER: Precision Engineering for Industrial Excellence

Experience efficiency and reliability with the Ball Valve Split body - Type FH2 | ADLER, a trusted solution designed for demanding industrial environments. Engineered for consistent performance and lasting durability, this robust valve delivers seamless flow control, offering peace of mind in every application.

Features and Benefits of Ball Valve Split body - Type FH2 | ADLER

  • Superior Control: The split body design ensures smooth operation and precise regulation, allowing users to easily start, stop, or adjust the flow within the pipeline. This means you get exact results when you need them most.
  • Exceptional Durability: Built from high-grade materials, the valve withstands harsh industrial settings and intense pressure. Its corrosion-resistant construction ensures a long service life, reducing the need for frequent replacements.
  • Easy Maintenance: The innovative split body structure allows straightforward disassembly and cleaning. Maintenance tasks become quicker and safer, keeping downtime to an absolute minimum.
  • Leak-proof Assurance: With advanced sealing technology, the valve minimizes the risk of unwanted leaks. This protects workflows, equipment, and products, ensuring safety and efficiency at every step.
  • Versatile Application: Whether it's used for liquids, gases, or other media, the Ball Valve Split body - Type FH2 | ADLER adapts easily to a wide range of industrial uses, from chemical plants to manufacturing lines.

Choosing the Ball Valve Split body - Type FH2 | ADLER means investing in reliable performance and quality engineering. Its user-friendly design makes it easy for anyone on your team to operate or maintain. Advanced features, such as robust seals and a resilient body, guarantee consistent function even under tough conditions. This makes the FH2 valve a smart choice for those who value lasting value and operational excellence.

Upgrade your systems with a product that balances innovation and simplicity. The Ball Valve Split body - Type FH2 | ADLER is the dependable link in your industrial chain, promising smooth operation, lower maintenance costs, and superior flow control—day after day.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • 600 lbs
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve 2 piece SPLIT BODY type full bore, manufactured from round bar or casting, construction according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; ANSI B16.1; ISO 14313, EN 558 (Basic series 5).

Available size from DN 15 to DN 150 in carbon steel, stainless steel and special steel

Rating ANSI 600.

Double seals on body/end junction (patent n°00216919)

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificate

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
