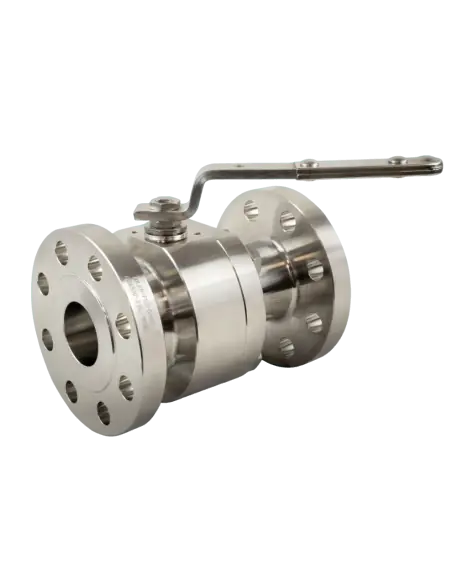

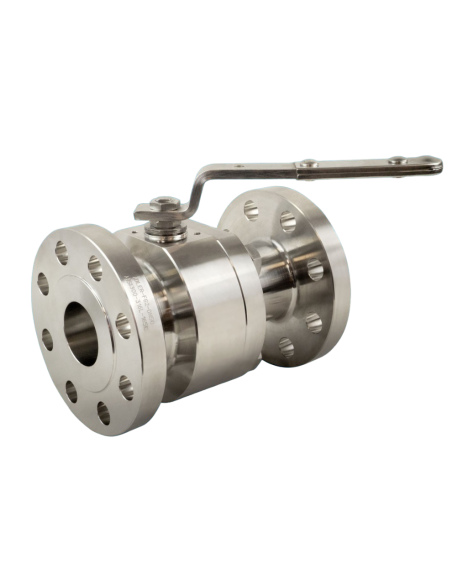

Ball Valve Split body - Type FG2 | ADLER

Unmatched Performance and Reliability: Ball Valve Split body - Type FG2 | ADLER

Experience the difference with the Ball Valve Split body - Type FG2 | ADLER — the smart choice for industrial settings that demand strength, safety, and ease of use. Designed for long-lasting performance, this valve is engineered to withstand tough environments and frequent use, making it ideal for factories, process plants, and industrial installations requiring secure and reliable flow control.

Key Features & Benefits of Ball Valve Split body - Type FG2 | ADLER

  • Durable Construction: Built from robust materials, the FG2 stands up to extreme pressures and temperatures, providing peace of mind in demanding conditions.
  • Split Body Design: The clever two-piece body makes maintenance and repairs straightforward. Save time and reduce downtime with quick access for inspections and part replacement.
  • Leak-Proof Security: Reliable sealing technology keeps fluids safely contained, helping prevent costly leaks and environmental hazards.
  • Effortless Operation: The handle moves smoothly for easy open and close action, so anyone can operate it without strain — even with gloves.
  • Versatile Applications: Designed to work seamlessly with a wide range of liquids and gases, making it a go-to solution across industries.
  • Corrosion Resistance: Corrosion-proof surfaces and components stand up to harsh chemicals and moisture, ensuring a lasting, reliable connection.

The Ball Valve Split body - Type FG2 | ADLER offers advanced safety features, including a locking mechanism to prevent accidental operation and reinforced joints for maximum pressure resistance. Clear position indicators let you check valve status at a glance, adding another layer of safety to your operations.

Installation is simple thanks to standard connection sizes and foolproof assembly. Whether you’re upgrading an existing line or installing a new system, this valve fits right in with minimal disruption. Its maintenance-friendly design helps teams keep processes running smoothly, while the proven Adler precision guarantees dependable service shift after shift.

With the Ball Valve Split body - Type FG2 | ADLER, your industrial setup gets an upgrade in reliability, safety, and efficiency — all wrapped up in a user-friendly package. Choose a valve that’s built for real-world performance and engineered to last.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • 300 lbs
Seat (Options)
  • RPTFE

Datasheet and documents

Description

Ball valve 2 piece SPLIT BODY type full bore, manufactured from round bar or casting, construction according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; ANSI B16.1; EN 558 (Basic series 4).

Available size from DN 15 to DN 250 in carbon steel, stainless steel and special steel

Rating ANSI 300.

Double seals on body/end junction (patent n°00216919)

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
