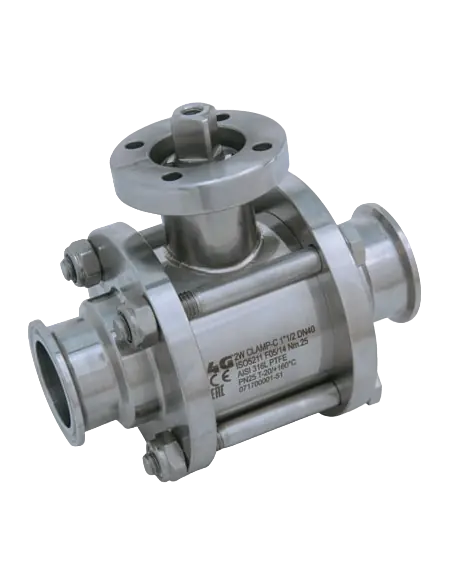

Ball Valve 5130 Series | 4G Ghidini

Ball Valve 5130 Series | 4G Ghidini – Precision and Performance for Industrial Demands

Discover unmatched reliability and efficiency with the Ball Valve 5130 Series | 4G Ghidini, specially engineered for rigorous industrial applications. Designed to deliver maximum control and safety, this robust valve brings together durability and ease of operation, ensuring peace of mind for any demanding environment.

Features and Benefits – Why Choose Ball Valve 5130 Series | 4G Ghidini?

  • Superior Construction
    Built with premium-grade materials, the Ball Valve 5130 Series | 4G Ghidini resists wear and corrosion, making it ideal for challenging industrial processes.
  • Reliable Shut-Off
    The precise ball mechanism ensures secure sealing and effortless flow control, reducing the risk of leaks and system downtime.
  • Easy Operation
    Designed for smooth handle movement, this valve allows for quick open and close actions, even under pressure, with minimal effort required from the user.
  • Low Maintenance
    With a simple yet robust design, maintenance is quick and hassle-free, supporting long-term operation without frequent interventions.
  • High Pressure Tolerance
    Engineered to withstand high-pressure conditions, the Ball Valve 5130 Series | 4G Ghidini is perfect for use in water, gas, oil, and steam systems.
  • Versatile Application
    Suitable for a wide range of industrial sectors, including manufacturing, energy, and chemicals, this valve adapts seamlessly to varied piping systems.

Choose the Ball Valve 5130 Series | 4G Ghidini for an efficient, long-lasting solution to your industrial flow control needs. Its advanced features are designed with both performance and practicality in mind, giving you peace of mind in every operation. With easy installation and outstanding durability, it’s an ideal addition to any industrial setup.

Trust in the quality and expertise of 4G Ghidini – enhancing safety and productivity with every turn.


Type : 513030
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

For TUBE according to normative BS/OD (ASTM A270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from 1/2″ to 4″

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
