Ball Valve 4230 A/E Series | 4G Ghidini

Ball Valve 4230 A/E Series | 4G Ghidini: Reliable Performance for Industrial Needs

The Ball Valve 4230 A/E Series | 4G Ghidini is crafted for those seeking dependable, long-lasting solutions in industrial environments. Designed to offer superior flow control with minimum maintenance, this valve combines robust construction with smart engineering. It is ideal for a wide range of industrial applications, guaranteeing efficiency and safety where it matters most.

Features & Benefits of Ball Valve 4230 A/E Series | 4G Ghidini

  • Durable Construction: Made from high-quality materials, this valve withstands demanding pressure and tough working conditions, promising a long service life and reduced replacement costs.
  • Leak-Proof Design: Advanced sealing technology ensures tight shut-off, minimizing the risk of leaks and providing maximum safety for operators and equipment.
  • Easy Operation: The simple quarter-turn mechanism allows quick opening and closing, enabling smooth operation even for inexperienced users.
  • Versatile Compatibility: Suitable for different types of fluids—including water, oil, and gas—making this valve a flexible choice for various industrial systems.
  • Low Maintenance: Thoughtfully engineered for minimal wear, the valve requires less attention and fewer adjustments, saving valuable time and resources.
  • Corrosion Resistance: Special surface treatments protect the valve from rust and corrosion, ensuring consistent performance even in harsh environments.
  • Secure Installation: The precise threading and solid build make installation straightforward, reducing downtime and offering peace of mind from day one.

With the Ball Valve 4230 A/E Series | 4G Ghidini, you can count on smooth, reliable fluid control that stands the test of time. It delivers outstanding efficiency without the hassle, making it the ideal choice for any industrial setting looking to boost productivity and safety.


Type : 423050 A/E
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

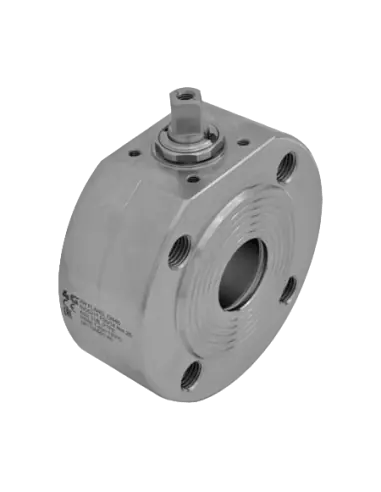

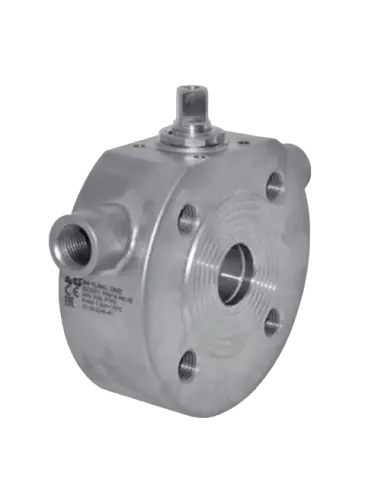

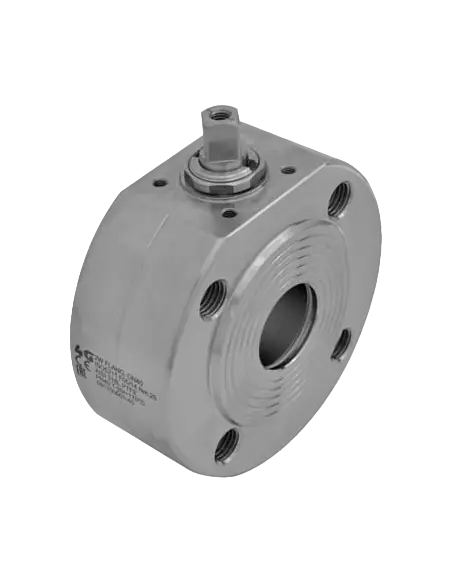

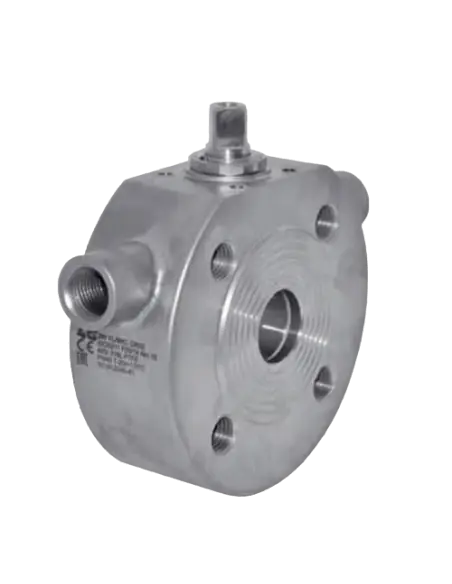

TWO-way ball valve FLAT BODY with CONTAINED BALL from bar and INTEGRAL SEAL / TWO-way ball valve FLAT BODY with CONTAINED BALL and HEATING JACKET from bar and INTEGRAL SEAL

Drive:ISO 5211 flange for actuator

Connection: Threaded holes for UNI EN 1092-1 for flanges PN 10-40

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN15 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

* MOUNTING KIT NEEDED Art. 747540 OR LEVER Art. 9354112

On request:

M.O.C.A. CE 1935/2004
