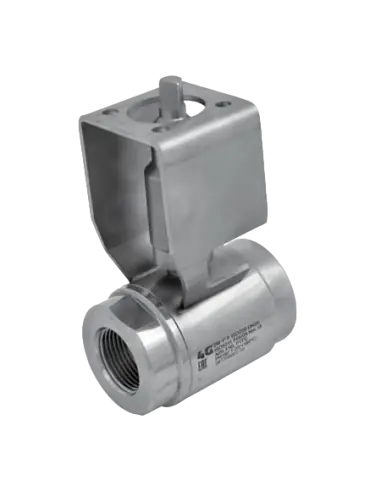

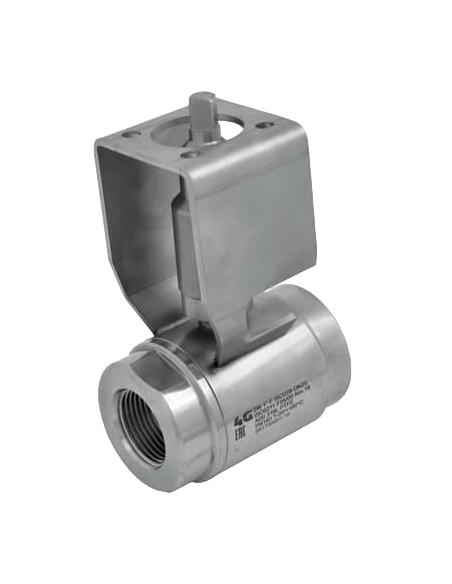

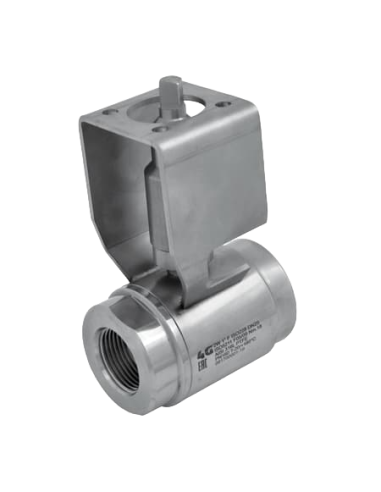

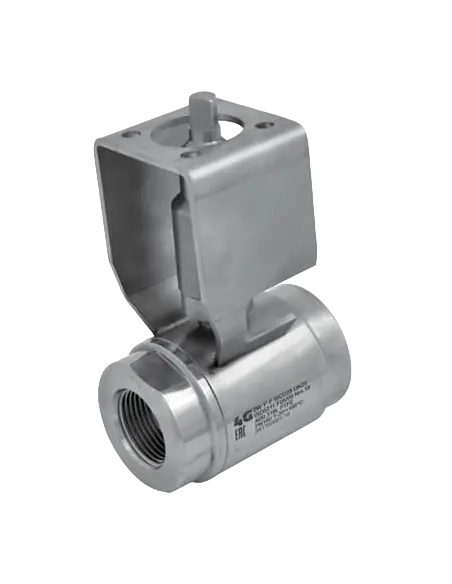

The Ball Valve STANDARD SEALS - ISO 228 F/F - 193001 | 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 and DIN 3337 compatible drive for actuator mounting, with an ISO 228 female/female threaded connection. The valve is constructed from durable Aisi 316L (1.4404) stainless steel and offers full flow capabilities. It is available in sizes ranging from 1/4” to 1”. The seals are made from Modified Virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve has a glazed outer finish and includes screws for actuator mounting. Optional features include an antistatic device compliant with ATEX standards and seals made from PTFE with glass or inox, extending the temperature range up to 200°C. The product also complies with M.O.C.A. CE 1935/2004 regulations.
TWO-way ball valve
Drive: ISO 5211 – DIN 3337 foration for actuator
Connection: ISO 228 female/female thread
Flow: Full
Material: Aisi 316L (1.4404)
Measure: from 1/4” to 1”
Seals: Modified Virgin P.T.F.E.
Operating temperature: -20°C+170°C
Outer finish: Glazed
Screws for mounting actuator included
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with inox -20°C+200°C
