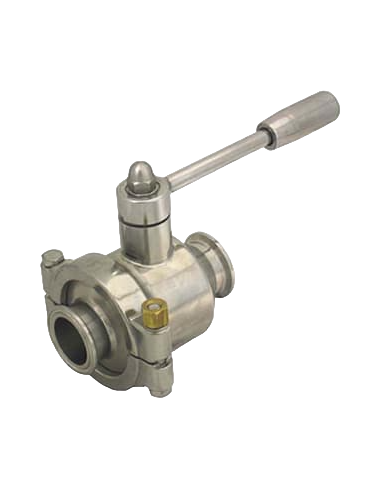

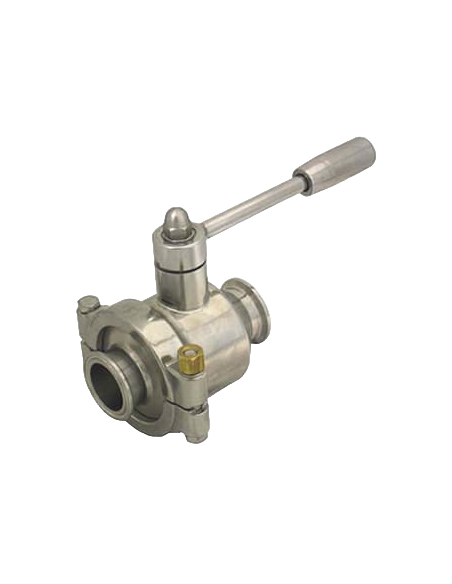

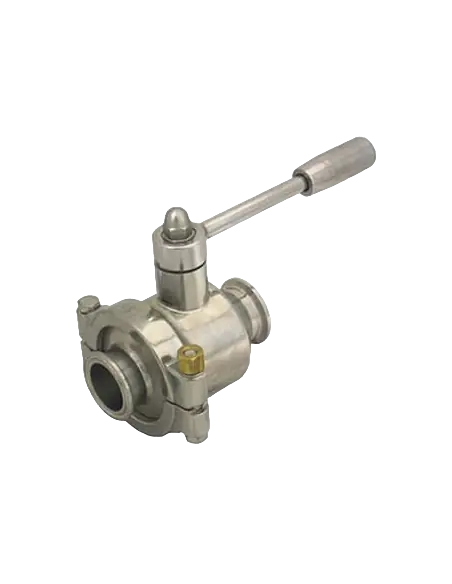

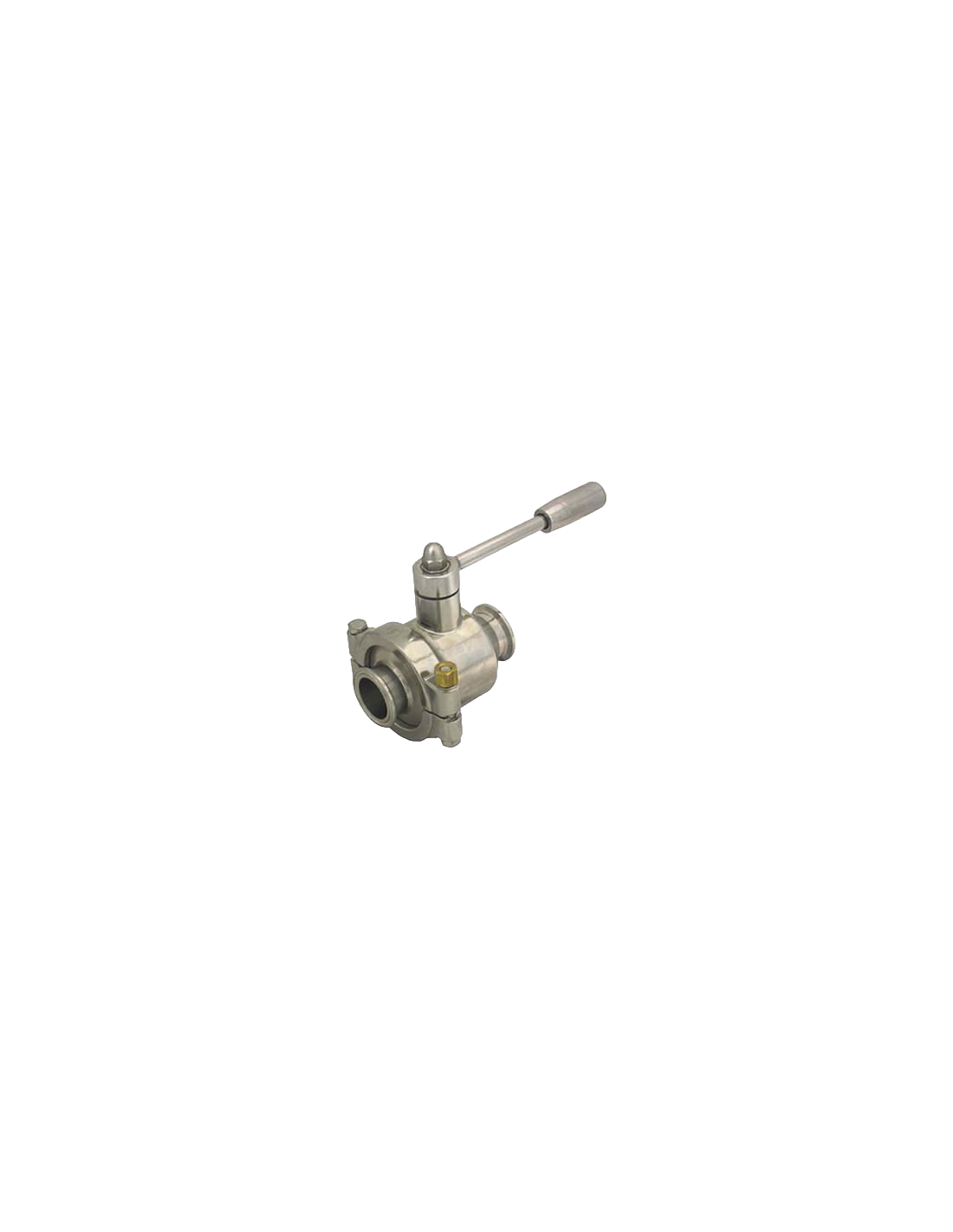

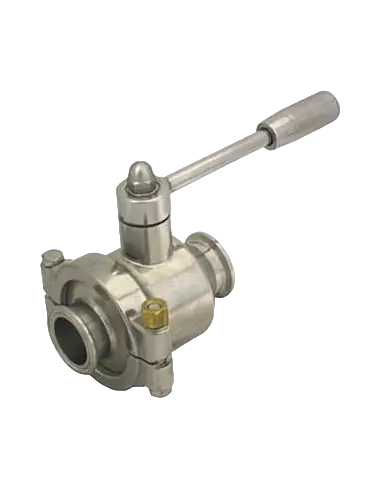

Ball Valve 1202 Series | 4G Ghidini

Discover Unmatched Performance with the Ball Valve 1202 Series | 4G Ghidini

The Ball Valve 1202 Series | 4G Ghidini is specifically designed for industrial use, delivering reliable control and long-lasting durability even in the toughest environments. Built with attention to quality and efficiency, this ball valve ensures precise management of fluid flow, making it an essential component for any industrial setup.

Features & Benefits: Ball Valve 1202 Series | 4G Ghidini

  • Superior Construction: Manufactured from robust materials, the Ball Valve 1202 Series offers exceptional resistance to corrosion and wear, guaranteeing a long service life with minimal maintenance.
  • Easy Operation: The quarter-turn lever design allows for simple opening and closing, enabling quick shut-off or adjustment with minimal effort.
  • Tight Seal Technology: Advanced sealing components provide leak-proof performance, ensuring safe fluid management and reducing the risk of system downtime.
  • High Flow Capacity: Featuring a full bore design, this valve minimizes pressure loss and supports optimal flow rates, making it ideal for demanding industrial applications.
  • Versatile Connection Options: Compatible with various pipe fittings, the Ball Valve 1202 Series can be seamlessly integrated into existing systems without complications.
  • Reliable Under Pressure: Engineered to maintain performance in high-pressure settings, this valve is suitable for a wide range of industrial fluids and gases.

With its user-friendly construction, the Ball Valve 1202 Series | 4G Ghidini simplifies maintenance and replacement, reducing downtime and keeping your operations running smoothly. Its durable handle provides a secure grip, while precision engineering ensures you get the control you need, every time.

If you’re looking for a dependable, easy-to-use industrial ball valve, the Ball Valve 1202 Series | 4G Ghidini is the go-to choice. Its advanced features and practical benefits deliver peace of mind, while its solid build stands up to continuous use.

Choose the Ball Valve 1202 Series | 4G Ghidini for trusted performance, effortless operation, and the assurance of high-quality engineering in every detail.


Type : 120230
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

According to normative BS/OD (ASTM A270) for TUBE

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1” to 2”1/2

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
