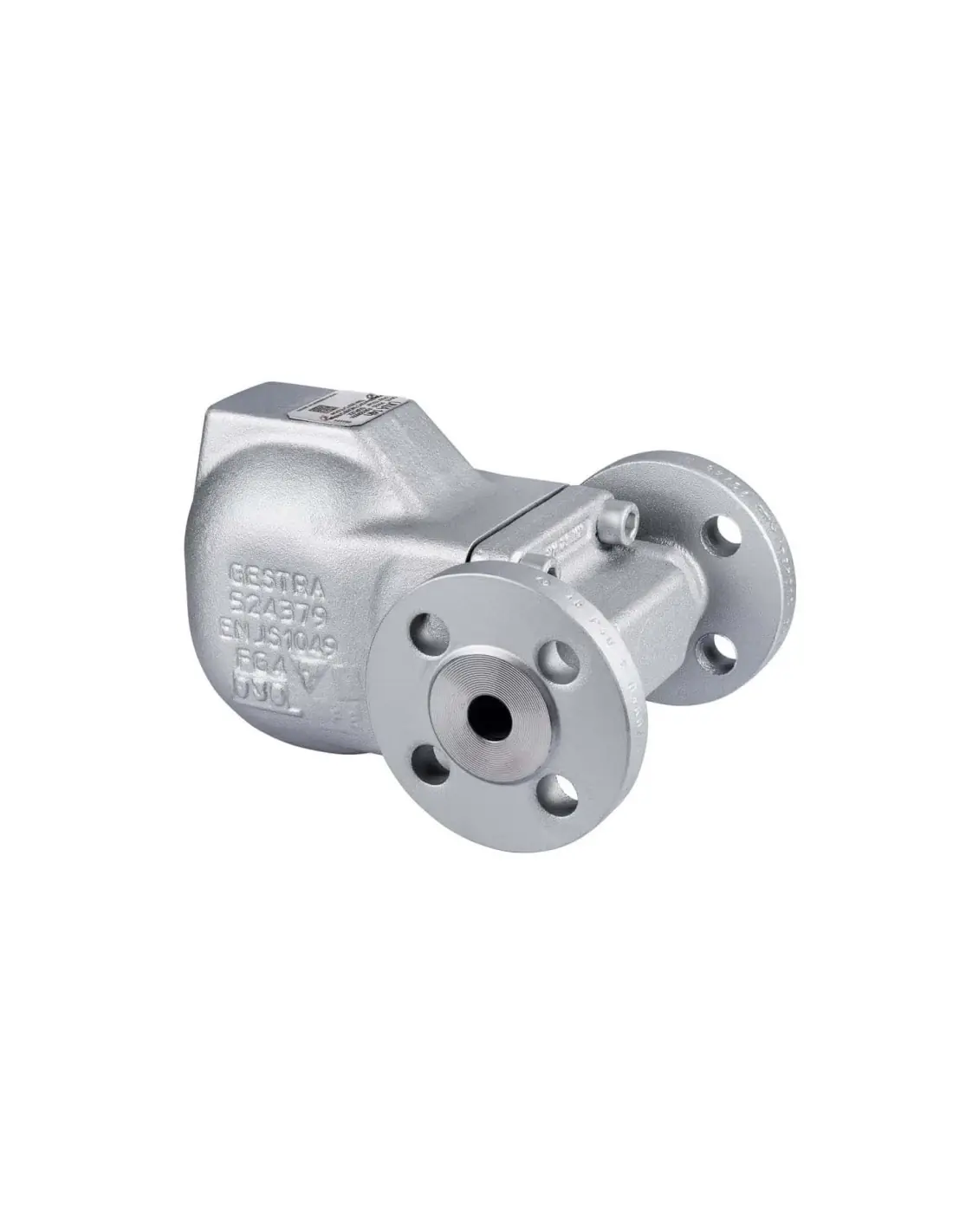

The GESTRA UNA in PN100 configuration is a float steam trap designed for high-pressure applications, featuring a 1.5415 body and needle seat mechanism. Operation is based on condensate level: the float opens the rolling valve, with flow dependent on orifice size and available differential pressure.
Available with flanges EN 1092-1 B2 PN100 or ASME B16.5 Class 600 RF, socket weld per DIN EN 12760 or ASME B16.11 Class 3000, and butt weld via transition pieces per EN 12627 / ISO 9692-1 or ASME B16.25 / ASME B36.10.
The SIMPLEX version is level-controlled, mainly used for cold condensate and superheated steam. The DUPLEX incorporates temperature-controlled venting with a bimetallic element, preferred in saturated or superheated steam where automatic air removal at startup is required.
Suitable for condensate drainage in high-pressure steam lines, heat exchangers, heating elements, superheated steam, and locations with variable backpressure. Selection is based on DN, condensate flow, differential pressure, temperature, and connection class.
Optional features include a float lifting lever and manual vent valve. Spare parts include a complete control unit, gaskets, vent valve, and bimetallic air vent. EN 10204 documentation should be requested upon ordering.

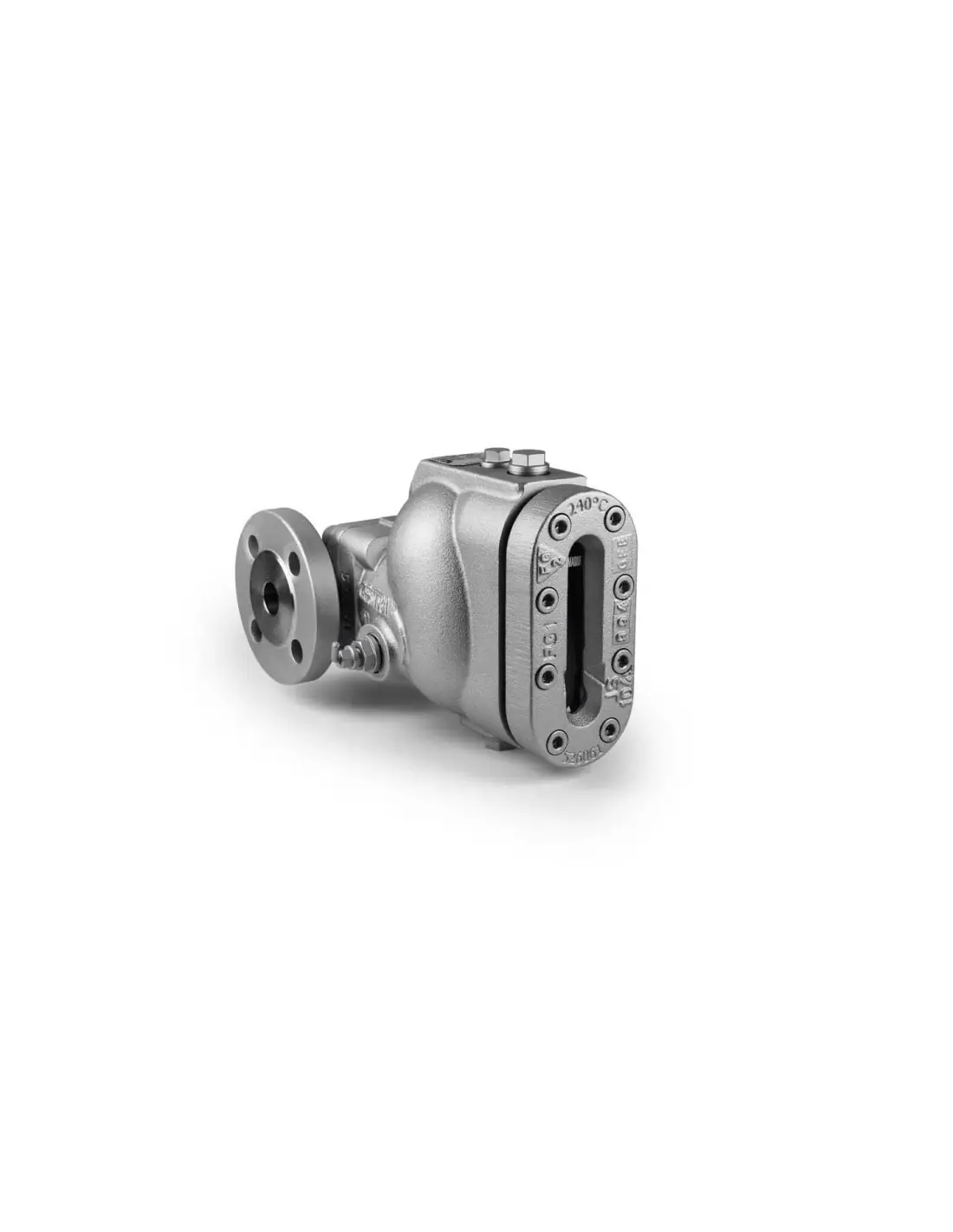

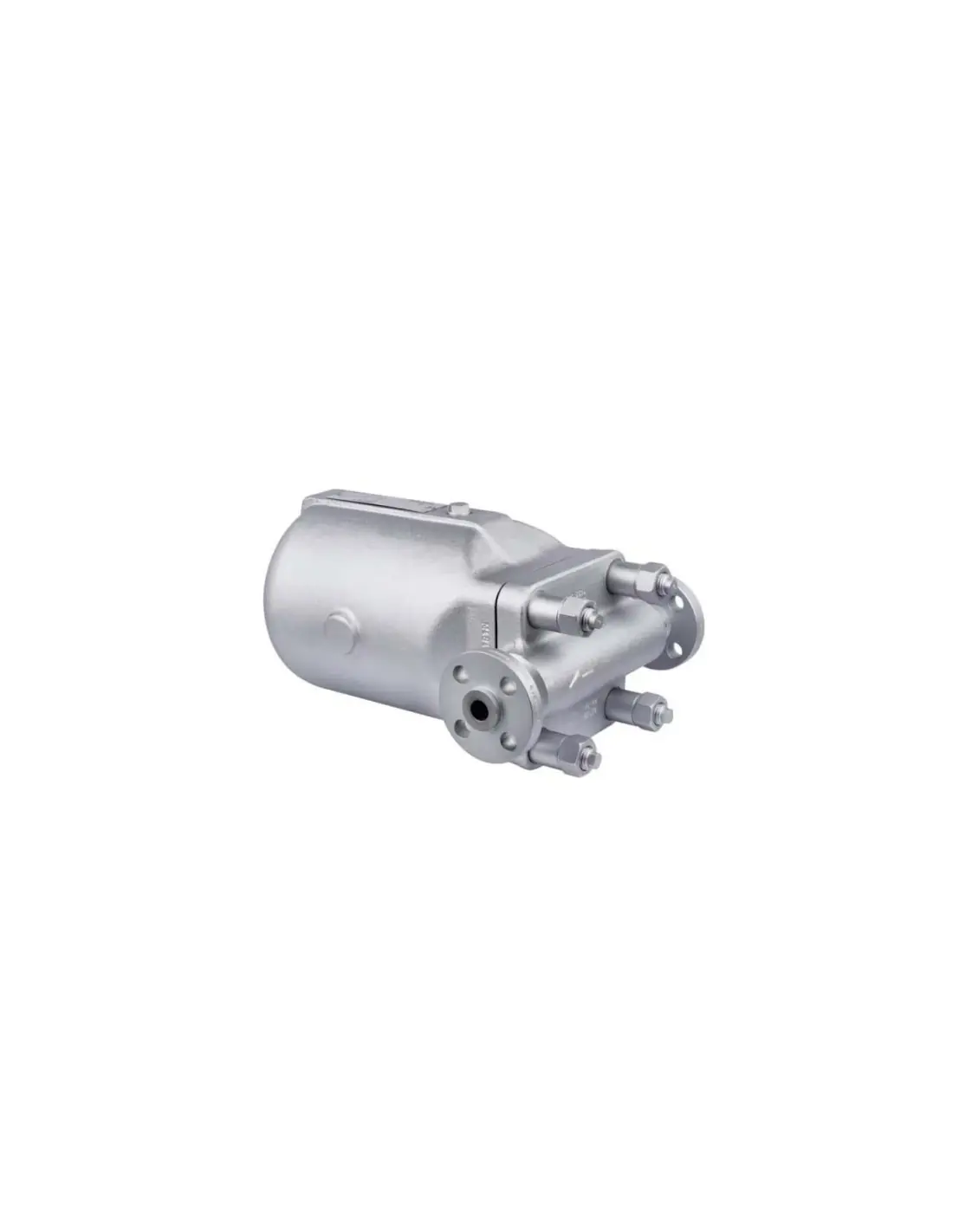

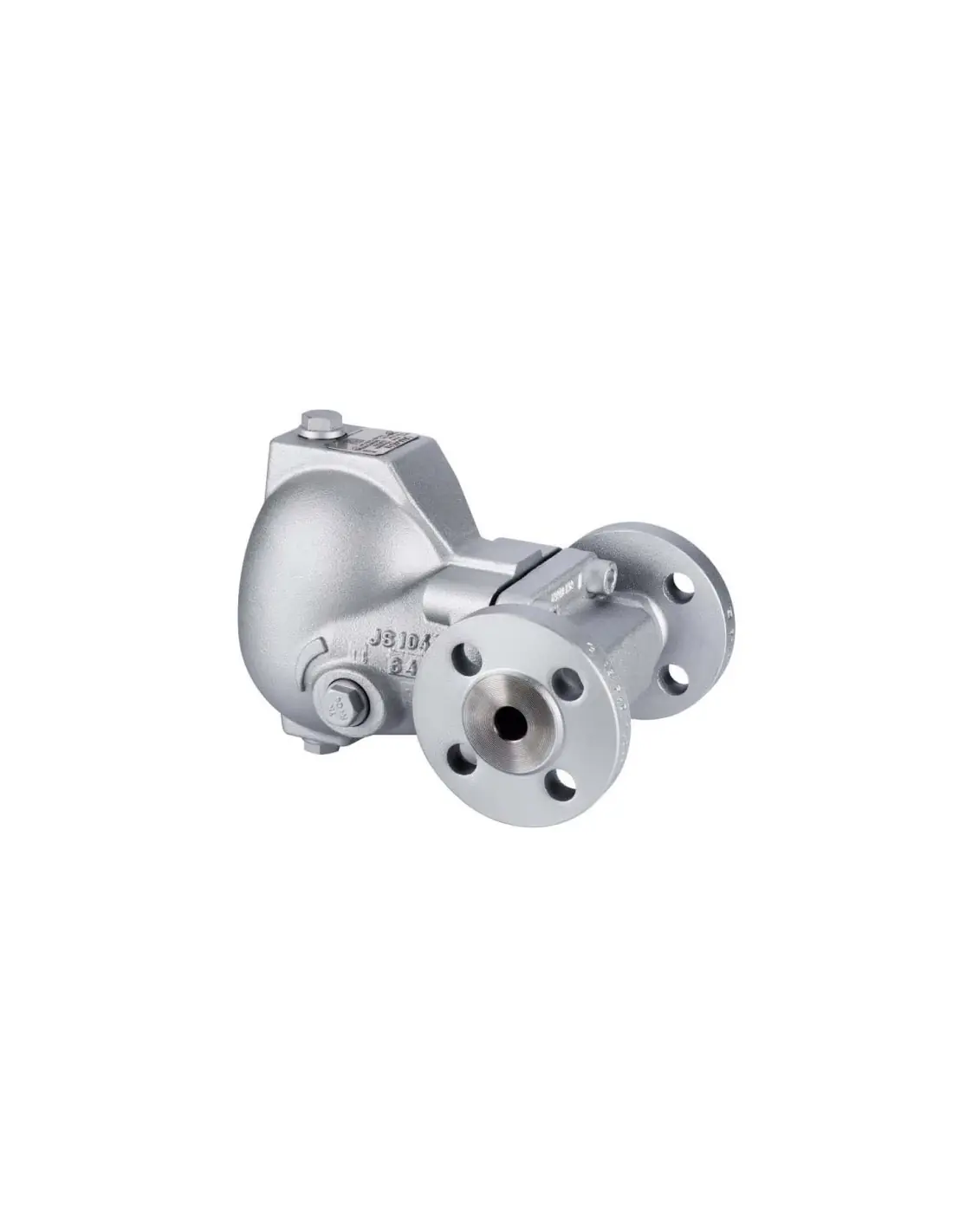

Ball float steam traps remove condensate from steam, cold condensate or distillates.
These steam traps use a tried-and-tested low friction, rolling ball seal.
They are durable and guarantee maximum tightness.
