Ball Check Valve - T115 - 99AR | Zubi

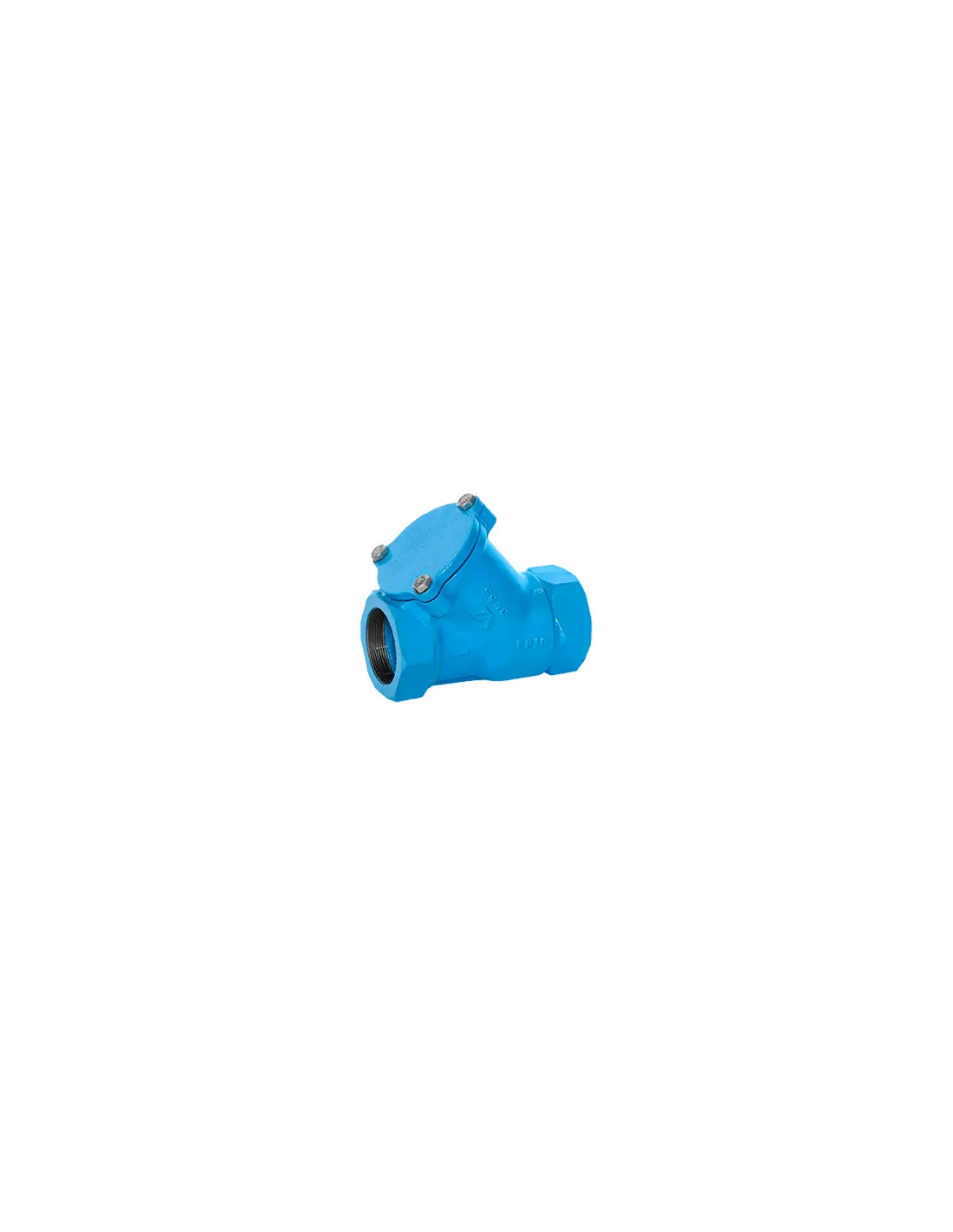

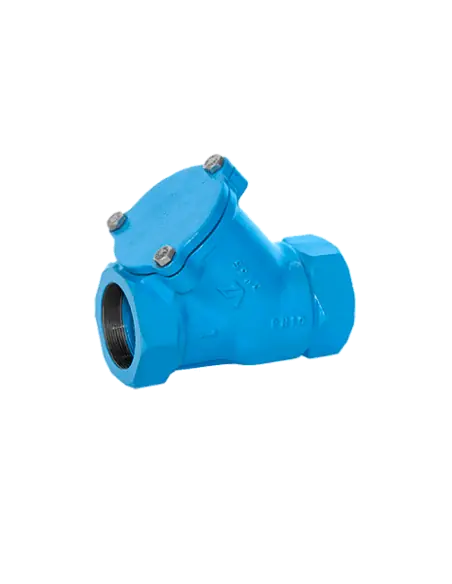

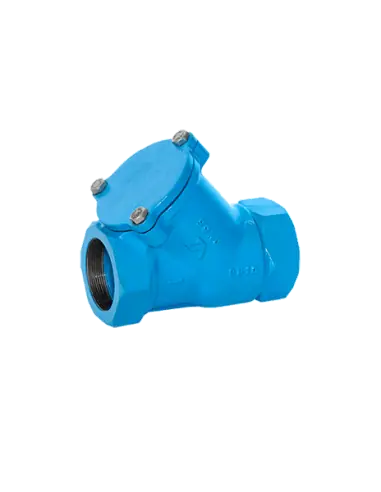

Zubi T115-99AR – Ball Type Threaded Check Valve

The Zubi T115-99AR is a unidirectional ball check valve with internal threads, available in BSP or NPT configurations. The ball is actuated by differential flow pressure and returns to the seat when flow decreases or reverses. No actuator is required for operation.

Technical Data

  • Sizes: DN25, DN40, DN50, DN65, DN80
  • Equivalent: 1" to 3"
  • Connection: Female thread GAS/BSP or NPT
  • Pressure rating: PN10
  • Operating pressure DN25–DN80: 10 bar
  • Body/Cover: EN-GJS-500 / GGG50
  • Alternative body materials: CF8M / AISI 316, CF8 / AISI 304, special alloys on request
  • Seat ring: NBR; other elastomers available on request

Ball and Sealing

The ball rotates during operation, minimizing deposit build-up on the sealing surface. For DN25–DN65, the ball is resin-based. For DN80, the ball is aluminum with NBR coating. Resin balls cannot be rubber-coated.

Applications

Suitable for water, wastewater, low solids-content liquids, and air, provided the media is compatible with GGG50, NBR, and the selected ball material. Full bore design and absence of dead zones reduce risk of solids accumulation in small-diameter drainage, auxiliary networks, and pump installations.

Installation

Flow direction is indicated on the body. Installation is possible in horizontal, vertical, or inclined pipelines, depending on body configuration. The removable cover allows access to the ball for inspection or cleaning without disturbing pipework.

Standards / Compliance

Compliant with PED 2014/68/EU, Fluid Group 1(b), 2, Category I Module A, and ATEX 2014/34/EU for Area 2 & 22.

Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • NPT
Material (Options)
  • EN-GJS-500
Pressure Rating (Options)
  • PN 10

Description

Main Features

  • Pressure/flow Directional arrow in the body showing the correct mounting position.
  • Horizontal, vertical or in tilted pipe assambling, depending on the housing.
  • Easy maintenance.
  • Easy removable cover
  • Low pressure drop.
  • Full flow.
  • NO death area where solid particles can accumulate

DIRECTIVAS

  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

INTERNAL THREADING

Standard GAS (BSP) and NPT

SIZES

  • DN-25 1”
  • DN-40 1 ½”
  • DN-50 2”
  • DN-65 2 ½”
  • DN-80 3”

PRESSURES

DN25 to DN80: 10 bar *Minimum opening pressure: 0.3 bar

MATERIALS

BODY & COVER Ductil Iron GJS-500 (GGG50), CF8M (316), CF8 (304)... Special alloys under demand.

BALL (Material + Lining)

  • DN-25-65 - Resin
  • DN-80 - Aluminium + Nitrile coated

Other linings on request. * The balls in resin cannot be rubber lined.

TORIC JOINT

NITRILE Other materials on request.
