Our MSH is a mounting kit that allows you to easily install a limit switch box on hand valves. This means you also get position feedback from your hand valves and protect your system from undetected vandalism.
Mounting Kits - MSH | Eurotec
Mounting Kits Eurotec MSH

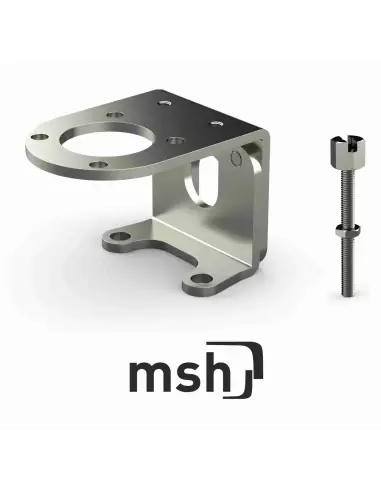

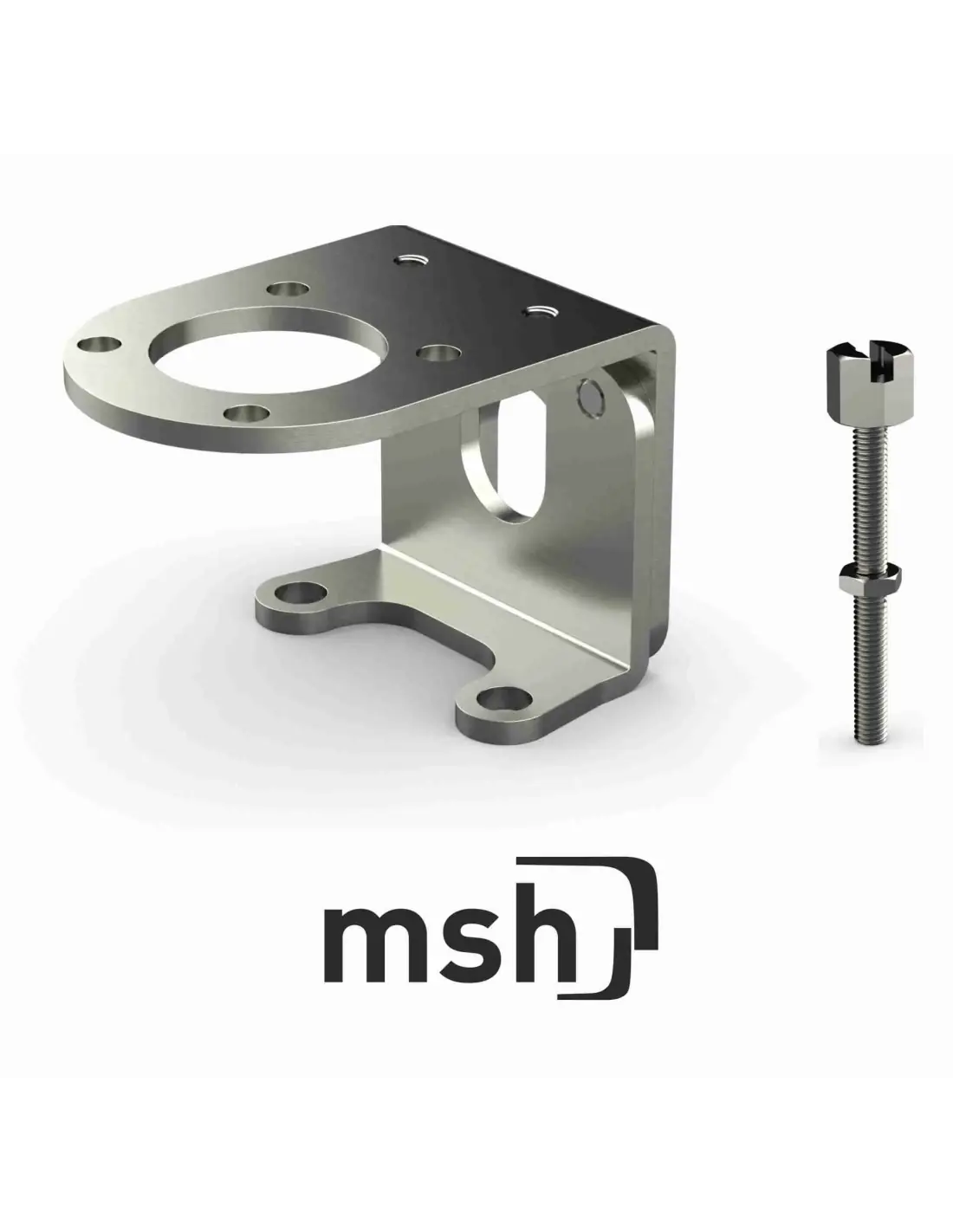

Eurotec MSH mounting kits are designed for installing limit switch boxes on manual valves. They enable open/close position feedback from valves that do not have actuators, allowing PLC or DCS systems to monitor valve status and confirm correct positioning in process lines.
Functional Role
The MSH kit does not automate the valve or transmit torque. Its function is to provide mechanical support and coupling between the limit switch box and the manual shaft or handle of the valve.
Typical use cases include:
- position indication on manual valves,
- monitoring for unauthorized operation,
- feedback to PLC, DCS, or local panels,
- retrofit on existing manual installations,
- position logging on critical isolation lines.
Applications
MSH kits are used on manual ball valves, butterfly valves, and plug valves in water, air, auxiliary gas, chemical supply, HVAC, and industrial isolation networks.
The mounting kit does not contact the process medium. Media compatibility is determined by the valve, not the MSH kit.
Selection Criteria
Selection depends on:
- type and size of manual valve,
- geometry of handle or shaft,
- limit switch box type,
- available installation space,
- required open/close signal,
- installation environment and Ex requirements.
Standards and Certifications
Eurotec references DIN EN ISO 9001:2015 and ISO/IEC 80079-34 for equipment intended for explosive atmospheres. Ex suitability of the assembly depends on the limit switch box, wiring, and installation practices.
FAQ
When is MSH used?
When manual valves require reliable position feedback without conversion to automated operation.
What is checked during maintenance?
Tightness, alignment, mechanical play, corrosion, coupling condition, and correct switching of limit switches.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
