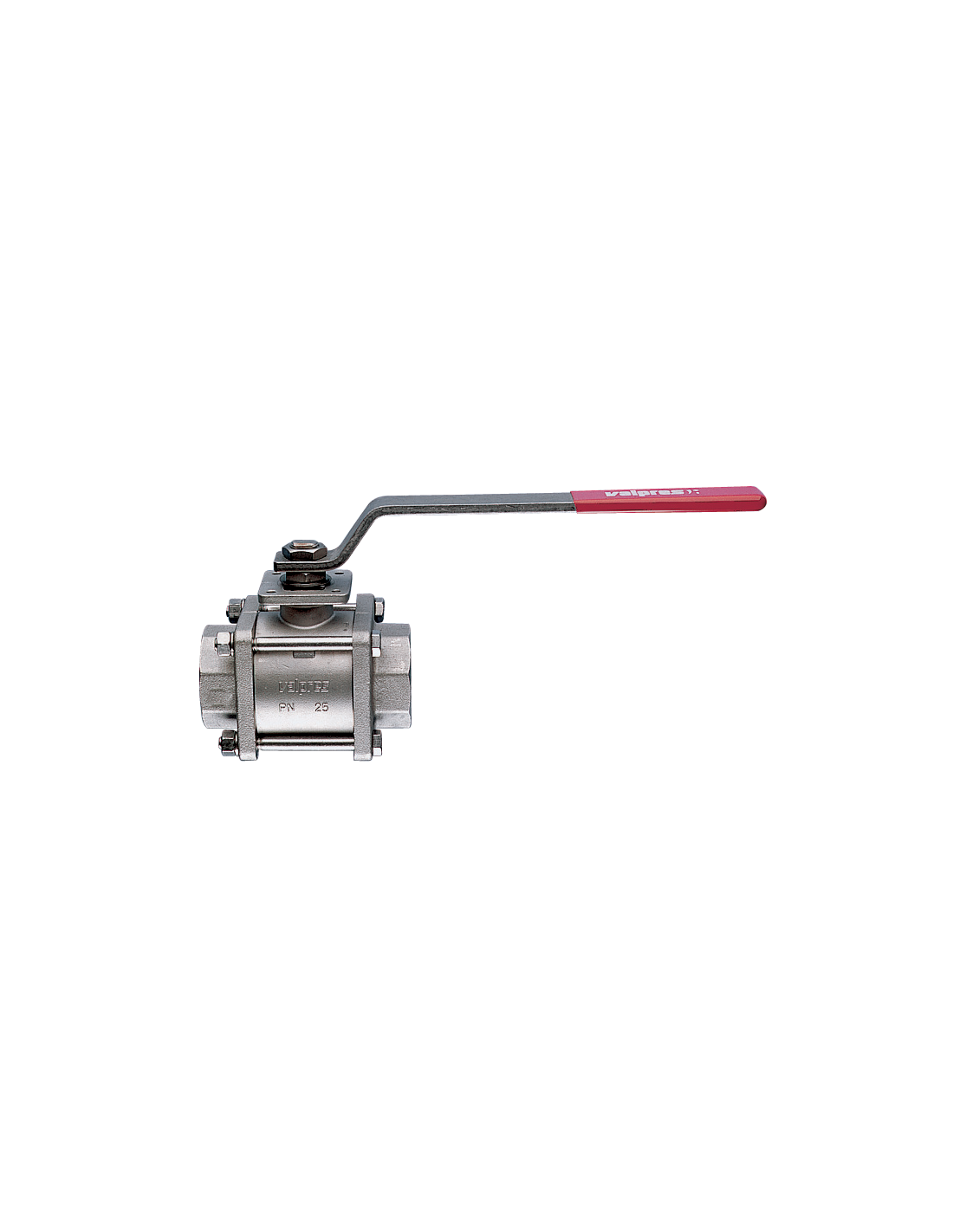

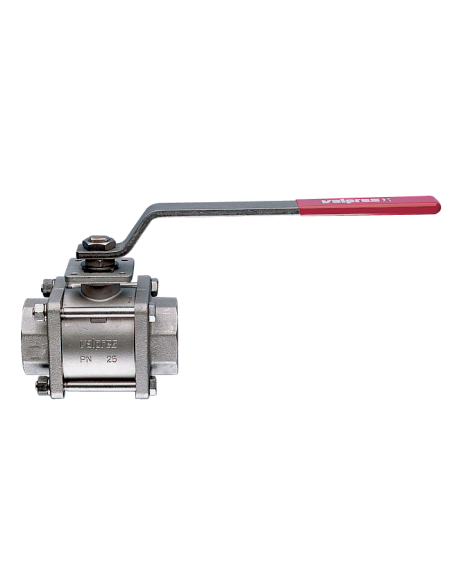

Σφαιρικός κρουνός Valpres Radiamont 710 Stainless Steel

Σφαιρικός κρουνός 3 τεμαχίων από ανοξείδωτο ASTM A351 CF8M, για απομόνωση ροής σε δίκτυα όπου απαιτείται συντηρήσιμη κατασκευή και ανοξείδωτη μεταλλουργία.

Τεχνικά χαρακτηριστικά

  • Διατομές: 1/4”–4”
  • Πίεση: PN64 έως 1/2”, PN40 έως 1”, PN25 έως 2”, PN16 έως 4”
  • Θερμοκρασία: -20°C έως +160°C
  • Συνδέσεις: BSP, NPT, ISO 7 Rp, SW, BW
  • Σώμα / άκρα: A351 CF8M
  • Σφαίρα: A479 TP316 ή A351 CF8M
  • Στέλεχος: A479 TP316
  • Έδρες: PTFE ή glass filled PTFE
  • Body seat / stem seat: PTFE
  • Antifriction ring: TFM
  • O-ring: FKM / Viton

Κατασκευή 3 τεμαχίων

Το κεντρικό σώμα μπορεί να αφαιρεθεί για έλεγχο εδρών και στεγανοποιήσεων, ενώ τα άκρα παραμένουν στη σωλήνωση. Αυτό μειώνει τις επεμβάσεις κοπής σε συγκολλητές εγκαταστάσεις.

Εφαρμογές

Κατάλληλος για νερό διεργασίας, αέρα, χημικά υγρά, έλαια και ουδέτερα αέρια συμβατά με CF8M, PTFE/TFM και FKM.

Κριτήρια επιλογής

Η ανοξείδωτη Radiamont 710 επιλέγεται αντί της carbon steel έκδοσης όταν το μέσο ή το περιβάλλον απαιτεί αντοχή σε διάβρωση. Ελέγχονται σύνδεση, PN ανά διάμετρο, θερμοκρασία και συμβατότητα ελαστομερών.

Τυποποίηση (Επιλογές)
  • DIN
Σύνδεση (Επιλογές)
  • BSP
  • NPT
  • Κολλητή Socket
  • Κολλητή Butt
  • ISO 7 Rp
Υλικό Κατασκευής (Επιλογές)
  • ASTM A351 CF8M
Ονομαστική Πίεση (Επιλογές)
  • PN 16
  • PN 25
  • PN 40
  • PN 64

Τεχνικά Φυλλάδια / Οδηγίες Χρήσης / Λοιπά

Περιγραφή

Valpres - Radiamont 3 Piece Ball Valves - 710001

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
1090° STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11MOLLA A TAZZA51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXILChRPACEFNBKvPNKgT
1/4"871000102101157OT.22110503513,585--5,5640,289
3/8"10710001031011,457OT.22110503513,585--8,5640,279
1/2"157100010461565OT.2713164471510736619,2640,5010
3/4"2071000105516,376OT.3213168521610742635400,7010
1"2571000106219,192OT.41174796019,512842664,5401,2012,5
1"1/43271000107421,4106OT.50174836419,5128426103,8251,7012,5
1"1/24071000108221,4116OT,5525010079241610506,5174252,5016,5
2"5071000110225,7136OT.7025010786241610506,5301,3253,9016,5
2"1/26571000112130,2153Ø9032112610328201470M8545,7168,1518
3"8071000114133,3180Ø10532113711428201470M8872,51612,8018
4"10071000118139,3217Ø13038115613734,52418102M101363,31621,5022

Valpres - Radiamont 3 Piece Ball Valves - 710007

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE CARICATO VETRO - GLASS FILLED PTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
1090° STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWTFM1
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)2
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4")1
SIZEDNCODEBOXILChRPACEFNBKvPNKgT
1/4"871000702101157OT.22110503513,585--5,5640,289
3/8"10710007031011,457OT.22110503513,585--8,5640,279
1/2"157100070461565OT.2713164471510736619,2640,5010
3/4"2071000705516,376OT.3213168521610742635400,7010
1"2571000706219,192OT.41174796019,512842664,5401,2012,5
1"1/43271000707421,4106OT.50174836419,5128426103,8251,7012,5
1"1/24071000708221,4116OT,5525010079241610506,5174252,5016,5
2"5071000710225,7136OT.7025010786241610506,5301,3253,9016,5
2"1/26571000712130,2153Ø9032112610328201470M8545,7168,1518
3"8071000714133,3180Ø10532113711428201470M8872,51612,8018
4"10071000718139,3217Ø13038115613734,52418102M101363,31621,5022

Valpres - Radiamont 3 Piece Ball Valves - 710009

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
1090° STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER50CRV4 Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXILChRPACEFNBKvPNKgT
1/4"871000702101157OT.22110503513,585--5,5640,289
3/8"10710007031011,457OT.22110503513,585--8,5640,279
1/2"157100070461565OT.2713164471510736619,2640,5010
3/4"2071000705516,376OT.3213168521610742635400,7010
1"2571000706219,192OT.41174796019,512842664,5401,2012,5
1"1/43271000707421,4106OT.50174836419,5128426103,8251,7012,5
1"1/24071000708221,4116OT,5525010079241610506,5174252,5016,5
2"5071000710225,7136OT.7025010786241610506,5301,3253,9016,5
2"1/26571000712130,2153Ø9032112610328201470M8545,7168,1518
3"8071000714133,3180Ø10532113711428201470M8872,51612,8018
4"10071000718139,3217Ø13038115613734,52418102M1013631621,5022

Valpres - Radiamont 3 Piece Ball Valves - 710010

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
1090° STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXSWXLChRPACEFNBKvPNKgT
3/8"10710010031018,29,557OT.22110503513,585--8,5640,279
1/2"1571001004622,49,565OT.2713164471510736619,2640,5010
3/4"2071001005527,711,176OT.3213168521610742635400,7510
1"2571001006234,512,792OT.41174796019,512842664,5401,3012,5
1"1/43271001007443,214,3106OT.50174836419,5128426103,8251,8012,5
1"1/24071001008249,515,9116OT,5525010079241610506,5174252,7016,5
2"507100101026217,5136OT.7025010786241610506,5301,3254,1016,5
2"1/26571001012176,520153Ø9032112610328201470M8545,7168,3518
3"8071001014189,520180Ø10532113711428201470M8872,51613,1018
4"10071001018111520217Ø13038115613734,52418102M1013631622,4022

Valpres - Radiamont 3 Piece Ball Valves - 710011

Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
1090° STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 (1-4''-2'') - A37 + Z-P (2''1-2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXBWWLChRPACEFNBKvPNKgT
3/8"10710011031017,112,4857OT.22110503513,585--8,5640,279
1/2"1571001104621,415,7665OT.2713164471510736619,2640,5010
3/4"2071001105526,720,9676OT.3213168521610742635400,7510
1"2571001106233,426,6492OT.41174796019,512842664,5401,3012,5
1"1/43271001107442,235,08106OT.50174836419,5128426103,8251,8012,5
1"1/24071001108248,340,94116OT,5525010079241610506,5174252,7016,5
2"5071001110260,352,48136OT.7025010786241610506,5301,3254,1016,5
2"1/2657100111217362,68153Ø9032112610328201470M8545,7168,1518
3"8071001114188,977,92180Ø10532113711428201470M8872,51612,8018
4"100710011181114,3102,26217Ø13038115613734,52418102M1013631622,0022

Valpres - Radiamont 3 Piece Ball Valves - 710168

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFKM (VITON)1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
1090° STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXILChRPACEFNBKvPNKgT
1/4"871016802101157OT.22110503513,585--5,5640,289
3/8"10710168031011,457OT.22110503513,585--8,5640,279
1/2"157101680461565OT.2713164471510736619,2640,5010
3/4"2071016805516,376OT.3213168521610742635400,7010
1"2571016806219,192OT.41174796019,512842664,5401,2012,5
1"1/43271016807421,4106OT.50174836419,5128426103,8251,7012,5
1"1/24071016808221,4116OT,5525010079241610506,5174252,5016,5
2"5071016810225,7136OT.7025010786241610506,5301,3253,9016,5
2"1/26571016812130,2153Ø9032112610328201470M8545,7168,1518
3"8071016814133,3180Ø10532113711428201470M8872,51612,8018
4"10071016818139,3217Ø13038115613734,52418102M1013631621,5022

Valpres - Radiamont 3 Piece Ball Valves - 710190

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE CARBOGRAFITE - CARBON FILLED PTFE2
5BODY SEATFKM (VITON)2
6ANTIFRICTION RINGPTFE CARBOGRAFITE - CARBON FILLED PTFE1
7O-RINGFKM (VITON)1
8STEM SEATPTFE CARBOGRAFITE - CARBON FILLED PTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
10END STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXILChRPACEFNBKvPNKgT
1/4"871019002101157OT.22110503513,585--5,5640,289
3/8"10710190031011,457OT.22110503513,585--8,5640,279
1/2"157101900461565OT.2713164471510736619,2640,5010
3/4"2071019005516,376OT.3213168521610742635400,7010
1"2571019006219,192OT.41174796019,512842664,5401,2012,5
1"1/43271019007421,4106OT.50174836419,5128426103,8251,7012,5
1"1/24071019008221,4116OT,5525010079241610506,5174252,5016,5
2"5071019010225,7136OT.7025010786241610506,5301,3253,9016,5
2"1/26571019012130,2153Ø9032112610328201470M8545,7168,1518
3"8071019014133,3180Ø10532113711428201470M8872,51612,8018
4"10071019018139,3217Ø13038115613734,52418102M1013631621,5022

Valpres - Radiamont 3 Piece Ball Valves - 710240

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5SEATPTFE2
6THRUST WASHERPTFE1
7O-RINGFKM1
8STEM SEATPTFE1
9PACKING GLANDINOX AISI 303 (1/4”-2”) CARBON STEEL (2’’1/2-3’’- 4’’)1
10END STOPINOX AISI 430 (1/4”-2”) CARBON STEEL (2’’1/2-3’’-4’’)2-1
11SPRING WASHERCARBON STEEL (2’’1/2-3’’-4’’)2
12NUTA182-F304 (1/4”-2”) CARBON STEEL (2’’1/2-3’’- 4’’)2
13BOLTINOX AISI 304 (1-4”-2”) CARBON STEEL (2’’1-2-3’’- 4’’)4-6
14WASHERINOX AISI 304 (1-4”-2”) CARBON STEEL (2’’1-2-3’’- 4’’)4-6
15NUTINOX AISI 304 (1-4”-2”) CARBON STEEL (2’’1-2-3’’- 4’’)4-6
16STEMA479-TP316/17-4-PH1
17HANDLEINOX AISI 430 (1/4”-2”) CARBON STEEL (2’’1/2-3’’-4’’)1
SIZEDNCODEBOXSWXBWWILChRPACEFØNBKvPNKg
1/4"87102400210----1157OT.22110503513,585--5,5640,28
3/8"10710240031018,29,517,112,4811,457OT.22110503513,585--8,5640,27
1/2"1571024004622,49,521,415,761565OT.2713164471510736619,2640,50
3/4"2071024005527,711,126,720,9616,376OT.32131685216107425,535400,70
1"2571024006234,512,733,426,6419,192OT.41174796019,512842664,5401,20
1"1/43271024007443,214,342,235,0821,4106OT.50174836419,5128425,5103,8251,70
1"1/24071024008249,515,948,340,9421,4116OT,5525010079241610506,5174252,50
2"507102401026217,560,352,4825,7136OT.7025010786241610506,5301,3253,90
2"1/26571024012176,5207362,6830,2153Ø9032112610328201470M8545,7168,15
3"8071024014189,52088,977,9233,3180Ø10532113711428201470M8872,51612,80
4"10071024018111520114,3102,2639,3217Ø13038115613734,52418102M101363,31621,50

Valpres - Radiamont 3 Piece Ball Valves - 710331

Stainless steel: Temperature range: -20°C +160°C.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M2
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5BODY SEATPTFE2
6ANTIFRICTION RINGTFM1
7O-RINGFFKM1
8STEM SEATPTFE1
9PACKING GLANDA479-TP316 (1/4''-2'') - A37+Z-P (2''1/2-4'')1
10END STOPINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)2
11SPRING WASHER51CrV4+Z/P (2''1/2-4'')2
12NUTA2-70 (1/4''-2'') - 6S + Z/P (2''1/2-4'')2
13SCREWA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
14WASHERINOX AISI 304 (1/4”-2”) C60S+Z/P (2’’1/2-4’’)4
15NUTA2-70 +Z/P (1/4''-2'') - 8.8 + Z/P (2''1/2-4'')4
16STEMA479-TP3161
17HANDLEINOX AISI 430 (1-4”-2”) A37 Z/P (2’’1-2-4’’)1
SIZEDNCODEBOXILChRPACEFNBKvPNKgT
1/4"871033102101157OT.22110503513,585--5,5640,289
3/8"10710331031011,457OT.22110503513,585--8,5640,279
1/2"157103310461565OT.2713164471510736619,2640,509
3/4"2071033105516,376OT.3213168521610742635400,7010
1"2571033106219,192OT.41174796019,512842664,5401,2010
1"1/43271033107421,4106OT.50174836419,5128426103,8251,7012,5
1"1/24071033108221,4116OT,5525010079241610506,5174252,5016,5
2"5071033110225,7136OT.7025010786241610506,5301,3253,9016,5
2"1/26571033112130,2153Ø9032112610328201470M8545,7168,1518
3"8071033114133,3180Ø10532113711428201470M8872,51612,8018
4"10071033118139,3217Ø13038115613734,52418102M1013631621,5022

Πιστοποιήσεις

SIL 3  SIL 3

TUV TUV

ATEX (On request) ATEX  (On request)
