Holder for Graphite Rupture Disc

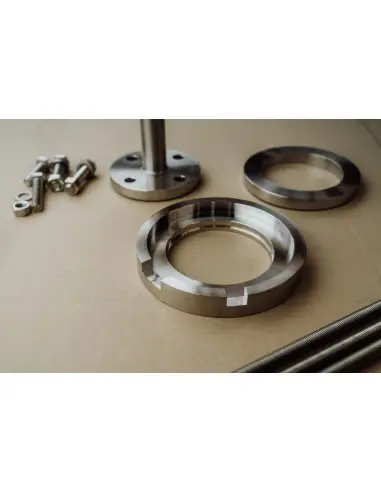

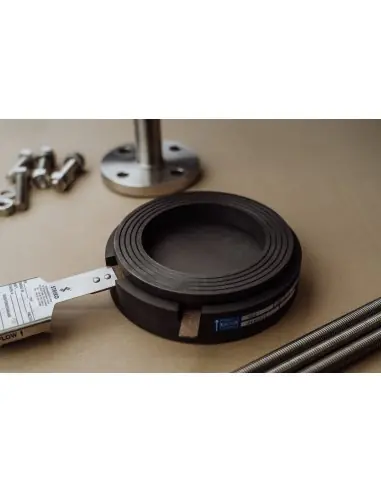

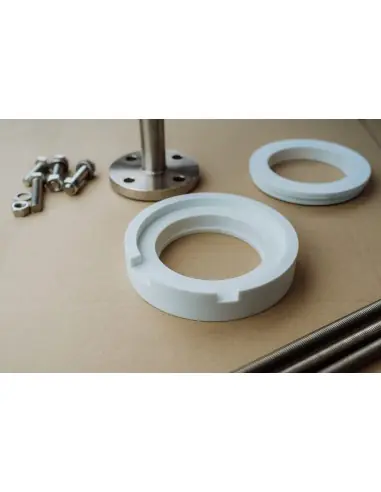

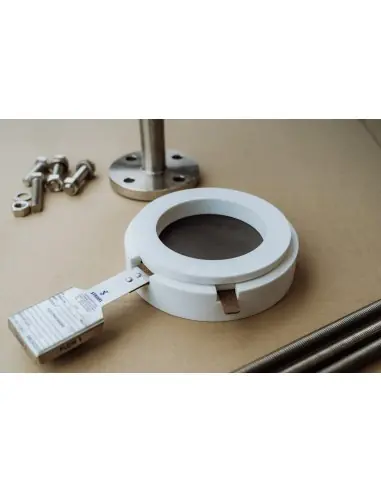

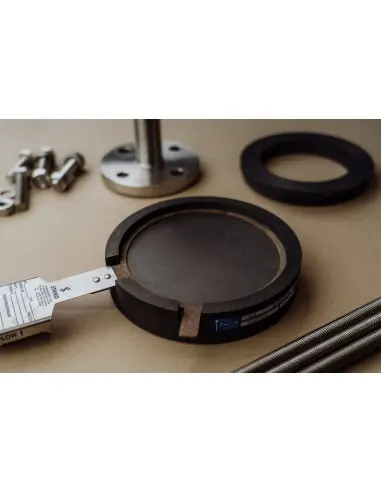

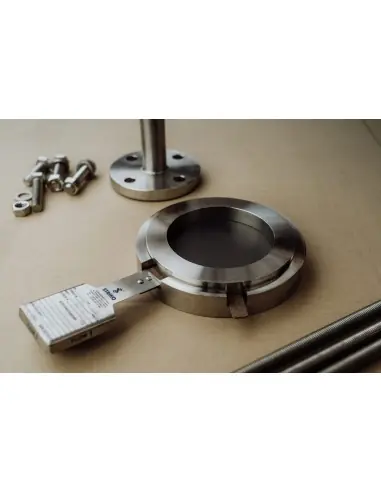

for flat graphite bursting discs of the G2 series Rupture discs of the G2 series (G2 & LPG2) are installed in holder HG2 between the flanges.
The principal structure of such rupture disc equipment is always the same.

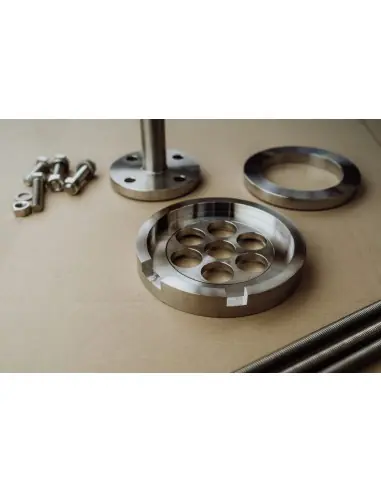

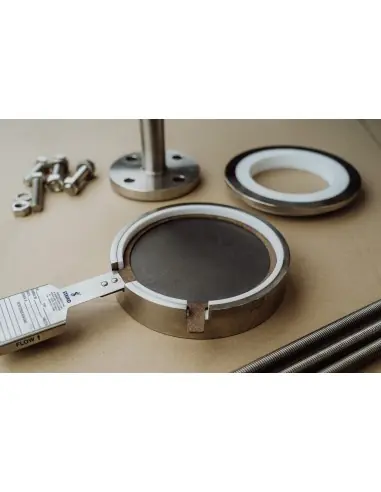

The rupture disc is positioned with the optional vacuum support in the holder inlet part, and then clamped between the flanges. The necessary axial pressure applied this way makes the unit tight. The system is completed with the seals between holder and flanges or the optional burst indicator on the discharge side.
Advantages in the application
- Graphite rupture disc are designed for use with aggressive media
- Ideal for applications where cost efficiency is more important than a fragment-free opening behavior of the rupture disc
