Μαχαιρωτή βαλβίδα Zubi τύπος T400 - Silo type

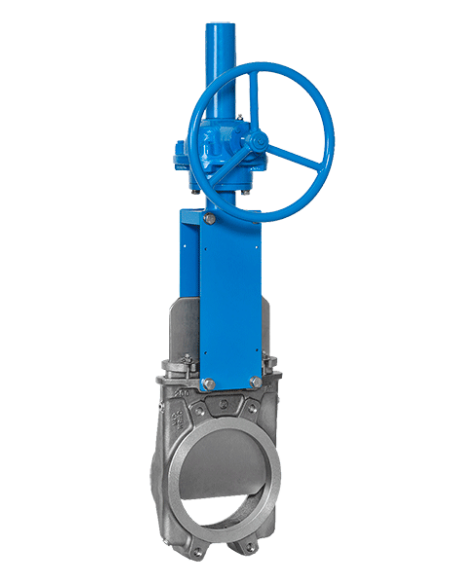

Μαχαιρωτή βαλβίδα Zubi T400 Silo Type

Η Zubi T400 είναι μαχαιρωτή βαλβίδα wafer, unidirectional, monoblock, σχεδιασμένη για εκφόρτωση σιλό, hopper outlets και γραμμές bulk handling με σκόνες ή κοκκώδη στερεά. Δεν προορίζεται για ακριβή ρύθμιση παροχής· η κύρια λειτουργία της είναι απομόνωση ή ελεγχόμενη εκκένωση στερεών υλικών.

Λειτουργική αρχή

Η βαλβίδα εγκαθίσταται συνήθως σε αντίστροφη θέση, με την έδρα προς την upstream πλευρά, ώστε να μειώνεται η συσσώρευση υλικού στο σώμα, η φθορά της έδρας και η δυσκολία κλεισίματος. Το σώμα διαθέτει 4 flushing holes ως στάνταρ, για καθαρισμό εσωτερικών υπολειμμάτων και αποφυγή παγίδευσης στερεών. Η φορά τοποθέτησης δηλώνεται με βέλος στο σώμα.

Πίεση, μεγέθη και συνδέσεις

  • Διαστάσεις: DN100–DN600
  • DN100–DN250: 3 bar
  • DN300–DN400: 2 bar
  • DN500–DN600: 1 bar / 1,5 bar ανά τεχνική έκδοση
  • Φλάντζες: EN1092 PN10/16, ANSI B16.5 ή ANSI 125/150, JIS 5K/10K, AS-2129 D/E
  • Δοκιμή: UNE-EN 12266-1

Εφαρμογές

Τυπική χρήση σε:

  • σιλό τσιμέντου και κονιαμάτων,
  • βιομάζα,
  • mining και ορυκτά υλικά,
  • χημικές σκόνες,
  • bulk handling,
  • power plants και cement plants.

Υλικά και στεγανοποίηση

Σώμα: GG25/GJL250, GGG40, A216 WCB, CF8, CF8M, CF3M, 254SMO, 904L, Duplex SAF2205, Superduplex SAF2507.
Μαχαίρι: AISI304L, AISI316L, Hardox ή ειδικά κράματα.
Έδρα: EPDM, NBR, Silicone, Viton, PTFE, RPTFE, Graphite ή Flucast.
Packing: Synt+PTFE, καθαρό PTFE, Graphite, Ceramic ή greased cotton.

Ενεργοποίηση

Διατίθενται χειροτροχός, μειωτήρας, chain wheel, πνευματικός κύλινδρος, ηλεκτρικός ή υδραυλικός ενεργοποιητής. Προαιρετικά: limit switches, inductive sensors, solenoid valves, positioner 4–20 mA, locking device, extension και bonnet.

Τεχνικά Φυλλάδια / Οδηγίες Χρήσης / Λοιπά

Περιγραφή

Main Features

  • The special design of the body allows for easy passage of the fluid and makes it ideal for use as silo discharge valve.
  • The valve is normally installed in the reverse position (seat upstream OFF seat) in order to avoid problems like solid accumulation, seat wear, difficult closing…
  • Flushing holes (x4) integrated on the body as standard. These purge port allow internal cleaning of the valve and avoid solids trapping.
  • Directional arrow in the body showing correct mounting position.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • PN6/PN10/PN16/PN25/PN40
  • ANSI125/150
  • BST E / BST D
  • JIS 5K JIS10K
  • AS-2129-D/E

SIZES & PRESSURES

  • DN100 to DN250: 3 bar
  • DN300 to DN400: 2 bar
  • DN500 to DN600: 1,5 bar

(Higher design pressures on request)

TIGHTNESS

  • Metal/Metal
  • PTFE
  • Watertight

MATERIALS

BODY  GG25, GGG40, A216 WCB, CF8 (AISI304), CF8M (AISI316), CF3M (AISI316L), 254SMO, 654SMO, AISI310, AISI904, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE.

GATE AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

PACKING SYNT+PTFE, Pure PTFE, GRAPHITE, CERAMIC, Greased COTTON.

ACTUATORS

Manual, pneumatic, hydraulic, electric, gear box, hand lever, square end, chain-wheel, pneumatic with security hand wheel, pneumatic with security gear box.

ACCESSORIES AND OPTIONS

Limit switches, proximity sensors, solenoid valves, positioner 4/20mA, sleeves, locking devices, extension, regulation v-ports, cleaning holes, bonnet, etc.
