Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety | Philippopoulos s.a.

Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety

Name: Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety
Brand: B-Safety
SKU: Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety

Advanced Protection with Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety

Ensure complete safety and rapid response in industrial environments with the Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety. Designed for overhead placement above doorways, this emergency safety shower provides immediate body coverage in case of chemical spills or hazardous exposure. Its premium construction and adaptable design make it an essential addition to laboratories, factories, and any workplace where safety is paramount.

Features & Benefits: Why Choose Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety?

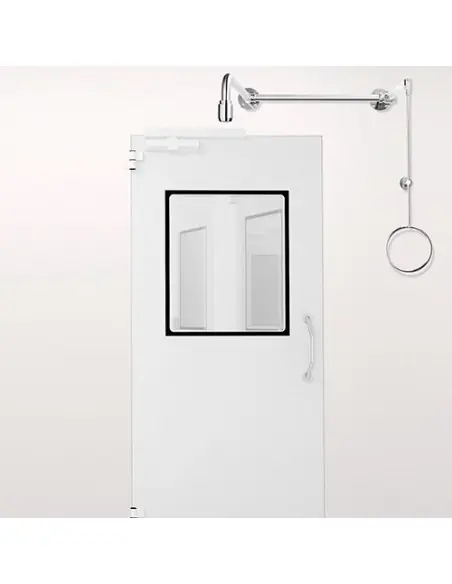

Space-Saving Above-Door Installation: Mounted directly above the door, this shower utilizes unused space, making it perfect for areas where floor space is limited.
Flexible Activation: The easy-to-use pull-rod ensures rapid activation, providing instant water flow when every second counts.
Robust Construction: Made from high-quality, corrosion-resistant materials, the PremiumLine model guarantees durability and a long service life even in the toughest industrial environments.
Comprehensive Body Coverage: Engineered for maximum reach, the shower delivers a wide, powerful water spray, thoroughly rinsing hazardous substances from the body quickly and effectively.
Consistent Water Flow: The precision-engineered nozzle ensures a steady and reliable water stream, aiding in the fast and efficient decontamination of affected personnel.
Easy Maintenance: Designed for straightforward inspection and cleaning, the unit reduces downtime and ensures ongoing readiness.
Compliance with Safety Standards: Built to meet international safety regulations, providing peace of mind for employers and safety officers.

The Variable body safety shower above door installation - PremiumLine - BR 084 095 / V | B-Safety stands out with its straightforward, practical approach to workplace safety. Employees are protected with a reliable emergency shower that is always within reach, offering quick access and thorough decontamination. Its above-door design frees up valuable workspace, while robust components ensure lasting performance in even the busiest industrial settings. Invest in superior industrial safety with this advanced, user-friendly emergency shower solution.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel
Surface: polished
Projection: 525 mm
Installation height: 2345 mm (± 100 mm)
Total width: 285-1535 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: ¾“ female

Norms / Approvals

EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

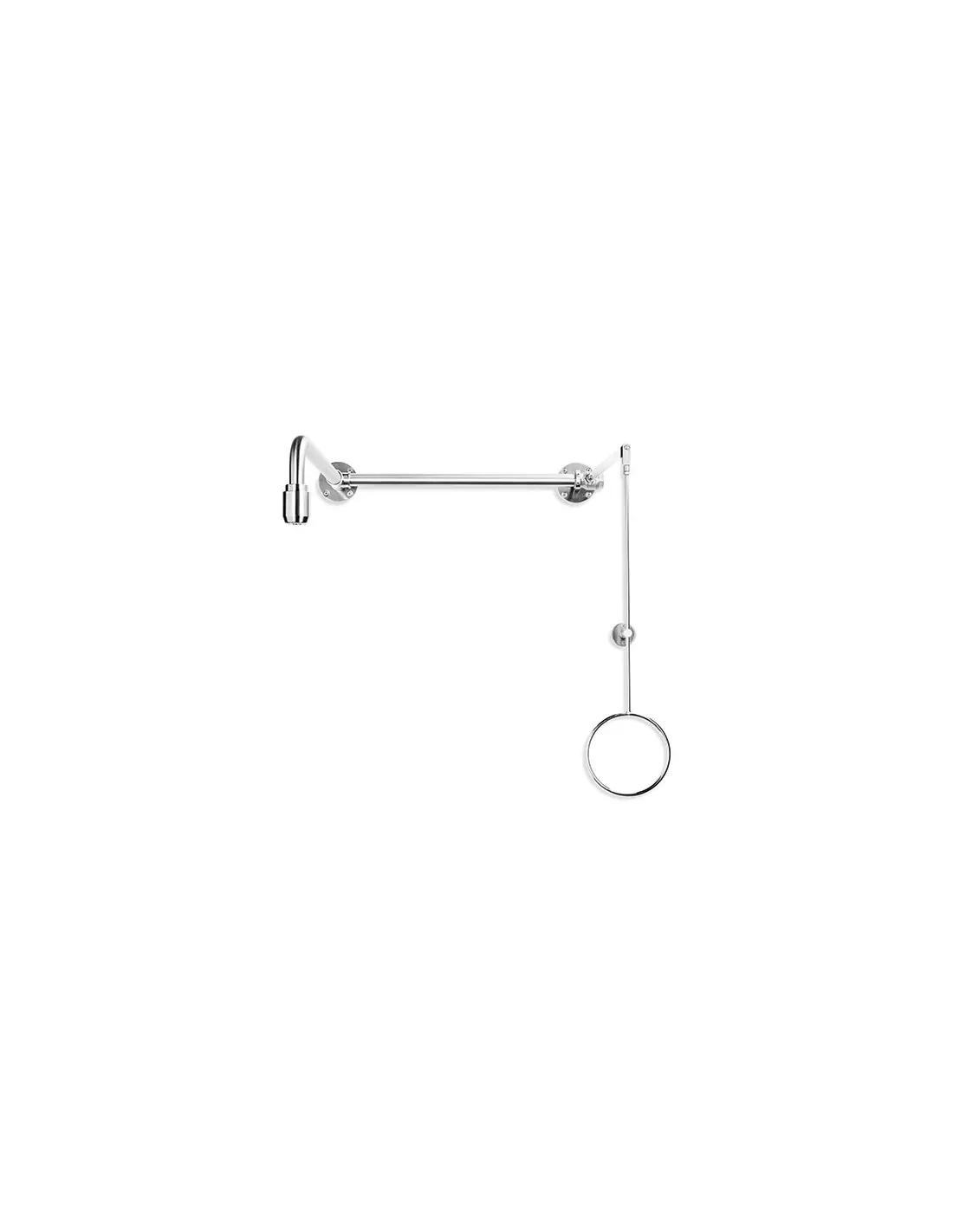

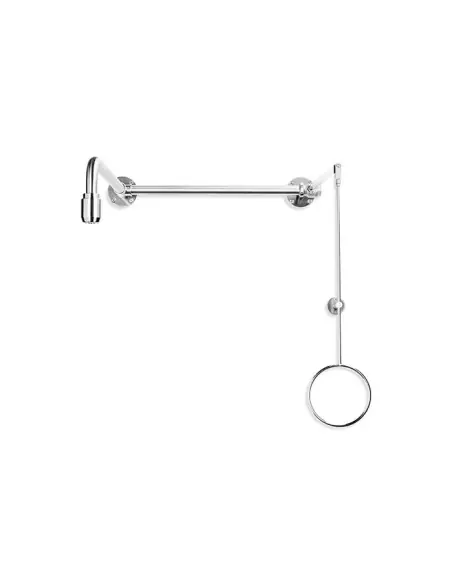

Technical Description

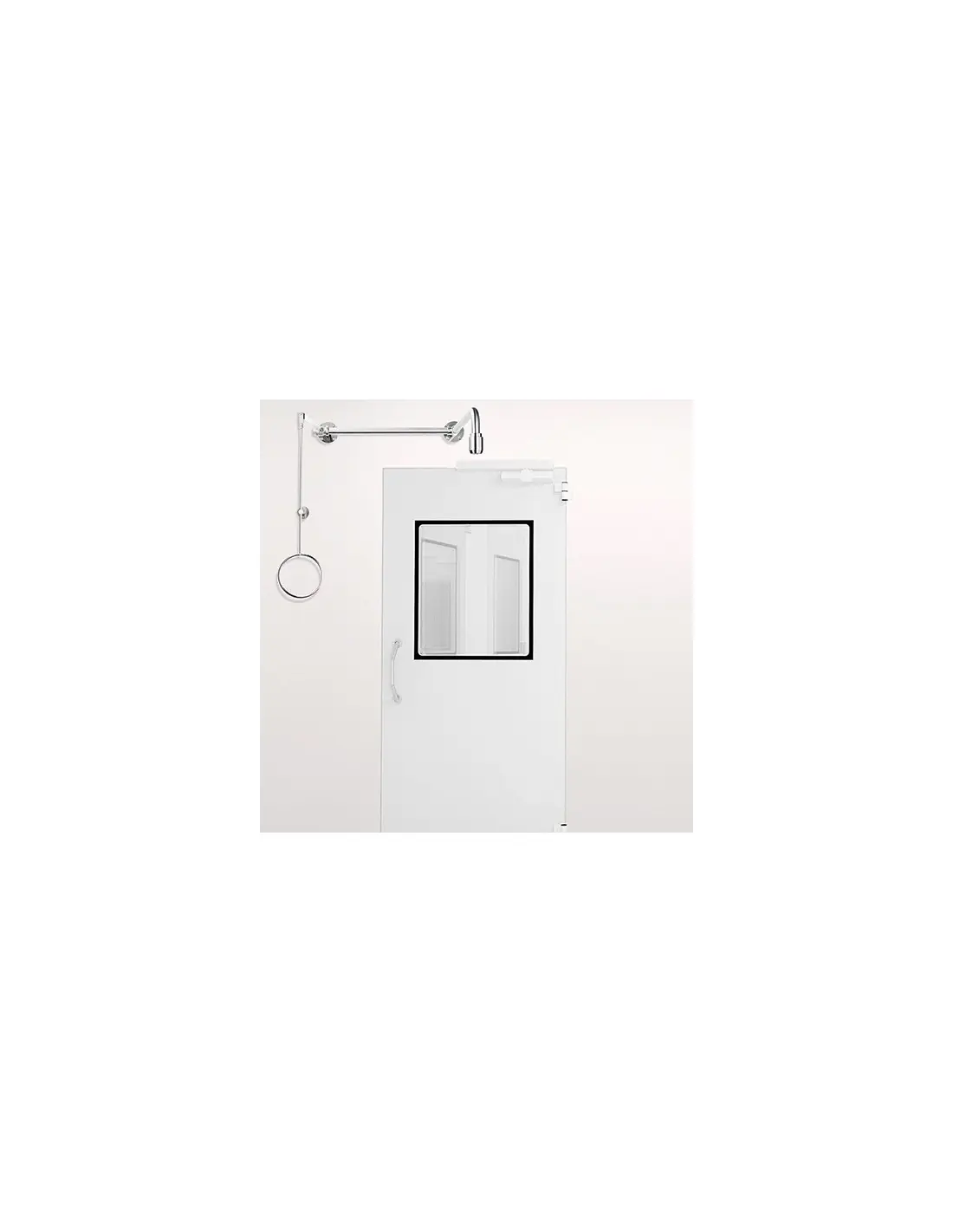

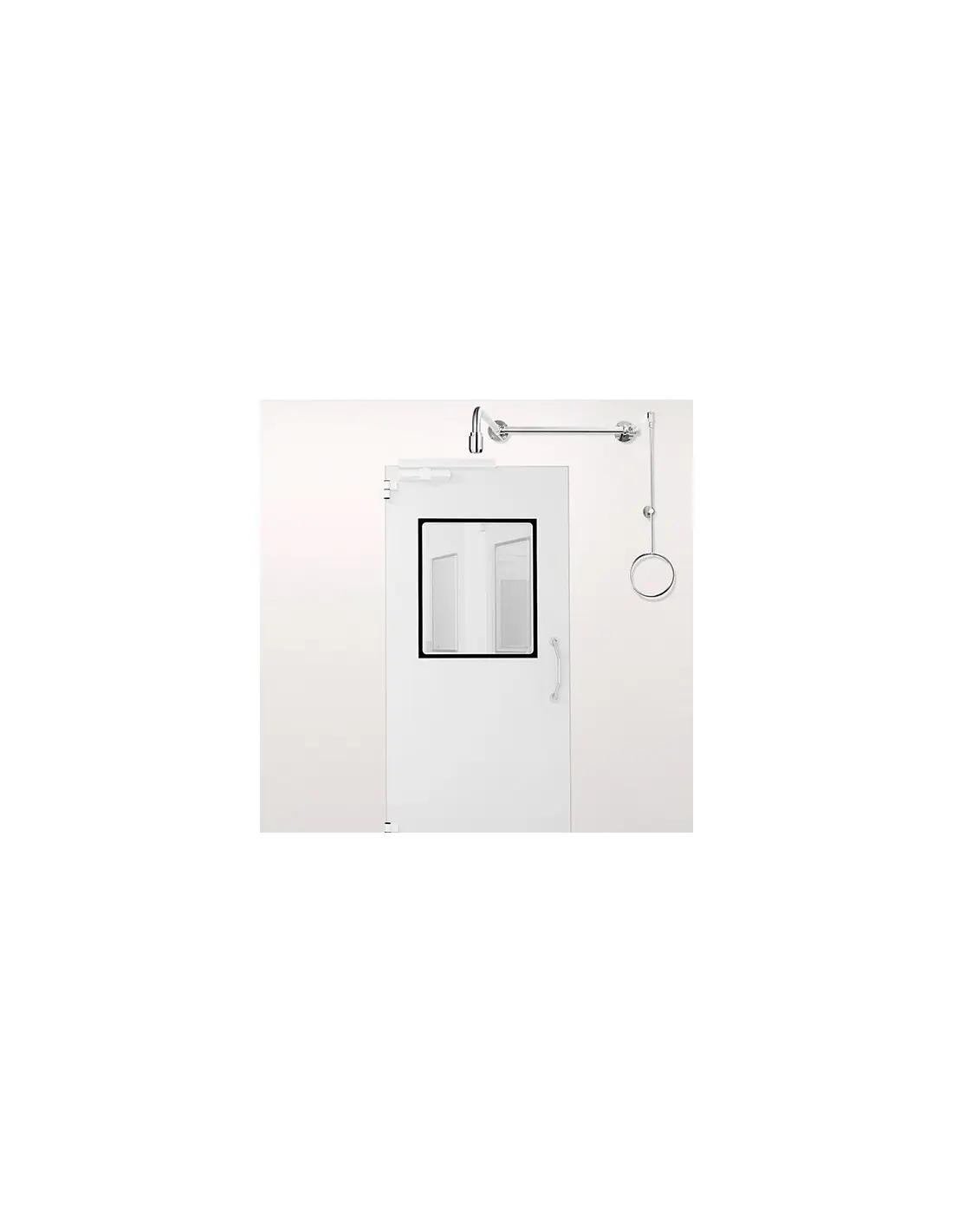

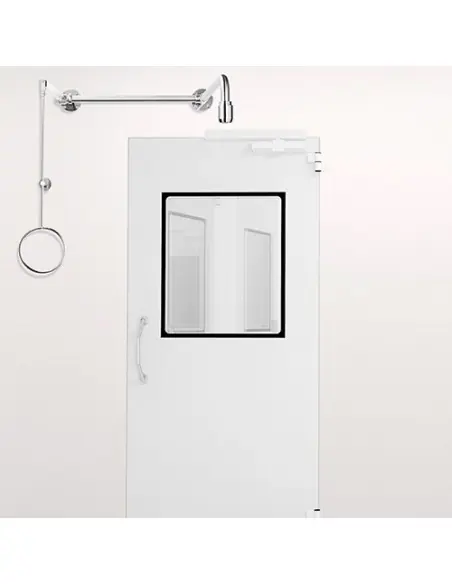

ball valve with pull rod actuation on wall flange, can be mounted either on the right or left side of the door, of stainless steel, DIN-DVGW tested and certificated, water inlet ¾” female
pull rod with ring handle of stainless steel, polished, length 700 mm
holder for pull rod made of stainless steel, polished
connection pipe ¾“ of stainless steel, polished, length variable according to specification (total width min. 285 mm – max. 1535 mm)
wall flange with 4 mounting holes of stainless steel, polished
wall shower arm ¾“ of stainless steel, polished, projection 525 mm
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
mounting height 2345 mm (± 100 mm)
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated

Certification

DVGW ISO9001_D_72
