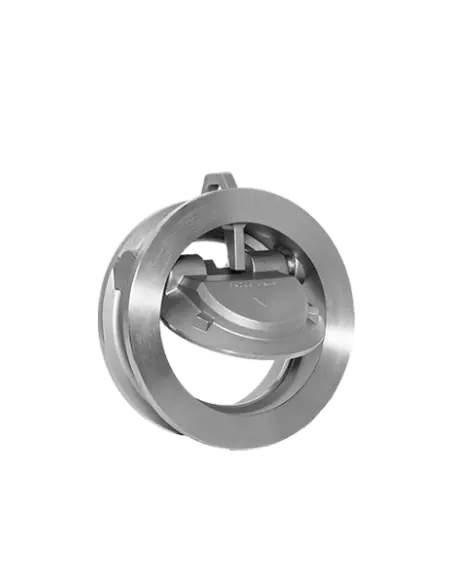

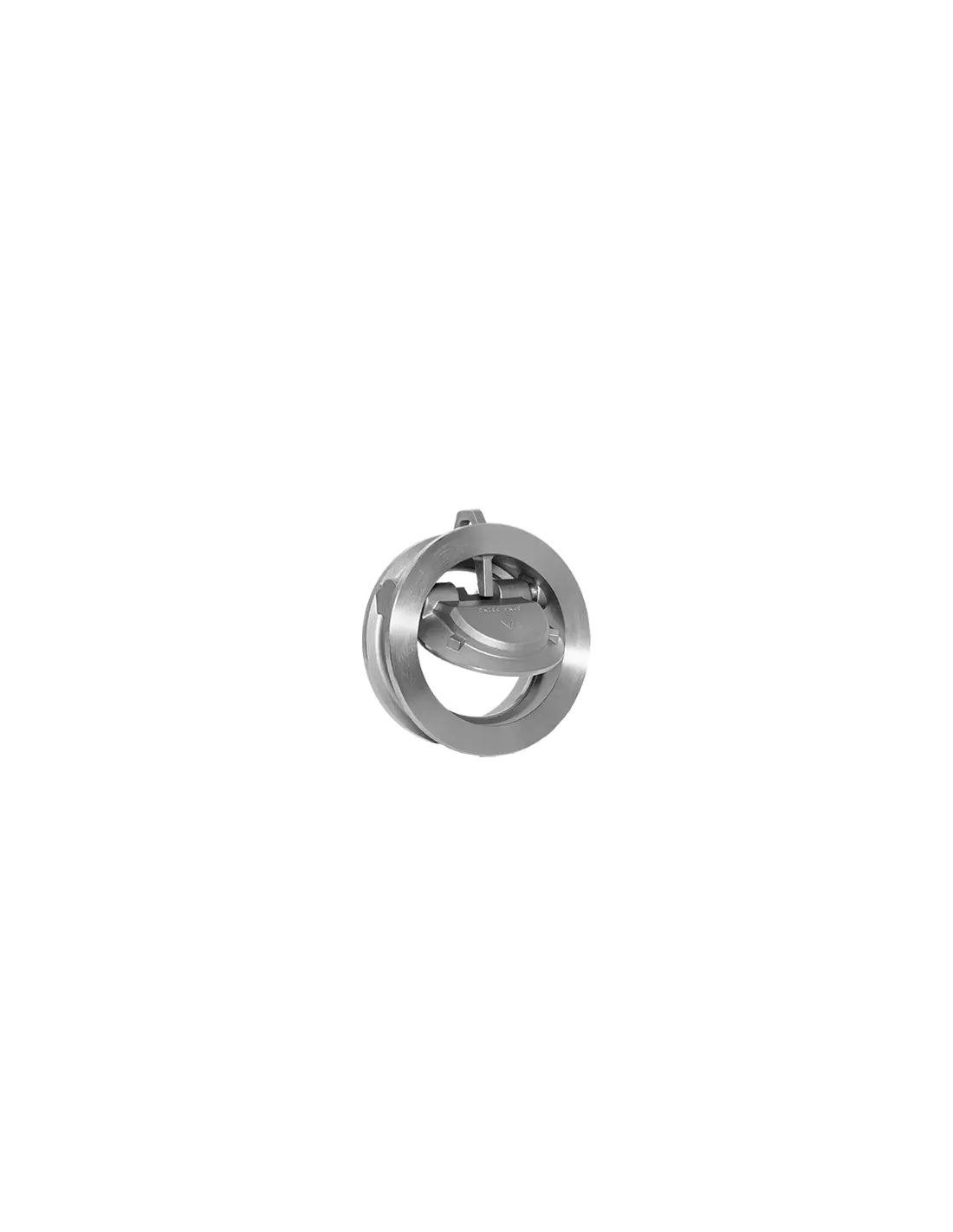

The Tilting Disc Check Valve - T113AR by Zubi is a high-performance valve designed to prevent backflow in piping systems. It features a tilting disc mechanism that ensures efficient flow regulation and minimizes pressure drop. The valve is constructed with durable materials to withstand harsh conditions and is suitable for various industrial applications. Its design allows for easy installation and maintenance, making it a reliable choice for ensuring system integrity and operational efficiency.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • AISI 316 (Stainless Steel)
Pressure Rating (Options)
  • PN 6
  • PN 10
  • PN 16
  • PN 25
  • PN 40
  • PN 64

Datasheet and documents

Description

Main Features

  • Low pressure drop and opening pressure.
  • Fast acting.
  • The assembly of the valve can be done either horizontally or vertically, it depends on the installation structure.
  • Metal seated (suitable for applications where absolute tightness is not necessary).
  • Suitable for all the standard flanges Short Face to Face.
  • Quick closing reaction.
  • Short Face to Face.
  • Excellent tightness (Leakage 0,1 mm3 x DN with water).
  • Directional arrow in the body showing correct mounting position.
  • Doesn’t need any maintenance.
  • For high performances and pressures up to PN40

DIRECTIVAS

  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • PN6/PN10/PN16/PN25/PN40/PN64
  • ANSI150/300

SIZES & PRESSURES

  • DN40 to DN400: 40 bar
  • DN450 to DN700: 25 bar

TIGHTNESS

  • As per API598

MATERIALS

BODY & DISC CF8M (AISI316), DUPLEX SAF2205, SUPERDUPLEX SAF2507, 254SMO.

SPINDLE AISI302 Special alloys under demand

ACCESSORIES AND OPTIONS

Spring, counterweight (for a slower and gradual opening and faster closing), handlever, switches, locking devices.
