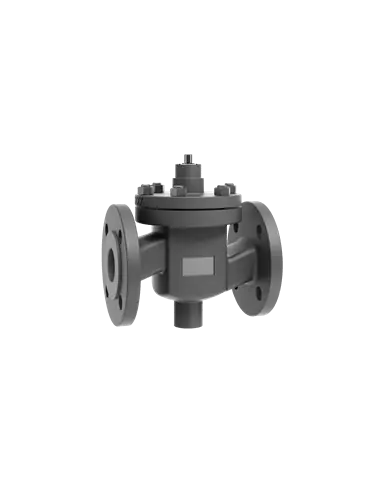

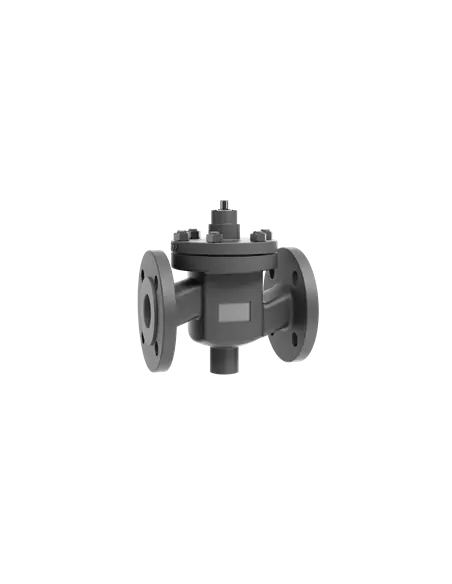

Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls

Experience Precision and Durability: Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls

The Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls is designed for professionals who value reliability and accuracy in industrial processes. Engineered for a wide range of applications, this robust valve seamlessly blends advanced engineering with user-friendly features, making it ideal for efficiently managing the flow of liquids and gases in even the most demanding environments.

Features & Benefits of Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls

  • Balanced 2-Way Design: Provides stable and precise control of media flow, minimizing pressure fluctuations that can damage sensitive equipment.
  • Wide Range of Sizes: Available in sizes from DN 15mm up to 80mm, ensuring the perfect fit for a variety of pipeline requirements.
  • Durable Cast Steel Construction: Guarantees long-lasting performance, even in harsh industrial conditions, reducing the need for frequent replacements.
  • Simple Installation: Designed for straightforward integration into existing systems, cutting down on installation time and effort.
  • Low Maintenance: Engineered to require minimal upkeep, saving time and operational costs.
  • Optimal Leakage Prevention: Excellent sealing ensures dependable operation without the risk of wasted resources or safety hazards.

With its balanced 2-way mechanism, the Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls delivers smooth and dependable flow control. Even under high pressure or variable conditions, this valve keeps your system running with accuracy and efficiency. The cast steel body offers outstanding resistance to wear, corrosion, and extreme temperatures, making it a top choice for continuous use in industrial settings.

Whether you’re upgrading a current installation or starting a new project, this valve is built to meet modern demands. Its precise control helps maintain system stability, preventing costly downtime and ensuring safety. The easy-to-understand design allows even those new to industrial equipment to operate and maintain the valve confidently.

Choose the Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls for a reliable, high-performance solution that keeps your operations smooth, safe, and efficient.

Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • PN 40
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2312500VALVE H1FBN DN15, EN FLANGESDN154.0 KGMPN 40Flange
1-2312501VALVE H1FBN DN15, ANSI 150DN154.0 KGMClass 150ANSI flange
1-2312502VALVE H1FBN DN15, JIS 10KDN154.0 KGM10KJIS flange
1-2312504VALVE H1FBN DN15, JIS 16KDN154.0 KGM16KJIS flange
1-2312510VALVE H1FBN DN20, EN FLANGESDN205.0 KGMPN 40Flange
1-2312511VALVE H1FBN DN20, ANSI 150DN205.0 KGMClass 150ANSI flange
1-2312512VALVE H1FBN DN20, JIS 10KDN205.0 KGM10KJIS flange
1-2312513VALVE H1FBN DN20, JIS 5KDN205.0 KGM5KJIS flange
1-2312514VALVE H1FBN DN20, JIS 16KDN255.0 KGM16KJIS flange
1-2312520VALVE H1FBN DN25, EN FLANGESDN256.0 KGMPN 40Flange
1-2312521VALVE H1FBN DN25, ANSI 150DN256.0 KGMClass 150ANSI flange
1-2312522VALVE H1FBN DN25, JIS 10KDN256.0 KGM10KJIS flange
1-2312523VALVE H1FBN DN25, JIS 5KDN256.0 KGM5KJIS flange
1-2312524VALVE H1FBN DN25, JIS 16KDN256.0 KGM16KJIS flange
1-2312530VALVE H1FBN DN32, EN FLANGESDN329.0 KGMPN 40Flange
1-2312531VALVE H1FBN DN32, ANSI 150DN329.0 KGMClass 150ANSI flange
1-2312532VALVE H1FBN DN32, JIS 10KDN329.0 KGM10KJIS flange
1-2312533VALVE H1FBN DN32, JIS 5KDN329.0 KGM5KJIS flange
1-2312534VALVE H1FBN DN32, JIS 16KDN329.0 KGM16KJIS flange
1-2312540VALVE H1FBN DN40, EN FLANGESDN4013.0 KGMPN 40Flange
1-2312541VALVE H1FBN DN40, ANSI 150DN4013.0 KGMClass 150ANSI flange
1-2312542VALVE H1FBN DN40, JIS 10KDN4013.0 KGM10KJIS flange
1-2312543VALVE H1FBN DN40, JIS 5KDN4013.0 KGM5KJIS flange
1-2312544VALVE H1FBN DN40, JIS 16KDN4013.0 KGM16KJIS flange
1-2312550VALVE H1FBN DN50, EN FLANGESDN5016.0 KGMPN 40Flange
1-2312551VALVE H1FBN DN50, ANSI 150DN5016.0 KGMClass 150ANSI flange
1-2312552VALVE H1FBN DN50, JIS 10KDN5016.0 KGM10KANSI flange
1-2312553VALVE H1FBN DN50, JIS 5KDN5016.0 KGM5KJIS flange
1-2312554VALVE H1FBN DN50, JIS 16KDN5016.0 KGM16KJIS flange
1-2312560VALVE H1FBN DN65, EN FLANGESDN6523.0 KGMPN 40Flange
1-2312561VALVE H1FBN DN65, ANSI 150DN6523.0 KGMClass 150ANSI flange
1-2312562VALVE H1FBN DN65, JIS 10KDN6523.0 KGM10KJIS flange
1-2312563VALVE H1FBN DN65, JIS 5KDN6523.0 KGM5KJIS flange
1-2312564VALVE H1FBN DN65, JIS 16KDN6523.0 KGM16KJIS flange
1-2312570VALVE H1FBN DN80, EN FLANGESDN8038.0 KGMPN 40Flange
1-2312571VALVE H1FBN DN80, ANSI 150DN8038.0 KGMClass 150ANSI flange
1-2312572VALVE H1FBN DN80, JIS 10KDN8038.0 KGM10KJIS flange
1-2312573VALVE M1FBN DN80, JIS 5KDN8038.0 KGM5KJIS flange
1-2312574VALVE M1FBN DN80, JIS 16KDN8038.0 KGM16KJIS flange

Art. No.

Size

d

L

H1

H

1-2312500DN151/2" (DN15)130.080.0101.0
1-2312501DN151/2" (DN15)130.080.0101.0
1-2312502DN151/2" (DN15)130.080.0101.0
1-2312504DN151/2" (DN15)130.080.0101.0
1-2312510DN203/4" (DN20)150.085.0107.0
1-2312511DN203/4" (DN20)150.085.0107.0
1-2312512DN203/4" (DN20)150.085.0107.0
1-2312513DN203/4" (DN20)150.085.0107.0
1-2312514DN251" (DN25)150.085.0107.0
1-2312520DN251" (DN25)160.070.0112.0
1-2312521DN251" (DN25)160.070.0112.0
1-2312522DN251" (DN25)160.070.0112.0
1-2312523DN251" (DN25)160.070.0112.0
1-2312524DN251" (DN25)160.070.0112.0
1-2312530DN321 1/4" (DN32)180.075.0122.0
1-2312531DN321 1/4" (DN32)180.075.0122.0
1-2312532DN321 1/4" (DN32)180.075.0122.0
1-2312533DN321 1/4" (DN32)180.075.0122.0
1-2312534DN321 1/4" (DN32)180.075.0122.0
1-2312540DN401 1/2" (DN40)200.085.0125.0
1-2312541DN401 1/2" (DN40)200.085.0125.0
1-2312542DN401 1/2" (DN40)200.085.0125.0
1-2312543DN401 1/2" (DN40)200.085.0125.0
1-2312544DN401 1/2" (DN40)200.085.0125.0
1-2312550DN502" (DN50)230.095.0140.0
1-2312551DN502" (DN50)230.095.0140.0
1-2312552DN502" (DN50)230.095.0140.0
1-2312553DN502" (DN50)230.095.0140.0
1-2312554DN502" (DN50)230.095.0140.0
1-2312560DN652 1/2" (DN65)290.0110.0154.0
1-2312561DN652 1/2" (DN65)290.0110.0154.0
1-2312562DN652 1/2" (DN65)290.0110.0154.0
1-2312563DN652 1/2" (DN65)290.0110.0154.0
1-2312564DN652 1/2" (DN65)290.0110.0154.0
1-2312570DN803" (DN80)310.0115.0164.0
1-2312571DN803" (DN80)310.0115.0164.0
1-2312572DN803" (DN80)310.0115.0164.0
1-2312573DN80DN80310.0115.0164.0
1-2312574DN803" (DN80)310.0115.0164.0

Characteristics

Manufacturer5705737000006
