Clorius Controls – Technical profile of self-acting temperature control valves and actuators

Clorius Controls, now under BROEN Clorius Controls, supplies control valves, actuators, thermostats and temperature control equipment. The official BROEN Clorius site refers to more than 120 years in temperature controls.

The Clorius self-acting temperature control system uses a mechanical temperature regulator with an external temperature sensor for heating and cooling processes in industrial plants, building services and marine equipment.

Main product areas include:

  • two-way control valves,
  • three-way control valves,
  • self-acting temperature regulators,
  • thermostats,
  • temperature sensors,
  • actuators for heating and cooling circuits.

Self-acting temperature regulators operate without external electrical or pneumatic energy. The temperature sensor detects process temperature and mechanically adjusts valve position through a thermostatic element. This makes them suitable for local control duties where simple autonomous temperature regulation is required.

Two-way valves are used for modulating flow through heat exchangers, coils and process heaters. Three-way valves are used for mixing or diverting circuits in heating, cooling, district energy and marine systems.

Selection should include:

  • heating or cooling duty,
  • two-way or three-way function,
  • medium,
  • temperature range,
  • setpoint range,
  • Kv value,
  • pressure drop,
  • valve material,
  • actuator / thermostat type,
  • sensor placement,
  • capillary length,
  • installation orientation.

For HVAC engineers, marine engineers and process utility specialists, Clorius equipment is suitable where local temperature control must continue independently of a central control system.

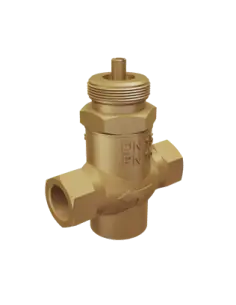

Control valve 2 Way Linear DN 15/6-20mm - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2 Way Linear DN 15/6-20mm - Gun Metal | Clorius Controls

Control valve 2 Way Linear DN 15/6-20mm - Gun Metal | Clorius Controls
Clorius Controls
Clorius L1S – 2-Way Control Valve, Gun Metal, PN16 The Clorius L1S is a single-seat control valve with a gun metal RG5 body and stainless steel internals. It is used with thermostats, pneumatic, or electric actuators for flow control in thermal circuits. Although the commercial route mentions "linear," the technical brochure specifies a quadratic flow...
View
Control valve 2-way DN 100-150 Reverse acting for cooling applications - Cast Iron | Clorius Controls - Clorius Controls

Control valve 2-way DN 100-150 Reverse acting for cooling applications - Cast Iron | Clorius Controls

Control valve 2-way DN 100-150 Reverse acting for cooling applications - Cast Iron | Clorius Controls
Clorius Controls
Clorius M2FR – Reverse Acting Control Valve DN100–DN150 The Clorius M2FR is a flanged two-way control valve designed for cooling applications, featuring a reverse acting / normally closed operation. Without an actuator, the valve remains closed by spring force; it opens when actuator force is applied. In combination with a thermostat or differential...
View

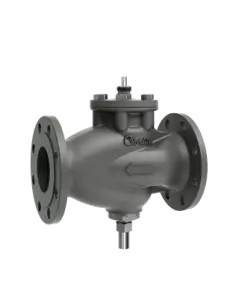

Control valve 2-way DN 100-150mm - Cast Steel | Clorius Controls - Clorius Controls

Control valve 2-way DN 100-150mm - Cast Steel | Clorius Controls

Control valve 2-way DN 100-150mm - Cast Steel | Clorius Controls
Clorius Controls
Clorius H2F – 2-Way Control Valve DN100–DN150 The Clorius H2F DN100–DN150 is a flanged, double-seated control valve with a cast steel GP240GH / GS-C25 body. It is designed for regulating flow in high-pressure hot water, steam, and thermal oil systems, applicable in district heating, central heating systems, industrial processes, and marine installations....
View
Control valve 2-way DN 100-150mm - Nodular Cast Iron | Clorius Controls - Clorius Controls

Control valve 2-way DN 100-150mm - Nodular Cast Iron | Clorius Controls

Control valve 2-way DN 100-150mm - Nodular Cast Iron | Clorius Controls
Clorius Controls
Clorius G2F – 2-Way Control Valve DN100–DN150 The Clorius G2F is a flanged, double-seated control valve made from spheroidal graphite iron EN-GJS-400-15, rated at PN16. It is designed for flow regulation in high-pressure hot water, steam, and thermal oil systems, applicable in district heating, central heating systems, industrial processes, and marine...
View
Control valve 2-way DN 100-150mm Reverse acting for cooling applications - Cast Steel | Clorius Controls - Clorius Controls

Control valve 2-way DN 100-150mm Reverse acting for cooling applications - Cast Steel | Clorius Controls

Control valve 2-way DN 100-150mm Reverse acting for cooling applications - Cast Steel | Clorius Controls
Clorius Controls
Clorius H2FR DN100–DN150 – Reverse Acting 2-Way Control Valve The Clorius H2FR is a flanged, double-seated 2-way control valve designed for high-flow cooling applications. It operates in a reverse acting / normally closed mode: without an actuator, the valve remains closed by a spring; it opens when force is applied to the stem. In setups with a...
View
Control valve 2-way DN 15/4-50mm - Cast Iron | Clorius Controls - Clorius Controls

Control valve 2-way DN 15/4-50mm - Cast Iron | Clorius Controls

Control valve 2-way DN 15/4-50mm - Cast Iron | Clorius Controls
Clorius Controls
Clorius M1F – 2-Way Control Valve DN15/4–DN50 The Clorius M1F is a flanged, single-seated control valve designed for flow regulation in low, medium, or high-pressure hot water, steam, and lubricating oils. It is compatible with thermostats, differential pressure controllers, pneumatic or electric actuators for use in process applications, district...
View

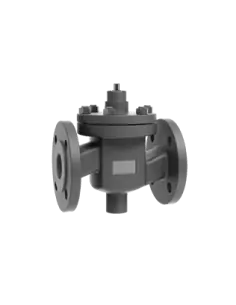

Control valve 2-way DN 15/4-50mm - Cast Steel | Clorius Controls - Clorius Controls

Control valve 2-way DN 15/4-50mm - Cast Steel | Clorius Controls

Control valve 2-way DN 15/4-50mm - Cast Steel | Clorius Controls
Clorius Controls
Clorius H1F – 2-Way Control Valve DN15/4–DN50 The Clorius H1F is a flanged, single-seated control valve with a cast steel GP240GH / GS-C25 body and a nominal pressure rating of PN40. It is designed for regulating hot water, steam, and thermal oil in industrial processes, district heating, central heating systems, and marine installations. Construction...
View
Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls - Clorius Controls

Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls

Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls
Clorius Controls
Clorius G1F – 2-Way Control Valve DN15/4–DN50 The Clorius G1F is a flanged, single-seated control valve made from nodular cast iron EN-GJS-400-15 with a nominal pressure rating of PN25. It is designed for flow regulation in hot water, steam, and thermal oil applications, suitable for industrial processes, district heating, central heating systems, and...
View

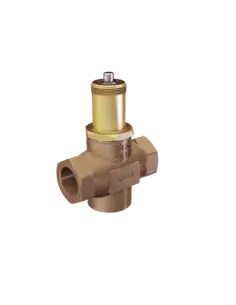

Control valve 2-way DN 15-32mm - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2-way DN 15-32mm - Gun Metal | Clorius Controls

Control valve 2-way DN 15-32mm - Gun Metal | Clorius Controls
Clorius Controls
Clorius L1SB – 2-Way Control Valve, DN15–DN32 The Clorius L1SB is a two-way, single-seat control valve with pressure balancing, featuring a gun metal RG5 body and stainless steel internal components. It is used when system differential pressure requires more closing force than a simple single-seat valve, but leakage from a double-seat valve is not...
View

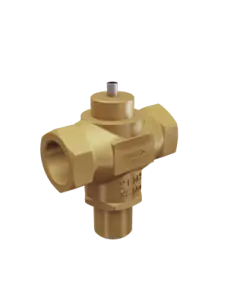

Control valve 2-way DN 15-32mm Reverse acting for cooling applications - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2-way DN 15-32mm Reverse acting for cooling applications - Gun Metal | Clorius Controls

Control valve 2-way DN 15-32mm Reverse acting for cooling applications - Gun Metal | Clorius Controls
Clorius Controls
Clorius L1SBR – Reverse Acting 2-Way Control Valve DN15–DN32 The Clorius L1SBR is a two-way, balanced, single-seat control valve with a gun metal RG5 body, PN16, and threaded connections. It is reverse acting: it remains closed by spring force without an actuator and opens with shaft pressure. With a self-acting Clorius thermostat, the valve opens as...
View
Control valve 2-way DN 20-80mm - Cast Steel | Clorius Controls - Clorius Controls

Control valve 2-way DN 20-80mm - Cast Steel | Clorius Controls

Control valve 2-way DN 20-80mm - Cast Steel | Clorius Controls
Clorius Controls
Clorius H2F – 2-Way Control Valve DN20–DN80 The Clorius H2F is a flanged, double-seated control valve with a cast steel GP240GH / GS-C25 body and PN40 rating. It is utilized in hot water, steam, and thermal oil applications where differential pressure requires a closing force greater than that available in a single-seated valve. Construction and...
View

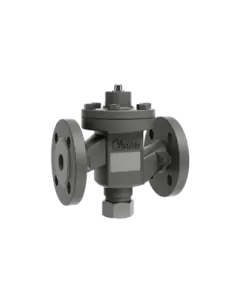

Control valve 2-way DN 20-80mm - Nodular Cast Iron | Clorius Controls - Clorius Controls

Control valve 2-way DN 20-80mm - Nodular Cast Iron | Clorius Controls

Control valve 2-way DN 20-80mm - Nodular Cast Iron | Clorius Controls
Clorius Controls
Clorius G2F – 2-Way Control Valve DN20–DN80 The Clorius G2F is a flanged, double-seated control valve made from spheroidal graphite iron EN-GJS-400-15, rated at PN25. It is designed for flow regulation in hot water, steam, and thermal oil systems, applicable in industrial processes, district heating, central heating systems, and marine installations....
View
Control valve 2-way DN 20-80mm Reverse acting for cooling applications | Clorius Controls - Clorius Controls

Control valve 2-way DN 20-80mm Reverse acting for cooling applications | Clorius Controls

Control valve 2-way DN 20-80mm Reverse acting for cooling applications | Clorius Controls
Clorius Controls
Clorius G2FR – Reverse Acting 2-Way Control Valve DN20–DN80 The Clorius G2FR is a flanged two-way control valve designed for cooling circuits, constructed from spheroidal graphite iron EN-GJS-400-15 with a nominal pressure rating of PN25. It operates in a reverse acting / normally closed mode: it remains closed by spring force without an actuator and...
View
Control valve 2-way DN 20-80mm Reverse acting for cooling applications - Cast Iron | Clorius Controls - Clorius Controls

Control valve 2-way DN 20-80mm Reverse acting for cooling applications - Cast Iron | Clorius Controls

Control valve 2-way DN 20-80mm Reverse acting for cooling applications - Cast Iron | Clorius Controls
Clorius Controls
Clorius M2FR – Reverse Acting 2-Way Control Valve DN20–DN80 The Clorius M2FR is a flanged, double-seated control valve, PN16, designed for cooling applications. It is reverse acting / normally closed: it remains closed by spring force without an actuator and opens when force is applied to the stem. With a thermostat or actuator, it functions as a cooling...
View
Control valve 2-way DN 20-80mm Reverse acting for cooling applications - Cast Steel | Clorius Controls - Clorius Controls

Control valve 2-way DN 20-80mm Reverse acting for cooling applications - Cast Steel | Clorius Controls

Control valve 2-way DN 20-80mm Reverse acting for cooling applications - Cast Steel | Clorius Controls
Clorius Controls
Clorius H2FR – 2-Way Control Valve for Cooling The Clorius H2FR is a flanged two-way control valve with a double-seated design, featuring a cast steel GP240GH / GS-C25 body and PN40 rating. It is reverse acting / normally closed: it remains closed by spring force without an actuator and opens when force is applied to the stem. With a thermostat or...
View
Control valve 2-way DN 40-50mm - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2-way DN 40-50mm - Gun Metal | Clorius Controls

Control valve 2-way DN 40-50mm - Gun Metal | Clorius Controls
Clorius Controls
Clorius L2S – 2-Way Control Valve DN40–DN50 The Clorius L2S is a two-way regulating valve with threaded connections, gun metal RG5 body, and nominal pressure PN16. The DN40–DN50 version features a double-seated design, offering linear flow characteristics and reduced actuator force requirements compared to single-seated valves. Technical Specifications...
View
Control valve 2-way DN 40-50mm Reverse acting for cooling applications - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2-way DN 40-50mm Reverse acting for cooling applications - Gun Metal | Clorius Controls

Control valve 2-way DN 40-50mm Reverse acting for cooling applications - Gun Metal | Clorius Controls
Clorius Controls
Clorius L2SR – Reverse Acting 2-Way Control Valve DN40–DN50 The Clorius L2SR is a two-way control valve designed for cooling applications, featuring a gun metal RG5 body, threaded connections ISO 7-1 / BSP, and PN16 rating. It is reverse acting / normally closed: remains closed by spring force without an actuator, and opens with shaft pressure. When...
View
Control valve 2-way DN 65-150mm - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2-way DN 65-150mm - Gun Metal | Clorius Controls

Control valve 2-way DN 65-150mm - Gun Metal | Clorius Controls
Clorius Controls
Clorius L2F – 2-Way Control Valve DN65–DN150 The Clorius L2F is a two-way regulating valve with flanged connections, gun metal body, and PN10 rating. It is primarily designed for regulating hot water, as well as cold or hot seawater, in industrial processes and marine installations. Construction DN65, DN80, DN100, DN125, DN150. Body: CuSn10. Seats and...
View
Control valve 2-way DN 65-150mm Reverse acting for cooling applications - Gun Metal | Clorius Controls - Clorius Controls

Control valve 2-way DN 65-150mm Reverse acting for cooling applications - Gun Metal | Clorius Controls

Control valve 2-way DN 65-150mm Reverse acting for cooling applications - Gun Metal | Clorius Controls
Clorius Controls
Clorius L2FR – 2-Way Control Valve for Cooling DN65–DN150 The Clorius L2FR is a flanged two-way control valve made from gun metal, designed for large flow cooling applications. It is classified as reverse acting, with sizes ranging from DN65 to DN150, featuring a flange connection and primarily PN10, with a DN80 PN16 version available. Construction and...
View
Control valve balanced 2-way DN 15-80mm - Cast Iron | Clorius Controls - Clorius Controls

Control valve balanced 2-way DN 15-80mm - Cast Iron | Clorius Controls

Control valve balanced 2-way DN 15-80mm - Cast Iron | Clorius Controls
Clorius Controls
Clorius M1FBN – Balanced 2-Way Control Valve DN15–DN80 The Clorius M1FBN is a flanged, single-seated, balanced control valve designed for hot water, steam, and thermal oil applications. It is utilized when differential pressure requires a closing force greater than what a standard actuator can provide on a simple single-seated valve, yet double-seated...
View
Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls - Clorius Controls

Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls

Control valve balanced 2-way DN 15-80mm - Cast Steel | Clorius Controls
Clorius Controls
Clorius H1FBN – Balanced 2-Way Control Valve DN15–DN80 The Clorius H1FBN is a flanged, single-seated, pressure-balanced control valve with a cast steel GP240GH / GS-C25 body. It is used for hot water, steam, and thermal oil applications where differential pressure requires greater closing force than a simple single-seated valve can provide. Technical...
View
Control valve balanced 2-way DN 15-80mm - Nodular Cast Iron | Clorius Controls - Clorius Controls

Control valve balanced 2-way DN 15-80mm - Nodular Cast Iron | Clorius Controls

Control valve balanced 2-way DN 15-80mm - Nodular Cast Iron | Clorius Controls
Clorius Controls
Clorius G1FBN – Balanced Control Valve 2-Way DN15–DN80 The Clorius G1FBN is a flanged two-way control valve, single-seated, with a body made of spheroidal graphite iron EN-GJS-400-15 and PN25. It is designed for hot water, steam, and thermal oil in industrial processes, district heating, central heating systems, and marine installations. Construction and...
View
Control valve balanced 2-way DN 25-65mm - Nodular Cast Iron | Clorius Controls - Clorius Controls

Control valve balanced 2-way DN 25-65mm - Nodular Cast Iron | Clorius Controls

Control valve balanced 2-way DN 25-65mm - Nodular Cast Iron | Clorius Controls
Clorius Controls
Clorius G1FB – Balanced 2-Way Control Valve DN25–DN65 The Clorius G1FB is a flanged, single-seated control valve made from spheroidal graphite iron EN-GJS-400-15, rated at PN25. It is designed for hot water, steam, and thermal oil applications where differential pressure requires reduced actuator closing force without the increased leakage of a...
View
Control valve balanced 2-way DN 25-80mm - Cast Steel | Clorius Controls - Clorius Controls

Control valve balanced 2-way DN 25-80mm - Cast Steel | Clorius Controls

Control valve balanced 2-way DN 25-80mm - Cast Steel | Clorius Controls
Clorius Controls
Clorius H1FB – Balanced 2-Way Control Valve DN25–DN80 The Clorius H1FB is a flanged, single-seated control valve with a cast steel GP240GH / GS-C25 body and a nominal pressure rating of PN40. It features a pressure-balanced design with a stainless steel bellows on the stem to reduce actuator closing force requirements in high differential pressure...
View
