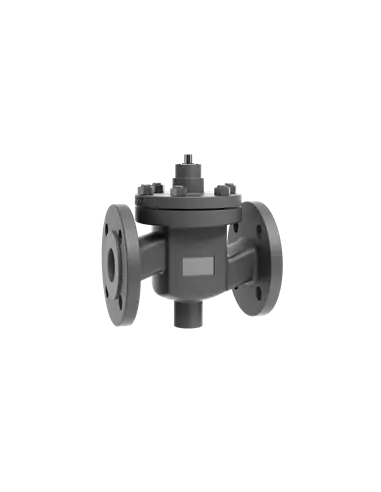

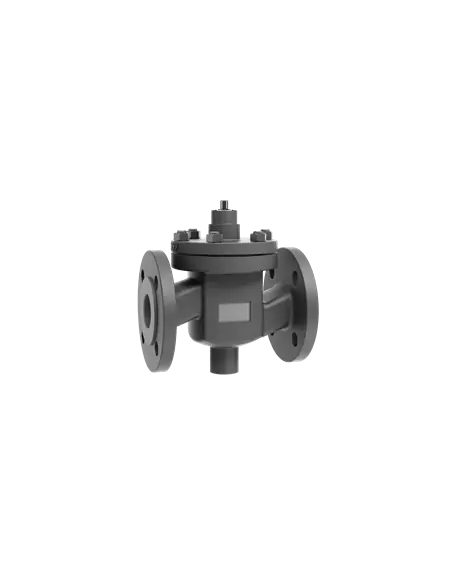

Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls

Efficient Flow Control with the Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls

Looking for reliable and precise flow regulation for your industrial systems? The Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls is engineered to deliver outstanding performance in controlling liquid and steam in heating, cooling, and process installations. With its robust construction and user-friendly operation, this valve brings a blend of durability and efficiency to your daily operations.

Features and Benefits of the Control valve 2-way DN 15/4-50mm - Nodular Cast Iron | Clorius Controls

  • Durable Nodular Cast Iron Body: Built to withstand harsh industrial environments, the valve’s nodular cast iron body ensures long-lasting strength and resistance to corrosion. This means fewer replacements and lower maintenance costs.
  • Flexible Sizing Options: Covering sizes from DN 15/4 up to 50mm, this valve offers flexibility for various piping needs. Whether your system is compact or expansive, this model seamlessly fits into your setup.
  • Precise 2-Way Control: Achieve accurate flow adjustment thanks to its 2-way design, ideal for both mixing and diverting applications. This helps in maintaining the right temperature and pressure in your system, enhancing safety and comfort.
  • Low Maintenance: Its simple design with minimal moving parts makes it easy to service, saving valuable time and reducing downtime in your facility.
  • Effortless Installation: Lightweight for its class, yet sturdy, the valve features standard connections that make installation fast and straightforward, so you can get your process up and running without delays.
  • Wide Application: Perfect for use in industrial heating and cooling systems, as well as process water control, this versatile valve adapts to many roles, giving you more value from one solution.

Experience smooth control, extended service life, and the confidence that comes from using a trusted name like Clorius Controls. The Control valve 2-way DN 15/4-50mm - Nodular Cast Iron is your go-to choice for dependable industrial flow regulation, making everyday operations safer and more efficient.

Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 25
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2410012VALVE G1F DN15/4, EN FLANGESDN15/43.0 KGMPN 25Flange
1-2410036VALVE G1F DN15/4, JIS 16KDN15/43.0 KGM16KJIS flange
1-2410037VALVE G1F DN15/4, JIS 5KDN15/43.0 KGM5KJIS flange
1-2410038VALVE G1F DN15/4, ANSI 150DN15/43.0 KGMClass 150ANSI flange
1-2410039VALVE G1F DN15/6, EN FLANGESDN15/63.0 KGMPN 25Flange
1-2410040VALVE G1F DN15/4, JIS 10KDN15/43.0 KGM10KJIS flange
1-2410041VALVE G1F DN15/6, ANSI 150DN15/63.0 KGMClass 150ANSI flange
1-2410042VALVE G1F DN15/6, JIS 10KDN15/63.0 KGM10KJIS flange
1-2410044VALVE G1F DN15/6, JIS 5KDN15/63.0 KGM5KJIS flange
1-2410045VALVE G1F DN15/9, JIS 16KDN15/93.1 KGM16KJIS flange
1-2410046VALVE G1F DN15/9, JIS 5KDN15/63.0 KGM5KJIS flange
1-2410047VALVE G1F DN15/9, EN FLANGESDN15/93.1 KGMPN 25Flange
1-2410049VALVE G1F DN15/9, ANSI 150DN15/93.1 KGMClass 150ANSI flange
1-2410050VALVE G1F DN15/9, JIS 10KDN15/93.1 KGM10KJIS flange
1-2410051VALVE G1F DN15/12, ANSI 150DN15/123.1 KGMClass 150ANSI flange
1-2410052VALVE G1F DN15/12, JIS 10KDN15/123.1 KGM10KJIS flange
1-2410054VALVE G1F DN20, ANSI 150DN204.2 KGMClass 150ANSI flange
1-2410055VALVE G1F DN15/12, EN FLANGESDN15/123.1 KGMPN 25Flange
1-2410056VALVE G1F DN15/12, JIS 16KDN15/123.1 KGM16KJIS flange
1-2410057VALVE G1F DN 15/12, JIS 5KDN15/123.1 KGM5KJIS flange
1-2410063VALVE G1F DN15, EN FLANGESDN153.1 KGMPN 25Flange
1-2410064VALVE G1F DN15, JIS 10KDN153.1 KGM10KJIS flange
1-2410065VALVE G1F DN15, ANSI 150DN153.1 KGMClass 150ANSI flange
1-2410066VALVE G1F DN15, JIS 16KDN153.1 KGM16KJIS flange
1-2410067VALVE G1F DN15, JIS 5KDN153.1 KGM5KJIS flange
1-2410071VALVE G1F DN20, EN FLANGESDN204.2 KGMPN 25Flange
1-2410071GVALVE G1F DN20 CUT-THROUGH42.0 KGMPN 25
1-2410096VALVE G1F DN25, JIS 16KDN255.5 KGM16KJIS flange
1-2410097VALVE G1F DN25, JIS 5KDN255.5 KGM5KJIS flange
1-2410098VALVE G1F DN25, EN FLANGESDN255.5 KGMPN 25Flange
1-2410101VALVE G1F DN32, EN FLANGESDN328.1 KGMPN 25Flange
1-2410102VALVE G1F DN32, JIS 5KDN328.1 KGM5KJIS flange
1-2410103VALVE G1F DN32, JIS 16KDN328.1 KGM16KJIS flange
1-2410128VALVE G1F DN40, EN FLANGESDN409.7 KGMPN 25Flange
1-2410129VALVE G1F DN40, JIS 16KDN409.7 KGM16KJIS flange
1-2410130VALVE G1F DN40, JIS 5KDN409.7 KGM5KJIS flange
1-2410136VALVE G1F DN50, EN FLANGESDN5014.0 KGMPN 25Flange
1-2410137VALVE G1F DN50, JIS 16KDN5014.0 KGM16KJIS flange
1-2410138VALVE G1F DN50, JIS 5K14.0 KGM5KJIS flange
1-2410151VALVE G1F DN20, JIS 5KDN204.2 KGM5KJIS flange
1-2410152VAVLE G1F DN20, JIS 16KDN204.2 KGM16KJIS flange
1-2410153VALVE G1F DN20 JIS 10K42.0 KGM10KJIS flange
1-2410154VALVE G1F DN20, ANSI 150DN204.2 KGMClass 150ANSI flange
1-2410155VALVE G1F DN25, JIS 10KDN255.5 KGM10KJIS flange
1-2410156VALVE G1F DN25, ANSI 150DN255.5 KGMClass 150ANSI flange
1-2410157VALVE G1F DN32, JIS 10KDN328.1 KGM10KJIS flange
1-2410158VALVE G1F DN32, ANSI 150DN328.1 KGMClass 150ANSI flange
1-2410159VALVE G1F DN40, JIS 10KDN409.7 KGM10KJIS flange
1-2410160VALVE G1F DN40, ANSI 150DN409.7 KGMClass 150ANSI flange
1-2410161VALVE G1F DN50, JIS 10KDN5014.0 KGM10KJIS flange
1-2410162VALVE G1F DN50, ANSI 150DN5014.0 KGMClass 150ANSI flange
1-2410284VALVE G1F DN15/6 FLANGES R13-V1331.0 KGMPN 25Flange
1-2410421VALVE G1F DN50 INCLUDE S25SC+H25.0 KGMPN 25Flange
1-2410540VALVE G1F DN32/2581.0 KGMPN 25Flange
1-2410586VALVE G1F DN20/942.0 KGMPN 25Flange
1-2410608VALVE G1F DN15 ANSI B16.5 Cl30031.0 KGMClass 300ANSI flange
1-2410632VALVE G1F DN32/1581.0 KGMPN 25Flange

Art. No.

Size

d

L

H1

H

1-2410012DN15/4DN15130.080.0
1-2410036DN15/4DN15130.080.0
1-2410037DN15/4DN15130.080.0
1-2410038DN15/4DN15130.080.0
1-2410039DN15/6DN15130.080.0
1-2410040DN15/4DN15130.080.0
1-2410041DN15/6DN15130.080.0
1-2410042DN15/6DN1580.0
1-2410044DN15/6DN15130.080.0
1-2410045DN15/9DN15130.080.0
1-2410046DN15/6DN15130.080.0
1-2410047DN15/9DN15130.080.0
1-2410049DN15/9DN15130.080.0
1-2410050DN15/9DN15130.080.0
1-2410051DN15/12DN15130.080.0
1-2410052DN15/12DN15130.080.0
1-2410054DN203/4" (DN20)150.085.0
1-2410055DN15/12DN15130.080.0
1-2410056DN15/12DN15130.080.0
1-2410057DN15/12DN15130.080.0
1-2410063DN151/2" (DN15)130.080.0
1-2410064DN151/2" (DN15)130.080.0
1-2410065DN151/2" (DN15)130.080.0
1-2410066DN151/2" (DN15)130.080.0
1-2410067DN151/2" (DN15)130.080.0
1-2410071DN203/4" (DN20)150.085.0
1-2410071GDN20
1-2410096DN251" (DN25)160.095.0
1-2410097DN251" (DN25)160.095.0
1-2410098DN251" (DN25)160.095.0
1-2410101DN321 1/4" (DN32)180.0105.0
1-2410102DN321 1/4" (DN32)180.0105.0
1-2410103DN321 1/4" (DN32)180.0105.0
1-2410128DN401 1/2" (DN40)200.0110.0
1-2410129DN401 1/2" (DN40)200.0110.0
1-2410130DN401 1/2" (DN40)200.0110.0
1-2410136DN502" (DN50)230.0125.0
1-2410137DN502" (DN50)230.0125.0
1-24101382" (DN50)230.0125.0
1-2410151DN203/4" (DN20)150.085.0
1-2410152DN203/4" (DN20)150.085.0
1-24101533/4" (DN20)
1-2410154DN203/4" (DN20)150.085.0
1-2410155DN251" (DN25)160.095.0
1-2410156DN251" (DN25)160.095.0
1-2410157DN321 1/4" (DN32)180.0105.0
1-2410158DN321 1/4" (DN32)180.0105.0
1-2410159DN401 1/2" (DN40)200.0110.0
1-2410160DN401 1/2" (DN40)200.0110.0
1-2410161DN502" (DN50)230.0125.0
1-2410162DN502" (DN50)230.0125.0
1-2410284DN15
1-24104212" (DN50)
1-24105401 1/4" (DN32)
1-24105863/4" (DN20)
1-24106081/2" (DN15)
1-24106321 1/4" (DN32)

Characteristics

Manufacturer5705737000006
