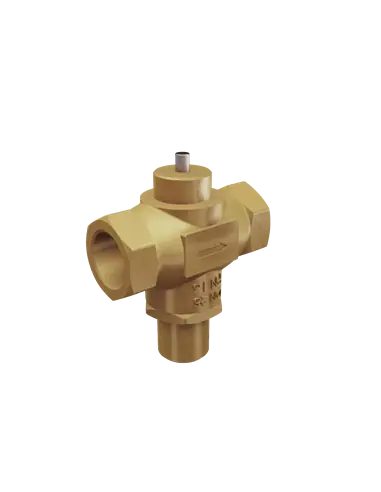

Control valve 2-way DN 15-32mm Reverse acting for cooling applications - Gun Metal | Clorius Controls

The Control Valve 2-way DN 15-32mm Reverse Acting by Clorius Controls is designed for versatile cooling applications. Constructed from durable gun metal, this valve is suitable for a range of uses including compressed air, cooling, demi water, heating, solar energy, and steam systems. Its reverse acting mechanism ensures precise control and reliability in various industrial and commercial settings.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • BSP
  • NPT
Material (Options)
  • Gun metal
Pressure Rating (Options)
  • PN 16
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2110565VALVE L1SBR DN20, BSP THREADINGDN201.3 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2110566VALVE L1SBR DN20 FOR SALT WATER, NPT28.0 KGMPN 16FPT - female thread conical (NPT)
1-2111350VALVE L1SBR DN15, BSP THREADINGDN151.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2111352VALVE L1SBR DN15 FOR SALT WATER, NPT95.0 KGMPN 16FPT - female thread conical (NPT)
1-2111360VALVE L1SBR DN25, BSP THREADINGDN251.6 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2111361VALVE L1SBR DN25 FOR SALT WATER, AISI316175.0 KGMClass 300ANSI flange
1-2111362VALVE L1SBR DN25 SALT WATER, NPT175.0 KGMPN 16MPT - male thread conical (NPT)
1-2111375VALVE L1SBR DN32, BSP THREADINGDN322.9 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2111377VALVE L1SBR DN32 FOR SALT WATER, NPT28.0 KGMPN 16FPT - female thread conical (NPT)

t. No.

Size

d

L

H1

H

1-2110565DN203/4" (DN20)95.046.079.0
1-21105663/4" (DN20)
1-2111350DN151/2" (DN15)85.040.071.0
1-21113521/2" (DN15)
1-2111360DN251" (DN25)105.050.079.0
1-21113611" (DN25)
1-21113621" (DN25)
1-2111375DN321 1/4" (DN32)138.064.0
1-21113771 1/4" (DN32)

Characteristics

Manufacturer5705737000006
