The CONA® Control system by ARI is a sophisticated monitoring solution for steam traps, designed to enhance energy efficiency and plant performance. Key features include failure detection, identifying issues such as leaking and blocked traps, and a patented temperature sensor for safe operation. The system offers continuous, real-time performance monitoring with immediate failure alerts. It is compatible with steam traps from various manufacturers and uses AS-i-Bus for communication, integrating seamlessly with Profibus DP systems. The central status display can monitor up to 30 steam traps, indicating problems like blockages and steam leaks. Technical specifications include an ambient temperature range of 0°C to +50°C, power supply options of 100-240 V AC or 24 V DC, and an IP65 enclosure rating for most components. Connection options include external and bolt-on test chambers, suitable for various installation types. The system is ideal for monitoring ball float steam traps, ensuring optimal energy efficiency and plant performance.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • BSP
  • Flanged
  • Socket Weld
  • Butt Weld
Material (Options)
  • 1.0460
  • 1.4541
Pressure Rating (Options)
  • PN 40

Datasheet and documents

Description

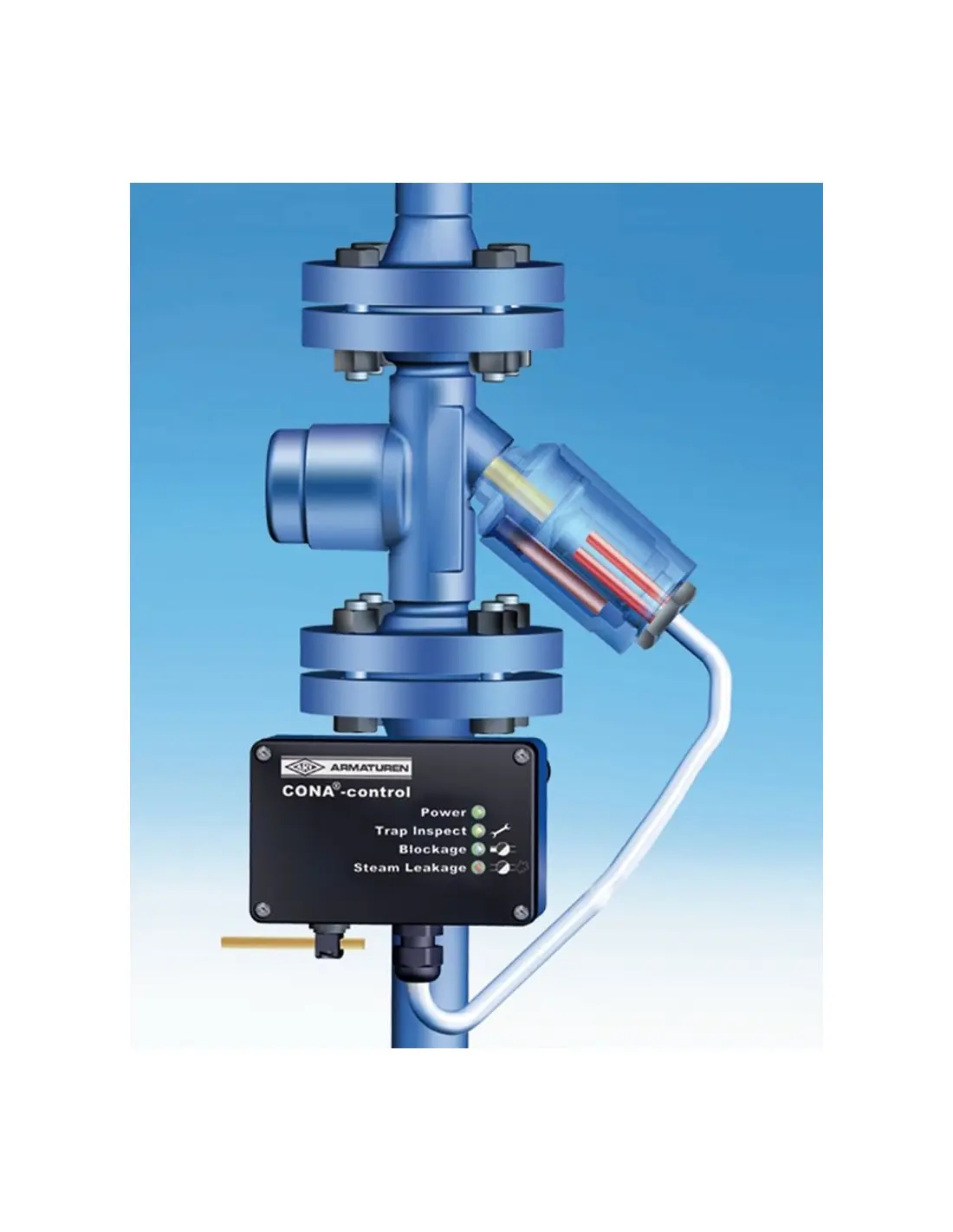

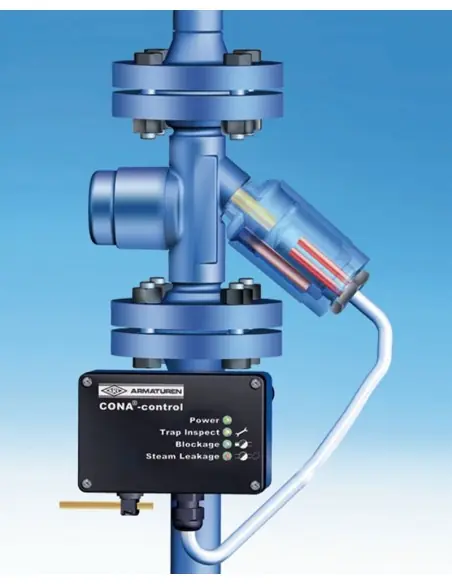

CONA®-control System Features:

  • Failure Detection: Identifies failing steam traps, such as leaking traps (energy wastage) and blocked traps (poor performance).
  • Temperature Sensor: The system features a patented temperature sensor for safe operation.
  • Continuous Monitoring: Provides real-time performance monitoring and immediate failure indication.
  • Compatibility: Can be used with steam traps from various manufacturers, not just ARI models.

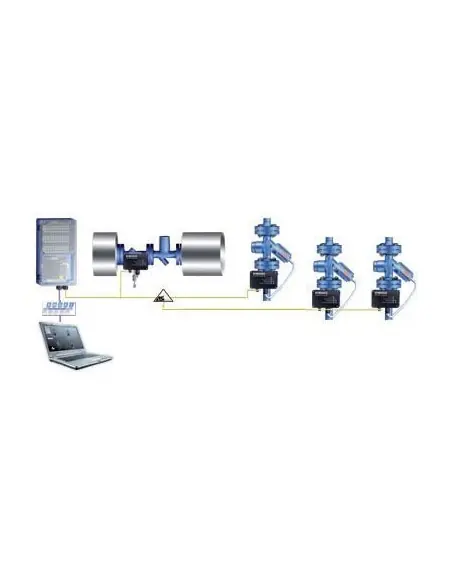

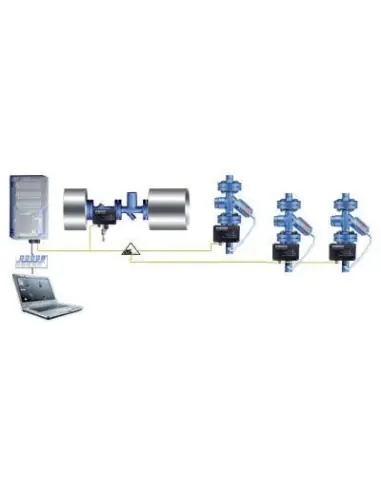

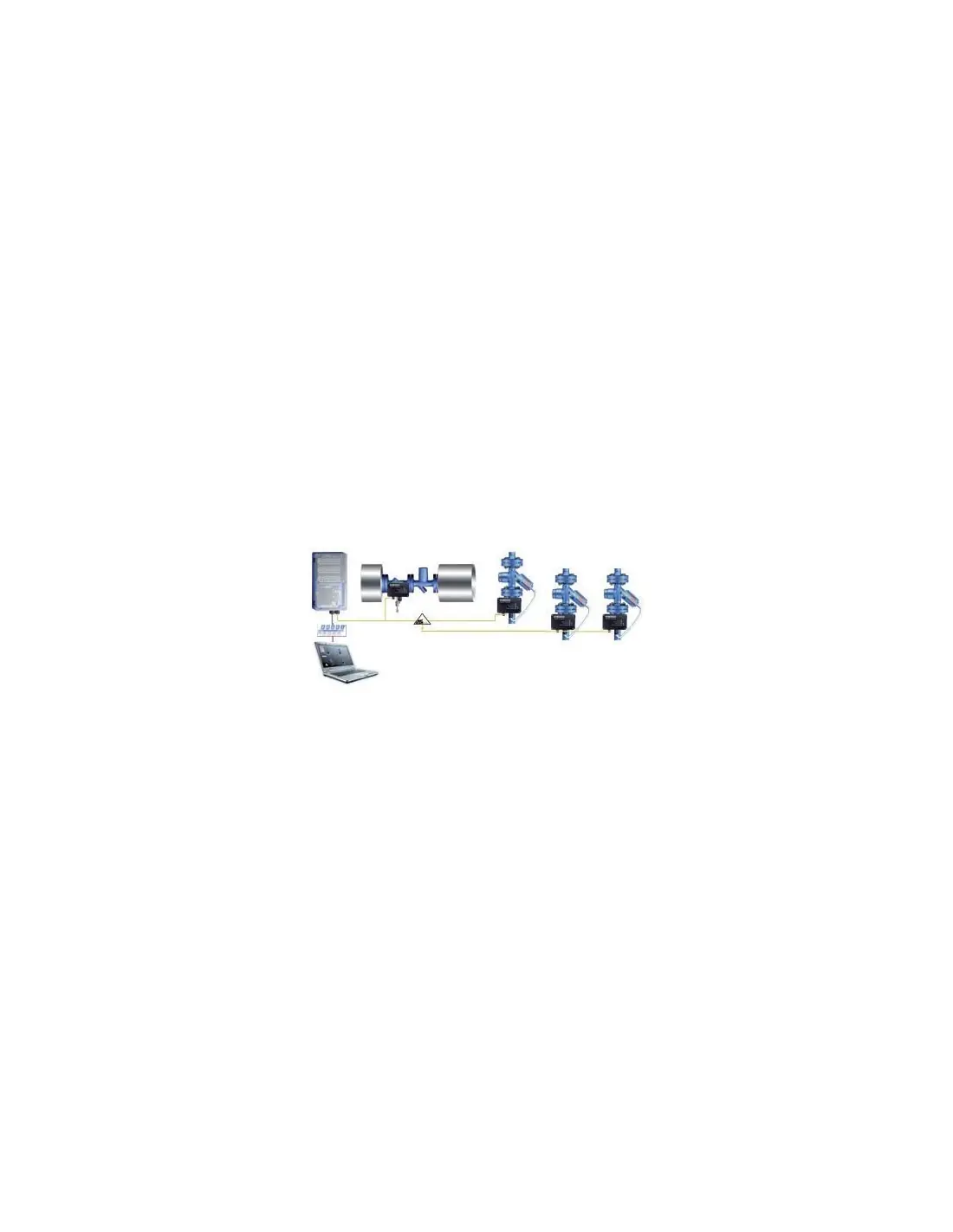

  • Connection: Uses AS-i-Bus for communication, compatible with Profibus DP for integration into superior systems.
  • Indication System: Provides a central status display for up to 30 steam traps, showing issues like blockage and steam leakage.


Technical Data
:

  • Ambient Temperature: 0°C to +50°C.
  • Power Supply: 100-240 V AC or 24 V DC.
  • Dimensions: Varies by component (e.g., the measuring amplifier is 75x125x60mm and the power supply unit is 360x200x160mm).
  • Enclosure Rating: IP65 for most components.


Connection Options
:

  • External Test Chamber: Available with flanges, screwed sockets, socket weld ends, and butt weld ends.
  • Bolt-on Test Chamber: Suitable for horizontal or vertical installation, used with CONA® S/SC and other steam traps.


Applications
:

  • Ideal for monitoring ball float steam traps and ensuring energy efficiency and plant performance.

Tests and Certification

DGRL 2014/68/EU (PED Pressure Equipment Directive)
TRB 801 Annex II No. 45
TRD 201 (Welding of components made of steel, manufacturing - inspection)
AD 2000
DIN 3230 T1/T2/T3 (Technical conditions of delivery for valves)
DIN EN 729-3 (Quality requirements of weldings)
