NORIS Bauform 148 Start-Up Strainer

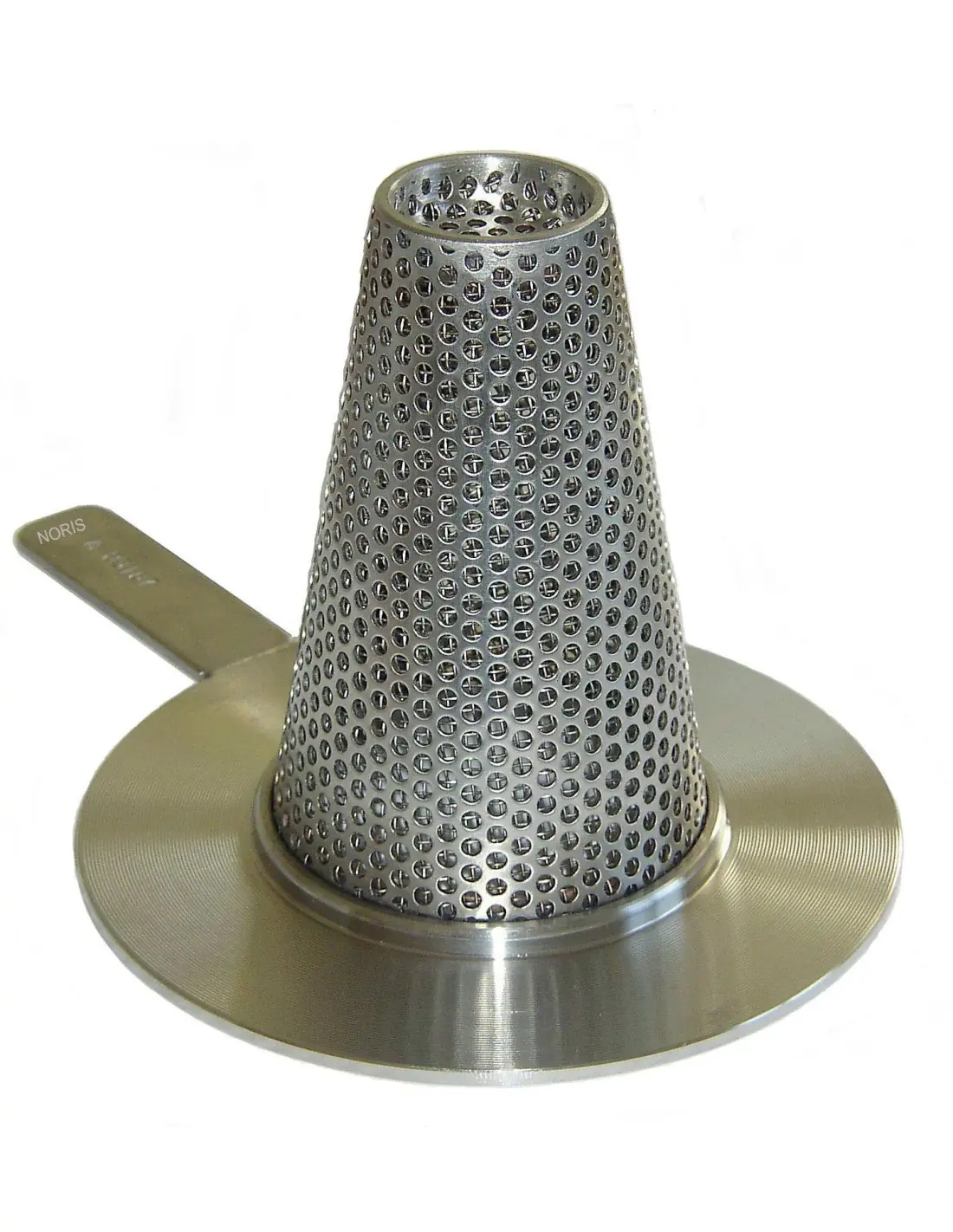

The NORIS Bauform 148 is a cap-type (hat) start-up strainer designed for installation between flanges. It is primarily used during commissioning or after piping works to retain burrs, rust, welding residues, and particulates upstream of instrumentation, control valves, pumps, and sensitive assemblies.

Technical Specifications

• Type: Cap type / hat strainer.
• Installation: Exclusively between flanges.
• Nominal pressure: up to 16 bar.
• Sizes: DN25 to DN250.
• Ring thickness b: 3 mm.
• Custom mesh openings available on request.

Materials

• Retaining ring: WN 1.4571.
• Screen: WN 1.4401.

Media compatibility must be verified based on 1.4571 / 1.4401 materials, process temperature, and corrosion conditions. The available technical datasheet does not specify temperature limits or a list of compatible media.

Comparison with Permanent Y-Strainer

Bauform 148 is intended for start-up protection in flanged lines. It does not feature a body with a cleaning cover; removal or cleaning requires flange disassembly. For applications with frequent particulate load, a permanent Y-strainer or basket strainer with in-line maintenance capability is recommended.

Selection Criteria

Selection is based on DN, PN, available face-to-face length, mesh size, allowable differential pressure, and expected debris load during commissioning. For pump suction, NPSH must be checked, as a clogged screen increases pressure drop.

FAQ

Actuator compatible?
No. This is a passive in-line filter.

Suitable for permanent operation?
May remain in-line, but is primarily intended as a starter strainer.

Test standards or certifications?
No test standards or certifications are listed in the available datasheet.
