Valfonta 280 – Steam/Liquid Inline Heater for Piping Systems

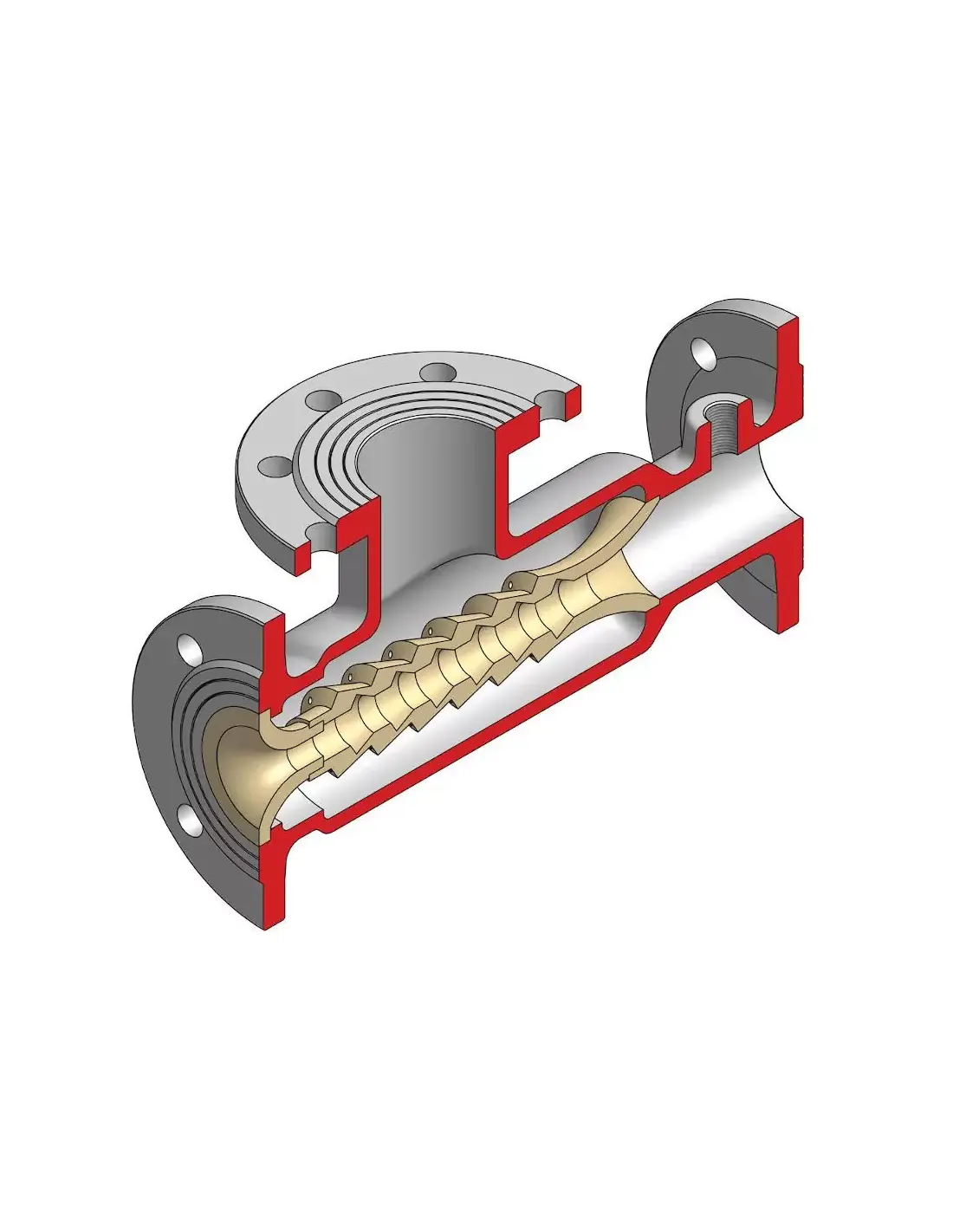

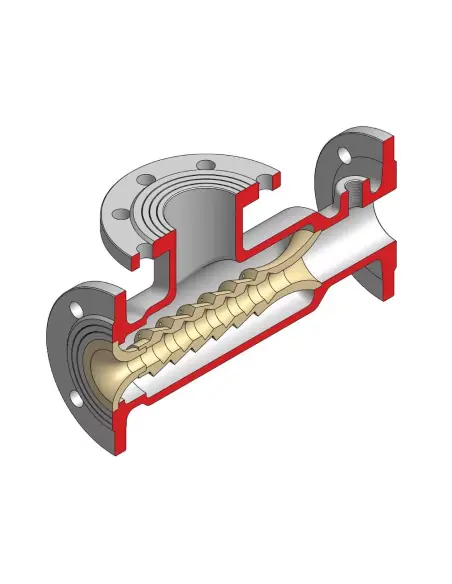

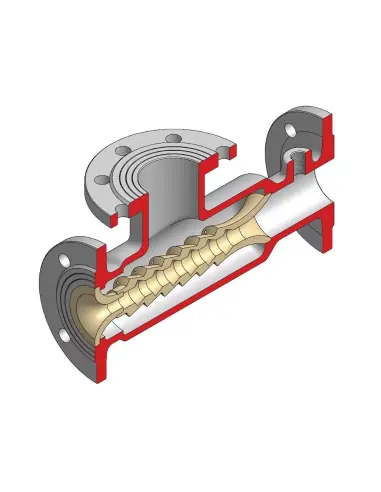

The Valfonta 280 is a steam injector designed for direct heating of liquids flowing through pipelines. Steam enters via the upper flange, passes through small orifices in the nozzle, and forms steam jets that mix with the process liquid. This mixing increases the fluid temperature and, per technical documentation, can also raise the downstream pressure depending on process conditions.

Technical Specifications

• Sizes: 1/2” to 1 1/2”.
• Connection: EN / DIN PN16 flanges.
• Body rating: PN16.
• Max operating pressure: 16 bar.
• Max temperature: 200 °C.
• Body materials: GGG40.3 (standard), bronze RG10, or ASTM A351 CF3M.
• Nozzle materials: bronze RG10 (standard), ASTM A351 CF3M, or Monel.
• Mixing capacity: 1,500 to 30,000 l/h, depending on size.

Selection Criteria

Catalog flow rates are based on 4 bar saturated steam inlet, liquid at 1 bar and 15 °C, with final temperature 65–75 °C. Proper selection requires liquid flow rate, initial/final temperature, available steam pressure, downstream backpressure, and material compatibility with the process medium.

Applications

Used for water heating in barrel, tank, and drum washing, breweries, laundries, chemical plants, and pipeline systems requiring freeze protection or local temperature increase of process liquids.

Operation and Maintenance

No moving parts, actuator, or shut-off seat. Leakage class is not applicable as with control valves. Inspection points include flange integrity, nozzle cleanliness, scale deposits, and steam pressure stability.

Certifications

Product documentation references PED 2014/68/EU, ATEX, and ISO 9001:2015. Scope of certification should be confirmed at procurement stage.
