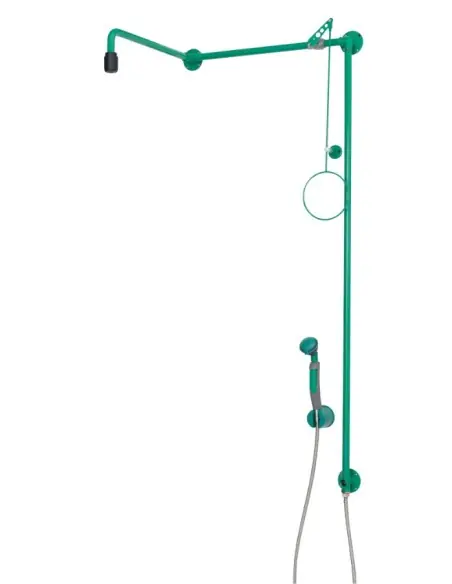

Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety | Philippopoul...
Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety | Philippopoul...

Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety

Premium Safety at Work: Discover the Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety

Experience advanced safety like never before with the Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety. Specially engineered for industrial environments, this all-in-one solution provides immediate, reliable protection in critical situations—right where you need it most.

Features & Benefits of Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety

  • Above Door Installation: Designed for compact spaces and easy access, the shower can be installed above doors, saving floor space and ensuring it’s always within reach during emergencies.
  • Full-Body Coverage: The robust body shower quickly washes away chemicals and hazardous substances from head to toe, reducing health risks on the spot.
  • Hand-Held Eye Shower: The practical hand-held unit allows for precise rinsing of the eyes, providing gentle yet effective decontamination for sensitive areas.
  • ClassicLine Durability: Built with premium, corrosion-resistant materials, this model guarantees lasting performance even under challenging industrial conditions.
  • Intuitive Use: Simple activation mechanisms ensure that any worker, regardless of previous training, can operate the system instantly in high-pressure situations.
  • Compliance with Standards: Fully complies with recognized industrial safety regulations, offering peace of mind for both employers and staff.

Bring a new level of security and convenience to your workplace with this expertly crafted emergency shower unit. Whether you handle chemicals, work in laboratories, or manage warehouses, the ClassicLine - BR 873 085 supports a safer working environment for all. Easy to install and maintain, it’s the smart, essential choice for every responsible industrial site.

Don’t compromise on workplace safety. Get the Emergency shower above door inst., body shower with hand-held eye shower - ClassicLine - BR 873 085 | B-Safety and ensure your team’s protection is always within arm’s reach.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Total height: 1625 mm
  • Projection: 525 mm
  • Installation height: 810 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the ClassicLine series are made of high-quality materials and are just as suitable for use in laboratories and research as they are for rough use in industry. B-SAFETY’s green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

DVGW
ISO9001_D_72

Technical Description

  • including top and bottom water inlet ¾” female for installation in circulation lines, plug ¾” of stainless steel
  • wall flange made of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • inclusive ClassicLine hand-held eye shower with one spray head 45°, wall mounted
  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, 45° angled, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • robust table and wall mounting bracket with positioning of the shower, incl. fastening-parts kit with nut M28x1,5mm and 2 screws M5 for mounting difficult to access, sealing to table surface with O-Ring
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • two connection pipes ¾“ of stainless steel, chemical resistant green powder coated, total length 1500 mm
  • wall flange as T-version with 4 mounting holes of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • connection adapter of stainless steel, polished, with integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 75 mm
  • ball valve ¾” of made of dezincification-resistant brass, with pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
  • holder for pull rod made of steel, chemical resistant green powder coated
  • connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 500 mm
  • wall flange with 4 mounting holes of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 525 mm
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 810 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated

Certification

DVGW    ISO9001_D_72
