Safety eye shower with two spray heads 45° - ClassicLine - BR 250 085 | B-Safety

Experience Maximum Protection with the Safety eye shower with two spray heads 45° - ClassicLine - BR 250 085 | B-Safety

The Safety eye shower with two spray heads 45° - ClassicLine - BR 250 085 | B-Safety brings peace of mind and quick relief to any industrial workspace. Designed to meet strict safety requirements, this unit provides immediate rinsing for eye emergencies. Thanks to its robust build and intuitive operation, it’s an essential investment for workplaces dealing with hazardous materials.

Features & Benefits of Safety eye shower with two spray heads 45° - ClassicLine - BR 250 085 | B-Safety

  • Dual Spray Heads at 45°: Two ergonomically positioned spray heads cover both eyes evenly for fast and thorough rinsing. The 45° angle delivers a gentle yet powerful flow, ensuring contaminants are flushed out efficiently.
  • Easy Activation: A simple push lever gets the water flowing instantly, even under stressful situations. Employees can operate the eye shower quickly with minimal effort.
  • ClassicLine Durability: Built with high-quality, corrosion-resistant materials, this unit guarantees dependable operation even in the harshest industrial conditions.
  • Clean and Hygienic: Integrated dust covers protect the nozzles when not in use, keeping the spray heads clean and ready for emergencies.
  • Steady Water Flow: The special flow regulators deliver a consistent, gentle stream to prevent eye injury and provide maximum rinsing efficiency.
  • Highly Visible Design: The bright, easy-to-locate construction ensures the shower is always accessible when seconds matter.
  • Simple Installation: Designed for hassle-free mounting at any industrial site, this eye shower fits seamlessly into your safety plan.

Investing in the Safety eye shower with two spray heads 45° - ClassicLine - BR 250 085 | B-Safety means safeguarding employees and meeting workplace safety standards. Its intuitive operation and reliable engineering mean anyone can use it confidently—even under pressure. Keep your team protected and your facility compliant with this crucial safety solution.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Colour: green
  • Dimensions (H x W): 200 x 250 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 14 litres / minute
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

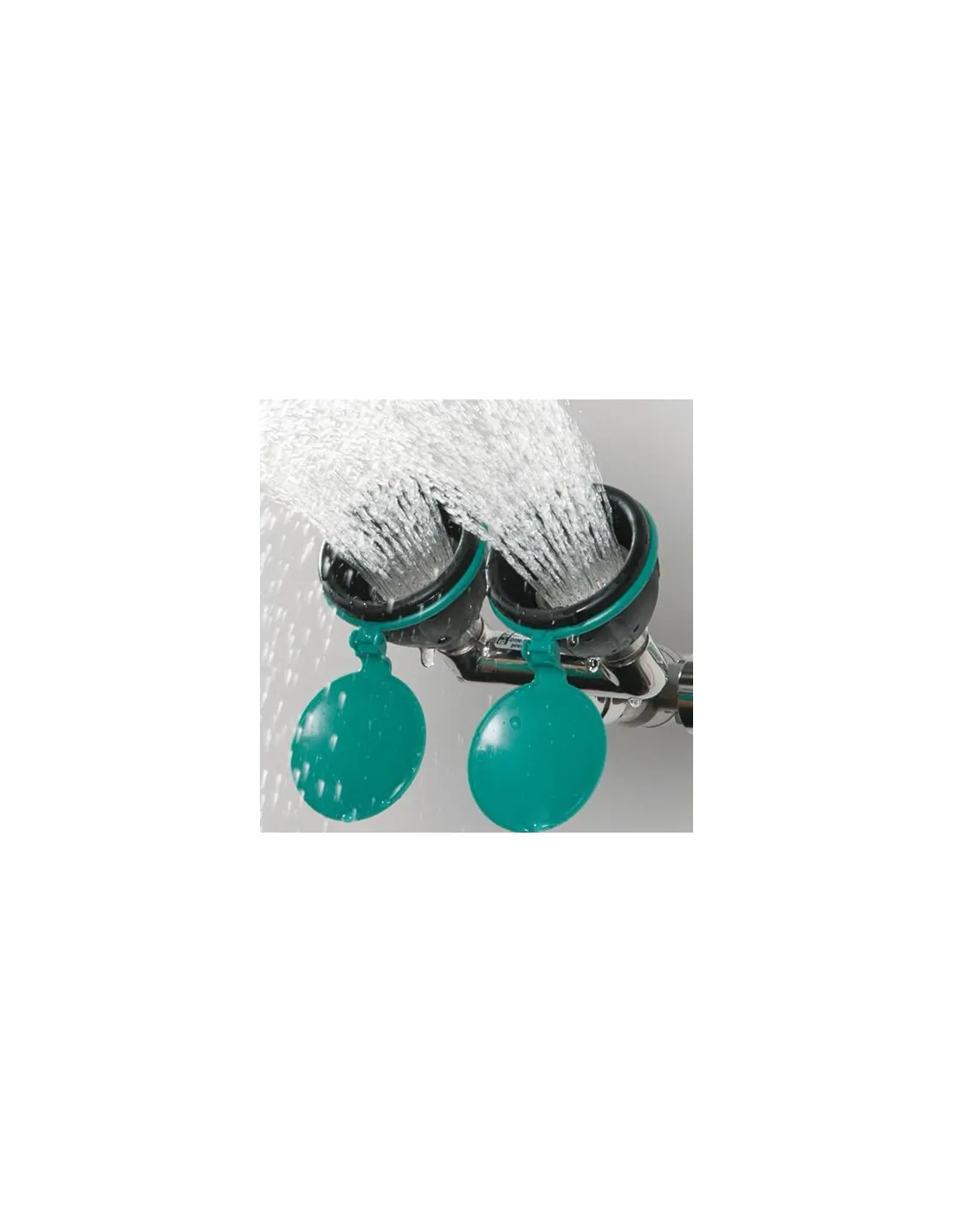

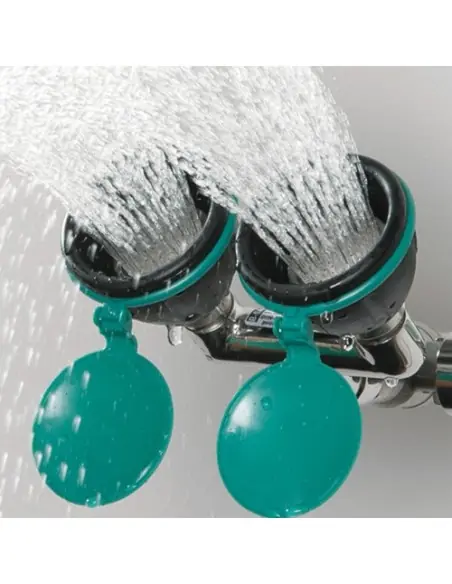

The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust covers on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure. The large holes in the shower heads prevent standing water and thus calcification.

DVGW
ISO9001_D_72

Technical Description

  • wall flange with 4 mounting holes made of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • connection pipe of stainless steel for easy installation and alignment of the shower, chemical resistant green powder coated
  • ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
  • big push plate made of steel, chemical resistant green powder coated, length 130 mm, with large signal “PUSH”, luminescent according to DIN 67510
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure

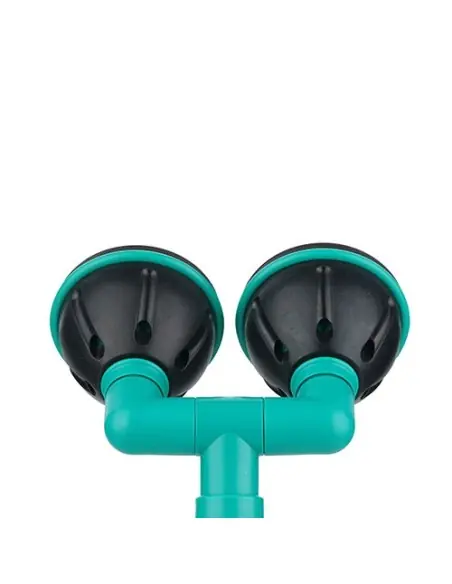

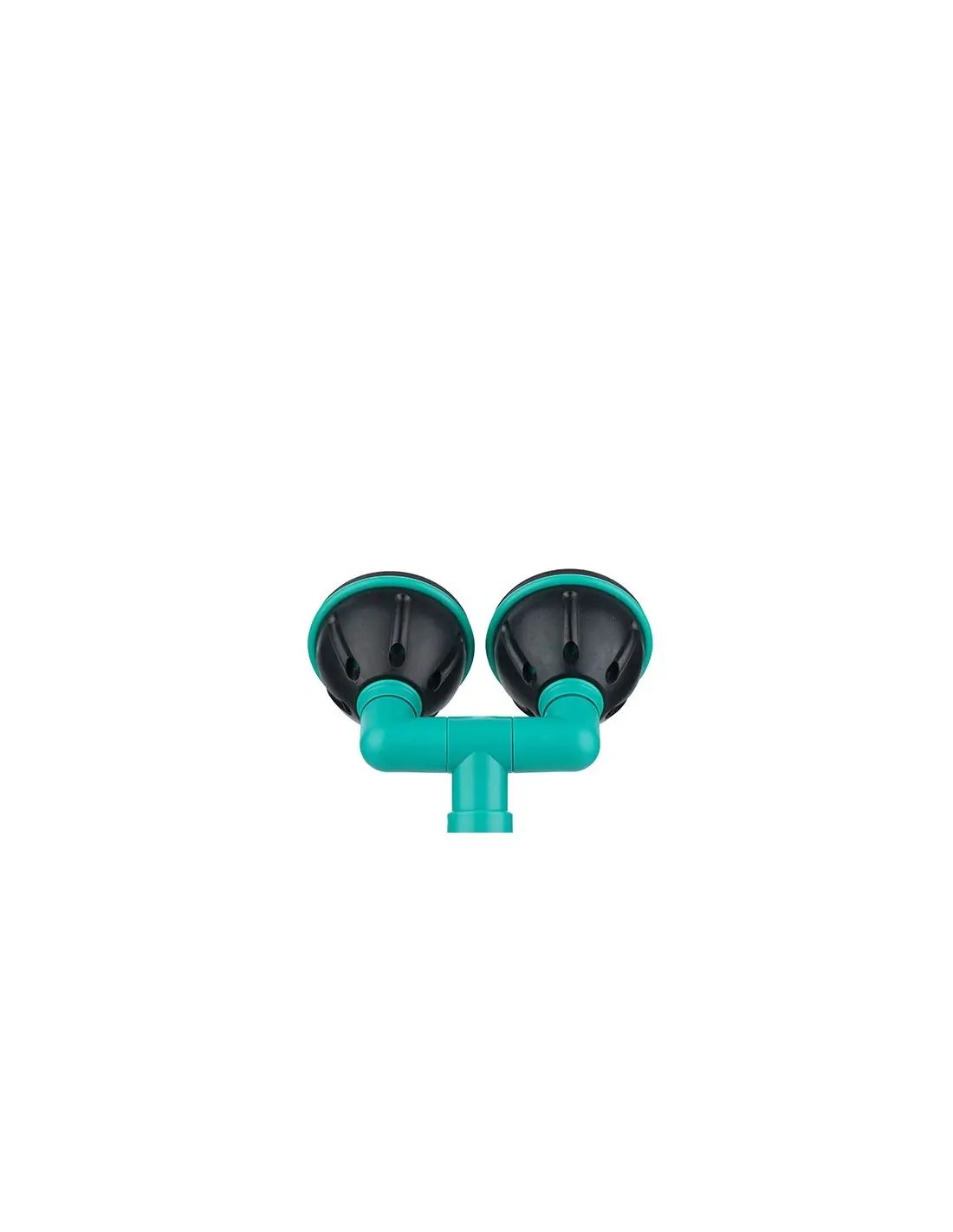

  • high-performance spray heads for large-scale dispersion of water, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • height 200 mm, projection 310 mm, total width incl. lever 250 mm
  • mounting height 900 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
