Safety eye shower with two spray heads 45° - PremiumLine - BR 250 095 | B-Safety: Exceptional Protection When Every Second Counts

Ensure maximum safety in your workplace with the Safety eye shower with two spray heads 45° - PremiumLine - BR 250 095 | B-Safety. Designed for industrial environments, this reliable eye wash station provides fast, effective relief if hazardous substances come into contact with your eyes. Its thoughtful design means you can act quickly and confidently when you need it most.

Outstanding Features & Benefits of the Safety eye shower with two spray heads 45° - PremiumLine - BR 250 095 | B-Safety

  • Dual Spray Heads at 45°: The two precision-crafted spray heads deliver a gentle yet powerful water flow at a comfortable 45-degree angle, fully covering both eyes at once. This ensures complete, fast rinsing for thorough decontamination.
  • Premium Construction: Built using high-quality, corrosion-resistant materials, this eye shower is made to endure even the toughest industrial settings, guaranteeing long-lasting performance and reliability.
  • Easy Activation: An intuitive, user-friendly lever allows for instant activation, so anyone can operate the shower effortlessly in an emergency, minimizing response time and potentially reducing injury.
  • Gentle Water Distribution: The advanced spray heads feature soft, aerated flow which is gentle on sensitive eye tissue, providing comfort and reducing further irritation during rinsing.
  • Dust Protection: Each spray head is equipped with integrated dust covers, ensuring the unit remains clean and ready to use at any moment, no matter the industrial environment.
  • Clear Installation: Designed for convenient wall mounting, installation is straightforward, keeping the station visible and accessible wherever you need it most.

With the Safety eye shower with two spray heads 45° - PremiumLine - BR 250 095 | B-Safety, you are investing in more than just a safety product—you are choosing peace of mind for everyone on site. Quick, easy-to-use, and engineered for rigorous daily use, this eye wash station stands as an essential component of any industrial workplace safety protocol. Protect your team and meet essential safety standards with this well-designed, dependable eye shower solution.

Datasheet and documents

Description

Technical Specifications

  • Material: Stainless steel
  • Surface: polished
  • Dimensions (H x W): 200 x 250 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 14 litres / minute
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

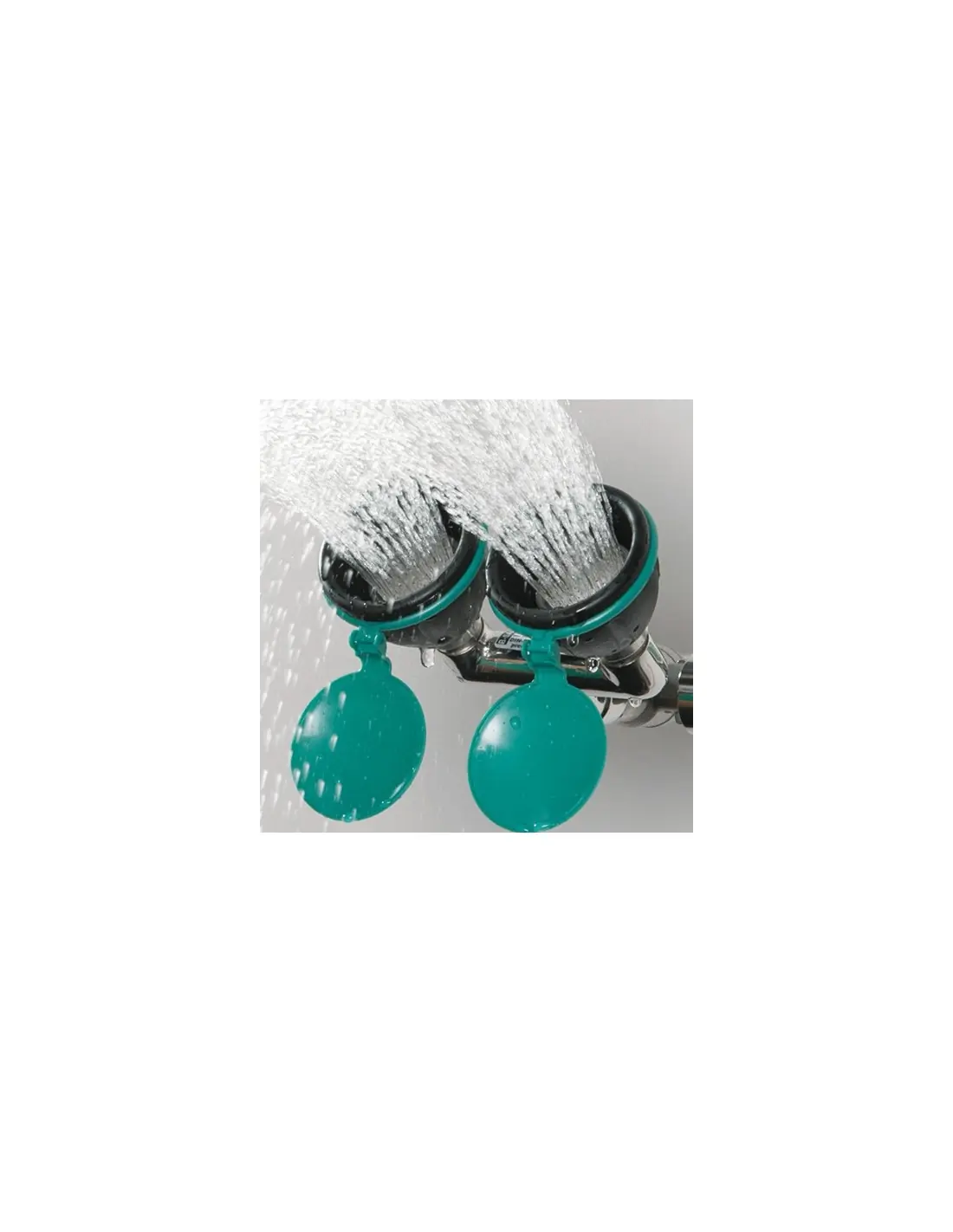

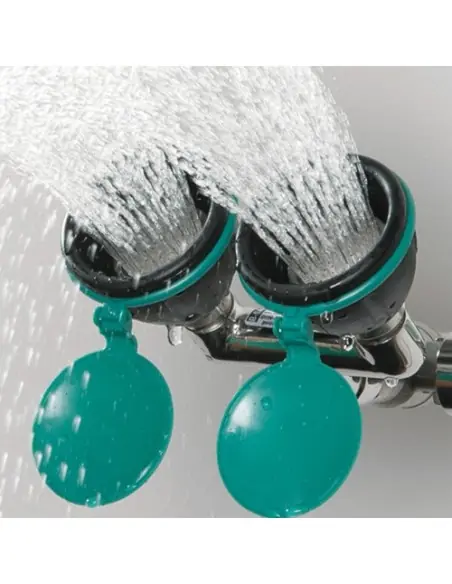

The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust covers on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure. The large holes in the shower heads prevent standing water and thus calcification.

DVGW
ISO9001_D_72

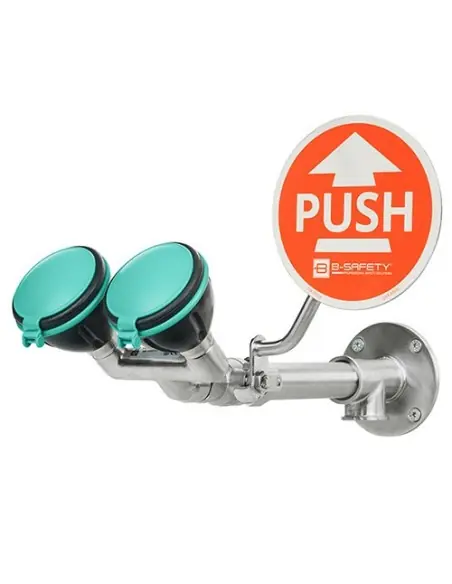

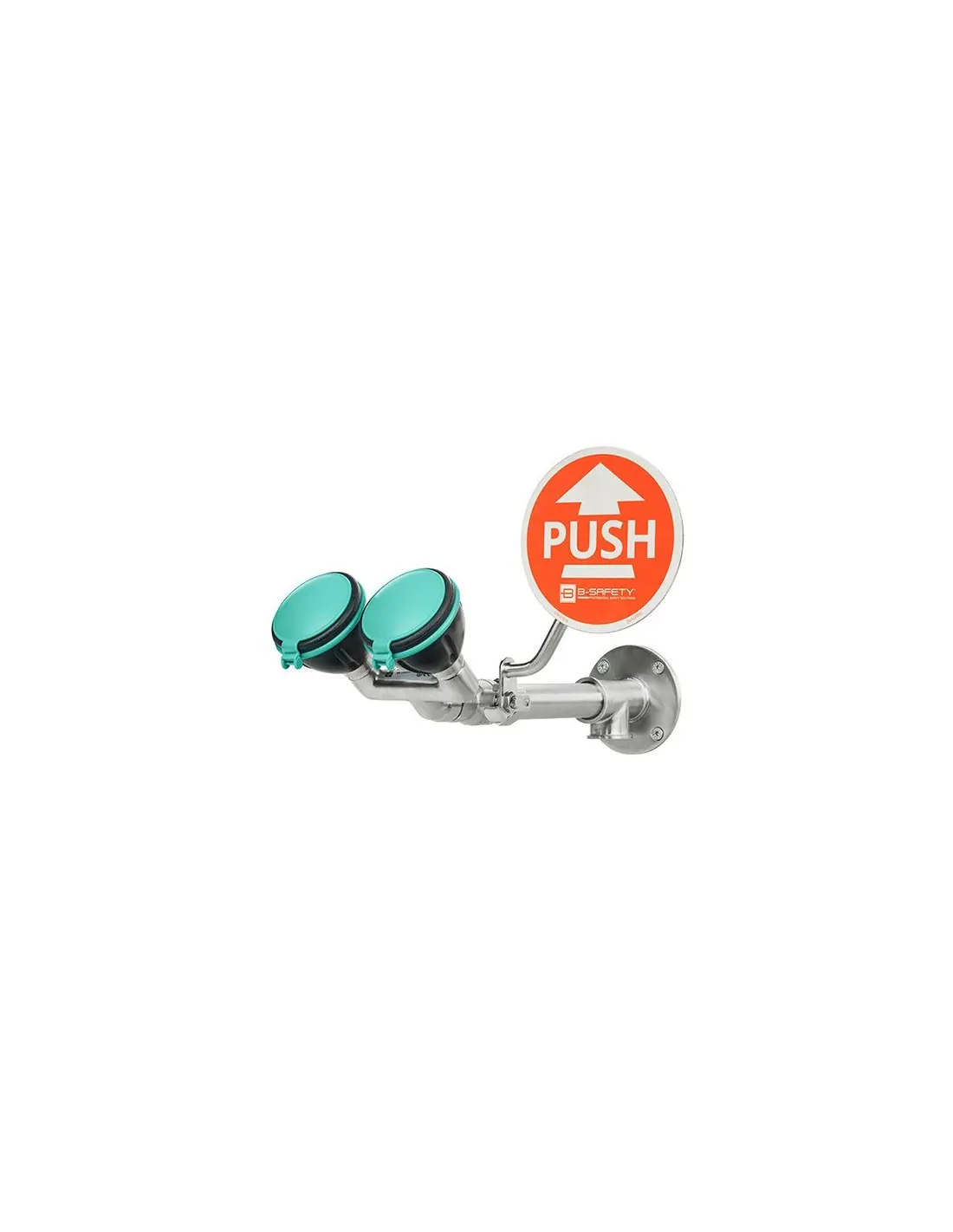

Technical Description

  • wall flange with 4 mounting holes made of stainless steel, polished, water inlet ¾” female
  • connection pipe of stainless steel for easy installation and alignment of the shower, polished
  • ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
  • big push plate made of stainless steel, polished, length 130 mm, with large signal “PUSH”, luminescent according to DIN 67510
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure

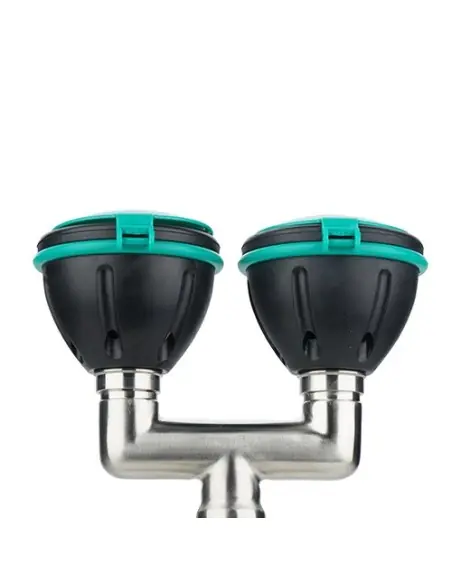

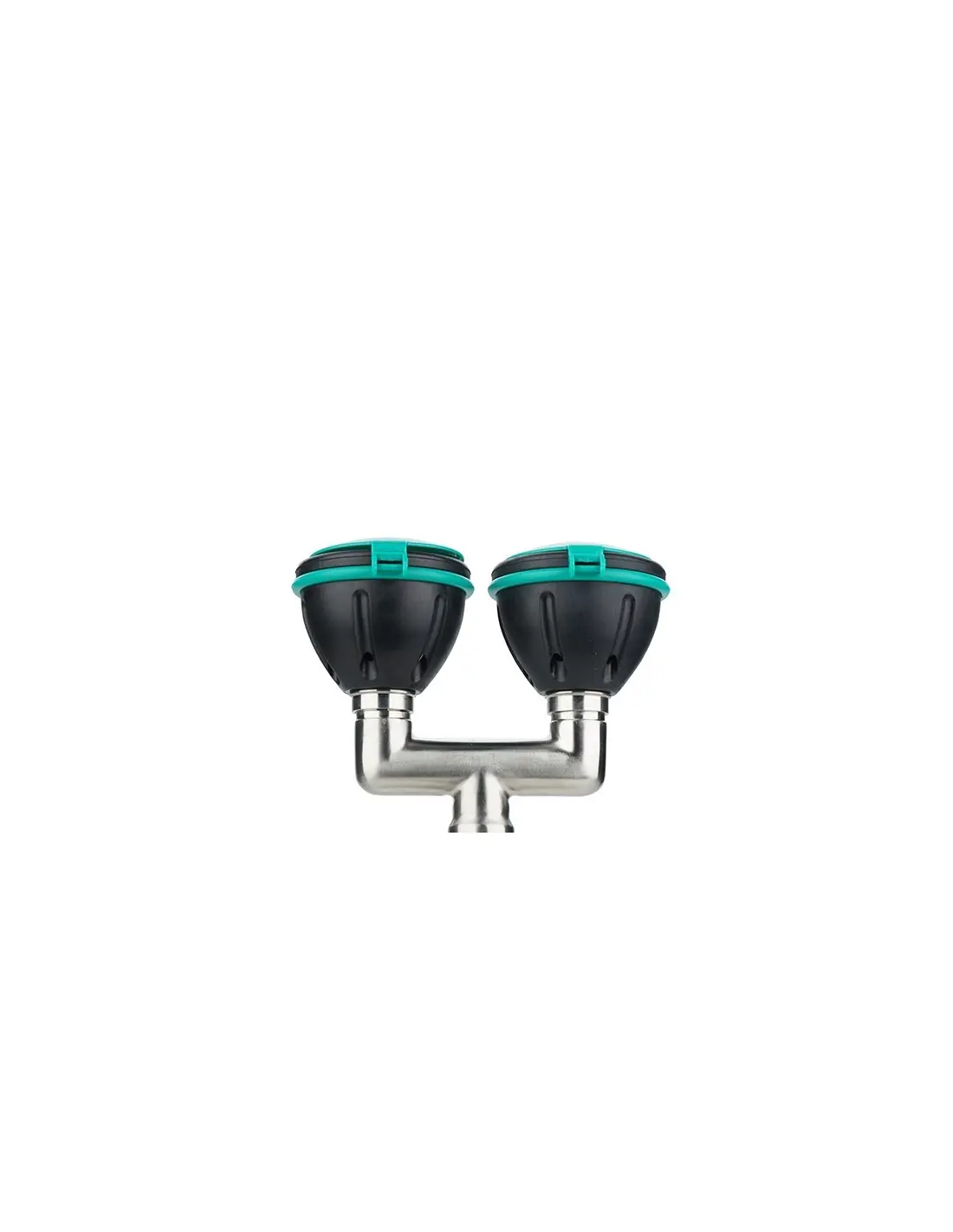

  • high-performance spray heads made of stainless steel for large-scale dispersion of water, polished, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • height 200 mm, projection 310 mm, total width incl. lever 250 mm
  • mounting height 900 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
