Advanced Safety and Comfort: Safety eye shower with two spray heads 45° - PremiumLine - BR 210 095 | B-Safety

In high-risk industrial environments, ensuring immediate first aid is crucial. The Safety eye shower with two spray heads 45° - PremiumLine - BR 210 095 | B-Safety is designed to provide fast and effective eye rinsing, offering peace of mind when it matters most. Its reliable performance and thoughtful features make it an essential addition to any workplace where safety cannot be compromised.

Features & Benefits of Safety eye shower with two spray heads 45° - PremiumLine - BR 210 095 | B-Safety

  • Dual Spray Heads: The twin spray heads provide a steady, gentle flow of water to both eyes at the same time, enabling effective rinsing and speedy relief from exposure to hazardous substances.
  • Optimal Angle Design: Positioned at a precise 45° angle, the spray heads deliver maximum coverage and comfort, ensuring thorough cleansing with minimal movement required.
  • Quality Construction: Built with premium materials, this eye shower stands up to demanding industrial use, with corrosion-resistant parts for longevity and reliable operation.
  • Simple Activation: Easy-to-use control ensures a quick response in emergencies—a single motion activates the water flow, enabling immediate assistance without delay.
  • Consistent Water Pressure: Engineered to maintain stable water pressure and flow, the system provides consistent performance even under variable supply conditions.
  • Highly Visible Design: Bold colors and intuitive markings make it easy for anyone to locate and use, even in stressful situations.
  • Low Maintenance: The robust design reduces the need for regular upkeep, meaning more uptime and less worry about function during emergencies.

The Safety eye shower with two spray heads 45° - PremiumLine - BR 210 095 | B-Safety was created with safety, comfort, and ease of use in mind. Whether handling chemicals or working in environments prone to dust and debris, this eye shower ensures that help is always within reach. With its innovative features, it delivers prompt relief and supports a safer workspace. Choose reliable protection and set a new standard for safety in your industry.

Description

Technical Specifications

  • Material: Stainless steel
  • Surface: polished
  • Dimensions (H x W): 180 x 230 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 14 litres / minute
  • Water connection: ¾“ male

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

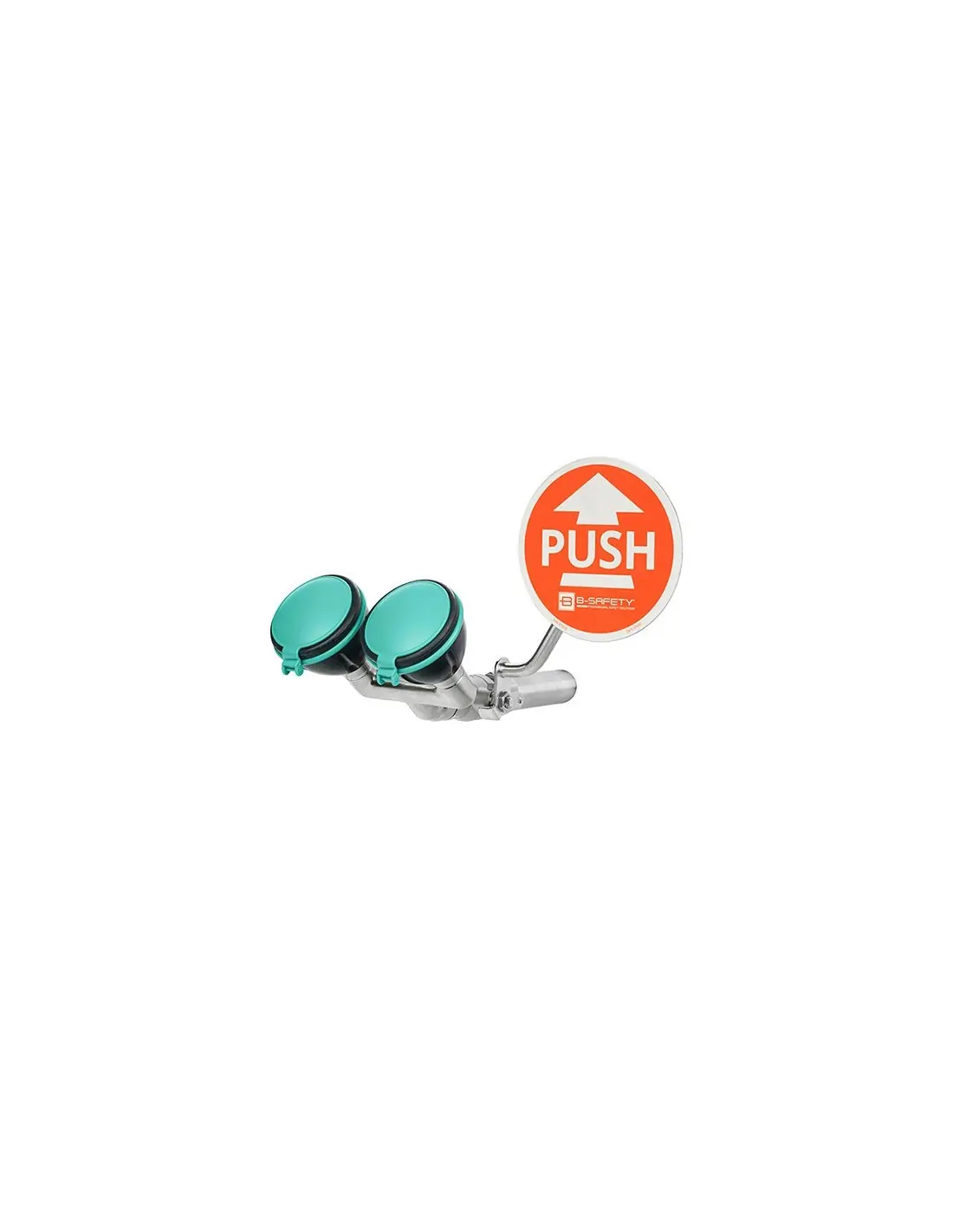

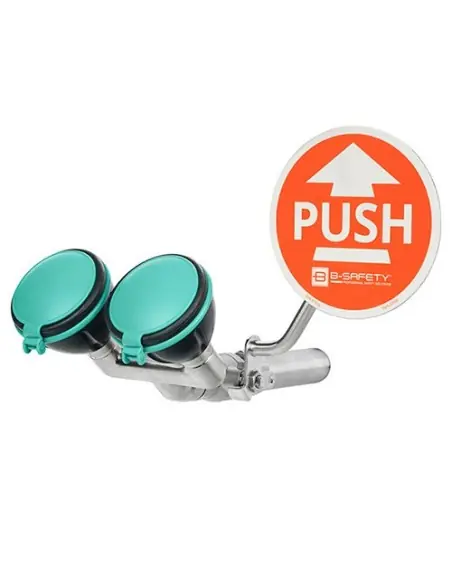

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

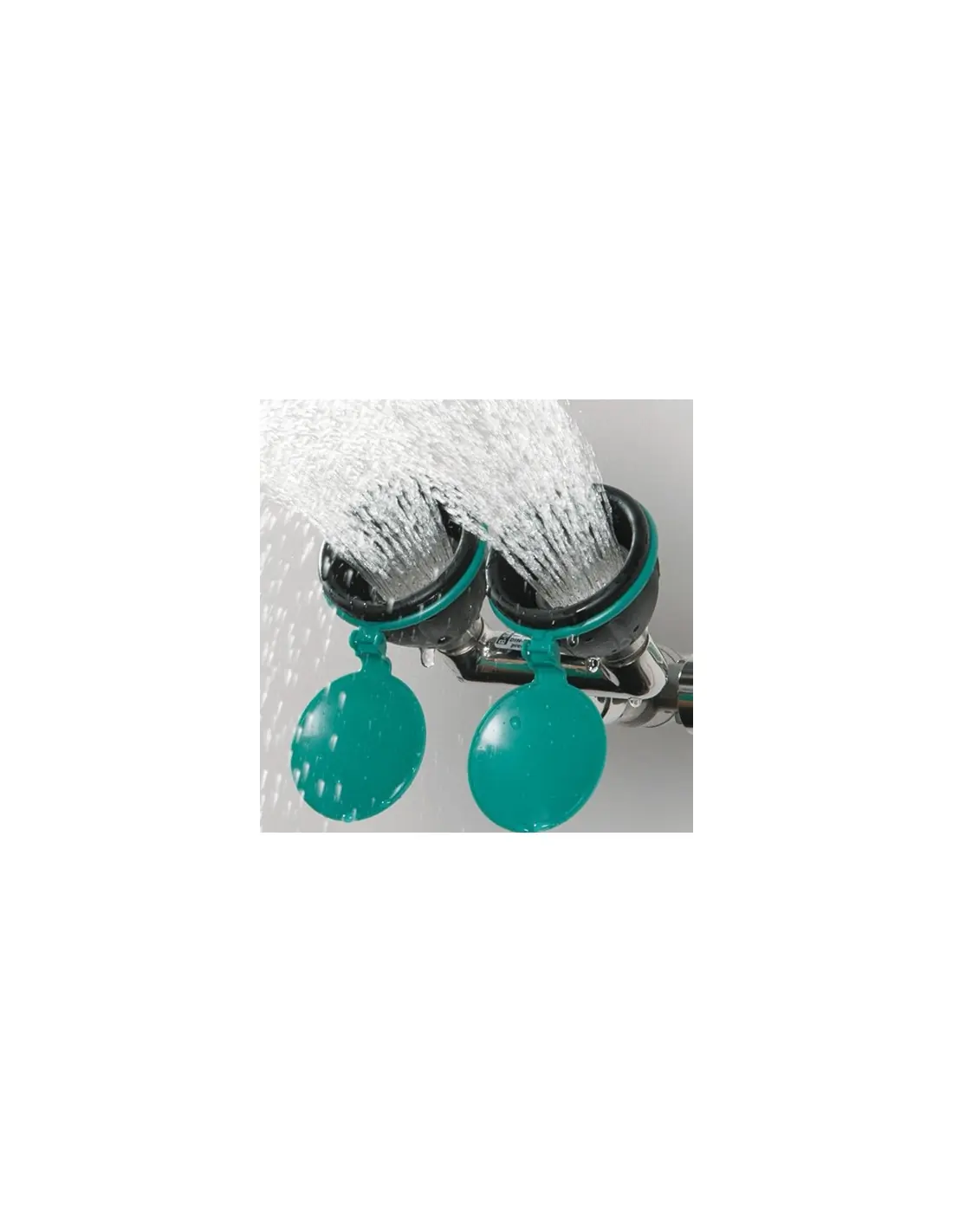

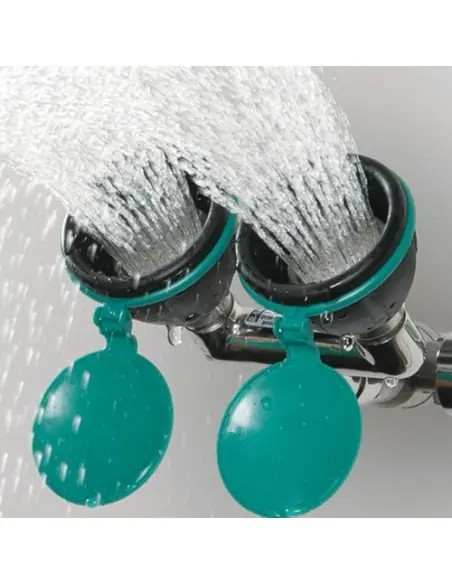

The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust covers on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure. The large holes in the shower heads prevent standing water and thus calcification.

DVGW
ISO9001_D_72

Technical Description

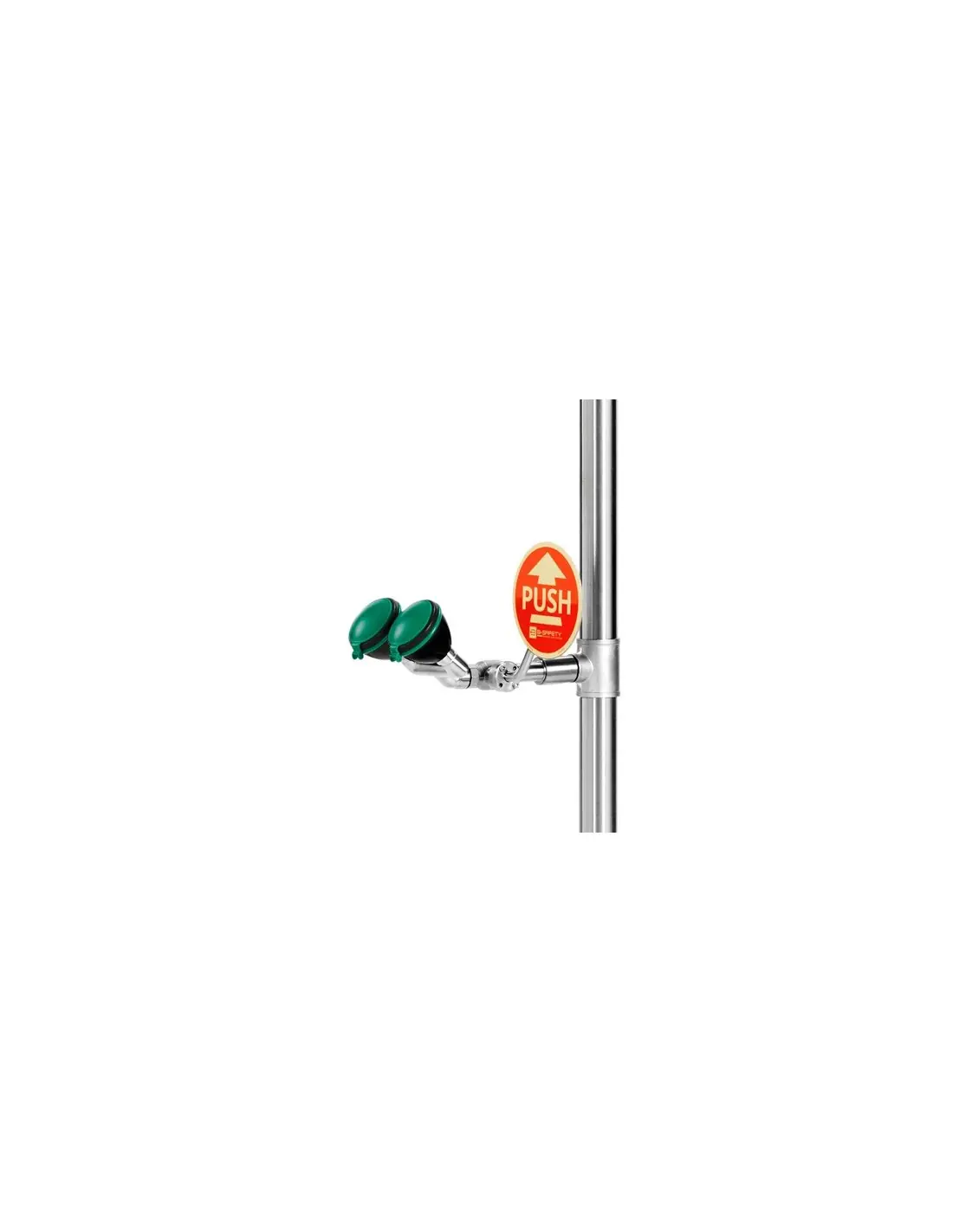

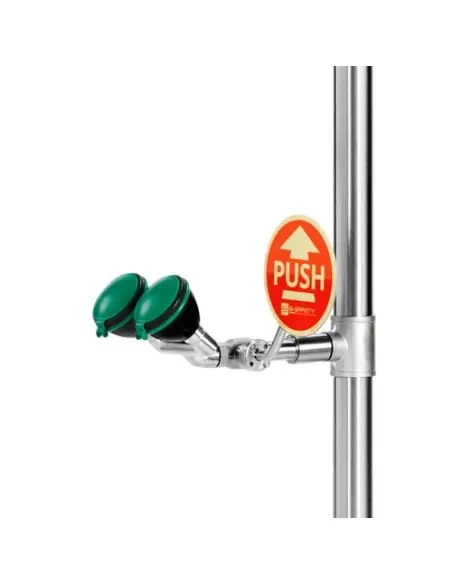

  • stainless steel connection pipe for easy installation and alignment of the shower, polished, water inlet ¾” male
  • ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
  • big push plate made of stainless steel, polished, length 130 mm, with large signal “PUSH”, luminescent according to DIN 67510
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • high-performance spray heads made of stainless steel for large-scale dispersion of water, polished, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • height 180 mm, projection 300 mm, total width incl. lever 230 mm
  • mounting height 900 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
