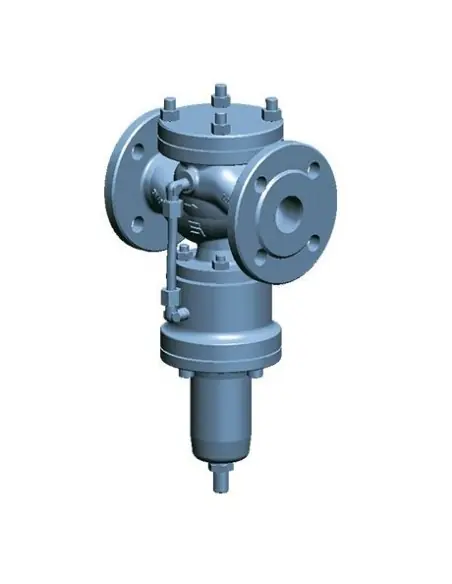

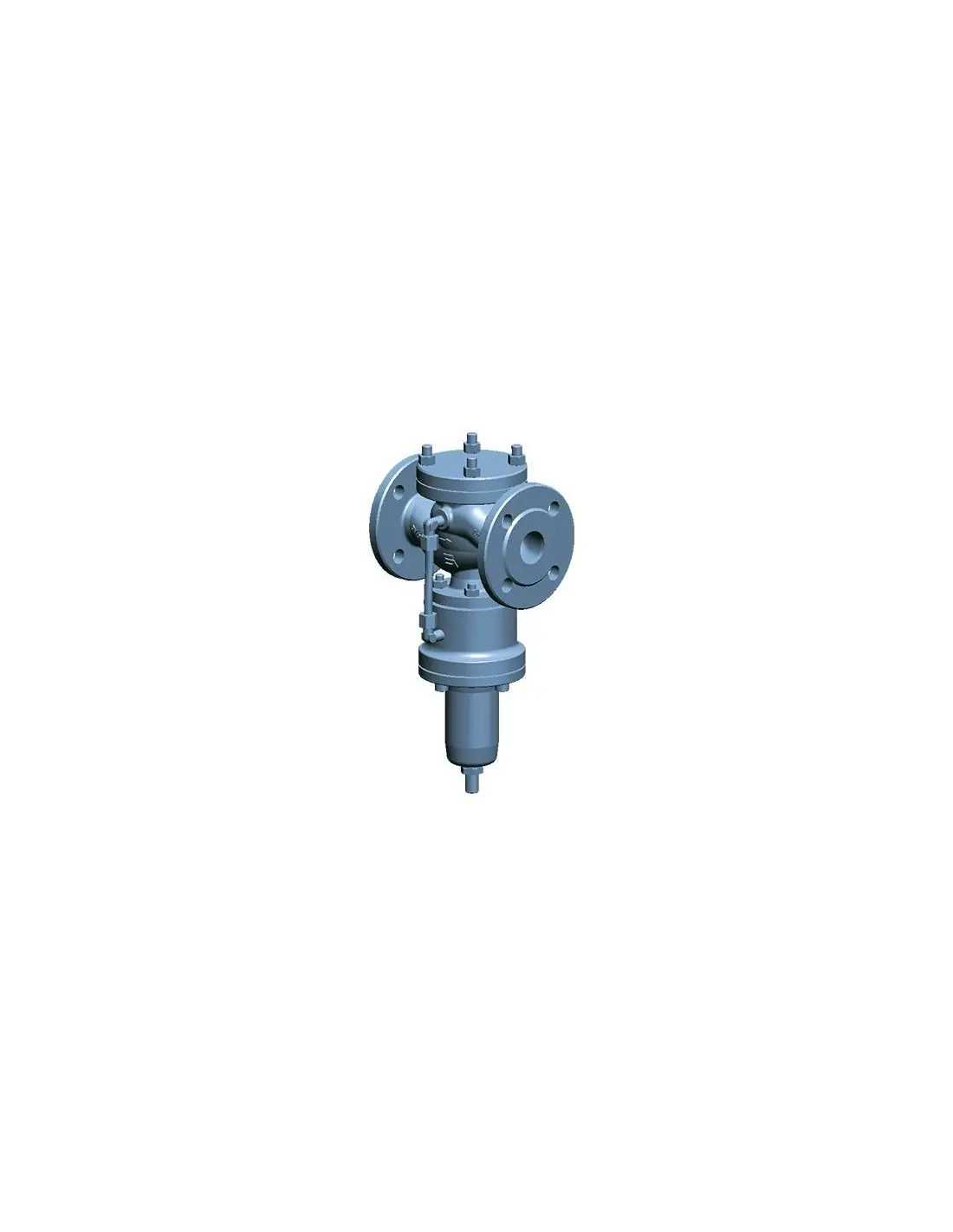

Pressure reducing valves for liquids and gases

The model REA20 is a direct acting pressure reducinf valve designed for use of compressible media, such as air and various gasses and for incompressible media such as water, oil and others.

Due to carefully selected springs a wide range of pressure applications is available.

As option the valve can be equipped with a pressure gauge on the valve body.

Operating features of direct acting pressure reducing valves

Pressure changes on the secondary side are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to keep the pressure on the secondary side at a set level.

Maximum pressure reduction ratio 25:1

Uses

Perfect for cleaning devices, foodstuff devices, and other forms of compact steam equipment.

Dimensions/Weight

Size (DN)	Dimensions (mm)				Kvs Value	Weight (kg)
	L		H	h
	PN40	PN63-100	H	h
15	130	210	315	82	1,8	14,5
20	150	230		66	3,2	14,5
25	160	230		66	5,0	16,5
32	180	260		81	7,9	18,5
40	200	260		83	13,0	22,0
50	230	300	477	100	20,0	37,5
65	290	340	520	113	34,0	49,0
80	310	380	648	140	51,0	65,0
100	350	430	670	154	80,0	91,0
125	400		660	210	130,0	125,0
150	480		680	235	180,0	160,0
200	600		740	285	320,0	300,0

Specifications

Body Material

Cast steel

GP240GH

(GS-C25,1.0619)

Body design conditions

	PN40	PN63	PN100
Max. design pressure (MPa) PMA	4,0	6,3	10,0
Max. design temperature (℃) TMA	400	400	400
Max. operating pressure (MPa) PMO	4,0	6,3	10,0
Max. operating temperature (℃) TMO	400	400	400

Pressure - Temperature rating

PN	Temperature ℃
	-10･･･+50	100	150	200	250	300	350	400
	Pressure MPa
PN40	4,0	3,7	3,5	3,1	2,8	2,6	2,4	2,3
PN63	6,3	5,9	5,5	4,9	4,5	4,1	3,8	3,6
PN100	10,0	9,3	8,7	7,8	7,1	6,4	6,0	5,8

Secondary pressure ranges

Secondary pressure range	DN15-DN40	DN50	DN65	DN80	DN100	DN125-DN200
MPa	Spring number per size
0,05-0,1	9	28	27	38	37	On request
0,1-0,16	8	27	26	37	36
0,16-0,25	7	26	25	36	35
0,25-0,4	6	25	24	35	34
0,4-0,63	5	24	23	34	33
0,63-1,0	4	23	22	33	32
1,0-1,6	3	22	21	32	32

Secondary pressure ranges higher than 1,6 MPa and lower than 0,05 MPa on request available.
