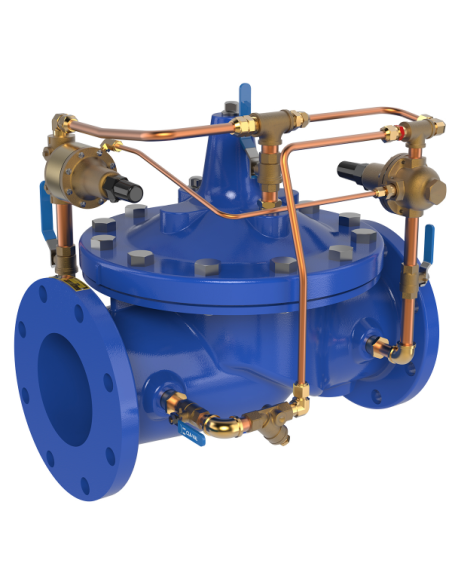

Cla-Val 94-58 / 694-58

Hydraulic pressure reducing valve with surge control and override capability. Maintains downstream pressure at a setpoint and allows external override input to the pilot circuit for specific operational scenarios.

Operation

The reducing pilot regulates outlet pressure to the specified setpoint. The surge pilot responds to rapid downstream overpressure events, minimizing transient effects. Override function enables external control priority when alternative hydraulic response is required, such as remote actuation or emergency intervention.

Applications

• potable water pressure zones
• networks with rapid flow fluctuations
• booster stations and discharge mains
• industrial water circuits
• installations requiring manual or remote override

Variants

• 94-58: full port construction.
• 694-58: reduced port, for lower flow rates or oversized pipelines.

Selection Criteria

Consider peak and minimum flow, upstream/downstream pressure, surge pilot setting, override method, available ΔP, cavitation risk, and transient response time. Media compatibility and sealing options (EPDM, NBR) should match process requirements.

FAQ

Difference from 94-01?
94-58 adds override capability to the reducing/surge control function.

Is electrical power required?
Standard operation is hydraulic. Power is only required if the override uses an electric actuator or solenoid.
