Cla-Val Models 92-07 (full port) / 692-07 (reduced port) Combination Pressure Reducing, Pressure Sustaining and Solenoid Control Valves automatically perform three independent functions – they maintain a constant downstream pressure, sustain upstream pressure and utilize a solenoid override to shut the valve drip-tight.

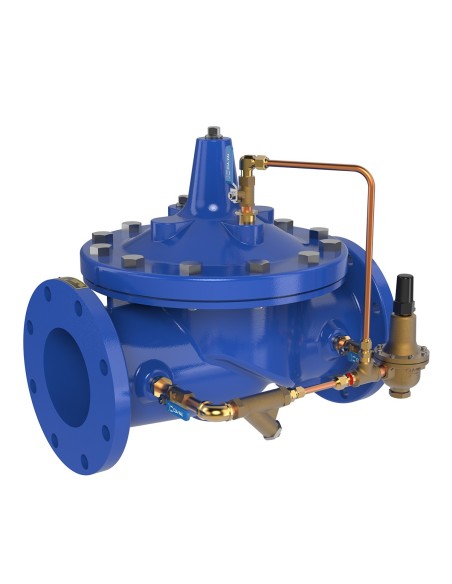

Hydraulic Pressure Control Valves - 92-07 & 692-07 Pressure Reducing, Sustaining & Solenoid Valve | Cla-Val
Cla-Val 92-07 / 692-07
Combined hydraulic control valve for pressure reducing, upstream pressure sustaining, and solenoid-actuated shutoff. Performs three functions: maintains constant downstream pressure, protects minimum upstream pressure, and enables remote tight shutoff via solenoid override.
Operation
The reducing pilot regulates downstream setpoint. The sustaining pilot limits valve opening if upstream pressure drops to its setpoint. When the solenoid is energized, the main valve closes drip-tight. Hydraulic actuation; electrical input only required for solenoid function.
Applications
- Low zone supply from high-pressure mains
- Upstream network protection against excessive demand
- Remote isolation via PLC/SCADA
- Municipal water distribution
- Industrial water supply
Variants
- 92-07: Full port construction.
- 692-07: Reduced port for lower flow rates or improved control in oversized pipelines.
Selection Criteria
Consider peak and minimum flow, upstream and downstream setpoints, available ΔP, solenoid voltage, fail position, cavitation risk, and need for check feature to prevent reverse flow. Confirm compatibility with process media and required certifications (e.g., NSF, WRAS).
FAQ
Is this a standard PRV?
No. It controls downstream pressure, sustains upstream pressure, and accepts electrical shutoff command.
Is electrical power needed for regulation?
No. Pressure regulation is hydraulic; power is only required for solenoid actuation.
