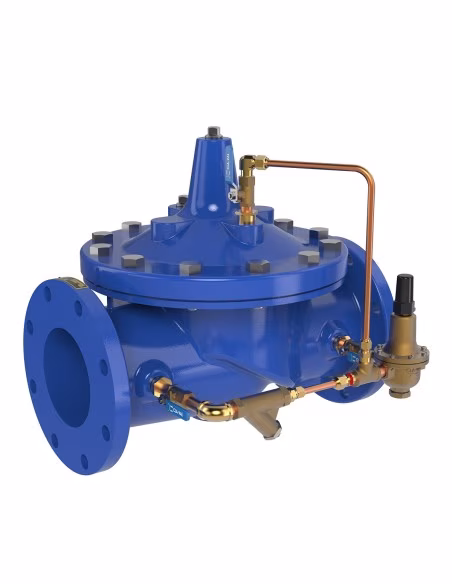

Cla-Val 92-01 / 692-01

Combined hydraulic pressure reducing and sustaining valve for water distribution networks. Performs two independent functions: maintains constant downstream pressure and sustains a minimum upstream pressure setpoint.

Operation

The reducing pilot regulates outlet pressure. The sustaining pilot restricts valve opening if upstream pressure drops below its setpoint, protecting the main supply line or upper pressure zone from excessive flow withdrawal. Both pilots operate hydraulically, without external power.

Typical Applications

• Supplying lower pressure zones from main transmission lines
• Municipal water distribution systems
• Industrial water supply networks
• Upstream pressure protection in zoned systems
• Downstream pressure stabilization under variable demand

Variants

• 92-01: Full port construction for standard and high flow rates.
• 692-01: Reduced port design for lower flow applications, minimizing cavitation risk.

Selection Criteria

Selection is based on peak and minimum flow rates, upstream and downstream setpoints, available differential pressure, cavitation potential, and pilot interaction. Valve sizing should consider media compatibility (potable water, process water), pressure class (typically PN16/PN25), and installation orientation.

FAQ

How does it differ from the 90-01?
The 90-01 controls only downstream pressure. The 92-01/692-01 also maintains a minimum upstream pressure, providing dual pressure control.

Is electrical power required?
No. All functions are hydraulically actuated.
