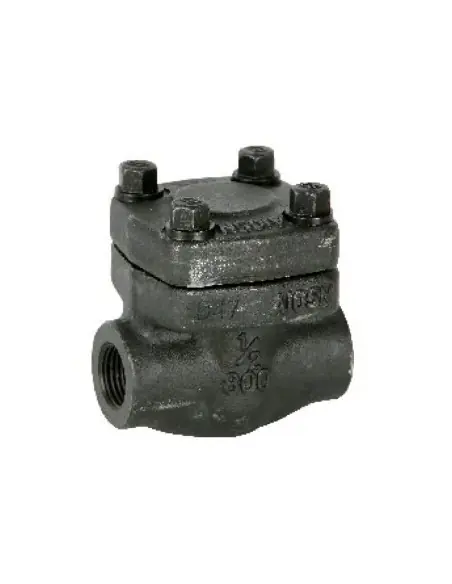

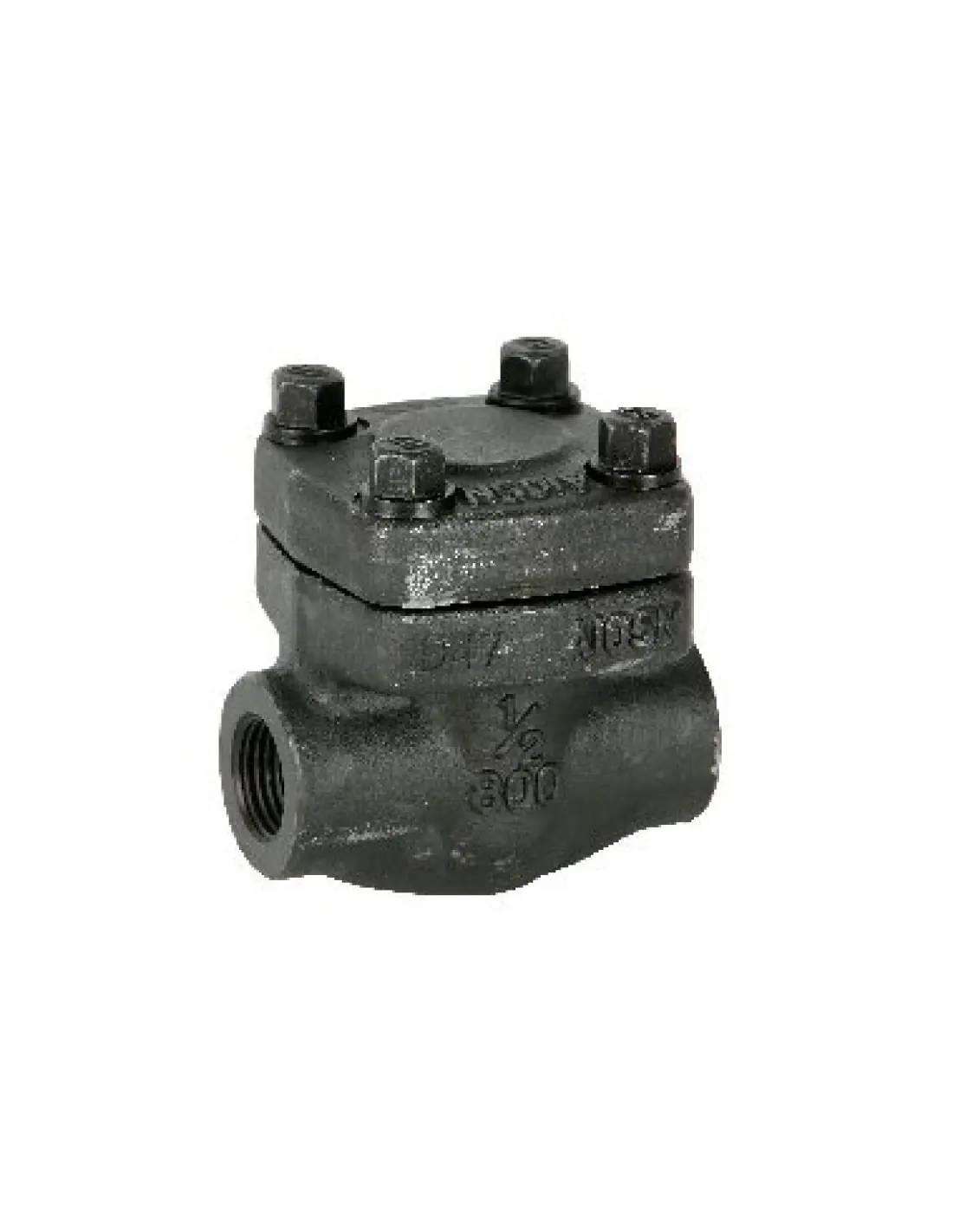

Genebre 2234N – Piston Check Valve Class 800 NPT

The Genebre 2234N is a forged piston check valve designed for high-pressure pipelines with threaded NPT ends in accordance with ASME B1.20.1. Operation is based on differential fluid pressure and a return spring, with no actuator required. Installation direction is indicated by the flow arrow on the body.

Construction

Type: piston check valve, Class 800
Design: EN ISO 15761 / API 602
Body and cover: forged carbon steel ASTM A105N
Seat: hardened / stellited
Piston: ASTM A182 F6a, tempered
Trim: #8 / XU
Spring: stainless SS304
Body gasket: SS304 + graphite
Cover bolts: ASTM A193 Gr. B7
Cover: bolted

Operating Limits & Sizes

Maximum working pressure: 140 bar. Temperature range: -29°C to +420°C. Available sizes: 1/2" to 2". Kv values: 1.04 to 14.7 m³/h depending on size; use for pressure drop calculations. Opening pressure: approx. 37–75 mbar (size and flow orientation dependent).

Applications

Suitable for steam, water, condensate, thermal fluids, oils, and compatible industrial media, provided compatibility with A105N, F6a, Stellite, and graphite is confirmed. For corrosive or chloride-containing fluids, metallurgical review is required.

Installation / Maintenance

Piping must be cleaned prior to commissioning; weld debris or solids may cause seat leakage. Not recommended for slurries or fluids with solids prone to cavity deposition. For threaded installation, do not disassemble the valve; tighten using the central body, avoiding excessive torque.

FAQ

When is Class 800 selected? When lower pressure-temperature ratings do not meet design conditions.
Is it repairable? The manual states repair is generally not cost-effective; replacement is recommended.

Standard (Options)

Connection (Options)

Material (Options)

ASTM A105N

Pressure Rating (Options)

PN 140

Seat (Options)

Stellite

Datasheet and documents

Description

Body and cover made of forged steel ASTM A105N.

Seat material: stainless steel stellited.

Piston: ASTM A182 F6a (trim #8/XU).

Bolted cover. NPT thread ends.

Reference: 2234N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2234N 04	CHECK VALVE CLASS 800 NPT 1/2"	1	1.555	1/1
2234N 05	CHECK VALVE CLASS 800 NPT 3/4"	1	1.69	1/1
2234N 06	CHECK VALVE CLASS 800 NPT 1"	1	2.835	1/1
2234N 07	CHECK VALVE C.800 NPT 1 1/4"	1	4.08	1/1
2234N 08	CHECK VALVE C.800 NPT 1 1/2"	1	6.165	1/1
2234N 09	CHECK VALVE C.800 NPT 2"	1	9.915	1/1
