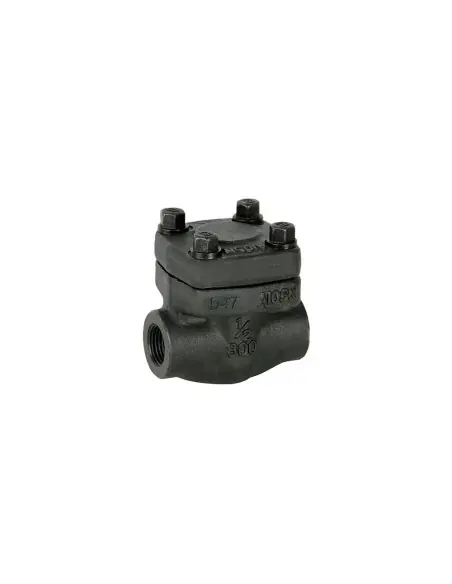

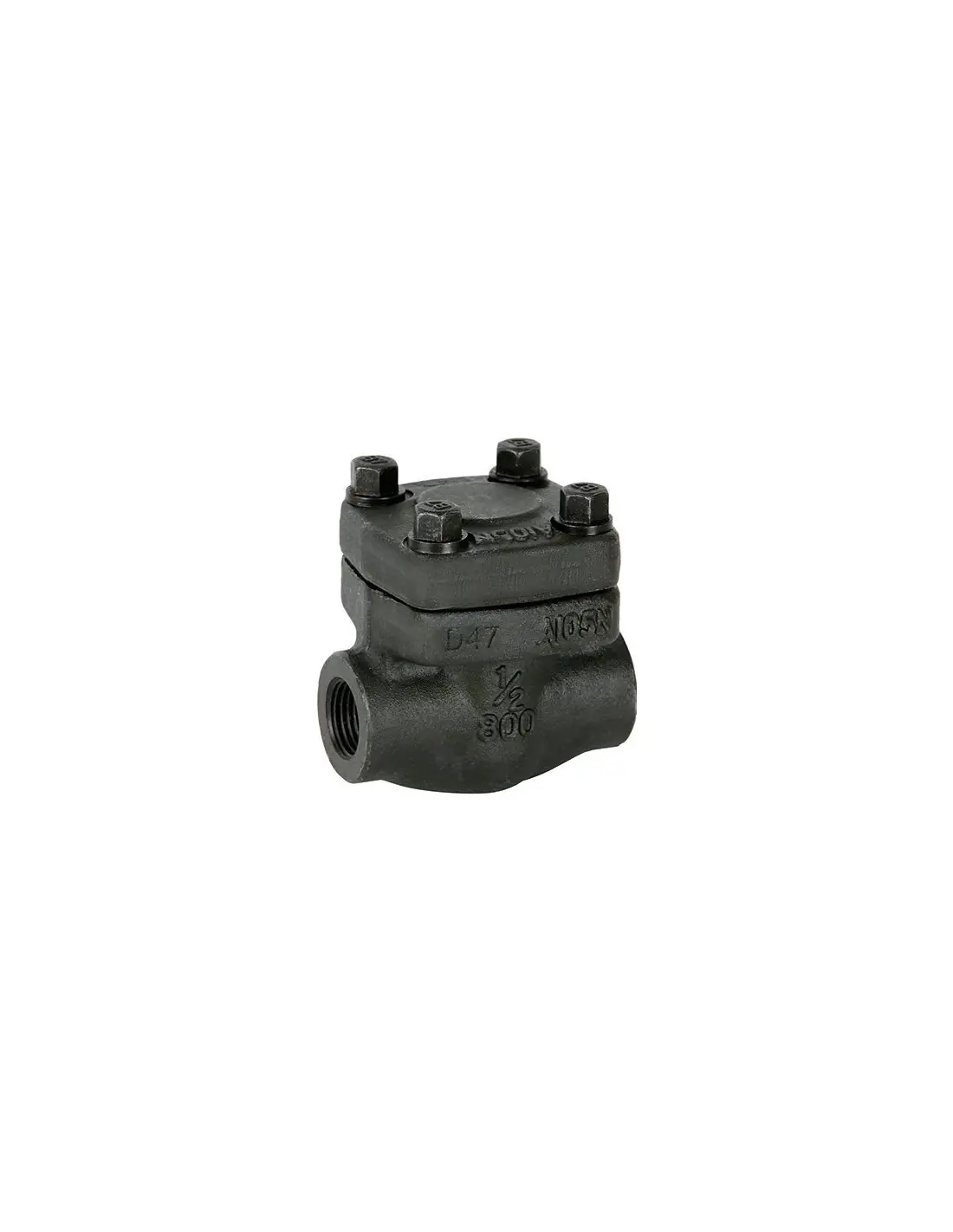

Genebre 2234S – Piston Check Valve Class 800 SW

The Genebre 2234S is a forged piston check valve, Class 800, with Socket Weld ends per ANSI B16.11. Designed for high-pressure, small-diameter pipelines where welded connections are preferred over threaded joints for mechanical strength and reduced leakage risk at the ends.

Construction

Design: EN ISO 15761 / API 602
Body and cover: Forged carbon steel ASTM A105N
Seat: Stellite hardened
Piston: Stainless steel ASTM A182 F6a
Trim: #8 / XU
Spring: SS304
Body gasket: SS304 + graphite
Cover bolts: ASTM A193 Gr. B7
Cover: Bolted

Operating Limits & Sizes

Maximum working pressure: 140 bar. Temperature range: -29°C to +420°C. Available sizes: 1/2" to 2". Kv values: 1.04 to 14.7 m³/h depending on size. Opening pressure: 37 to 75 mbar, size-dependent.

Applications

Suitable for steam, condensate, water, thermal fluids, oils, and compatible industrial media, provided compatibility with A105N, F6a, Stellite, and graphite is verified. Not recommended for slurries or fluids with solids, as particles may accumulate on the seat and cause leakage.

Socket Weld Installation

Valve is not disassembled prior to welding. TIG or MIG welding by certified personnel is recommended. Cooling should be applied to avoid overheating the body. Piping must be free of debris and weld residues. Valve should not be subjected to pipe stresses or misalignment.

FAQ

What is the difference from 2234N?
2234S has Socket Weld ends; 2234N has NPT threaded ends.

Is an actuator required?
No. The piston opens by differential pressure and closes via spring return.

Is it repairable?
Manual states repair is generally not cost-effective; replacement is recommended.

Standard (Options)

Connection (Options)

Socket Weld

Material (Options)

ASTM A105N

Pressure Rating (Options)

PN 140

Seat (Options)

Stellite

Datasheet and documents

Description

Body and cover made of forged steel ASTM A105N.

Seat material: stainless steel stellited.

Piston: ASTM A182 F6a (trim #8/XU).

Bolted cover. Socket Weld ends.

Reference: 2234S

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2234S 04	CHECK VALVE CLASS 800 SW 1/2"	1	1.52	1/1
2234S 05	CHECK VALVE CLASS 800 SW 3/4"	1	1.653	1/1
2234S 06	CHECK VALVE CLASS 800 SW 1"	1	2.84	1/1
2234S 07	CHECK VALVE CLASS 800 SW 1 1/4	1	4.174	1/1
2234S 08	CHECK VALVE CLASS 800 SW 1 1/2	1	6.295	1/1
2234S 09	CHECK VALVE CLASS 800 SW 2"	1	9.74	1/1
