The ICP R150RF / R300RF is a reduced bore forged piston check valve with RF flanged ends per ASME B16.5. Designed for unidirectional flow control in pipelines requiring mechanical prevention of backflow without actuator or external control. Available in sizes 1/2"–2" (DN15–DN50), ASME Class 150 or Class 300.
Design per BS 5352, MSS SP 118, ASME B16.34. Leakage testing per API 598, pressure testing per EN 12266-1, marking per EN 19. Supplied with EN 10204 2.2 certification. Complies with CE, PED 2014/68/EU, ATEX Group II Cat. 2, and NACE requirements.
Selection between Class 150 and Class 300 must be based on actual pressure–temperature conditions, not nominal line pressure. Manufacturer P/T charts indicate allowable pressure reduction with increasing temperature, differing for A105 and F316L materials.
Suitable media: steam, water, thermal fluids, petroleum products, and chemicals compatible with A105 or F316L. For corrosive media, F316L is recommended after verifying concentration, temperature, and chloride content.
Does it have an actuator? No. The piston is moved by differential pressure and returns via spring force.
Is it suitable for slurry? Not as standard. Solid particles may affect seat, piston, and sealing integrity.
When to select Class 300? When Class 150 pressure-temperature rating does not meet operational or design requirements.

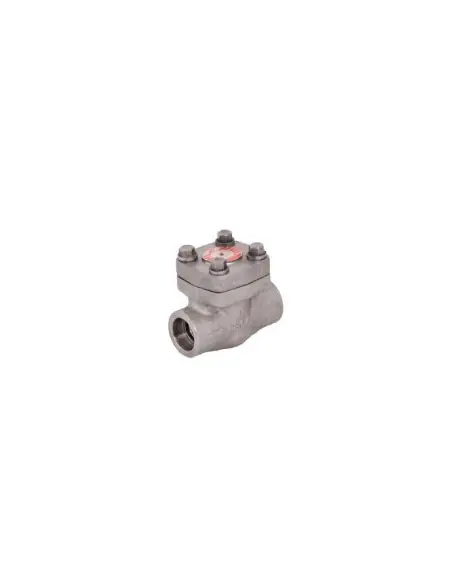

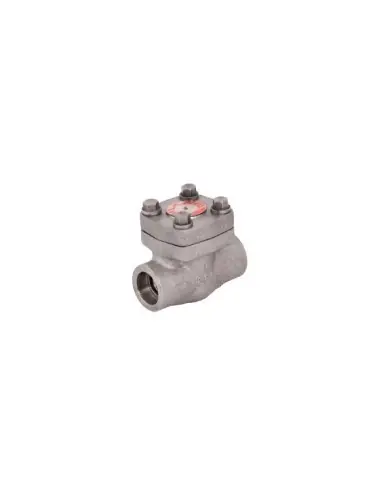

Forged Piston Check Valve, Reduced Bore, SW (ANSI B16.11) or NPT Threaded ends (ANSI B1-20.1), Class 800, from 1/2" to 2".
Carbon Steel (A105, TRIM 5) or Stainless Steel (A 182 F316L, TRIM 12) Body and Bonnet. Uni-directional Valve.
Standard design according BS 5352, ASME B16.34.
The valves are CE, ATEX and NACE certified.
