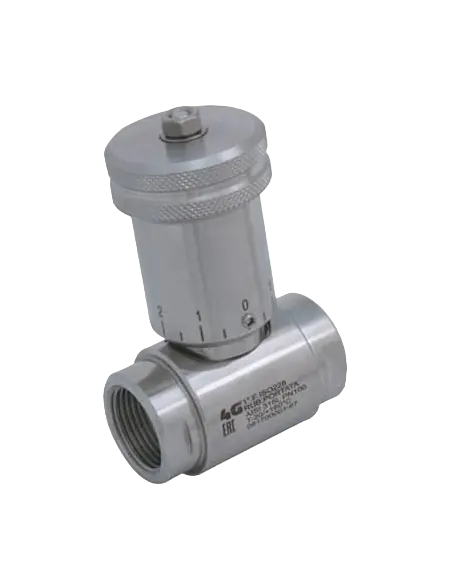

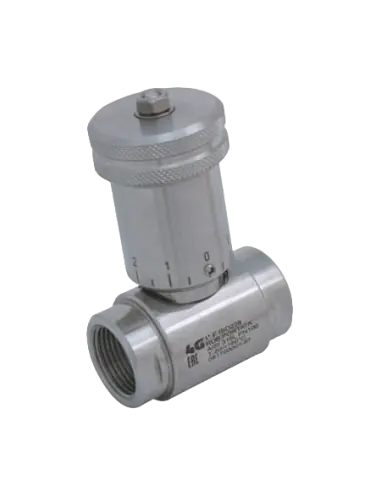

The 678201 is a manually operated rate valve featuring ISO 228 F/F female threads and a calibrated handwheel, designed for repeatable low-flow adjustments in clean liquid or gas lines. The body is constructed from AISI 316L / 1.4404 with a polished exterior. Available sizes range from 1/2” to 1 1/2”.
The calibrated handwheel allows for position recording and reset. This is beneficial in lines where operators need repeatable manual adjustments after cleaning, isolation, or batch changes.
The handwheel indication is not a flow measurement. Actual flow depends on differential pressure, viscosity, temperature, installation Kv/Cv, and piping losses.
Not recommended as a primary choice for slurries, suspended solids, or viscous products due to limited needle cross-section.
Upon request, anti-static ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db arrangement and M.O.C.A. CE 1935/2004 compliance are available.
When to choose over 678001?
When a specific handwheel position reset is required, not just manual adjustment without indication.
What to check before selection?
ISO 228 size, PN 100, temperature, sealing chemical compatibility, and media cleanliness.
Rate valve
Drive: GRADUATE Handwheel
Connection: ISO 228 female/female thread
Material: Aisi 316L
Measure: from 1/2” to 1”1/2
Operating temperature: -20°C+160°C
Outer finish: Polished
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
