Needle valve 3000 Lbs NPT thread - 2222 | Genebre

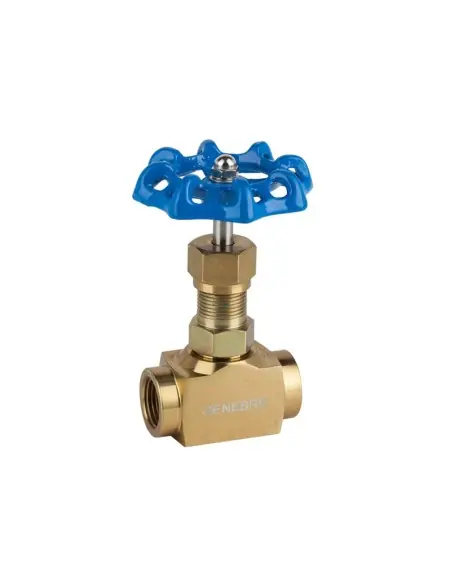

Genebre 2222 Needle Valve – 3000 lbs, NPT F/F

Manual needle valve for throttling control of small flow rates in clean liquids or gases. The 2222 series features female NPT ends per ASME B1.20.1, body and bonnet made of carbon steel ASTM A105, needle and stem from A182 F6, and PTFE + graphite stem sealing.

Technical Specifications

• Sizes: 1/4”, 3/8”, 1/2”, 3/4”, 1”
• Max working pressure: 3000 psi, approx. 206 bar
• Connection: NPT female/female
• Pressure/temperature rating: 1/4”–1/2” up to 3000 psi at 260°C, 3/4”–1” up to 3000 psi at 240°C
• Kv: 0.25 to 1.10 m³/h for sizes 1/4”–1”
• Operation: handwheel, no actuator

Typical Applications

Used in lines requiring local regulation rather than simple isolation:

• Impulse lines and instrument lines
• Small high-pressure bypasses
• Hydraulic or auxiliary circuits
• Air, nitrogen, water, or clean industrial fluids
• Applications where piping is specified with NPT

Not suitable for slurries, suspended solids, or corrosive media incompatible with ASTM A105. In fluids with particles, the seat and needle may wear or exhibit seat leakage.

Difference from 2221 Version

The 2222 is the NPT threaded version. It should not directly replace the 2221 ISO 228 without checking piping standards, thread sealing, and compatibility with existing fittings.

Selection Points

Before procurement, verify:

• NPT size
• Operating pressure and temperature
• Required Kv
• Media compatibility with A105, A182 F6, and PTFE/graphite
• Need for throttling or only on/off isolation

FAQ

Is it a control valve?
No. It is a manual needle valve. Continuous automatic control requires valve sizing and an actuator.

What to watch for in maintenance?
Potential leakage from packing or seat. Tightening the gland may reduce stem leakage, but a worn needle or seat requires technical inspection.
