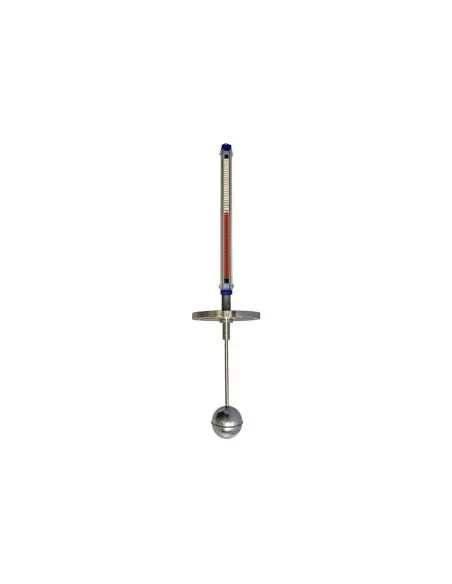

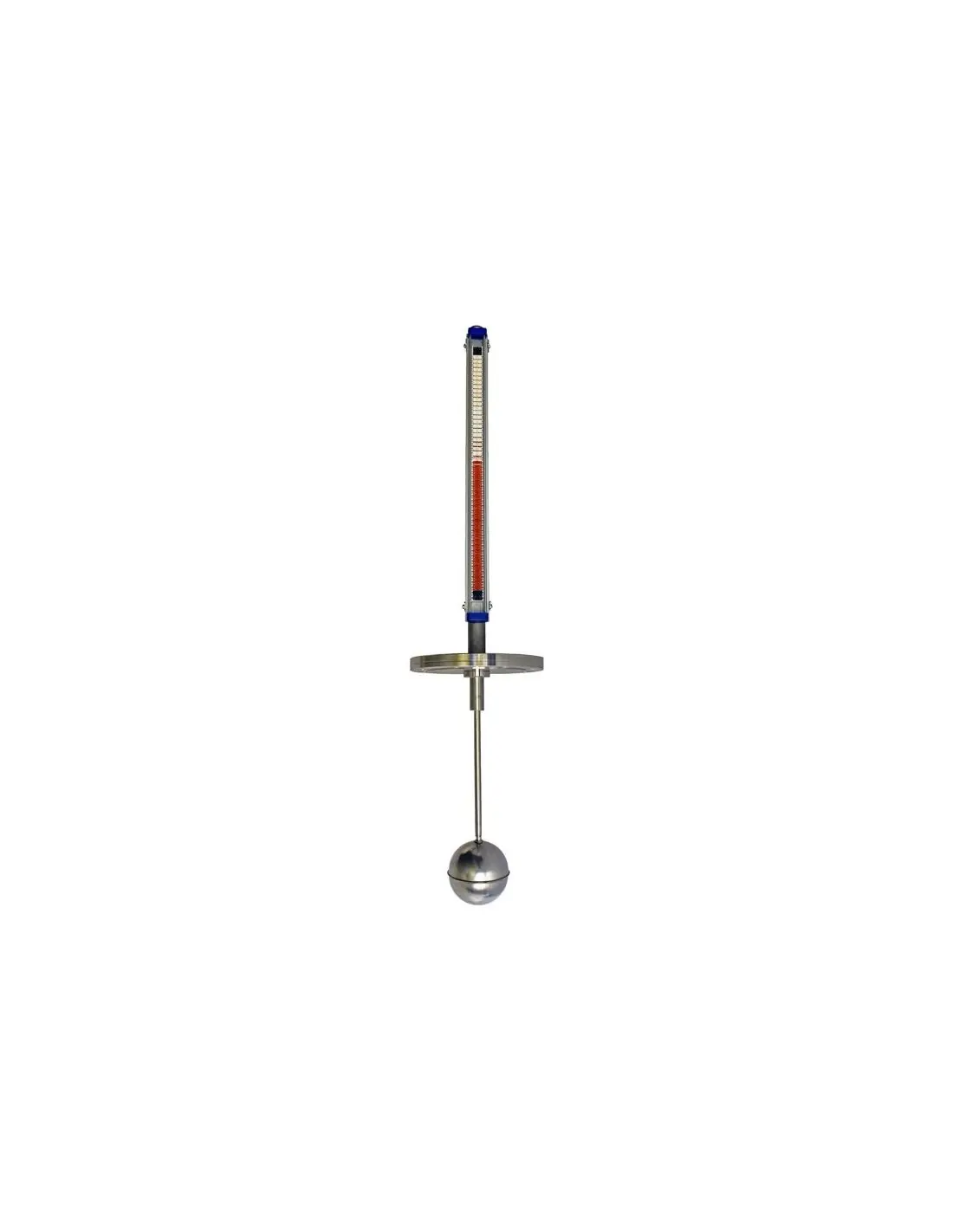

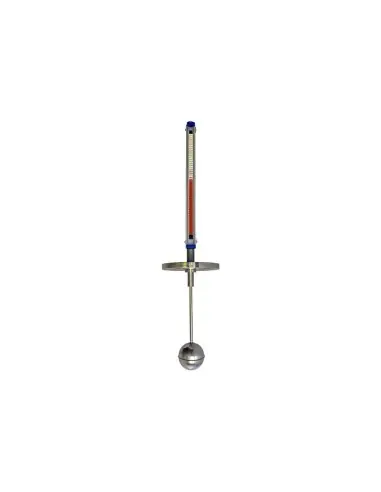

Level - Series LS | Tecfluid: Reliable Level Measurement for Industrial Demands

If you are searching for a dependable and accurate solution for industrial liquid level monitoring, the Level - Series LS | Tecfluid is your answer. Designed for industrial environments, this device brings together durability, precision, and ease of use, making it an essential tool for smooth daily operations.

Features and Benefits of Level - Series LS | Tecfluid

  • Unmatched Reliability: Built to withstand harsh industrial conditions, this level switch operates dependably in high-pressure and high-temperature environments without fail.
  • Easy Installation: Simple to set up, the Series LS can be integrated into your existing system quickly, reducing downtime and ensuring a hassle-free experience from day one.
  • High Precision: Advanced technology ensures accurate liquid level detection, eliminating false alarms and guaranteeing your tanks, silos, or pipelines always operate safely within set parameters.
  • Low Maintenance: With robust construction and quality materials, you’ll spend less time on maintenance and more time focusing on production.
  • Wide Compatibility: Suited for a range of industrial liquids, from water to oils and chemicals, its versatility makes it the practical choice for any facility.

The Level - Series LS | Tecfluid features a clever float mechanism that responds to changes in liquid level. When the liquid rises or drops, the switch activates instantly, providing real-time feedback to your control system. This ensures processes stay consistent and safe, preventing spills or costly downtime.

Its user-friendly design means no need for specialized training. Anyone on your team can understand how it works and perform quick checks. That simplicity translates to increased confidence and smoother operations throughout your plant.

Not only is the Series LS a reliable guardian for your tanks, but its rugged build means it lasts for years, no matter the workload. That’s true value: a device you can trust, built to keep up with demanding industrial applications, and simple enough for any user to master.

Description

Description

Indicador/detector/transmisor de nivel de líquidos de construcción simple, apto para condiciones de alta presión y temperatura.

La indicación de nivel por transmisión magnética asegura un sistema estanco total sin posibilidad de fugas. Posibilidad de ajuste de automatismos en toda la escala. Excelente resistencia química y mecánica.

Technical specifications

Local indication by means of magnetic strips or external float in a glass tube

Measuring range

  • 150 mm … 15 m (depending on manufacturing material)

Accuracy

  • ±4 mm

Connections

  • EN 1092-1 or ANSI flanges
  • BSP or NPT thread fittings
  • Other flanges and connections on request
  • Tank top mounted

Materials

  • EN 1.4404 (AISI 316L)
  • Others on request

Options

  • Adjustable limit switches
  • 4-20 mA analog output, Ex version on request
  • HART ™, PROFIBUS, FIELDBUS protocols available on request

Declarations of conformity

Certifications
