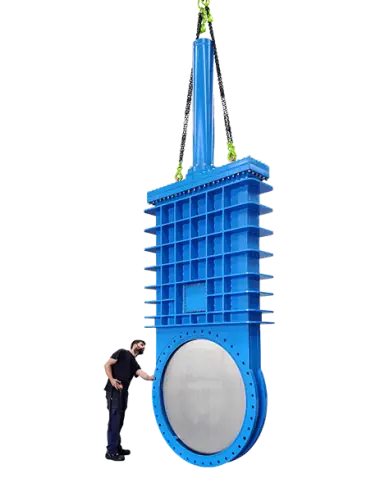

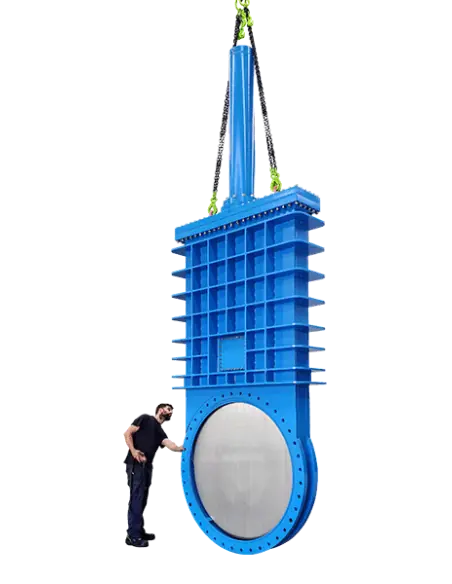

Zubi Fabricated Single Wedge Knife Gate Valve

The Zubi Fabricated Single Wedge is a flanged knife gate valve with a welded construction, available in unidirectional or bidirectional seat configurations. It is used in large diameter pipelines or services requiring a robust welded body instead of a cast body. The face-to-face dimensions are manufacturer standard.

Construction

  • Single-piece welded body and bonnet.
  • Bolted top cover to minimize atmospheric leakage.
  • Polished stainless steel blade on both sides with rounded edges.
  • Compact packing area for reduced potential leakage surface.
  • Full bore flow with low pressure drop for on/off isolation.

Sizes, Pressures, and Connections

  • Sizes: DN900–DN2000
  • Operating pressure: up to 10 bar
  • Higher pressures: subject to technical review
  • Flanges: PN6/10/16/25/40, ANSI 125/150, BST D/E, JIS 5K/10K, AS-2129 D/E
  • Sealing: metal/metal, PTFE, or watertight execution.

Applications

Commonly used in pulp & paper, power plants, water/wastewater, powder & bulk handling, mining, chemical industry, and food/beverage sectors. For slurry or solid loads, seat and blade selection should consider abrasiveness, temperature, pH, and leakage requirements.

Materials and Actuation

Body: AISI304L, AISI316L, 254SMO, 654SMO, AISI310, 904L, Duplex SAF2205, Superduplex SAF2507, AISI316Ti.
Seat: EPDM, NBR, Silicone, Viton, Graphite, Flucast, PTFE.
Blade: AISI304L, AISI316L, Hardox, or special stainless/duplex alloys.
Packing: Synt+PTFE, PTFE, graphite, ceramic, or greased cotton.

Actuation options include gearbox, gearbox + chain-wheel, electric or hydraulic actuators. Optional features: limit switches, proximity sensors, locking devices, stem extension, regulation V-ports, and cleaning holes.

Description

Main Features

  • Face to face as per manufacturer standard. (Others to be confirmed).
  • Single piece welded body and bonnet.
  • Provided with top cover (bolted bonnet) to prevent leak to the atmosphere.
  • Polished stainless steel gate in both sides and with rounded edges to ensure life of the seat.
  • Minimum packing area, reduced leak risk and maintenance.
  • High flow rates and minimum pressure drop design

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • DN900 to DN2000: Up to 10 bar

SIZES & PRESSURES

  • DN50 to DN250: 10 bar
  • DN300 to DN450: 6 bar
  • DN500 to DN600: 4 bar
  • DN700 to DN1600: 2 bar

(Higher design pressures on request)

TIGHTNESS

  • Metal/Metal
  • PTFE
  • Watertight

MATERIALS

BODY  AISI304L, AISI316L, 254SMO, 654SMO, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti. SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE.

SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE.

GATE AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

PACKING SYNT+PTFE, Pure PTFE, GRAPHITE, CERAMIC, Greased COTTON.

ACTUATORS

Hydraulic, electric, gear box, Gear Box + chain-wheel.

ACCESSORIES AND OPTIONS

Limit switches, proximity sensors, locking devices, extension, regulation v-ports, cleaning holes, etc.
