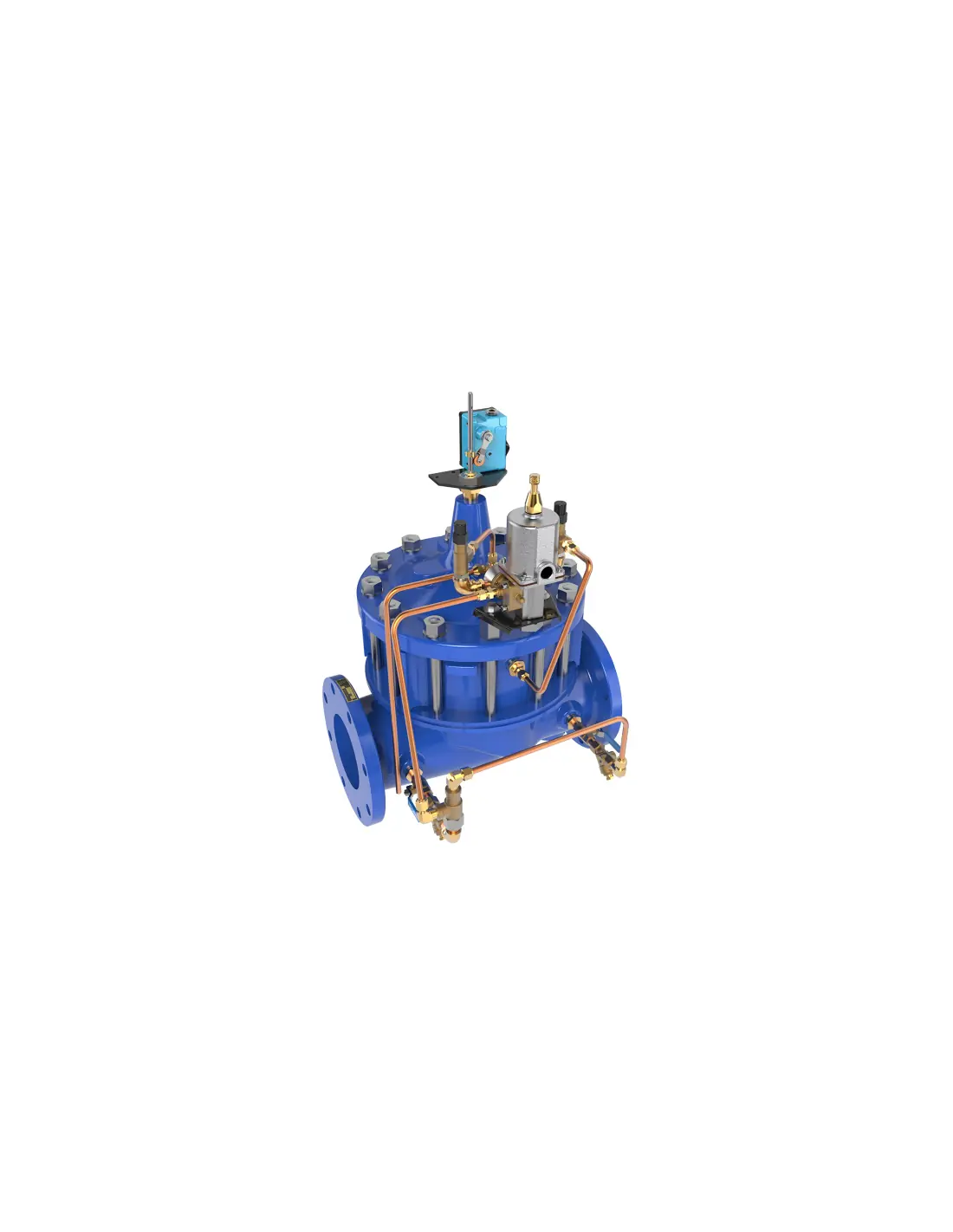

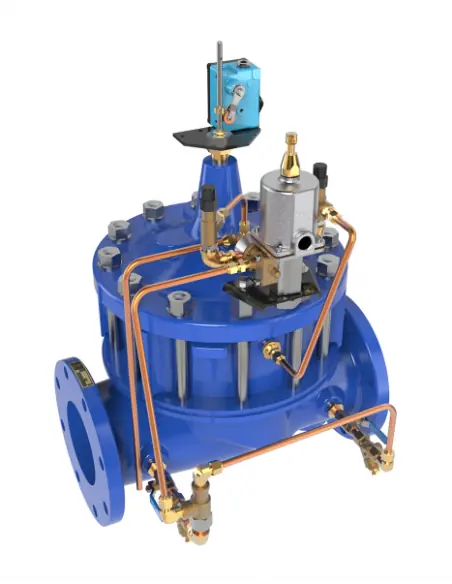

Cla-Val 60-11 / 660-11 – Pump Discharge Booster Control Valve

The Cla-Val 60-11 / 660-11 is a pilot-operated control valve designed for installation on the discharge side of booster pumps. It utilizes line pressure for actuation and is engineered to minimize hydraulic transients during pump start-up and shutdown sequences.

Operating Sequence

The pump starts with the valve in the closed position. The CSM11 solenoid is energized, causing the valve to open gradually and allowing line pressure to increase to the required setpoint. On shutdown, the solenoid is de-energized, the valve closes in a controlled manner, and the X105LCW limit switch releases the pump starter circuit.

Technical Specifications

• Main valve: 100-03 Powercheck
• Integrated lift-type check feature
• Available sizes (60-11): DN65–DN200
• Body configurations: globe or angle pattern
• Connections: threaded or flanged, depending on size
• Flange classes: ANSI 150 / 300
• Body materials: ASTM A536 ductile iron, ASTM A216 WCB steel, UNS 87850 bronze
• Disc/diaphragm: Buna-N, reinforced diaphragm
• Stem, nut, spring: stainless steel
• Water temperature: up to 82 °C
• Maximum solenoid pressure: 300 psi

Applications

• Water supply pumping stations
• Booster pumps in distribution networks
• Industrial water systems
• Installations requiring electrical interlock
• SCADA integration via PC-22D interface

Valve Selection

Valve sizing is based on pump flow rate and allowable pressure drop. Select the smallest size that meets the required flow. Oversizing reduces the valve’s ability to control transient events. For applications with pressure below 10 psi, consult technical support for suitability.
