3-Way Ball Valve with Heating Jacket 4G Ghidini 303027C

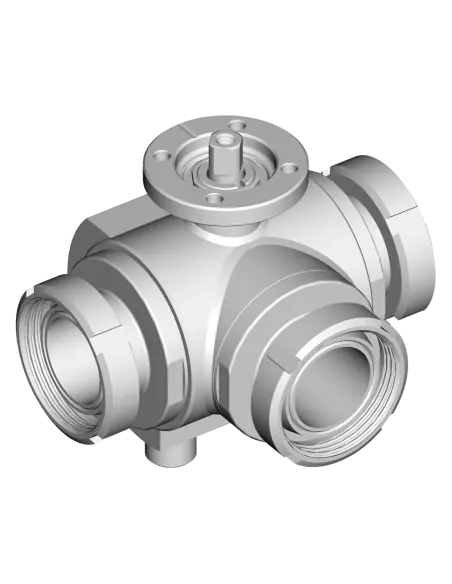

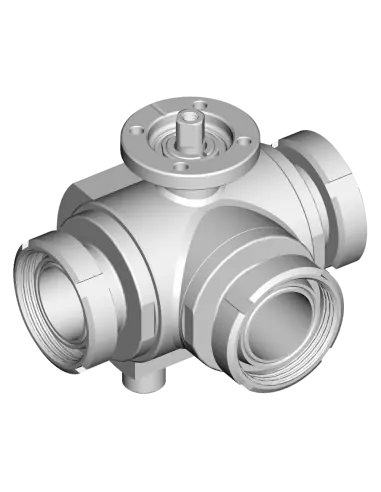

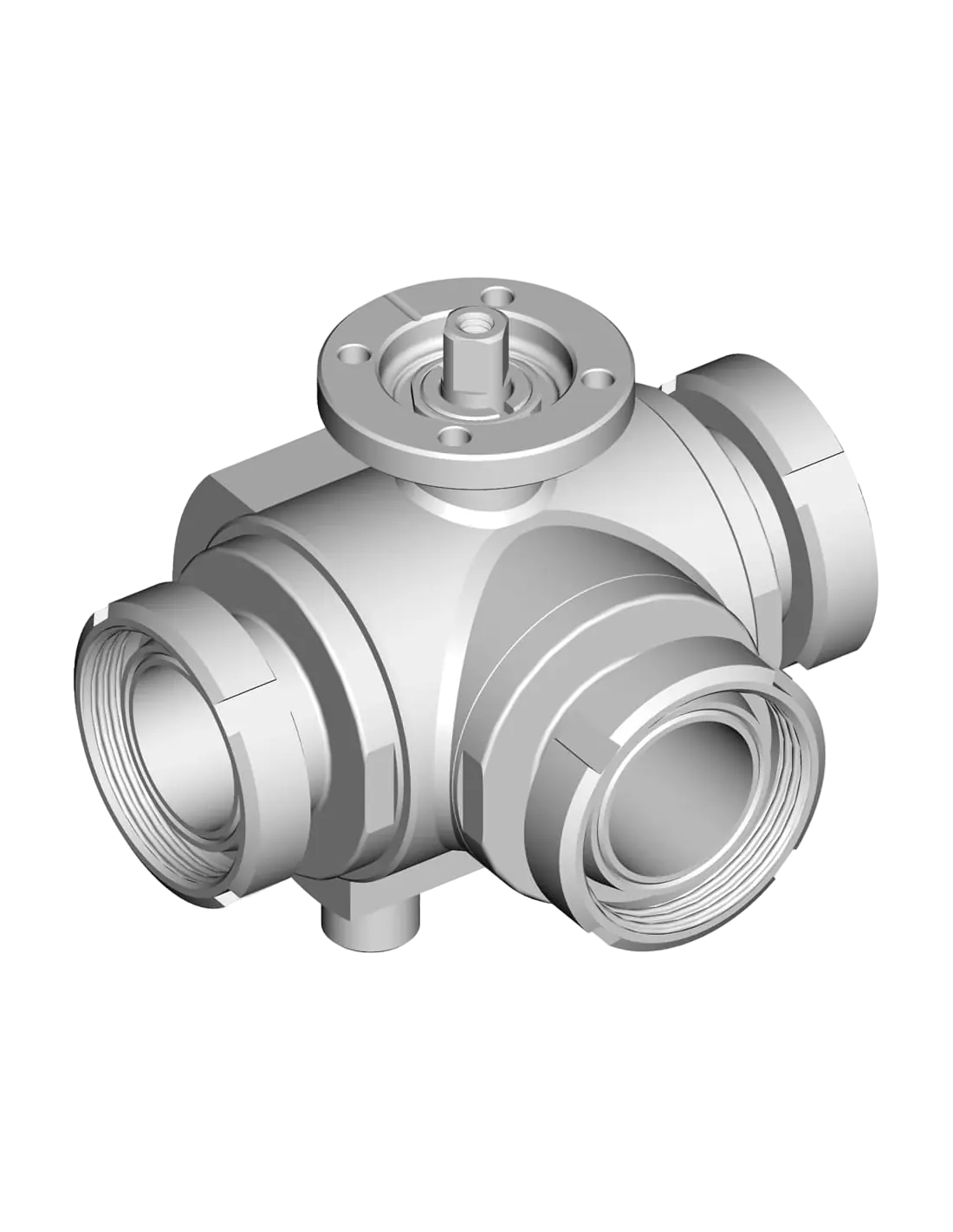

Three-way T-port ball valve with heating jacket, 4-seal configuration, and DIN 11851 male/male/male connections. Model 303027C features an upper flange ISO 5211 / DIN 3337 for pneumatic or electric actuator mounting, in contrast to the manually operated 300xxx series.

Technical Data

• Body materials: AISI 304L / 1.4307 or AISI 316L / 1.4404
• Sizes: DN10 to DN100
• Bore: full bore
• Seats: modified virgin PTFE
• Operating temperature: -20°C to +170°C
• Finish: external polished
• Pressure: PN100 up to DN20, PN64 DN25–DN40, PN40 DN50–DN80, PN16 DN100
• Jacket connections: 3/8" for small DN, 1/2" from DN32 upwards

T-Port Operation

The T-type ball enables switching, mixing, or bypass between three branches. Final operating position must be indicated on the P&ID, as port communication depends on actuator rotation angle.

Heating Jacket

The jacket is used for media that increase in viscosity, solidify, or crystallize at lower temperatures. Typical applications: syrups, fats, waxes, resins, chocolate, and temperature-sensitive chemicals. Thermal supply should be calculated with pipe insulation and product residence time.

Sealing Options

On request: PTFE with glass up to +170°C, PTFE with carbographite up to +180°C, PTFE with stainless steel up to +200°C, UHMW-PE up to +80°C. Antistatic design ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db and M.O.C.A. CE 1935/2004 compliance available.

FAQ

When is 303027C selected over 300127C?
When a DIN 11851 male three-way heated valve with ISO 5211 actuator interface is required.

Is this a control valve?
Not for throttling. Designed for on/off diversion, mixing, or bypass duties.
