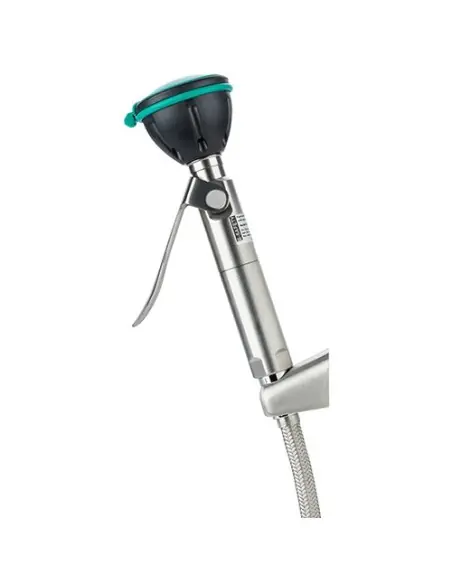

Hand-held eye shower with one spray head - PremiumLine - BR 718 030 | B-Safety

Advanced Protection & Comfort: Hand-held Eye Shower with One Spray Head - PremiumLine - BR 718 030 | B-Safety

When every second counts during workplace emergencies, the Hand-held Eye Shower with One Spray Head - PremiumLine - BR 718 030 | B-Safety stands ready to deliver reliable and immediate eye protection. Specifically designed for industrial use, this premium eye shower combines technical excellence with user-friendly operation, ensuring maximum safety at any moment.

Features & Benefits: Hand-held Eye Shower with One Spray Head - PremiumLine - BR 718 030 | B-Safety

  • Instant Activation: Quickly delivers a soft, consistent flow of water for immediate first aid in case of eye contamination by dust, chemicals, or debris.
  • Ergonomic Hand-held Design: Lightweight and comfortable to handle, allowing any user to direct water precisely where needed without hassle.
  • Durable Premium Materials: Crafted from robust, corrosion-resistant components to withstand demanding industrial environments and daily use.
  • High-Performance Spray Head: Provides a gentle yet thorough rinse, efficiently removing contaminants without causing further irritation.
  • Simple Installation: Easy to connect to existing water lines, reducing setup time and ensuring readiness in high-risk zones.
  • Low Maintenance: Designed with minimal moving parts, making cleaning and upkeep quick, so downtime is never an issue.

Enhance safety compliance in every workspace with the Hand-held Eye Shower with One Spray Head - PremiumLine - BR 718 030 | B-Safety. Its intuitive design means anyone can operate it swiftly, even under pressure. The comfortable grip and flexible hose allow for precise rinsing, making it ideal for targeted eye washing. The advanced spray head ensures water flows at the optimal pressure—gentle on eyes, but effective against irritants.

Built to last, this premium eye shower resists corrosion, scratches, and industrial wear, offering dependable performance shift after shift. Its compact design fits easily into various workplace setups, from laboratories and workshops to chemical industries. By meeting strict safety standards, it brings peace of mind, knowing essential first aid is always within reach.

Choose the Hand-held Eye Shower with One Spray Head - PremiumLine - BR 718 030 | B-Safety for unparalleled reliability and user comfort—because safety should never be compromised.

Datasheet and documents

Description

Technical Specifications

  • Material: Stainless steel
  • Surface: polished
  • Dimensions (H x W): 210 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

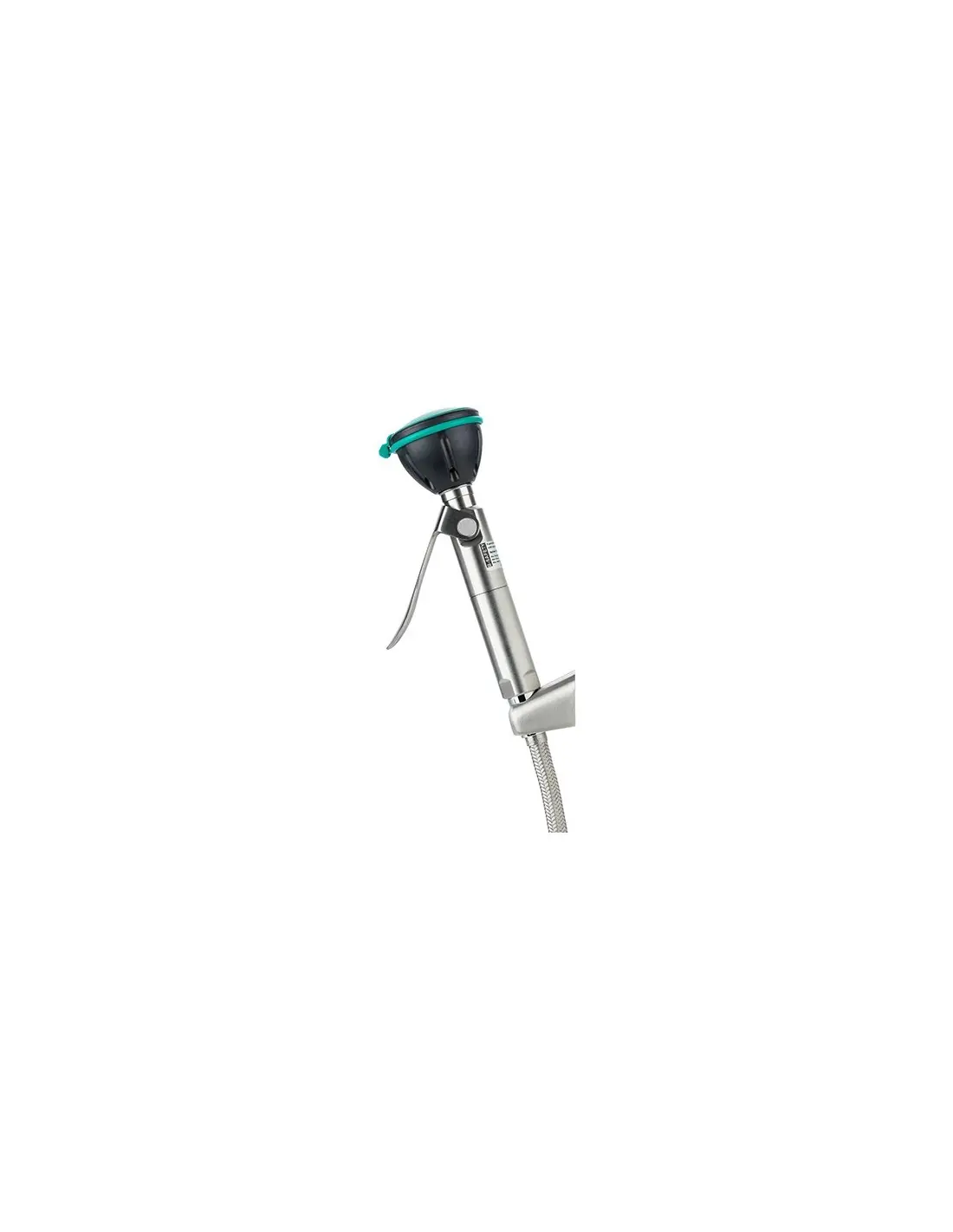

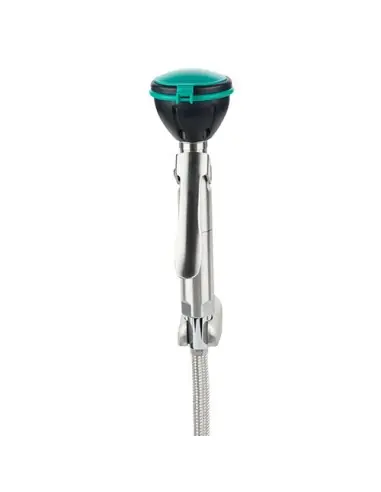

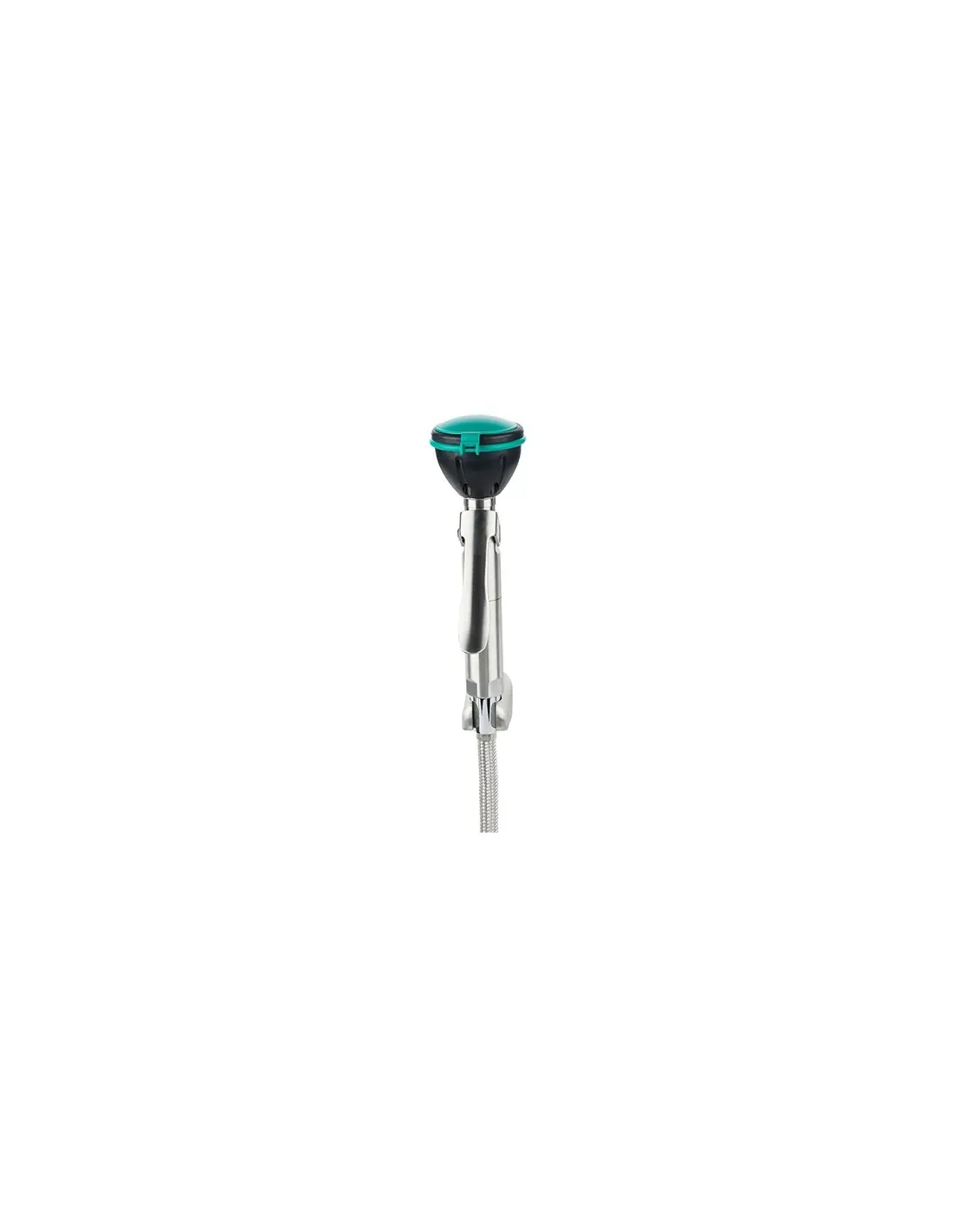

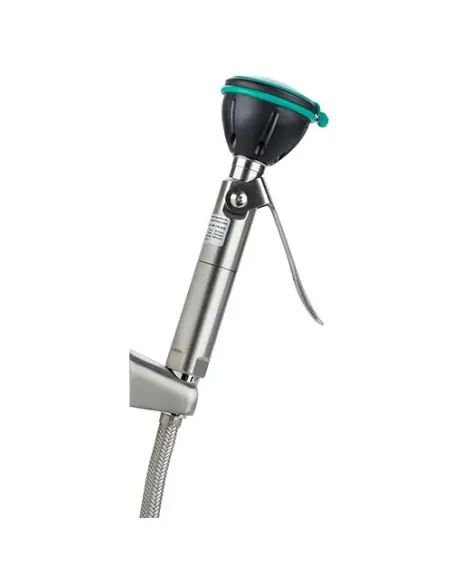

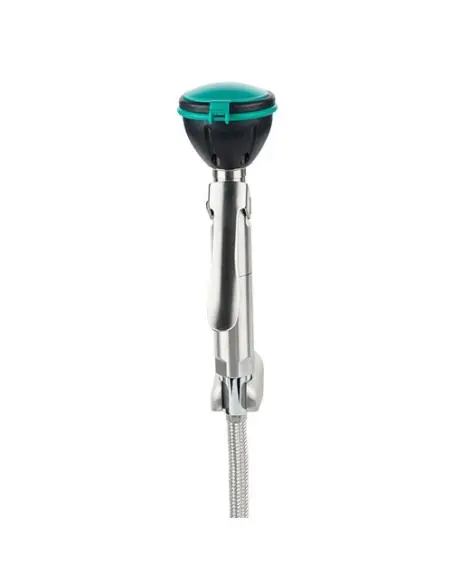

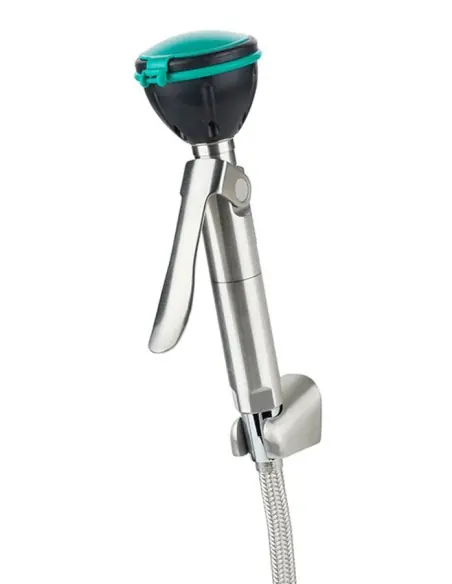

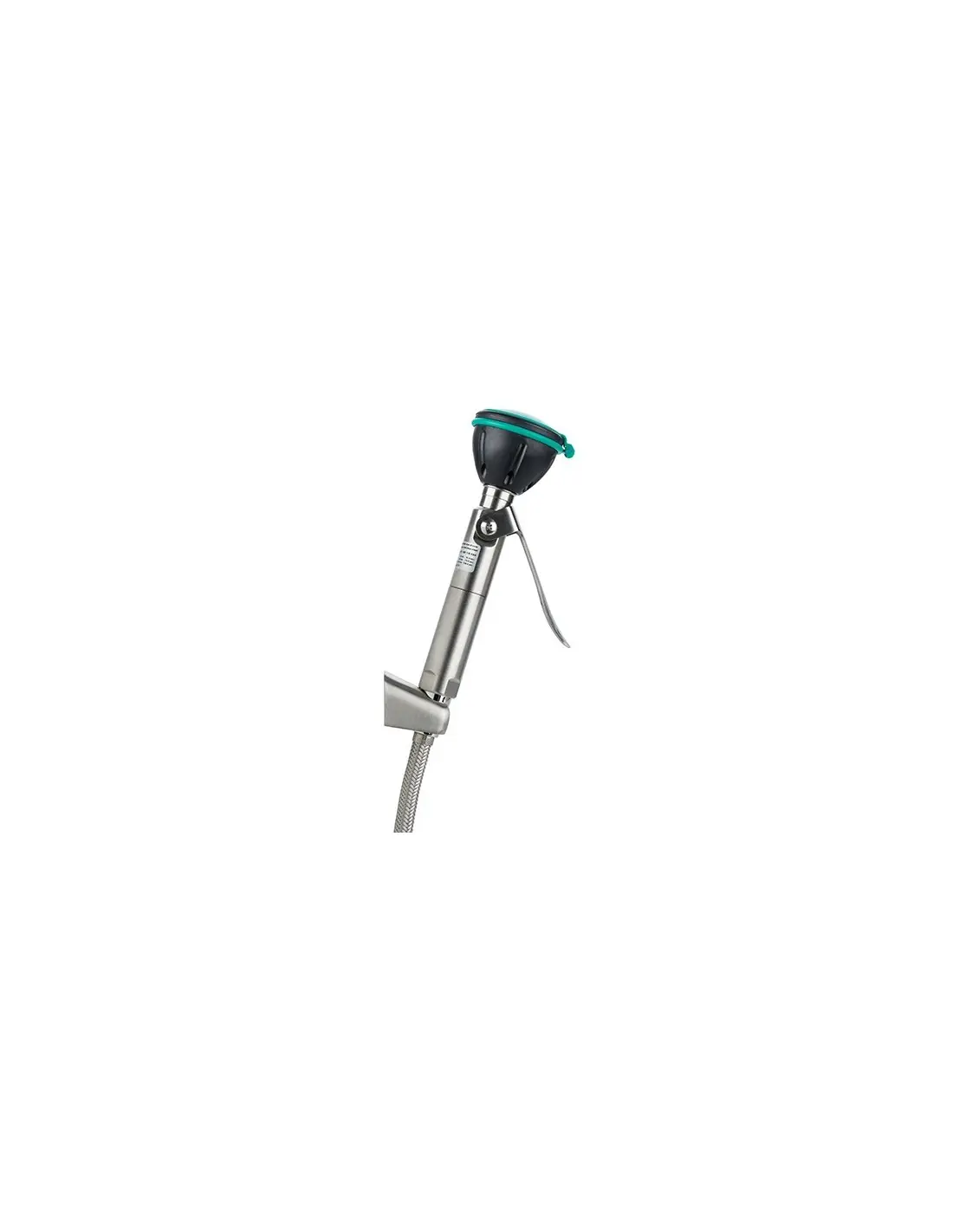

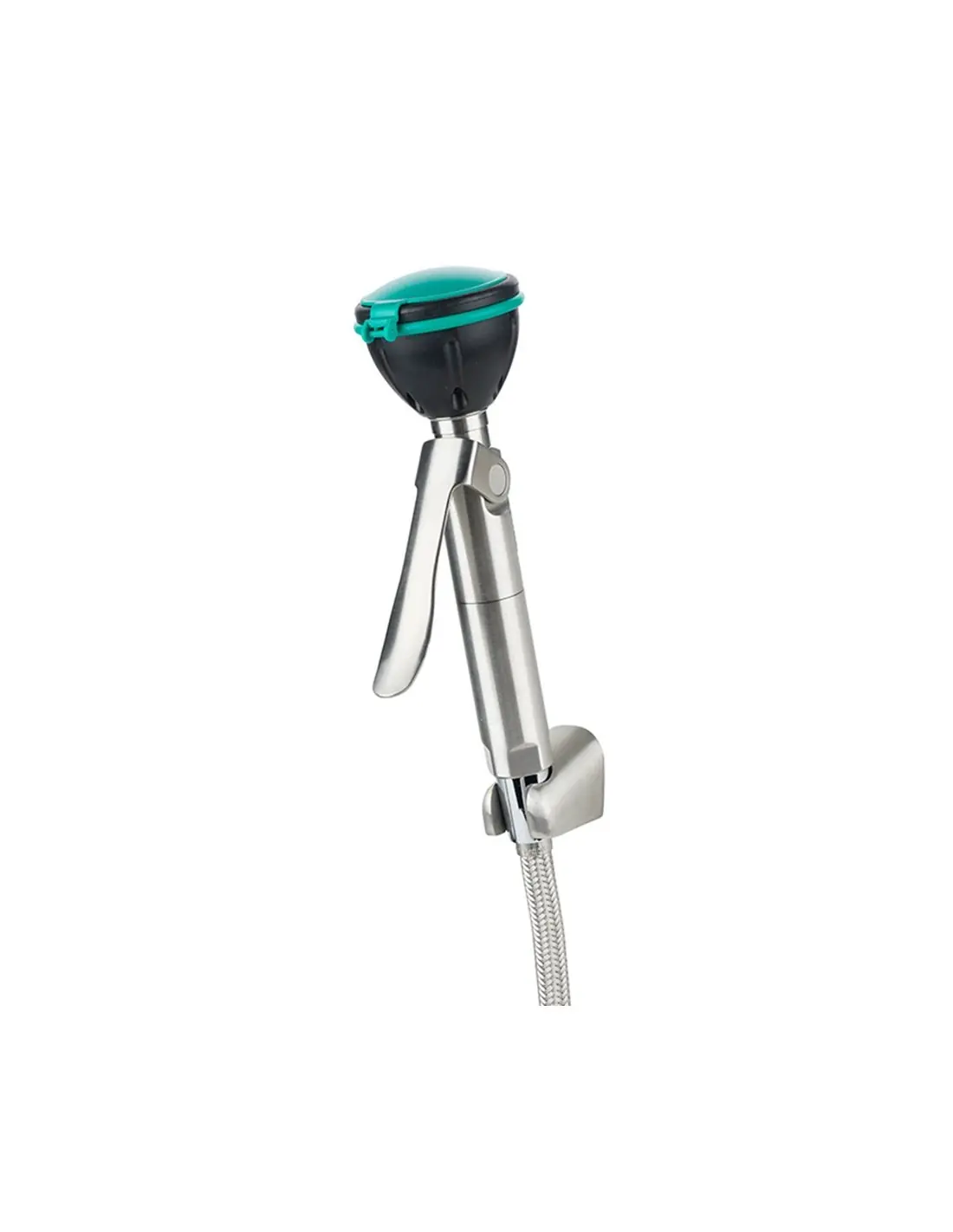

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the enclosed sturdy stainless steel wall bracket, the hand-held eye shower can be mounted on the wall at an angle of 20° in the direction of the user. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

DVGW
ISO9001_D_72

Technical Description

  • water-bearing parts made of stainless steel
  • Handle with large, adjusting push lever made of stainless steel, polished, valve not self-closing
  • high-performance spray head made of stainless steel for large-scale dispersion of water, polished, with plastic spray plate, low calcification, incl. rubber sleeve and sealed dust cap with folding mechanism
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • robust wall mounting bracket 20° made of stainless steel, polished, incl. 2x large mounting holes
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • mounting height 770 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
