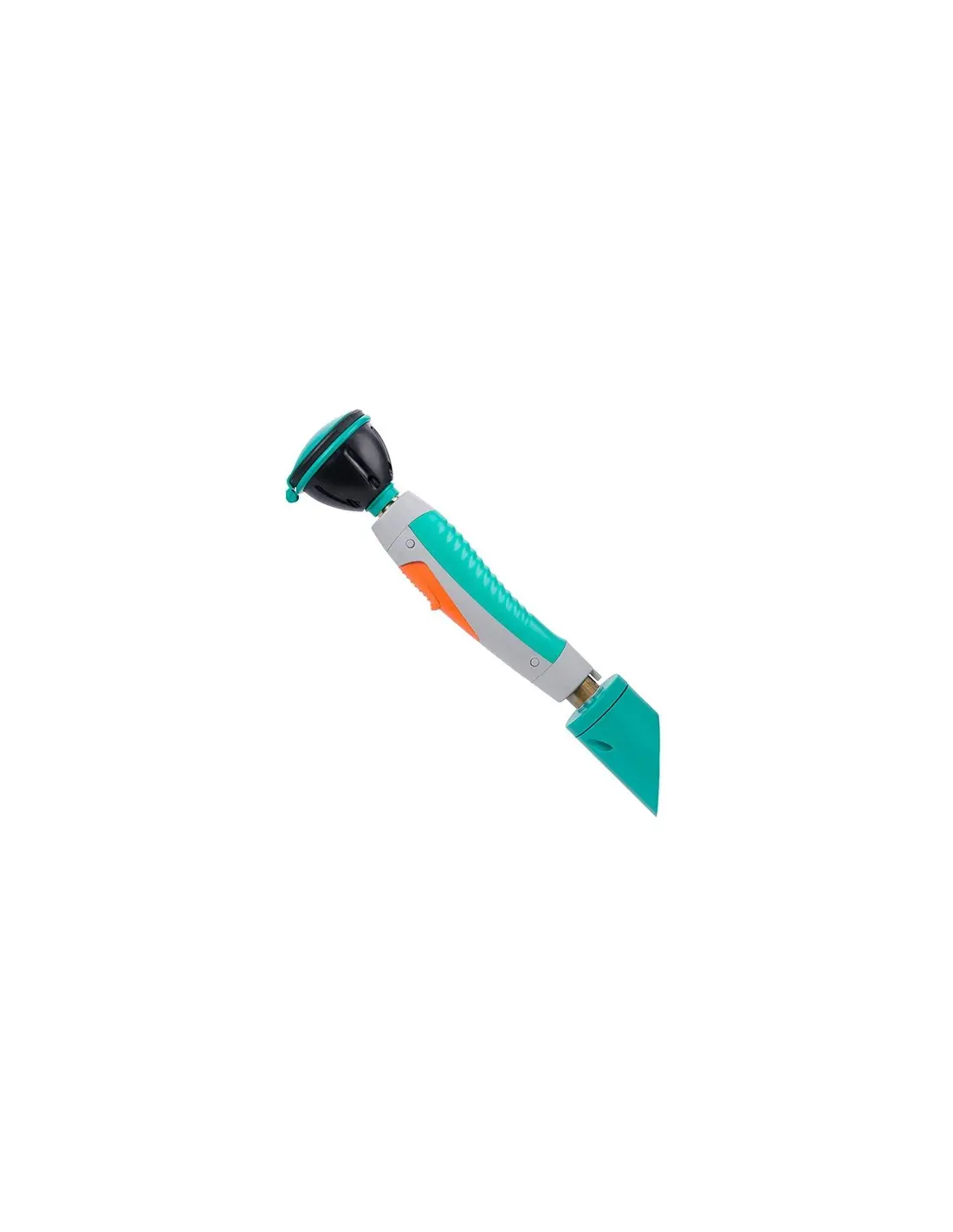

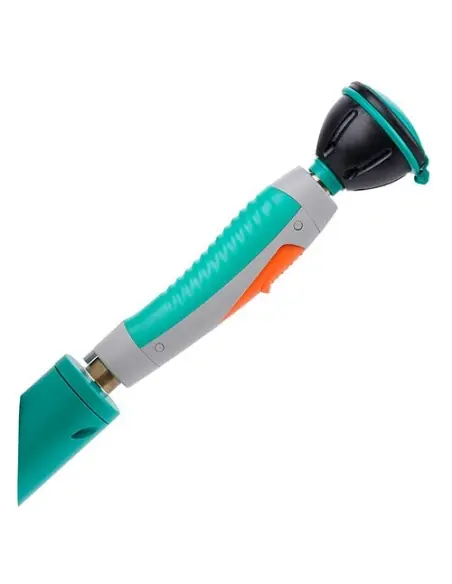

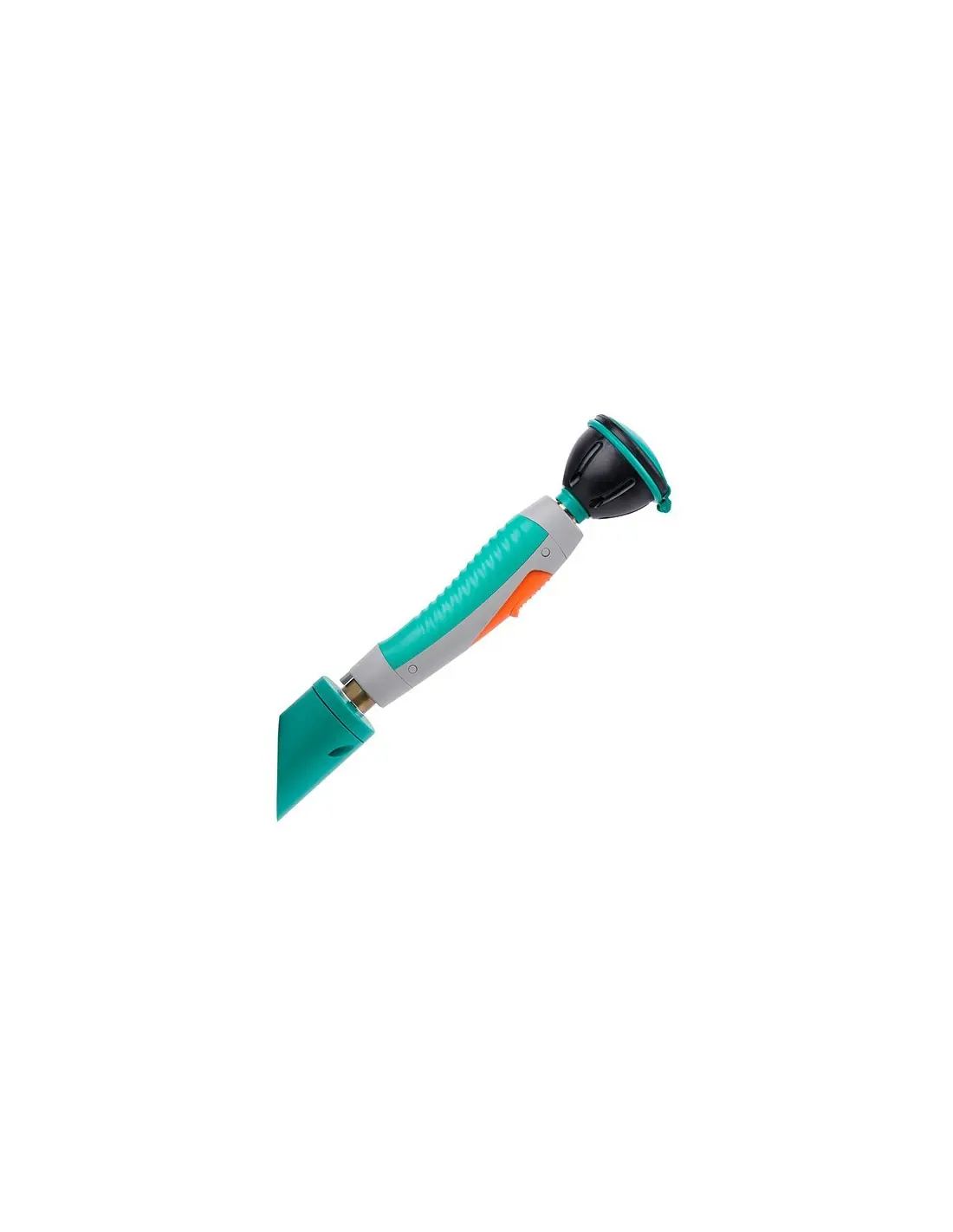

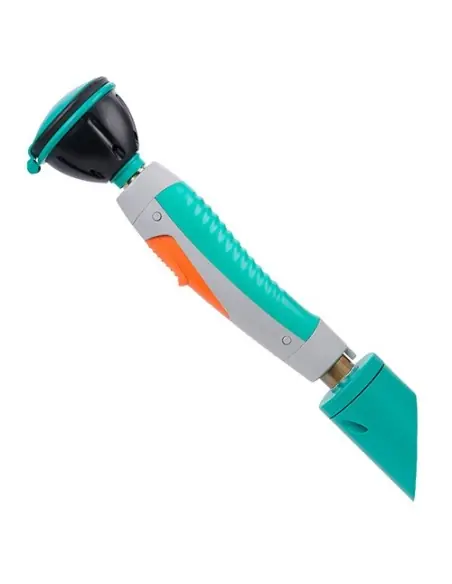

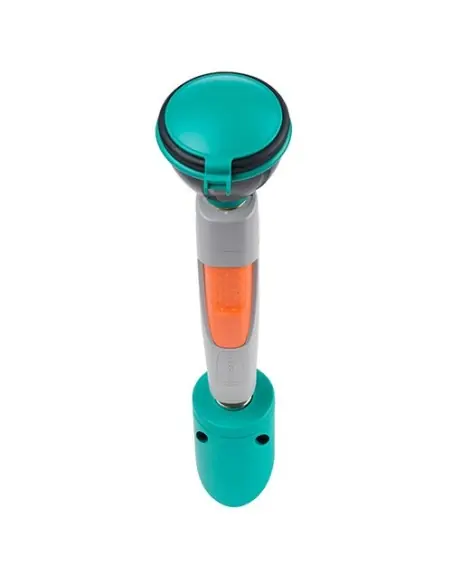

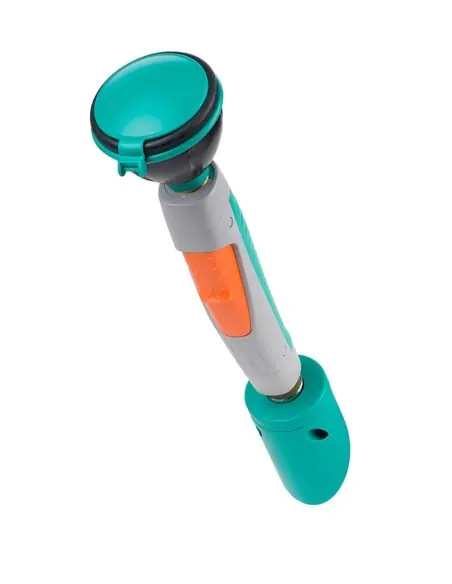

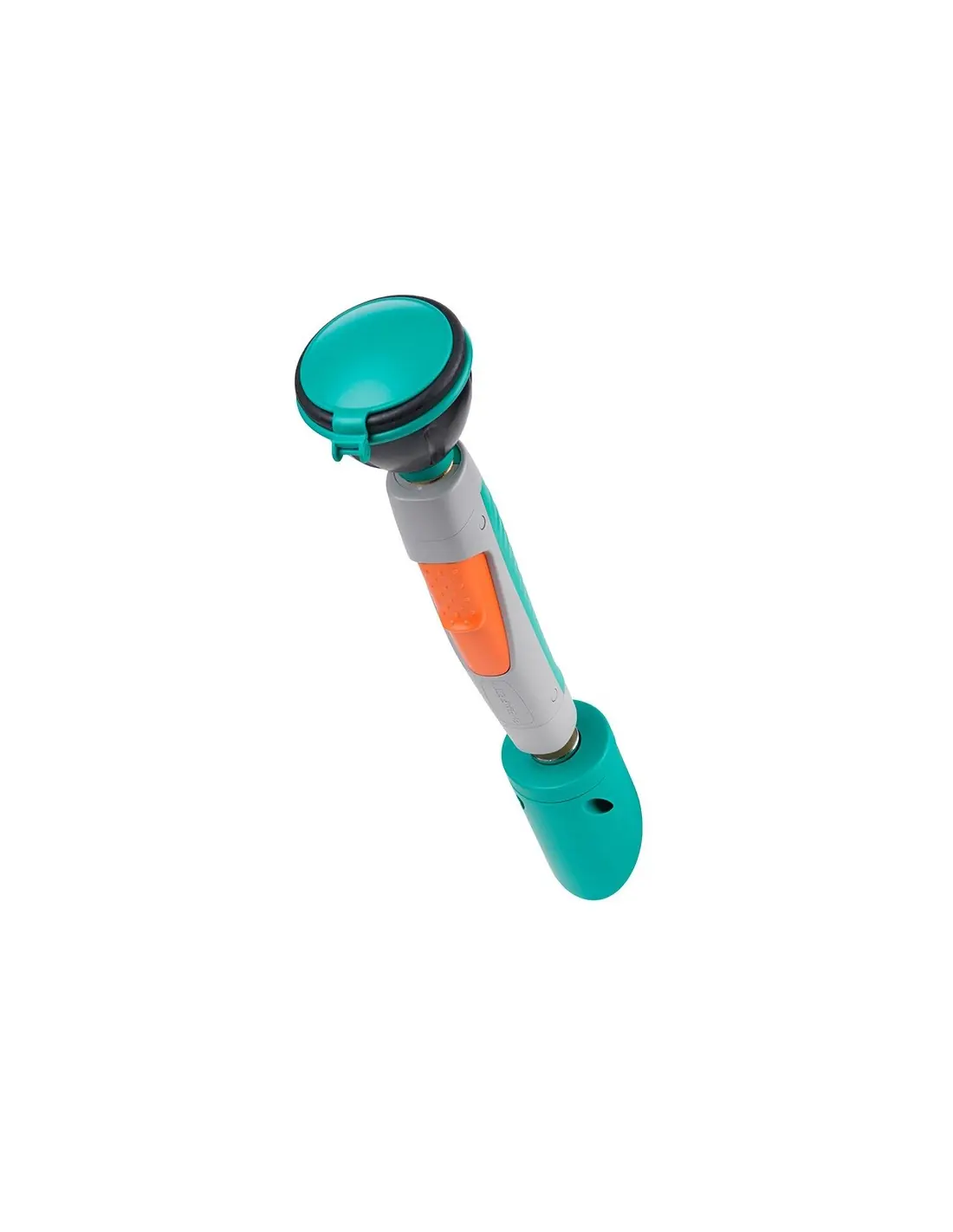

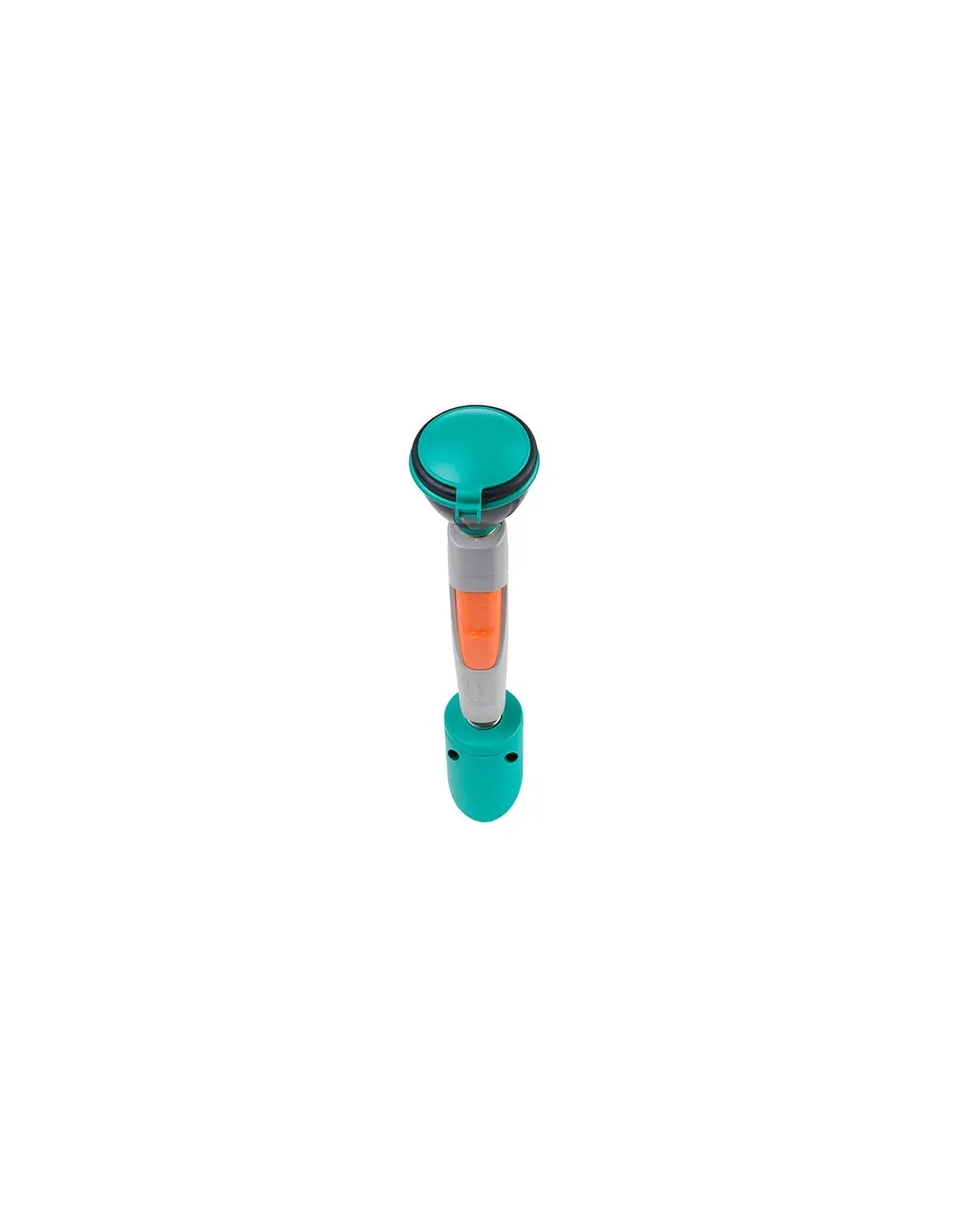

Hand-held eye shower with one spray head - ClassicLine - BR 712 035 | B-Safety: Safety in Your Hands

The Hand-held eye shower with one spray head - ClassicLine - BR 712 035 | B-Safety is the reliable safety solution for any industrial environment. In the event of an emergency, speed and efficiency matter. This hand-held eye shower is designed to provide instant response, protecting users against hazardous substances that can harm the eyes.

Features & Benefits of Hand-held eye shower with one spray head - ClassicLine - BR 712 035 | B-Safety

  • Compact and Flexible: The hand-held design ensures easy positioning and direct control, making it perfect for quick use exactly where it’s needed.
  • Comfortable Spray Head: The single spray head delivers a gentle yet effective flow, thoroughly rinsing the eyes while avoiding unnecessary pressure or discomfort.
  • Robust Construction: Built for industrial settings, the ClassicLine range offers durability and longevity, standing up to tough daily use.
  • Simple Activation: Easy-grip handle allows for fast activation, crucial in an emergency where every second counts.
  • Water Flow Control: The shower provides a consistent water flow, ensuring effective rinsing to help reduce eye irritation or damage from chemicals or particles.
  • Wall-mounting Option: Includes mounting components so you can fix it to a convenient location, keeping the shower easily accessible at all times.

This eye shower is more than just a safety tool; it’s peace of mind for your team. Its straightforward operation means anyone can use it—no training required. The device is specifically crafted for environments where hazardous materials are present, such as laboratories, factories, or workshops. Its highly visible design makes it easy to find, even in a hurry.

The Hand-held eye shower with one spray head - ClassicLine - BR 712 035 | B-Safety meets rigorous industrial standards, ensuring dependable performance during emergencies. It’s the smart choice to help protect your most valuable asset: your people's safety.

Equip your workplace with this essential safety device and be prepared for the unexpected.

Datasheet and documents

Description

Technical Specifications

  • Material: brass, plastic
  • Color: grey, green, orange
  • Dimensions (H x W): 240 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the enclosed 45° wall bracket, the hand-held eye shower can be mounted in laboratory furniture The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

DVGW
ISO9001_D_72

Technical Description

  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, with plastic spray plate, low calcification with rubber sleeves and sealed dust caps
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • 45° wall bracket, front mounted, incl. 2x large mounting holes, rosette plastic, green, O-ring as sealing to the wall surface, front side 45° wall adapter with 2 mounting holes, plastic cover as hose barrier, mounting instructions
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • mounting height 770 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
